SAXSdb — 8g99

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8g99
沉积日期 deposition_date	2023-02-21
结构标题 title	Partial auto-inhibitory complex of Xenopus laevis DNA polymerase alpha-primase
关键词 keywords	Primase, DNA polymerase, chimeric RNA-DNA primer, RNA/DNA hybrid, DNA replication, DNA synthesis, REPLICATION, TRANSFERASE; REPLICATION, TRANSFERASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.82 Å
回转半径 Rg (电子) rg_electron	40.09 Å
零角强度 I(0) i0	665662000.00
分子量 molecular_weight	214780.0 kDa
排除体积 excluded_volume	270240 Å³
包络体积 envelope_volume	368990 Å³
水化壳体积 shell_volume	74029 Å³
包络直径 envelope_diameter	128.5 Å
壳层 Rg shell_rg	47.74 Å
包络 Rg envelope_rg	39.39 Å
形状 Rg shape_rg	40.08 Å
总 Rg total_rg	40.53 Å
总原子数 total_atoms	30205
残基数 n_residues	1875
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	125.4 Å
Rg (实空间) rg_real	40.59 Å
Rg 误差 (实空间) rg_real_error	0.68 Å
I(0) (实空间) i0_real	6.6570e+08
I(0) 误差 (实空间) i0_real_error	1.1000e+07
Rg (倒空间) rg_reciprocal	40.82 Å
I(0) (倒空间) i0_reciprocal	665800000.0000
解质量估计 total_estimate	0.9055
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	54.6 Å
偏度 Skewness skewness	0.050
峰度 Kurtosis kurtosis	-0.610
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	89500000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.963

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	DNA polymerase alpha catalytic subunit
分子量 formula_weight	129009.4 kDa
EC 编号 ec_number	2.7.7.7
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	30205

SNAADGSQVFRFYWLDAYEDQYSQPGVVYLFGKVWIESADAYVSCCVSVKNIERTVYLLPRENRVQLSTGKDTGAPVSMMHVYQEFNEAVAEKYKIMKFKSKKVDKDYAFEIPDVPASSEYLEVRYSADSPQLPQDLKGETFSHVFGTNTSSLELFLLSRKIKGPSWLEIKSPQLSSQPMSWCKVEAVVTRPDQVSVVKDLAPPPVVVLSLSMKTVQNAKTHQNEIVAIAALVHHTFPLDKAPPQPPFQTHFCVLSKLNDCIFPYDYNEAVKQKNANIEIALTERTLLGFFLAKIHKIDPDVIVGHDIYGFDLEVLLQRINSCKVPFWSKIGRLRRSVMPKLGGRSGFAERNAACGRIICDIEISAKELIRCKSYHLSELVHQILKAERVVIPPENIRNAYNDSVHLLYMLENTWIDAKFILQIMCELNVLPLALQITNIAGNVMSRTLMGGRSERNEYLLLHAFTENNFIVPDKPVFKKMQQTTVEDNDDMGTDQNKNKSRKKAAYAGGLVLEPKVGFYDKFILLLDFNSLYPSIIQEYNICFTTVHREAPSTQKGEDQDEIPELPHSDLEMGILPREIRKLVERRRHVKQLMKQPDLNPDLYLQYDIRQKALKLTANSMYGCLGFSYSRFYAKPLAALVTHQGREILLHTKEMVQKMNLEVIYGDTDSIMINTNCNNLEEVFKLGNRVKSEINKSYKLLEIDIDGIFKSLLLLKKKKYAALTVEPTGDGKYVTKQELKGLDIVRRDWCELAKQAGNYVISQILSDQPRDSIVENIQKKLTEIGENVTNGTVPITQYEINKALTKDPQDYPDKKSLPHVHVALWINSQGGRKVKAGDTISYVICQDGSNLSASQRAYAQEQLQKQENLSIDTQYYLSQQVHPVVARICEPIDGIDSALIAMWLGLDPSQFRAHRHYQQDEENDALLGGPSQLTDEEKYRDCERFKFFCPKCGTENIYDNVFDGSGLQIEPGLKRCSKPECDASPLDYVIQVHNKLLLDIRRYIKKYYSGWLVCEEKTCQNRTRRLPLSFSRNGPICQACSKATLRSEYPEKALYTQLCFYRFIFDWDYALEKVVSEQERGHLKKKLFQESENQYKKLKSTVDQVLSRSGYSEVNLSKLFQTLNTIK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	DNA polymerase alpha subunit B
分子量 formula_weight	67194.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

SNAMSVSAKSIAEELKVFDVNFEDEEVPEKMVELCTVHRLKEEDMVNEWMAFSTTRNLPLTVGNLNLLEHEVLNKKSARPRPSLKKEKHCGNRDFNTIQELIEVETAEENLLDSYATPAKGSQKRNLSTPEHPQSKRILSINRSPHVLFSPTSFSPSATPSQKYGSRTNRGEVVTTYGELQGTTWNGGSGSNTNVELFTSLDEPLTKMYKFMFQKLMDIREVVSIKIEELGASLKDHFQIDEFTSVSLPAQETVTVLGQIGCDSNGKLNSKSVILEGDREHSAGMQVPVDLSELKDYSLFPGQVVIMEGTNSTGRRFVPTKLYEGVPLPFHQPSKEFEECPQQMVITACGPFTTSDTITYDALKDLIDIVNRDRPDICILLGPFLDAKHEQIENLQLTVTFEDVFKRCLKMIIEGTRPSGCHLVIVPSLRDVHHDPVYPQPPFSCFEPAKEDKERVHFVADPCTLSVNGVVIGMTSTDLLFHMGAEEISSSAGAPDRFSRILRHILTQRSYYPLYPPNEEINIDYEALYSYTPMPVTPDVFIVPSELRYFIKDVTGCICINPGRLTKGLVGGTYARFLVKSGAMGSEGKRSTCISAQVVRV

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	DNA primase large subunit
分子量 formula_weight	59673.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MLFSRDRKYRHNTRLTGDRKGDLYPSSLQFYQHPPTENISLIEFETFAIERLKLLKAVENLGVSYVKNSEEYSKKLELELRKLKFPYRPLHEEISDDVYDLRRKDHISHFILRLAYCQSEDLRRWFIQQEMDLFKFRFGLLTKESVQEFLKLNDLQYVAISEDEKNMHKEDLMNSSFGLSLTKMEDTEFYKVPFQAALDLVRPRKVFLWRGFAFIPHKDIVSIVLNDFRAKLSKALALSARSLPVVQSDERLQPLLNHLSHSYIGQDFSSQSNTGKISLEQIDGFAAKSFPLCMRQLHKSLRENHHLRHGGRMQYGLFLKGIGLTLEQALQFWRLEFTKGKVDSEKFDKVYAYSIRHNYGKEGKRTDYTPYSCMKVILSNPPSQGDYHGCPFRHSDPELLKQKLQSFKVPSSGINQILELVKGMHYQLACQKYFELTHSVDDCGFSLNHPNQYFAESQKLLTGSREIKKEQTARDSPAVTASQLSSSSSSASIPKSQSSAPEMEDLEQIFSEY

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

结构域编号 domain_id	8g99A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	2820 —

结构域编号 domain_id	8g99A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	334066

fit	/app/data/saxs_computation/g9/8g99/8g99.fit
pddf	/app/data/pr_computation/g9/8g99/8g99.pr.out
profile	/app/data/saxs_computation/g9/8g99/8g99.dat

Partial auto-inhibitory complex of Xenopus laevis DNA polymerase alpha-primase

SAXS 散射曲线 SAXS Profile

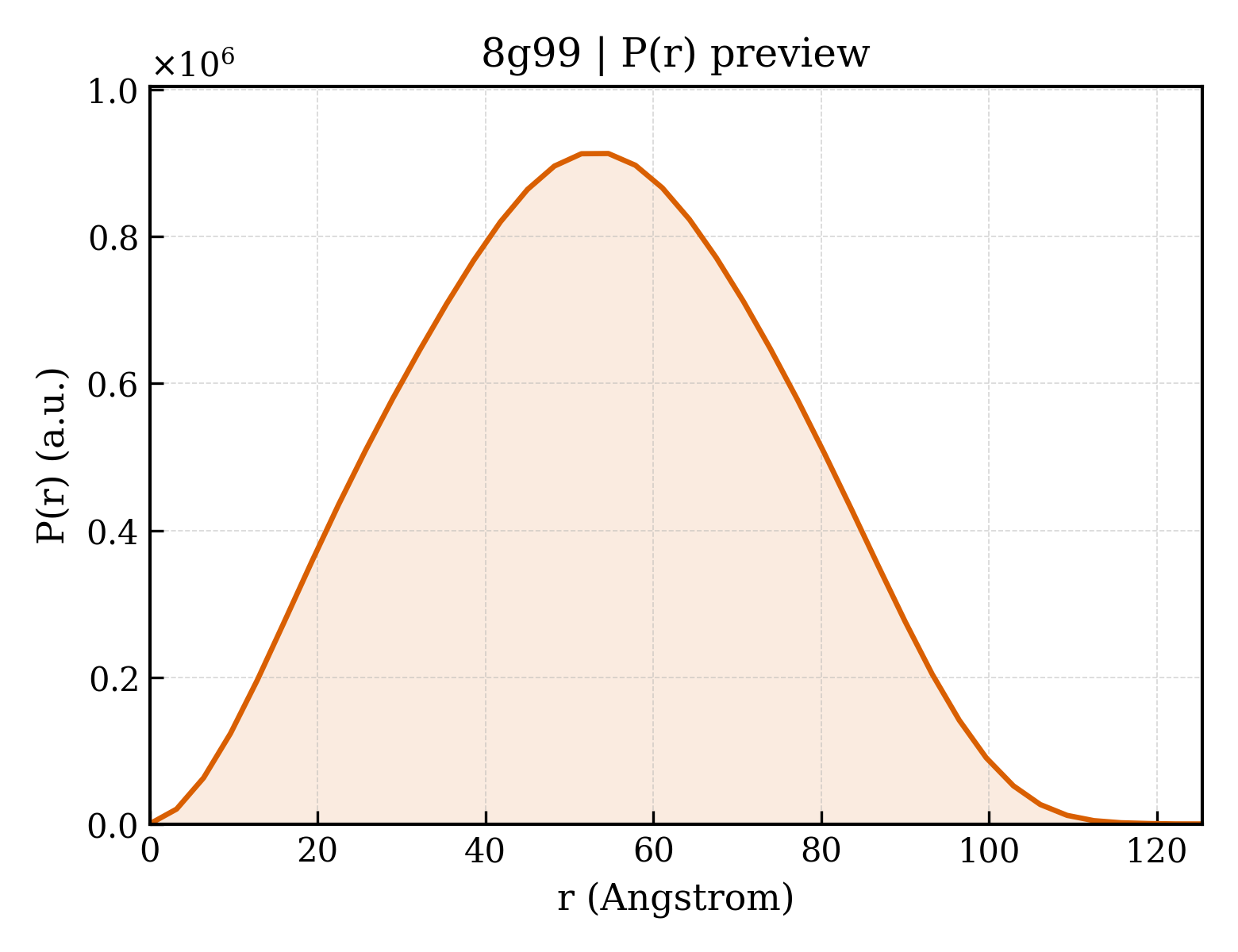

P(r) 距离分布 P(r) Distribution
