8gey

;Crystal structure of human cellular retinol binding protein 1 in complex with 4-(hydroxymethyl)-1-[(4-methoxy-5,6,7,8-tetrahydronaphthalen-1-yl)sulfonyl]piperidin-4-ol ;

Method: X-RAY DIFFRACTION D_max: 48.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8gey
沉积日期 deposition_date	2023-03-07
结构标题 title	;Crystal structure of human cellular retinol binding protein 1 in complex with 4-(hydroxymethyl)-1-[(4-methoxy-5,6,7,8-tetrahydronaphthalen-1-yl)sulfonyl]piperidin-4-ol ;
关键词 keywords	RBP1, CRBP1, retinol-binding, retinol, vitamin A, Retinol-binding protein; Retinol-binding protein
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	15.77 Å
回转半径 Rg (电子) rg_electron	14.44 Å
零角强度 I(0) i0	5648220.00
分子量 molecular_weight	16946.0 kDa
排除体积 excluded_volume	21139 Å³
包络体积 envelope_volume	23555 Å³
水化壳体积 shell_volume	13639 Å³
包络直径 envelope_diameter	48.9 Å
壳层 Rg shell_rg	20.50 Å
包络 Rg envelope_rg	14.72 Å
形状 Rg shape_rg	14.45 Å
总 Rg total_rg	15.60 Å
总原子数 total_atoms	2356
残基数 n_residues	139
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

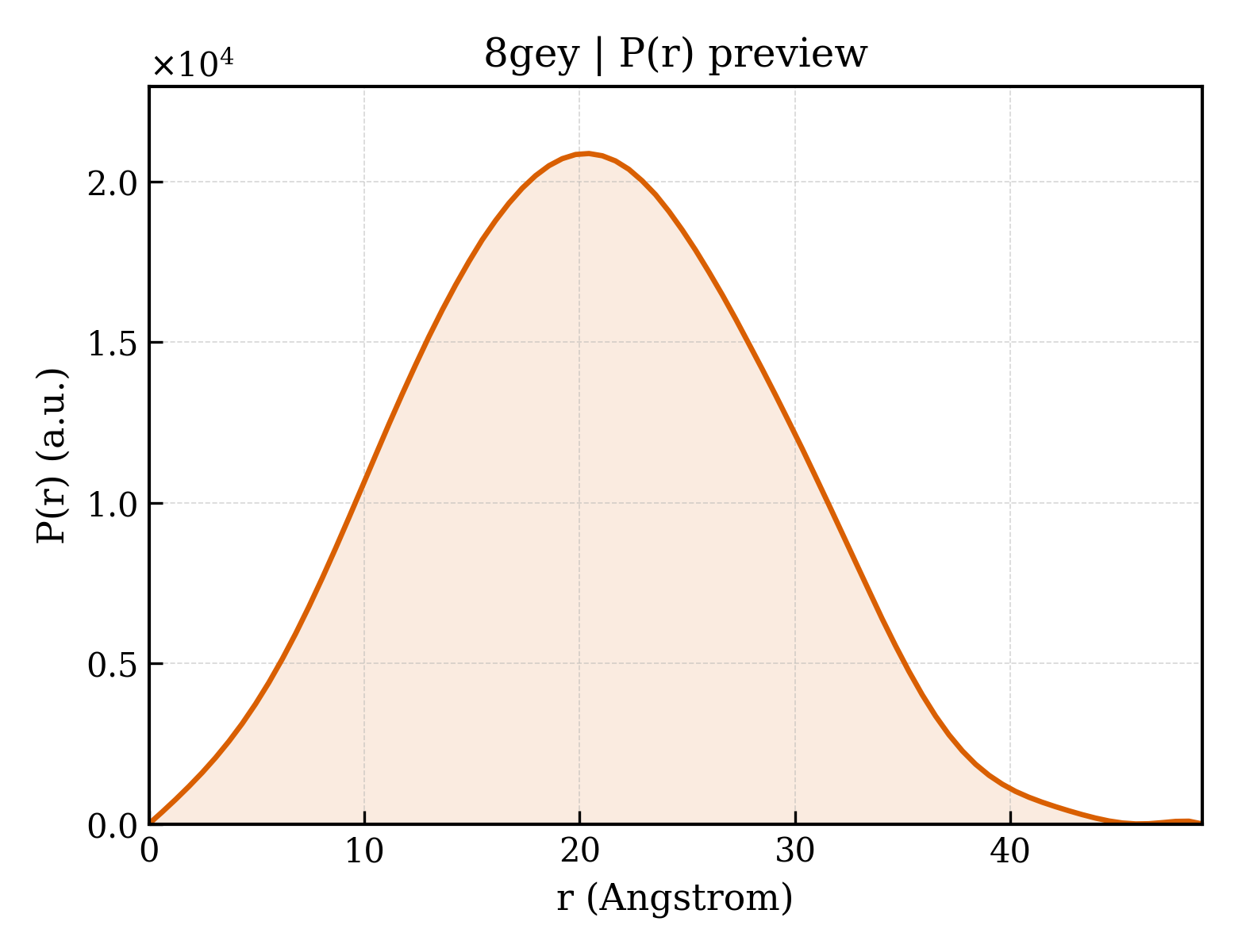

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	48.9 Å
Rg (实空间) rg_real	15.65 Å
Rg 误差 (实空间) rg_real_error	0.23 Å
I(0) (实空间) i0_real	5.6480e+06
I(0) 误差 (实空间) i0_real_error	6.5190e+04
Rg (倒空间) rg_reciprocal	15.66 Å
I(0) (倒空间) i0_reciprocal	5648000.0000
解质量估计 total_estimate	0.8963
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	20.4 Å
偏度 Skewness skewness	0.079
峰度 Kurtosis kurtosis	-0.451
角度范围 angular_range	— – 0.5000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1220000.0000
实空间数据点数 n_real_points	80
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.971

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Retinol-binding protein 1
分子量 formula_weight	16700.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	2715

MPVDFTGYWKMLVNENFEEYLRALDVNVALRKIANLLKPDKEIVQDGDHMIIRTLSTFRNYIMDFQVGKEFEEDLTGIDDRKCMTTVSWDGDKLQCVQKGEKEGRGWTQWIEGDELHLEMRVEGVVCKQVFKKVQHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	4-(hydroxymethyl)-1-(4-methoxy-5,6,7,8-tetrahydronaphthalene-1-sulfonyl)piperidin-4-ol
分子量 formula_weight	355.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
分子量 formula_weight	209.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	313

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	37.477 Å
晶胞边长 b length_b	43.018 Å
晶胞边长 c length_c	89.222 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	1.300 Å
最低分辨率 resolution_low	38.750 Å
R 因子 r_factor	0.1639
R_work r_work	0.1630
R_free r_free	0.1816
