8gpj

HIV-1 Env X16 UFO in complex with 8ANC195 Fab

Method: ELECTRON MICROSCOPY D_max: 143.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

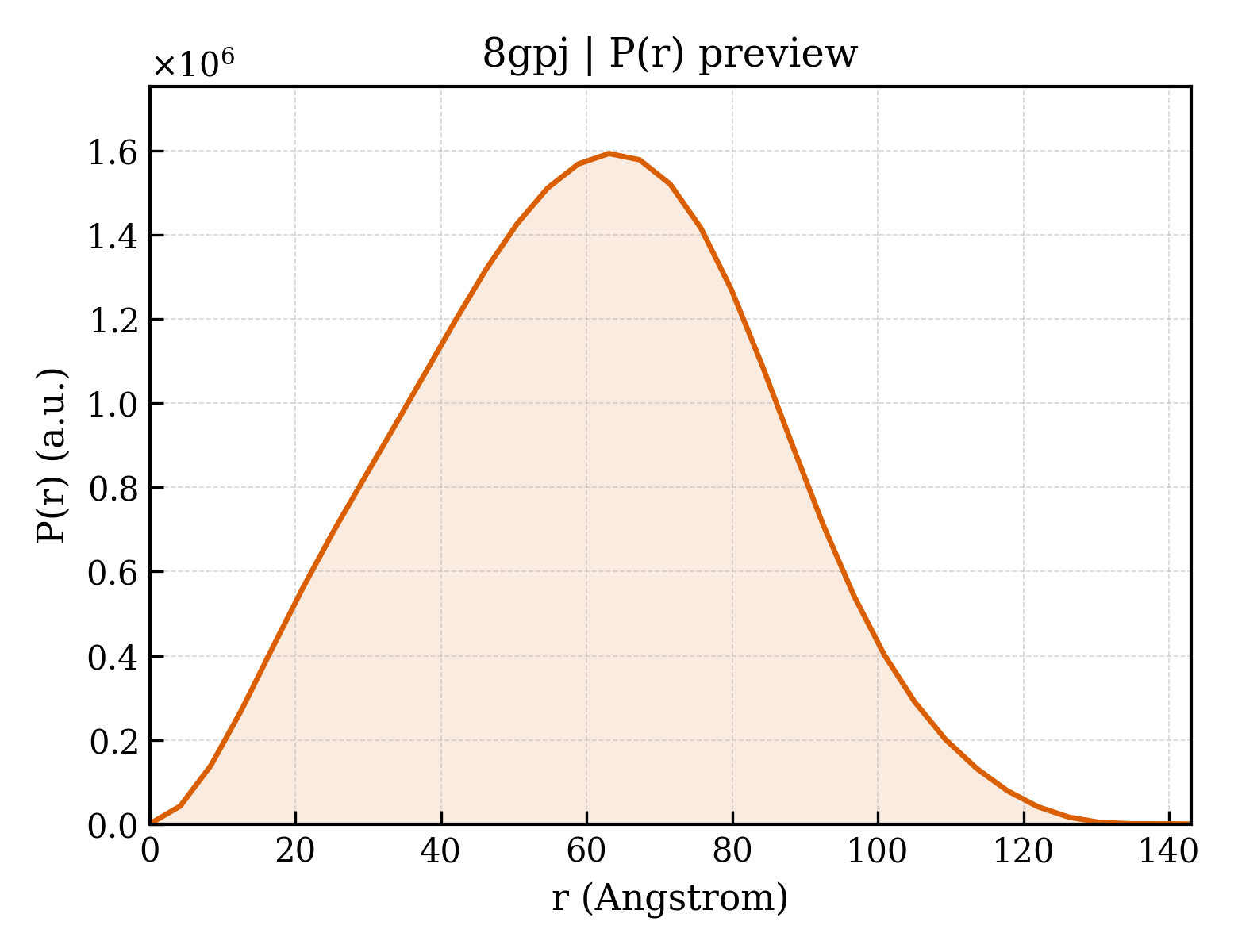

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8gpj
沉积日期 deposition_date	2022-08-26
结构标题 title	HIV-1 Env X16 UFO in complex with 8ANC195 Fab
关键词 keywords	Antibody, HIV-1, Env protein, Complex, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.11 Å
回转半径 Rg (电子) rg_electron	45.24 Å
零角强度 I(0) i0	1256660000.00
分子量 molecular_weight	289100.0 kDa
排除体积 excluded_volume	359780 Å³
包络体积 envelope_volume	513240 Å³
水化壳体积 shell_volume	90978 Å³
包络直径 envelope_diameter	145.0 Å
壳层 Rg shell_rg	53.03 Å
包络 Rg envelope_rg	44.30 Å
形状 Rg shape_rg	45.23 Å
总 Rg total_rg	45.60 Å
总原子数 total_atoms	20259
残基数 n_residues	2379
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	143.0 Å
Rg (实空间) rg_real	45.75 Å
Rg 误差 (实空间) rg_real_error	1.10 Å
I(0) (实空间) i0_real	1.2570e+09
I(0) 误差 (实空间) i0_real_error	2.1250e+07
Rg (倒空间) rg_reciprocal	46.11 Å
I(0) (倒空间) i0_reciprocal	1257000000.0000
解质量估计 total_estimate	0.8848
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	63.1 Å
偏度 Skewness skewness	0.023
峰度 Kurtosis kurtosis	-0.500
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	121400000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.884; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.958; Smooth: 0.888

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	8ANC195 Fab heavy chain
分子量 formula_weight	24924.0 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D,H
原子数 atom_count	20259

QIHLVQSGTEVKKPGSSVTVSCKAYGVNTFGLYAVNWVRQAPGQSLEYIGQIWRWKSSASHHFRGRVLISAVDLTGSSPPISSLEIKDLTSDDTAVYFCTTTSTYDKWSGLHHDGVMAFSSWGQGTLISVSAASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichopalpus nigribasis

Entity 2 polymer

描述 description	8ANC195 Fab light chain
分子量 formula_weight	23402.0 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,E,L

DIQMTQSPSTLSASIGDTVRISCRASQSITGNWVAWYQQRPGKAPRLLIYRGAALLGGVPSRFSGSAAGTDFTLTIGNLQAEDFGTFYCQQYDTYPGTFGQGTKVEVKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichopalpus nigribasis

Entity 3 polymer

描述 description	X16 UFO gp41
分子量 formula_weight	69311.1 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U,V,W,X,Y,Z

NLWVTVYYGVPVWKEATTTLFCASDAKAYDTEVHNVWATHACVPTDPNPQEMVLENVTENFNMWKNEMVNQMHEDVISLWDQSLKPCVKLTPLCVTLDCTTVNSNSSSNSSNSSGNSNSTLEDMQEMKNCSFNTTTELRDKKQKVYALFYKLDIVPLSNNSSEYRLINCNTSAITQACPKVSFDPIPIHYCTPAGYALLKCNDKRFNGTGPCHNVSTVQCTHGIKPVVSTQLLLNGSLAEKEIIVRSENLTNNVKTIIVHLNKSVEIVCTRPGNNTRKSIRIGPGQTFYATGDIIGDIRQAHCNISRGDWEETLHNVRKNLAEHFQNKTIQFASSSGGDLEITTHSFNCRGEFFYCNTSGLFNSTYMPNSTFNGTESNLTITIPCRIKQIINMWQEVGRAMYAPPIAGNITCKSNITGLLLVRDGGKESNSTEIFRPGGGDMRDNWRSELYKYKVVEIKPLGVAPTECKRRVVEGGGGSGGGGSAVGIGAVFLGFLGVAGSTMGAASVALTVQARQLLSGNPDWLPDMTVWGIKQLQTRVLAIERYLKDQQLLGIWGCSGKLICCTAVPWNSSWSNKSQTEIWNNMTWMQWDEEISNYTATIYRLLEVSQNQQERNEKDLLALD

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 4 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 5 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	17

Entity 6 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1721.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 8 branched

描述 description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 9 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1883.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 10 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	22

▼

6. 折叠分类 (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

结构域编号 domain_id	8gpjA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8gpjC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8gpjD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8gpjE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8gpjH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8gpjL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	210695

fit	/app/data/saxs_computation/gp/8gpj/8gpj.fit
pddf	/app/data/pr_computation/gp/8gpj/8gpj.pr.out
profile	/app/data/saxs_computation/gp/8gpj/8gpj.dat
