1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8gtc
沉积日期 deposition_date	2022-09-08
结构标题 title	Cryo-EM model of the marine siphophage vB_DshS-R4C baseplate-tail complex
关键词 keywords	;Marine bacteriophage, Cryo-EM, Siphophage, Baseplate, Megatron protein, Tail fibre protein, Distal tail protein, Hub protein, VIRAL PROTEIN ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	80.35 Å
回转半径 Rg (电子) rg_electron	80.56 Å
零角强度 I(0) i0	9441340000.00
分子量 molecular_weight	506880.0 kDa
排除体积 excluded_volume	498840 Å³
包络体积 envelope_volume	1601700 Å³
水化壳体积 shell_volume	175500 Å³
包络直径 envelope_diameter	269.0 Å
壳层 Rg shell_rg	71.24 Å
包络 Rg envelope_rg	76.66 Å
形状 Rg shape_rg	80.56 Å
总 Rg total_rg	80.45 Å
总原子数 total_atoms	36147
残基数 n_residues	9033
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	275.1 Å
Rg (实空间) rg_real	83.28 Å
Rg 误差 (实空间) rg_real_error	1.55 Å
I(0) (实空间) i0_real	9.4410e+09
I(0) 误差 (实空间) i0_real_error	2.3140e+08
Rg (倒空间) rg_reciprocal	80.02 Å
I(0) (倒空间) i0_reciprocal	9432000000.0000
解质量估计 total_estimate	0.6401
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	101.4 Å
偏度 Skewness skewness	0.484
峰度 Kurtosis kurtosis	-0.114
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	1.0850
最高正则化参数 α highest_alpha	557000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.856; Stabil: 0.903; Sysdev: 0.008; Positv: 1.000; Valcen: 0.987; Smooth: 0.144

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Major tail protein
分子量 formula_weight	13574.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	36147

MLKGKDGVVKNASTGDSIGHLQSWALDTQRDEVSGWGMGDDAERAFTTVGRASGNFEVYLDPADPSDDLEPGDLVDLELYPGGESTGSGYRSVAGALILSTAESASKDGIPMLTVNWRTSGALPQKATVS

Entity 2 polymer

描述 description	Distal tail protein
分子量 formula_weight	23378.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J,K,L

MQFIDVEFPRDIAAGCQAVLTRRDEVVTLASGREEVNSRWADTRRSWDAGLGVRDEADLAQVVALFEEVRGRLYAFRFRDWLDWRTAATRAPITATDQPLGLGDGSRTAFQVVKVYGAVNPYTRPLSLPHPGTVRVALDGVTQPSGWTLTAPGGVITFDTPPALGVTVTAGCSFDVPVRFSDPELAVQWAYFREGQAGLAQAPSIPLIEVRLDP

Entity 3 polymer

描述 description	Megatron protein
分子量 formula_weight	154569.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O

MATVLLAAAGGAIGTSLGGALFGISAAVIGQAVGGLIGQTIDARLSGGGTIKQTGPRLDSLEVMVSQEGTPLADISGRVAVAGTVIWATKLEEIARTTSTRVGSGKSSQKVKSTNFDYAASFAVSLGEGPLNGIGRIFLDGQVRDLSEMISENRVRFYPGTEDQEPDPLIEAIEGAAPAFRGTAYLVFERLFLSDFGNRVPQVRVEVFGQSGEMEKGVTGVCVIPGSTEFGYMPAPVRQQSLDGADVVWEGPENCNRYSRISDWSLSMDHLKNTLPAVQTVSLVVAWFGTDLRAGLCRFEPRIELRAKRTSIEWIAAGLNRGSATEVSRDENDRPAFGSSPADVSVVRAIMDLKARGFRVVLYPFVMMDVTADQALPSPAGTGAQGAYPWRGRIMPDVTGGRVSDQIAALMGTAQPDDFTAAVTRNKSGEISQVNLTCPGAPGDAGLRRFILHLAKLADIAGGVDAFLVGTEFRGLSQAWEPQTYADAYEFLNSSEGWFAQNAARTHEPGSLLVSATARDPRLISPPLSIDGAAARWIEIEFDRTSAPVWEGNVYYMTEDHGFAGAFRKVISDAEAPADGTRARMLLDMHDLTLGGDDWRTSTITRLRFDFSSESDAVFRIHAIRLGGGRRYPFVDALRDLAQDVDTILPTAKISYAADWSEYHSHQDAGDLTFHLDPLWADPAIDFVGIDNYLPLSDWRQGADHLDYDATSGRTTPYDLDYLKSNIEGGEYWDWFYASQEDRDTQTRTPISDGSYGEPWVFRQKAIRDWHANAHHNRTAGVRATTSTGWVPGSKPVWFTEYGCPAVDLGANRPNVFAAASSSESALPWYSSGLRDDFMQRQYLRAMAEWWTANGAPAVDLANCQAWAWDARPFPEFPLRPATWSDGPDWRLGHWLNGRAGAAPAAEAITRRAITRHGLISADIDTSRAYGQADGYAAPAPLGLGDYAQPFEVALGLQTTETGGALVIEAKPAAPLAADVIEADLVDTPAIYTLTRGALEDTPAAAIVRFRDGLSDYEITAARARIGAGKEGGSATADLALVLDGDRGNAAAEMVLRAALTSRESLSVTLPRSATTLRPGSLVEVTLGTEARRLFLVDRVVDGQAREVTLRGFDRAAYAPSGGVFKAARAGRLQGSTSSLTRFLDLPLLPGVDAPEWEGFIAAHAEPWPGAMLHSRGSTPEGSFTLAAEADARATIGRTTAALPPAPAHVWTPGPLVVTLFSGALVGRPDLDVLDGANALAIQHPDGWEVVQFREATLTADRTWRLEGLLRGQRGTDGIVGPAPLPAGAAVVAIDTALVAAGLSADDPGRALWWRSGPDAASLAAAPLRPHTFTAAGLRAFPPAHLRAVVTGGGDTSLSWVPRSRLVGTTWPDNGAPIPSGEGLERYQVTIGPTAAPVRVILADTPAATYTAAERAADGIAAPFRVAVSQISETTGPGPWIETIVTE

Entity 4 polymer

描述 description	Hub protein
分子量 formula_weight	31055.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,Q,R

MTDYTDHLATGCTTLARCYILTRRDGVVMGFTDHDRDIDLDGTRCAAGAALDASTAARSLGITPDDMDAGGALSADAITEADLRAGRYDGAQVEVWEVNWTDPAVRGRLGVYTIGQVERGPLAFRAELRTRPALWNRPEGRIHTALCDVDRLGDHRCKLALGPWQSAATVIEADGADLIVSGLDETASNIFDRGVLDWTGGANAGTGSDIRVARPVAGGVRVSLWSAPPFPITAGDTANATVGCDRTADTCRNRFDNLANFRGFPLMPGESFISEYARPGDPDQSGGSRYD

Entity 5 polymer

描述 description	Ribonuclease III
分子量 formula_weight	22783.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	9

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S,T,U,V,W,X,Y,Z,a

MPTPFLALPLIAEGQAGQHVTHNEALDMIDALAPRVVLSDSLATPPPAPPDRSAWIVPPGGSGFGGAGPGQIALRLGGVWHAITPAQGARWRVLDRGAAVIWSGTSWRPADVSGALGSTLGLATIEATVTATGPSVTAPALIPPRAIVLGVTSWTVQAVTGATSYRVGVPGEPDKFGASLGAAPGSSNIGVVGPFATYAPTDVVVTAEGADFTGGTIGLAASVILPGAPV

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	11598

fit	/app/data/saxs_computation/gt/8gtc/8gtc.fit
pddf	/app/data/pr_computation/gt/8gtc/8gtc.pr.out
profile	/app/data/saxs_computation/gt/8gtc/8gtc.dat

Cryo-EM model of the marine siphophage vB_DshS-R4C baseplate-tail complex

SAXS 散射曲线 SAXS Profile

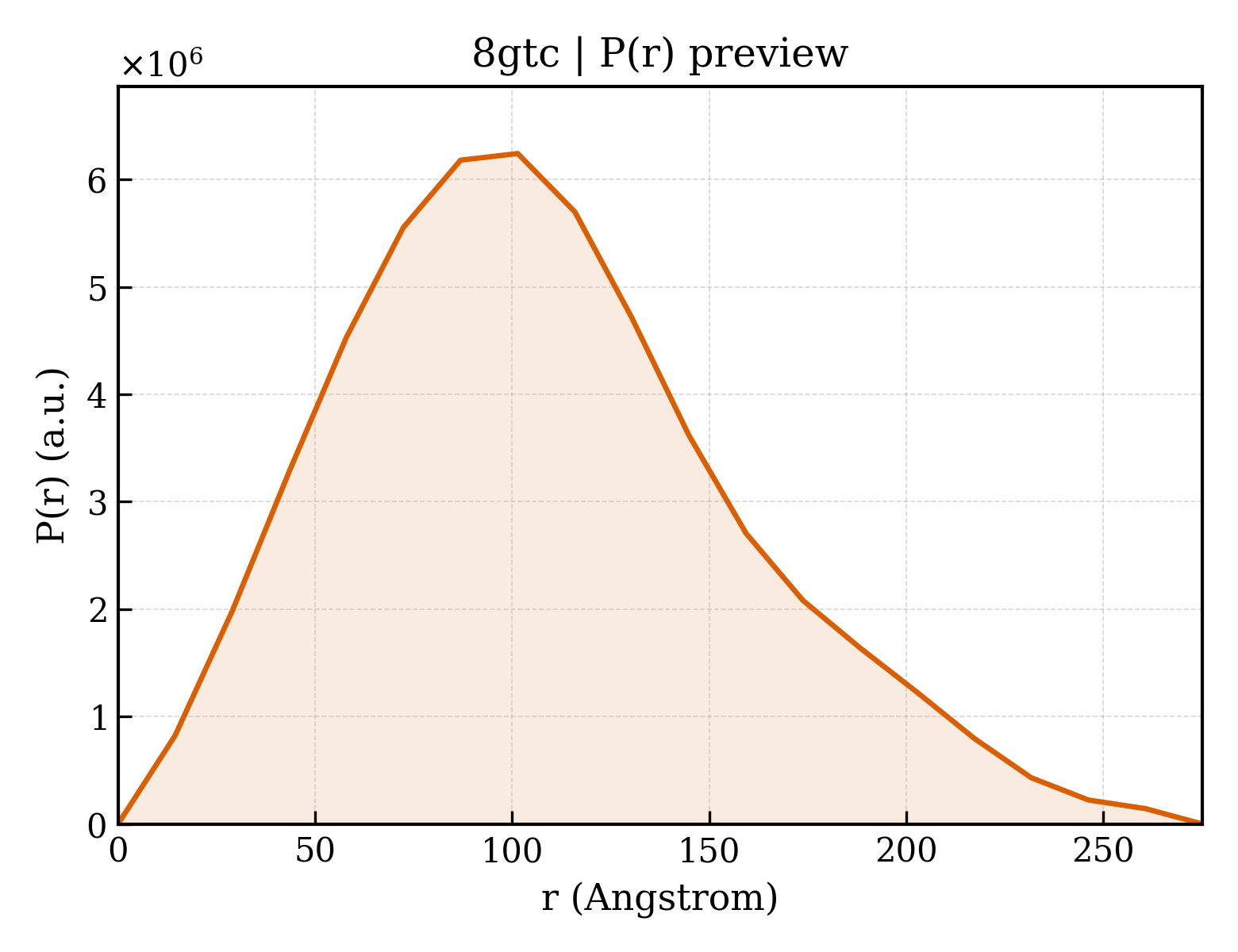

P(r) 距离分布 P(r) Distribution
