8gtd

Cryo-EM model of the marine siphophage vB_DshS-R4C portal-adaptor complex

Method: ELECTRON MICROSCOPY D_max: 163.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8gtd
沉积日期 deposition_date	2022-09-08
结构标题 title	Cryo-EM model of the marine siphophage vB_DshS-R4C portal-adaptor complex
关键词 keywords	Marine bacteriophage, Cryo-EM, Siphophage, Portal protein, Adaptor protein, Head-to-tail interface, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

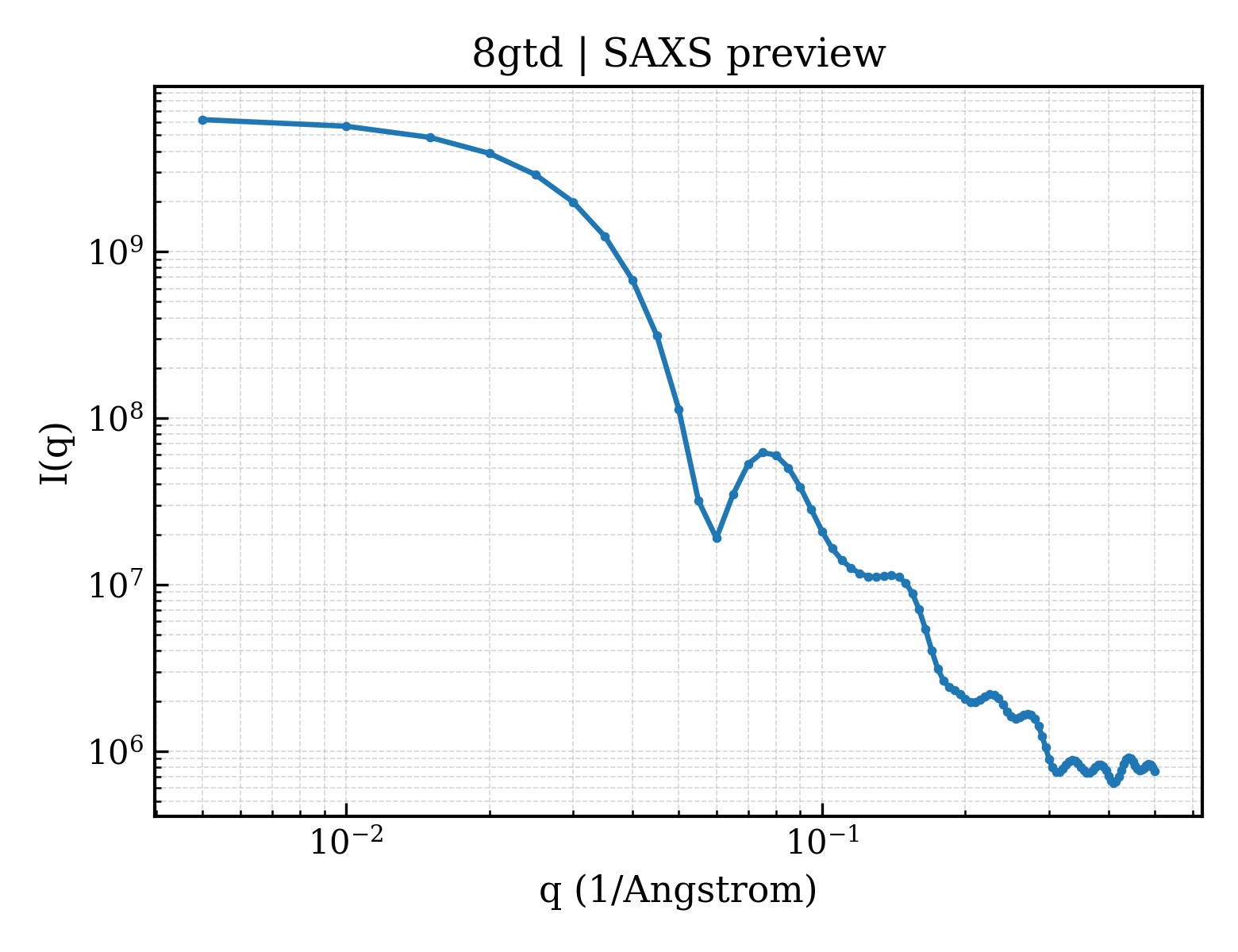

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.55 Å
回转半径 Rg (电子) rg_electron	59.85 Å
零角强度 I(0) i0	6378210000.00
分子量 molecular_weight	414670.0 kDa
排除体积 excluded_volume	407670 Å³
包络体积 envelope_volume	1256400 Å³
水化壳体积 shell_volume	167390 Å³
包络直径 envelope_diameter	172.5 Å
壳层 Rg shell_rg	69.12 Å
包络 Rg envelope_rg	56.72 Å
形状 Rg shape_rg	59.85 Å
总 Rg total_rg	60.01 Å
总原子数 total_atoms	29580
残基数 n_residues	7392
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

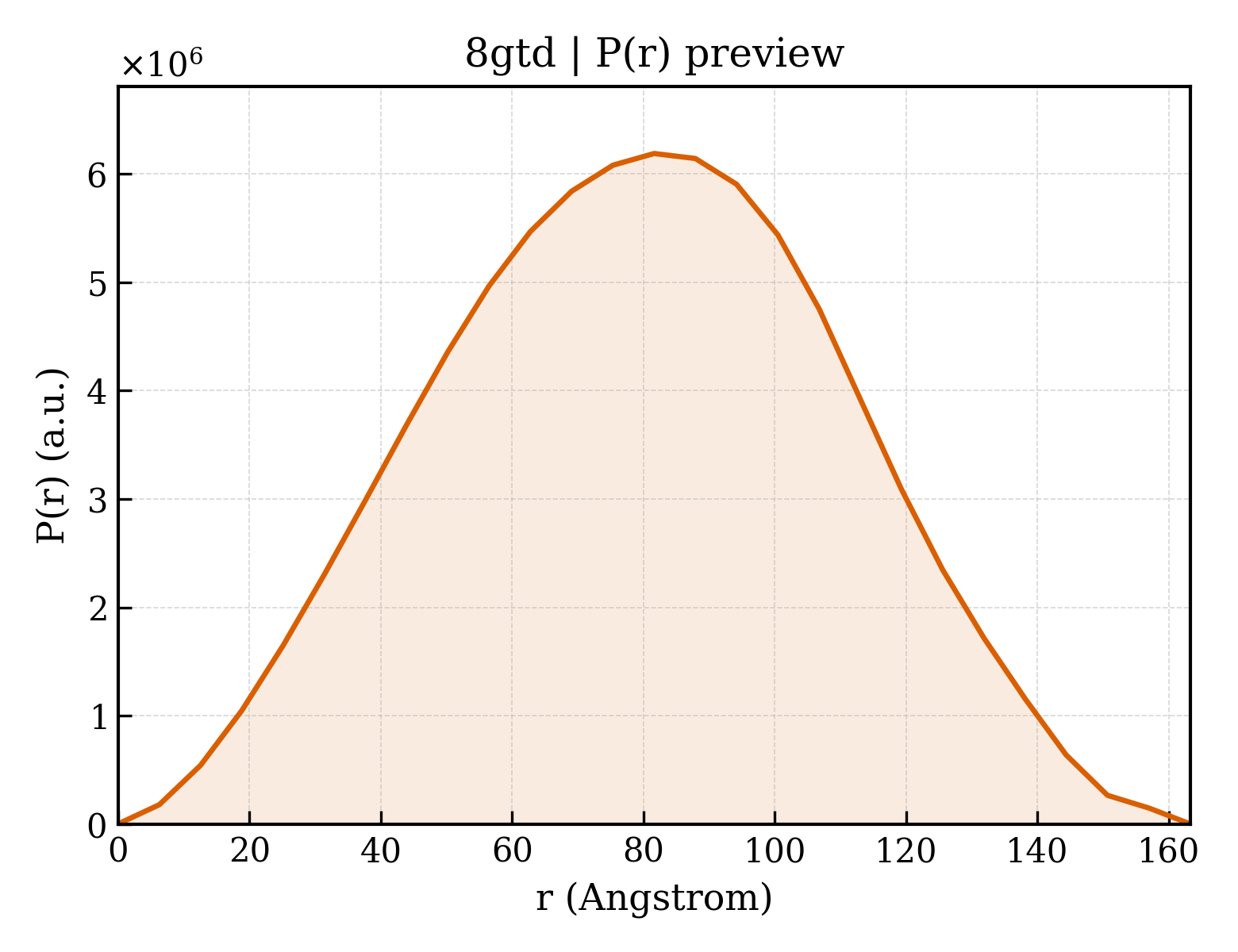

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	163.3 Å
Rg (实空间) rg_real	60.01 Å
Rg 误差 (实空间) rg_real_error	0.56 Å
I(0) (实空间) i0_real	6.3780e+09
I(0) 误差 (实空间) i0_real_error	9.7300e+07
Rg (倒空间) rg_reciprocal	60.99 Å
I(0) (倒空间) i0_reciprocal	6388000000.0000
解质量估计 total_estimate	0.8446
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	81.6 Å
偏度 Skewness skewness	-0.005
峰度 Kurtosis kurtosis	-0.560
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1391000000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.992; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Portal protein
分子量 formula_weight	60353.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	29580

MRFWPFSKTTNAATRAEPMVTRPDTAPRVRSYRAAKSDRIAGGFGVFPTTPRDELRREIRGLVGHSRHAAQNFDYARAYEMLTRRHVIGFNGIRLQMDVRDPGGKKDVAAGAQIESAWARWGKMKNSPTPCGRLSWWGVECQVATGIAREGGSFVRIHQGTNRGRFGFQVEPIPFDLLDLDLTGPTPGGGFVGIAREGGSFVRIHQGTNRGRFGFQVEPIPFDLLDLDLTGPTPGGGFVESGVEFDATDRVVAYHMWSAAMSEGHRPGARRRLRIPAAQMLYVLVPEEIGQALGVPRSATALRLMNLSEKFQESALTAANYGASNMVFFERAADNGVVTGPEDDAQIPIDQIEAGTLTELPPGVKAVSHNPAYPDAAVGPFLRQMGTSQAAGLGVSYETLTADLSGANFSSLRAGKGEEREEWRMLQRAVFEGLHDRVFSRWLPLAMLSGEVRLPLAKLDKFDAATWRPRGWPSVNPKDDATAHEKDLKNGVRTRTEICAERGRDFADVVAEAAAERQMMRDAGLDPDAPLRTSPPETPPDPGEEIEGKDT

Entity 2 polymer

描述 description	Head-to-tail joining protein
分子量 formula_weight	19249.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O,P,Q,R,S,T,U,V,W,X

MTVSIHPPATLVAGDSWAWEAGAVFEDHPDPWAASYVLRPEAGGDPVTVSGGLEVLAPVFRLPASVTADLPPGEWTWFAVAVDATTDARAVLAQGRVTVIPDPLAGTEDRRTPARRILAAIEATLEGRATKDADTYSIEGRSITRTPLPDLLRLRAVYAEQVARETGRSPYRQRRVSF

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	5844

fit	/app/data/saxs_computation/gt/8gtd/8gtd.fit
pddf	/app/data/pr_computation/gt/8gtd/8gtd.pr.out
profile	/app/data/saxs_computation/gt/8gtd/8gtd.dat
