8h1c

;Cryo-EM structure of Oryza sativa plastid glycyl-tRNA synthetase in complex with two tRNAs (one in tRNA binding state and the other in tRNA locked state) ;

Method: ELECTRON MICROSCOPY D_max: 199.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

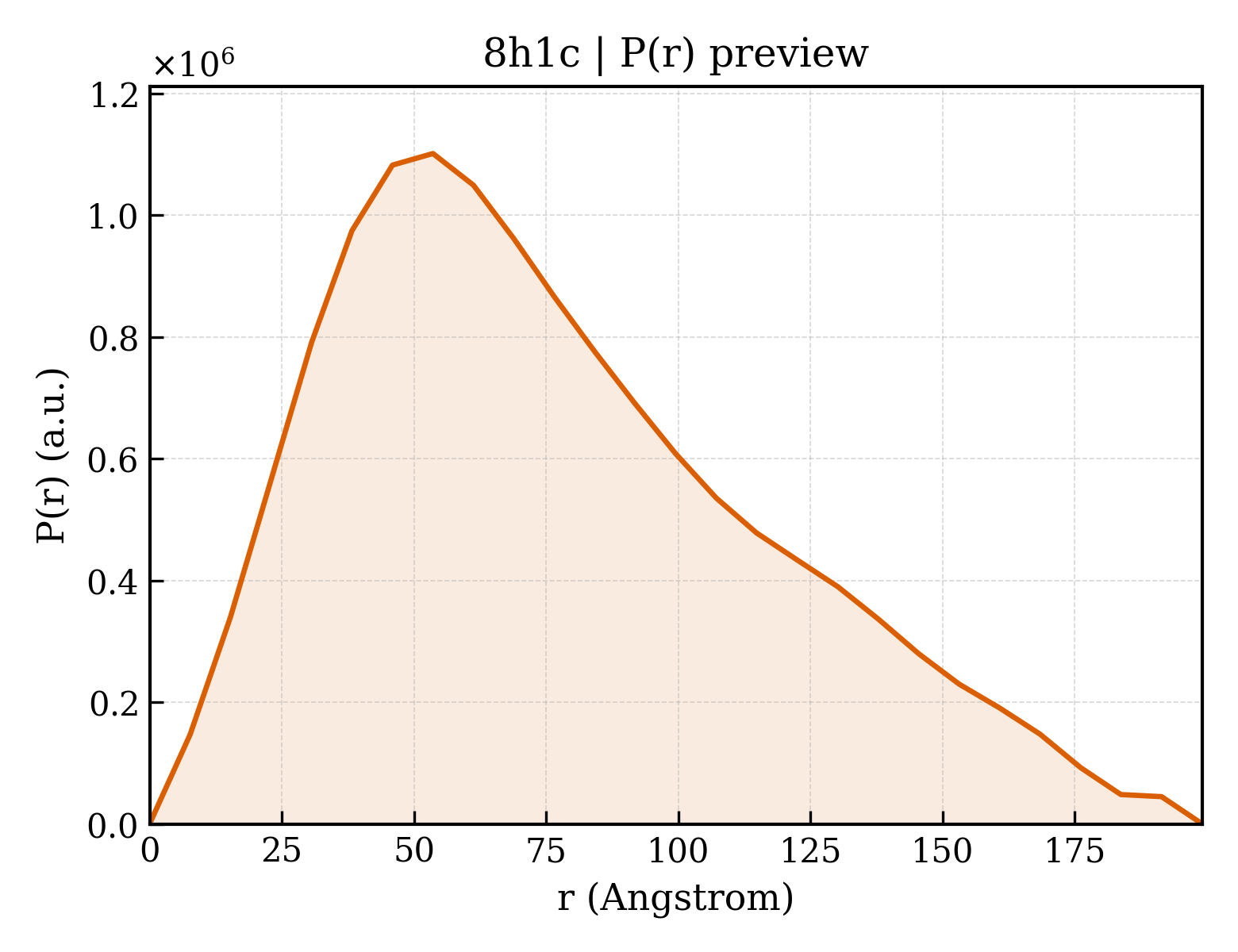

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8h1c
沉积日期 deposition_date	2022-10-02
结构标题 title	;Cryo-EM structure of Oryza sativa plastid glycyl-tRNA synthetase in complex with two tRNAs (one in tRNA binding state and the other in tRNA locked state) ;
关键词 keywords	GlyRS2, Glycine-tRNA ligase, tRNA selection, GlyRS tRNA complex, chloroplasts, LIGASE, LIGASE-RNA complex; LIGASE/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.03 Å
回转半径 Rg (电子) rg_electron	59.06 Å
零角强度 I(0) i0	1265380000.00
分子量 molecular_weight	265260.0 kDa
排除体积 excluded_volume	318780 Å³
包络体积 envelope_volume	515530 Å³
水化壳体积 shell_volume	80057 Å³
包络直径 envelope_diameter	217.4 Å
壳层 Rg shell_rg	52.98 Å
包络 Rg envelope_rg	59.07 Å
形状 Rg shape_rg	58.97 Å
总 Rg total_rg	59.17 Å
总原子数 total_atoms	18472
残基数 n_residues	2107
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	199.1 Å
Rg (实空间) rg_real	60.85 Å
Rg 误差 (实空间) rg_real_error	2.20 Å
I(0) (实空间) i0_real	1.2650e+09
I(0) 误差 (实空间) i0_real_error	2.9460e+07
Rg (倒空间) rg_reciprocal	59.30 Å
I(0) (倒空间) i0_reciprocal	1262000000.0000
解质量估计 total_estimate	0.8007
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	53.6 Å
偏度 Skewness skewness	0.598
峰度 Kurtosis kurtosis	-0.319
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	68750000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.783; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.095

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Glycine--tRNA ligase
分子量 formula_weight	117050.5 kDa
EC 编号 ec_number	6.1.1.14
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A
原子数 atom_count	18483

HHHHHHHHGSSLEVLFQGPAVASADGDAPSPVSVSASAATKGPSSSSVLTFQQAIQRLQDYWASVGCAVMQCSNTEVGAGTMNPLTFLRVLGPEPWNVAYVEPSIRPDDSRYGDNPNRLQRHTQFQVILKPDPGNSQDLFLHSLSALGINVREHDIRFVEDNWESPVLGAWGLGWEVWMDGMEITQFTYFQQSGSLPLLPVSVEITYGLERILMSLQGVDHFKNIQYTKGITYGELFLENEKEMSAYYLEHANVDNIQKHFDDFEEEARSLLSLWLPIPAYDHVLKASHAFNILDSRGFVGVTERARYFGRMRSLARQCAQLWVKTRENLGYPLGTYQESNLIYPHVSEKPSRKGVVGQPRAFVLEIGTEELPPHDVIEATKQLEKSLIQILEKRRLSHGKVRSYGTPRRLAVVVENLNMKQMEEEIELRGPPVAKAFDQEGRPTKAAEGFCRKNNVPIDSLYRRTDGKTEYIYARVKESARFADEVLTEDLPTIISGISFPKSMRWNSNIVFSRPIRWIFALHGDLIVPFCFAGISSGNQSCGLRNSSLANFKVEAAELYLHTLEKAGILIDMQERKQRILHDSSILAEGVGGDIIAPDSLVQEVINLVEAPMPIIGRYDVSFLALPKDVLITVMQKHQKYFPVTSKTMGNLLPCFITVANGAIKEEVVRKGNEAVLRARYEDAKFFYKMDTQKKLSEFRDQLSSILFHERLGTMLDKMKRVENTVAEVALLLGINEKMIPAIKDAAALAMSDLATNIVTEFTSLAGIMARHYALRDGLSEQIAEALFEITLPRFSGDVFPKTDPGIVLAVTDRLDSLVGLFGAGCQPSSTNDPFGLRRISYGLVQILVENKKNFDLTKALTLVAEEQPITIDSGVIDEVVQFVTRRLEQLLVDEGINCEIVRSVLIERANCPYLASQTAIEMEAFSRTEDFPKIVEAYSRPTRIIRGKEIGSALEVDASVFEKDEERALWSAYLEVADKIHPGVDIKAFADASLELLQPLEDFFTNVFVMAEDEKVRNNRLALLTKVASLPKGIADLSVLPGF

来源 Source

来源生物 organism	Oryza sativa Japonica Group
通用名 common_name	Japanese rice
NCBI 分类编号 ncbi_taxonomy_id	39947
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	tRNA(gly) (74-MER)
分子量 formula_weight	23906.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C,D

GCGAGCGUAGUUCAAUGGUAAAACAUCUCCUUGCCAAGGAGAAGAUACGGGUUCGAUUCCCGCCGCUCGCCCCA

来源 Source

来源生物 organism	Oryza sativa
NCBI 分类编号 ncbi_taxonomy_id	4530
宿主生物 host_organism	in vitro transcription vector pT7-TP(deltai)

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	4.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	24747
