8h2i

Near-atomic structure of five-fold averaged PBCV-1 capsid

Method: ELECTRON MICROSCOPY D_max: 735.6 Å Quality: GOOD

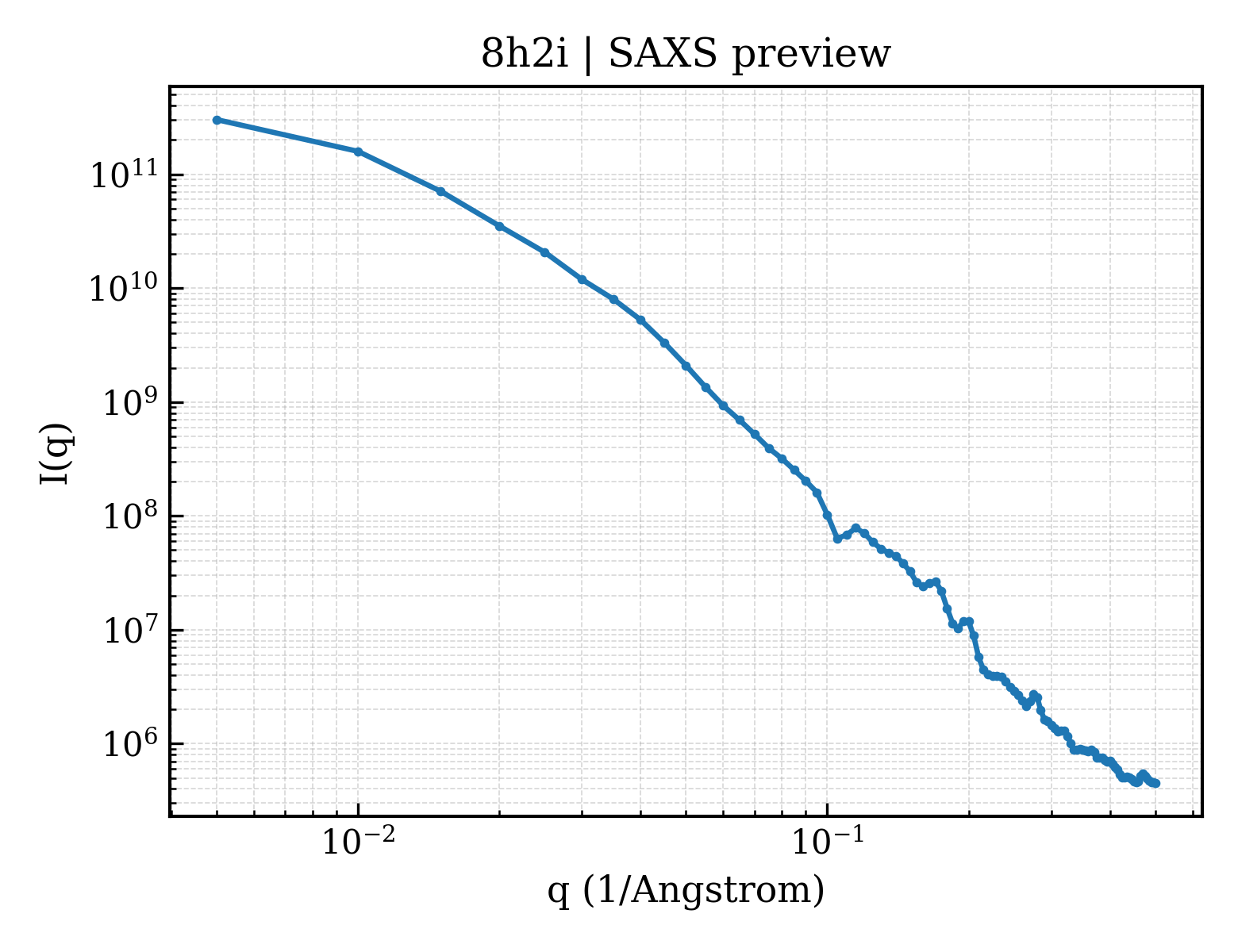

SAXS 散射曲线 SAXS Profile

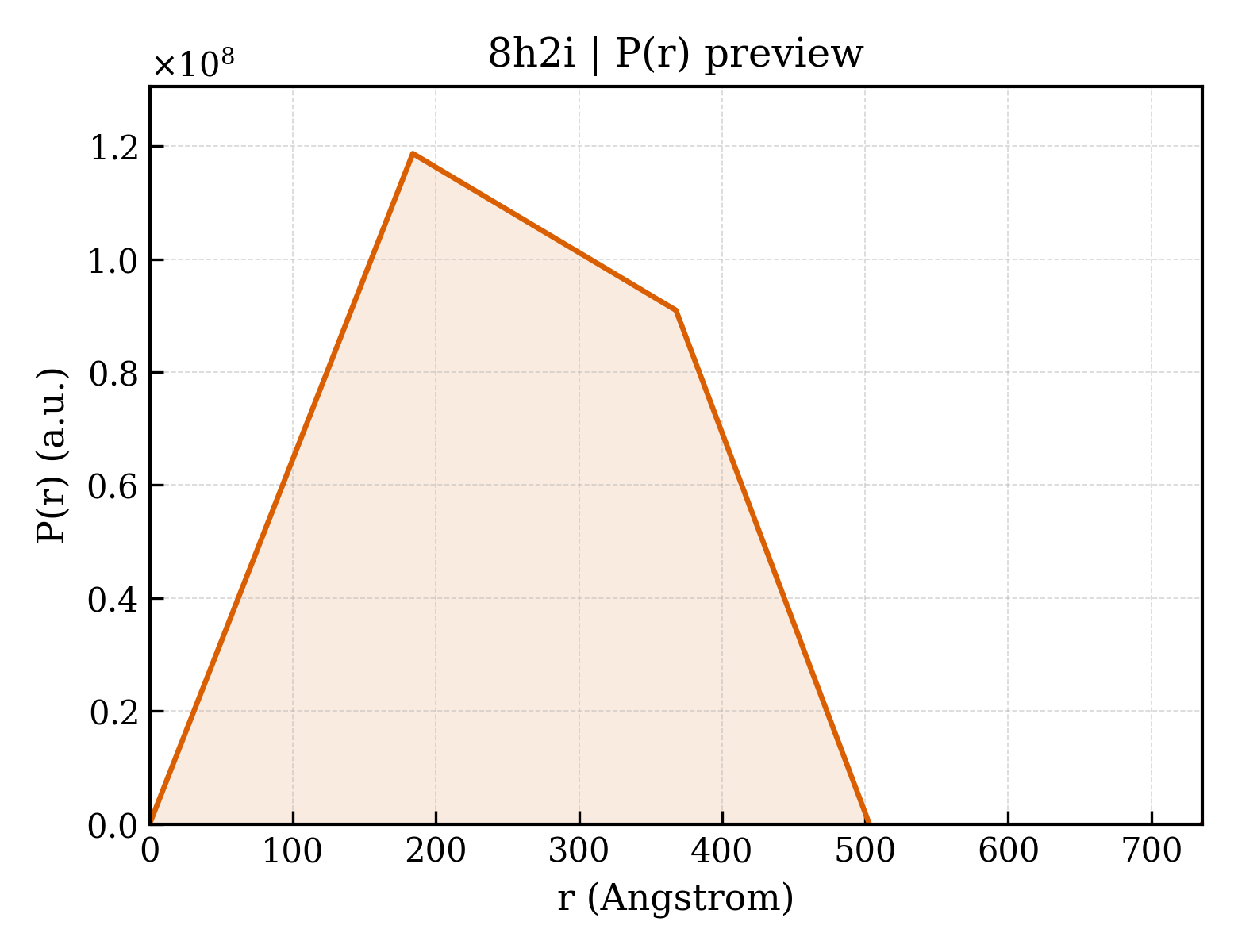

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8h2i
沉积日期 deposition_date	2022-10-06
结构标题 title	Near-atomic structure of five-fold averaged PBCV-1 capsid
关键词 keywords	;giant virus, nucleocytoplasmic large DNA viruses (NCLDVs), viral assembly, Paramecium bursaria chlorella virus 1 (PBCV-1), chlorovirus, major capsid protein, minor capsid protein, VIRUS, VIRAL PROTEIN ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	348.70 Å
零角强度 I(0) i0	483736000000.00
分子量 molecular_weight	6049800.0 kDa
排除体积 excluded_volume	7589400 Å³
包络体积 envelope_volume	21690000 Å³
水化壳体积 shell_volume	677020 Å³
包络直径 envelope_diameter	1585.0 Å
壳层 Rg shell_rg	172.90 Å
包络 Rg envelope_rg	506.80 Å
形状 Rg shape_rg	348.70 Å
总 Rg total_rg	348.60 Å
总原子数 total_atoms	427569
残基数 n_residues	54641
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	735.6 Å
Rg (实空间) rg_real	133.80 Å
Rg 误差 (实空间) rg_real_error	16.97 Å
I(0) (实空间) i0_real	4.0870e+11
I(0) 误差 (实空间) i0_real_error	1.4550e+10
Rg (倒空间) rg_reciprocal	137.40 Å
I(0) (倒空间) i0_reciprocal	365100000000.0000
解质量估计 total_estimate	0.8167
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	183.9 Å
偏度 Skewness skewness	—
峰度 Kurtosis kurtosis	—
角度范围 angular_range	— – 0.0200 Å⁻¹
当前正则化参数 α current_alpha	0.4860
最高正则化参数 α highest_alpha	1626000000.0000
实空间数据点数 n_real_points	5
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 21.700; Oscil: 0.683; Stabil: 0.888; Sysdev: 1.000; Positv: 0.963; Valcen: 0.952; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (26)

Entity 1 polymer

描述 description	Major capsid protein (MCP)
分子量 formula_weight	48199.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	72

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	;aa,ab,ac,ad,ae,af,ag,ah,ai,aj,ak,al,am,an,ao,ap,aq,ar,as,at,au,av,aw,ax,ay,az,aA,aB,aC,aD,aE,aF,aG,aH,aI,aJ,aK,aL,aM,aN,aO,aP,aQ,aR,aS,aT,aU,aV,aW,aX,aY,aZ,ba,bb,bc,bd,be,bf,bg,bh,bi,bj,bk,bl,bm,bn,bo,bp,bq,br,bs,bt ;
原子数 atom_count	427569

MAGGLSQLVAYGAQDVYLTGNPQITFFKTVYRRYTNFAIESIQQTINGSVGFGNKVSTQISRNGDLITDIVVEFVLTKGGNGGTTYYPAEELLQDVELEIGGQRIDKHYNDWFRTYDALFRMNDDRYNYRRMTDWVNNELVGAQKRFYVPLIFFFNQTPGLALPLIALQYHEVKLYFTLASQVQGVNYNGSSAIAGAAQPTMSVWVDYIFLDTQERTRFAQLPHEYLIEQLQFTGSETATPSATTQASQNIRLNFNHPTKYLAWNFNNPTNYGQYTALANIPGACSGAGTAAATVTTPDYGNTGTYNEQLAVLDSAKIQLNGQDRFATRKGSYFNKVQPYQSIGGVTPAGVYLYSFALKPAGRQPSGTCNFSRIDNATLSLTYKTCSIDATSPAAVLGNTETVTANTATLLTALNIYAKNYNVLRIMSGMGGLAYAN

Entity 2 polymer

描述 description	MCPv1
分子量 formula_weight	58136.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bu,bv,bw,bx,by,bz,bA,bB

MPGAISQLVSYGAQDVYLTGNPQITFFKAVYRRYTNFAMESIQQTFDGTTDFGKFPTVTISRNGDLAGPIWIEVNLPSLLGYNITPTPAEGNTSNIAAISTVFKDDYNNYWWTYNPGTTPQYSNLIAAFSNVDYKYYANAVTSTYPPTALSNVVYSWPYMITGNTGTRSTVAIPTANLRYVNGIGLALFNSIELELGGQRIDKHYSEWWDIWTELTETAEKIQGYNTMVGRYDPAVYNAGWNISQAQGGTYYVPLKFCYNRNPGLYMPLVALSYHQMKLNFNINNYLNCVKCNYPVTALTSKNGANPLSITNMKLYTDFVFLDAPERIRMSEIQHEYLVTQLQWQGSEPVTAPGDPNGSTNRKITLNFNHPVRELVFVYQAASNYDVDAVTGNNIFDYEIPANPTATPPYAGGGEVFTEVKLIINGSDRFSGRPGAYFRLVQPYEHHVRVPSKSVYVYSFALEDADSRQPNGSANFTRYDSVQLQLTLNENLASGRVQIYAPNFNILRIAAGMGGLAFAN

Entity 3 polymer

描述 description	MCPv2
分子量 formula_weight	55733.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bC

MDPTTRFRGSDVPVHNEDHMVFAKPSEIGLQGRQGFYTNTNVVTNTYNHVYTPPGGHTGGKFTQDIYTTDLLIAAKDEKADKIPLDKRMDGTFSEGTFVQLLSRGPQDVYLTYNPQISLFKRKYKRYTNFAIENFEERFSTVVKFGTRNICQLSKNGDLIGNMCFRVTLPNLGIPGGTWAPTMGYNIFSTIRMRIGDTIVQSHDRVWYDIDDKMFCDSTKIQGLDELIKRNVTLTTDQEWELIIPLKFFCCKRNTGKQQFLPILNMDTNINVYLEFNLLPLNSLVTLPTGSILPDIQSIDASVWVDYIFLDDTEKFRFAQDPCVYLIEQTASMDSLSYATTTSGQTYNKTDVYVDMKELNKPVKYVEIIAYEQGSTSFDYVDIIESATFYLNSDEQFKTRAGEYFSLVQPYQHFKRSDPTSNISTFSFALDAGSFQPNGYLNFAPYVRTRFAFKIQPQTTPHVIRLFAVCLNWVKFESGLVKLLFN

Entity 4 polymer

描述 description	MCPv3
分子量 formula_weight	45115.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	11

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bD,bF,cX,cZ,dd,df,dj,dk,dl,dp,dr

MSGALNQLVAVGKQDAFITGDNLDNSVWRNVTKKVSNFAMESIENYINVNPGSTTSIVVGRFGDLVRKVTLEITMKKGSTTNPFYPSEQYVKYAHLSIGGQIVYRIDDFPTWTRVHEELFMDPDTRATNQRVNNFRPEDPVGAIRKFYLDIPLFFTDDASKALPLIALQYHEVKLDVLFASPGDIPGIDASYTPTVECYIDYVFLDTPEREWFARNTHMYVIEQLQHYNNVFSVAAVEQTKRLNLPFTMPTRYLIWLLKTGADGVYTTSGYPFENNDSYAAIKSAKLQFNGTDRFSERPGYYFTTVQPQDAFGRSPSAGIYVYSFGLDVTGMTSKGALNFSRMDNATLSITTKAATAATISDVYNQSTTLASAITDFTSIAIYAKSFNVLKIDYGMGGMLFAN

Entity 5 polymer

描述 description	MCPv4
分子量 formula_weight	45034.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bE,cY,de,dq

MVSGGVVQLISYGAQDVYISGGPKTIFKSYVKKVNNFAIDSVKIPINGMGNGNPSVLIPRNGDLIKSIRLEITLKKGTGQSFYPAEQLISYLALKIGGNIIQKIDDFSNFCRIRNELFMDPDERHTDYRVNNFSSSDVVGSVKYFFLDLPLFFSKDTSVALPLIALQYHDIELDFRFNDVSTIQGVDASYTPTIEMYIDYVYLEQQERIKLVEKPLFYNIEQCNFYRKDITFPALSSTFKLDIPFNNPSRFLVWYFNTDSFGIYNTSGLYFNSNDAAAPLESAVMLLNGTERFKSREGMYFNCVQPQQALGRSPSSGIYMYAFGEDVANATSKGALDMSRVNELSLQLTTKNATAANVYTVYNPQETLASSTSTYKGITLFSTNWNVLQVRSGLGAVMFDS

Entity 6 polymer

描述 description	P1v1
分子量 formula_weight	57555.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bG

MDDIETIEKYGRDETYIFLADSAKRDTAAYPTAAEYEVLFNAQFRNVTKFELLEVNIPRTEYLIDSSENTFAYALNQPTNINTWQQEIEGNIRIATITPGDYNLPQLIDEMNNVLQQTANTYGDSVILQVSPVTNPSEISNKIRITASGPFTLLGSTGTIGNTIGFGDPVNTSVASTTGYYSTVPGYSVNYPNGADYVFLSNQGNIGSEAVNEFVGPLPPGDNVSFTPIYTGQTPSQYFIAPSAGVPTTVSAYFVDQATAPPGGFVVNYSIIKVSDSSTIATGSLISTNDDLVPSVSSPSVVSANFIQGQQYYIQFTPGSSGSSAGNCTALWYSFPNLPPVSGAYAAINGTLVFPGQYFCTDVSAGAYGNELTSPGIVNITGARYIKIRCKELEQLIYRDRVGEPTTAGIGIVNLIGYGFERSRYDFSSIPVKAFHPIGKLQKLTFRLERPNGTLYDTNGVDNTMLCALTFKVVPNNAVDKTFDGPGKYPAAPGYSGDYIQLQQKRWGEEARATYPTHKSTYNRCRPRTT

Entity 7 polymer

描述 description	P2
分子量 formula_weight	63888.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bH

MCNTYYKRVKFNLFLYTNSIEMELLAVASIIGYGLFSSQQGRETRPDRNRYAEALGSGQGLDEDYDVKPTDMVRKYRKKAEKRWKKAQVPKESGIITPNMRPSEVMPYFTSGKSMNTNTDYKQRKMELFTGGVLDGHSVSGTYKHKVEAANMFGMTPQGRVTSDGTVGNAPGDTELLKARSVNSHQYNNVLPTEQLRVGPGLGVGPEVAATGGFHQFYRQLPLNINEYKLTQLPGRLVPGGTTTGGKGEIQQIASVNHNPDALVLNYDDRPPEATPNGAILASTQYGKQPRGYAGLRPYEKNYEGIAEADVSALQARYLDQTRGRPRTGDGDTEPIINPNGERDGTGSYVTENMCSMTLESQRGLVNRYITPPGVTGVVQQGGEMRPEFVPETTIREQYEDIYYTGPAGTTVTPTEPMNVVELQPESRHAKRAGQDRAYTPGAGRVNNFAPAAQGAYGLKDHPTYNALQHVVSEPIEQTFLPAAQGDDDRFGTKSNVNNPWGNPASLQIANNQLAANKFNRDVTNTVNLDYDAGQPMKQQNFQPKAWIPNNTDDMKMLPLWKRKQLQAQKNKQQRK

Entity 8 polymer

描述 description	P3
分子量 formula_weight	19116.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bI,bJ,bK

MAMKTQRKENVLFQNVKPREIPLVDNPFSTYPYKHVITETQPTQAKNQAIWGLVQMGLSGEAAAMYGDVVVQKTTRACRKSEGGFKDVNTELWGTSPYLGRGDGEVYNMPASNQLLRGFESSLRGSRVRTQIDDKSFIPYTWQMIDVPLAAAKTSFIAGLDTRQQLAYGNP

Entity 9 polymer

描述 description	P4
分子量 formula_weight	20637.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bL,bM,bN,bO

MFSAFRDTASIGFSDTHQDEKTLRFLKKQISQFIKHLKEYYPNNELTKKLVMKYSDVQLLPYTKGATKDTYTSGLFDHTTGVIKIAPRDGLGNVRDEQSLNKSICHELAHGTRVKYPGESSHSDEWKDAWKTFLKIAADELGWKIEVPCSSVSFYGLTKDDCENCVWDQDPETCPKTAKLA

Entity 10 polymer

描述 description	P5
分子量 formula_weight	16455.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bP

MDSRLSAAYAIRAARISMIPGGVDGLVINYAEGGEPAWVQYPLKKQKPLPNNLCYTPTLEDIARKREAVIAKYTKQPLETGTTFTHVLNASHLNEQYTRVKKSALPDKEFPIIETEKYPEPPILWETTIGAPSRLFDRSDGVKYVR

Entity 11 polymer

描述 description	P6
分子量 formula_weight	24036.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bQ

MILVGIAVLILLAVFAILYYKQKEKFVVVGKFVEPIPSNPGQDFTLLPMDQTYTFADPVPDTATAFDVVLSRFTDKKAPADLLKGATFPEAAPYTDSEVENISKLALSRVKGPDAPVLSFISVEYAAKGVDNKKNTHYDIAFMVYDQVKNFSLKLVLVAVLDAKNKLWIKKFSSFNSFTPKDKGPKGVENIDETPLAEFIPDFVQFSRLYKDNANV

Entity 12 polymer

描述 description	P8
分子量 formula_weight	19226.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bR

METIGNFIQNMAFPTENPYKLSGDFGNSTLEPTVTAALRILHESPAPFNTEFFSRKNVDFIQKKLISETKRYTSFDIGPQNEDELIMMMAGIYVQDSTFDGNIKAGLRKLNTLVITECLKQILPGVRAYALYVRDASLPFSGGGEEAFKRPELATLKGSKVLSGFLPLDRNAS

Entity 13 polymer

描述 description	P9
分子量 formula_weight	23407.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bS

MKTETLYQDPVWFQDLSVIFKRPSEIIPTRDQSDSERINAMVRLVLYCSFAVALIRQNYLYAILGLAIIAIISLAYALGAKKTKSNEAYGNIRPYSVKRSKKSCSKSSANNPFSNATVGALLDNEARPPACSYDDNDMASTMRKNFNKGLFRNLDDVYEVENSQRQFYTMPVTTAAPDLTAFGQFLYGSKGKTCKEDPSACTPAFATRDG

Entity 14 polymer

描述 description	P11
分子量 formula_weight	23322.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bT,bU,bV,bW,bX,bY,bZ,ca,cb,cc,cd,ce

MDMHMIVKVVAILAVLFLVYKLWESMNKPNASPLKIQNPYEKYMNSAEGGEYDAEDDDIYYPETDAEDDDIYTGETDDMYDGEDDDIYVQEGDDIEDAEDEPYDDSADMEQDVPKVQQPMMPLLTPSSQLLPKPSPEAADFAQFAPKNLQAQNFLTATQWIGVNTQGSSLKNANYDLRADPIIPKADVGPWMMSSVDPNIYQKPLFG

Entity 15 polymer

描述 description	P12
分子量 formula_weight	17715.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cf

MGNGPPMERAVSSDDILTYYNTFIFFIYFNFTNENIYIIYTIYMKVQNTIVYIVLLLIVVVIIWNFTRKEGWSDYNAPNDFMKIYYSNIVEDKKLAEKYPFFGTGPFTGLRCRKPNNVGCNTTWVSGQLVELTPKLKEQIECKFGIQYVKT

Entity 16 polymer

描述 description	P13
分子量 formula_weight	11070.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cg

MHKITPFLIAAVVAVIVLAVWLFKKDNKKETWFSRDLNYGKANSKIWNATVAKGLKGIANENAEIRKMYPYLGYGDFTGAICKGPNNQGCTYYANYTR

Entity 17 polymer

描述 description	P15
分子量 formula_weight	18627.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ch

MWLFFFALAVIYMIYKRDVFKKIAVNLKMNGVSIPFVDKYSKQYPTYTKNALFHVTRFNNAYQKTFEYKNISIDTINNLFSIRDDVLYNISEIKLRLPNDLTQEKEINYMYEKTDQRLMEYITDVKSRFHINIYPGTMSSAFEARNYRASNDIVF

Entity 18 polymer

描述 description	P16
分子量 formula_weight	9844.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ci

MQGGLFGTIKLMIMLFSYFAAYQLGKMQERPQSQWPKAKAGQNKYMVGDWAAWKPIYMGVLGVAVLLTLLGPGGVGGGMGGMFGGGGGYGGYY

Entity 19 polymer

描述 description	P17
分子量 formula_weight	9122.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cj,ck,cl,cm

MGAFTSFVLMLLFTGIILIATNELTYNRPREIQYRYLPRDLDSFIRTQEMPSAIFSSMWDVDTRRGGDGGPNPPGIRQSN

Entity 20 polymer

描述 description	P18
分子量 formula_weight	16497.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cn,co

MTTITYDTDLLPPPELKVPSLDQALAPESVKNDDPFLDLSYFPVPKGFDNVGSLELNNLSTAEDVATLQNQLNKLAEEKHKRSTWKGLTFRIAVQDMWEALTGIPTDIYQNSGRVSLKELLTRDDRLRGLGLIFFLVAVVSIFFLAAG

Entity 21 polymer

描述 description	P19
分子量 formula_weight	43094.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	25

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cp,cq,cr,cs,ct,cu,cv,cw,cx,cy,cz,cA,cB,cC,cD,cE,cF,cG,cH,cI,cJ,cK,cL,cM,cN

MFLYYKMNEVLNVNNGSSINVIKILKTPGPDIIRPGKTYKKKDVFTPKFFKNGNVMYTCNTFSLNVPVNNSIATIDFAEHVNGAVFKIEYNRVNFIAPSLYPISGLGTAVVFDLQKGEKASQRKITEFGNKDIRIADEISDIAADDHSVLITTKLMSESTPGELSRDVVLNGEIATGRINMNTGFVSDIIHTKKISIIDDGIVDYYVKINVPAKYSHGIVEVVSGTFLNDIMIHLVRNKNKWALMDSKMYIVNNTNGFVIAKNPDTAMGVSLLEWPRGAVVFPPYYNFKKFKNVNKWSISQQIASCVNTSVKIPGGEYSWKIRLFFGPIWQVQESINSVKTVPHGNDYMYLYKEEIVKYKYQRNTKRNFHEYDYDYKF

Entity 22 polymer

描述 description	P20
分子量 formula_weight	137671.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cO,cQ,da,dc,dg,di,ds,du

MSGYSNPLNDPIMIRTMIVYGNLSATYFTGNGAALTQQPIASNVPPTLRADAFGNVTSPANVISGNITTIDVISAGNINTRYVFGDGSTLSGISTGNSVVGVQKIDIIGNAVSSTISTGSLRTNVAFTNITANISNISYLSGNTVSNIINASNLIANIVNANVMSGDITLNRIVATDTRTINLFGNVSTNSFTAYGNVTANILTATTLTANSLQIESVSGNSVQKMIVGNLIGNVLTARTATFDTANIPTITSNVGIFTVANIRTITGDVRANVLNVSNIVTRSIGTDVVSNNIIATIGNVQSMIIGNLSANTLSVSNGTFQNFTTTVGLNVTTLSASVSNALVLSFTTGNSSSTTTTNLDAYGNTQFLRISTETSGINILNANSVSVGNLTIVGNVTSTSNNISGQVTSNSSQVQNINTNVIYSGNVFTSRFIAANANIRSLTASIGQVNSLTITSGNLTSLSFVNGNGNGVIATNANISNLNAVSMSGFAFDANVIIGDITANILSSGNLNANVFEANMLTSGNVVSTNGDTGTINANSIVLNVISGGDTRIDRLIANSVTTGDFYTTSTITAGVIDCAQGKISGNSSSNASLISNVISANTASFVNTSVGYGNLVNAVVIGNIIANVVTSGDANAVFLNSNLTTSGSIFGNISNSASIVAEYSNIRTMNVGNINSTTFNAEYLYVGNITVTGVSNTGYLICRNATFSLNSNIQTLITENVTTSNAGSNIFTNVITTGNAFSQNINTINANVLGITSVFSNVITNISNIRTLILLSNVSLGNLTATSANVTSNVSVGNLIGNIVASNAFFNTATIRNLAIFDVTGNILVAQSNASISNLTTERILLSDANIANLSTSNVSSNIAVVTGTCRIDAINSSNITFTNTATVSAAVVNVLGNLTVSNVINVQNLTANVGNIWQAVSNIQSMTTANIFTNTMTIINSFTYSNISSQRLIATNTLTANGVNLFSNIANLTVSGNANVGRWIAASAPATGALCFSSTESANLTTANLFAGNLNTWRAFVGNVIGNVMTTVAGDFGGIRVSVANIDVSGVANVENFTVNGNLFATNVITRDLSANLINFSGSLSNTSSISISGNSLFTSSANAANVGVSINMITQNLFGNRLSSENIQGNVLQASNIAVSQTVNVVGNISIGNLSVSRELFANSITISSGGTIVGNNTTRMITTPTSNSWSVGSLVGNANVSVQFTANTMVVQNIQPNTLVVNINQSTPTSNSGVRAIYIGYIVPVNFNATSSTTVSFSPALPTNCIYMPQLQYYSGGTVLQNNASFSTQIGLGVETITNTSCTIRMSTLDTLPIPSTSFFGLMVTAVQTV

Entity 23 polymer

描述 description	P21
分子量 formula_weight	141414.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cP,db,dh,dt

MSWFDPNWNPFFNRSIIVSGNLVVAGGVIEGNGGGLTNSAFSNPDTIRTDLTGNVTSNGTVRSSLIQTNSIVASGDAYANVWNGNAAFITGISANTTLVGNVRISISGNLTGNFAVSTTTVSNTMTANVLIGTTLTVNNLSATRANVQVLTGNVTGNVRLIANVVNVAAYTVGNLTTSSNVSTTNLNVTSNINGNVRSSTANVQGRLSATTPTTGSIISSSFIANSFTSSGNVQIGDFFGNVRASVGTFDMIASNVFSNVANIIEIRSDIISNIANVGNGTFVFVNASNITTTNITGNITSNVASFSNVDSIFGNVGNLRANTLTVTYANITGTLASGNVAVGNLISADNTSEFANITSFTTNGLVVNGNIIAAIGNGNVFLANVITANSLTLQSSSSTAASNVTTTRWIQSTTSTSNVMTIGNITSGNVISSNAAYFANVISNTITVMSAMTVSGNVSFGNVSFGNVSYGNITANVTTSTGNVSVDNLTSNVVNVVFCNASSVTANTLTSIALTGNTYVYSANTGVLTANVGNVFGTLTVGVANVTSMVSNALFANTAVVSNLSVSNLTVTISSDISNISITGNTSGNVFAANIATIGTLNTANVVANLVASNVMNAWVTSNIRTLITGNANVSTTTSNVITTGGFTITGNITSGLLTSNVIAGNITMYNTSNTTLFTSNTSNIANFFAGNMTAVNTIVSNLEIQGNSVVITQTTPFKVTSVLLANVLFANTIISNTFTTTANVVGNISTDIANIGIANVNFLNTTDFAVNTANIVNYTPTSNINVTGNLTLGNANIVNFYATSANIVGNITANNAVITFLTTPFYKGSGTVSAGFTSIISANALSNVIVFGNLSANIVVSNTLLSNSINVATVFSNVVNIGQVTSTGTTLVNSINFNISNVDVSGNVLVTRDVYTTNISVTTANIANVTFFSNVAIGNLISTRNLTAANLISSSDLFNSGPYTSSQNVTIDTLNFTAGNLGTVAARTTITTPTLFATDVNFTQDALVAGELITQNFYGNITSANIGSRITIGNANVTQTNITGNVVIPRTSNAAGFNSRLLISNNTTVTSNIVANSLISTGNIITNLLQTTGQVSFASLAVEYIDVANLAVRNVVTIGGNLTVSNVANLFSITANTVNMSTVTTNTLSANTITGTSNVLVAGNIIGNCFGNVLVNRGVVTGNVFADTITVPLNAVGVLTGNALIVPNTALHSVAITGSSAFTSNIRTLNTPNAFIWNTSVPSSGLLDARRLRFSQYITSNRIVEMRYFYITNALPQKYDSGGLNARYDLSFGTTLPTSQGQTWHHFLNTLYIGAQYNTNFSINCLIINATTTGLEVIIYNPFGIAASLSSSTPELYFYITSIATSTQ

Entity 24 polymer

描述 description	MCPv5
分子量 formula_weight	45585.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cR,cS,cT

MGGIMQLVSTGYQDVFLTGDPTRSLWKRIMARKTNFAIESIETVFDVLYGSTSFINIKKAGDLLKSCVLEITMKRTSTESFYPAEQFIKSLTLLIGDQEVEKIQDFPTWSRVHDELFNDTEMRSANYRMLNFRPDDPPGAIRTFYLDLPLFFTRYLSNSLPLVALQYHEVKLKIDFEPPYNIPGIDSTYMPQVRFYGDYVFLDKPERVYFAQTEHEYIIEQLQTFVTIPNMSNSVNTTMVDLPFTLPSRYIIWVYKTNLHGQYTTSNSTFVTNEGYAPLQSAVIKCNGTDRFSERPGGYFNMVQTTQALGQAPSCGIYMYSFGVNADKQDPEGTLNFSKLDMVTLSYTNKAATAADISQVFDLSTTLENGITKFKNITIFSKNFNVLRIVEGQGGILFSN

Entity 25 polymer

描述 description	P22
分子量 formula_weight	137927.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cU,cV,cW

MGSYFVPPANYFFKDIFASNVGNIANVIFDNGNVIAAGGLGYLIGNGAFITGVTSTAIANIPAVVTADIRGNLIGNYANVNNIIASSGNISNVRFVSGGNVTASYYFGDGSQLTGITATANIPSIVTADIRGNIIGNYANVSNVSATFGNIANVLFNNGNVTAAGGNGFFIGNGSLLTGITATANIPSIVTADIRGNIIGNYANVSNVSATFGNIANVLFNNGNVTAAGGNGYFFGNGALLTGITATANIPSIVTADIRGNIIGNYANVSNVSATFGNIANVLFNNGNVTAAGGNGYFFGNGALLTGITATANIPSIVTADIRGNIIGNYANVSNVSATFGNIANVLFNNGNVTAAGGNGFFIGNGSLLSGITATANIPSIVTADIRGNIIGNYANVSNVTATFGNIANVLFNNGNVTAAGGNGYFFGNGSQLTGVTATLPSIVTADIRGNIIGNYANVSNVIATFGNIANVLFNNGNVTAADGNGYFFGNGSQLTGVTATLPSIVTADIRGNIIGNYANVSNVIATFGNIANVLFNNGNVTAAGGNGYFFGNGALLTGITATANIPSIVTADIRGNIIGNYANVSNVIATFGNIANVLFNNGNVTAADGNGYFFGNGSQLTGVTATLPSIVTADIRGNIIGNYANVSNVIATFGNIANVLFNNGNVTAAGGNGYFFGNGALLTGITATANIPSIVTADIRGNIIGNYANVSNVTATFGNIANVLFNNGNVTAAGGNGYFFGNGSQLTGVTATLPSIVTADIRGNIIGNYANVSNVIATFGNIANVLFNNGNVTAAGGNGYFFGNGALLTGITATANIPSIVTADIRGNIIGNYANVSNVTATFGNIGNVLFNNGNVTAAGGNGYFFGNGTFLNFSTITADIRGNIIGNYANVGNVIAGNVSTTLGNIGNVLFNNGNVTAAGGNGYFFGNGTSLTFSTIRADIRGNIIGNYANVANVIAGNVNSTFGNIAGVTFDAGNVSSPVDILVSGNVSVGSDGLFRGPTNQSNNALILRGIGGTNTVNLFSIGAPSGQMRFSVPASGVAFYNFLYGTNQVASLGPQGFYSLSYDSSVVVGQVVSNSTTYSGTIFKTEANRNSSTAFNHISCTGSNGNVFRVRGDGTTYGVGAFQTSGADYAEMMEWEDKNPTFEDRRGYPVVLSGNGKIRIASLSDDYNNIIGVVSSNPSMLADMAWDQWEGKYLKDKFGMRLSNTIYYLANISNENEFTRVGPMTTPPQGYFIKTSPEYILNPKYNPNVAYVERNDRPEWDPVGFVGKLRVRNGCLVHPSWKPLKVIDDYADVGNAAAQVTEYLIGVTPNYTLSKKVEDLEQTINVLKTQVQMLLGNI

Entity 26 polymer

描述 description	P23
分子量 formula_weight	140121.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	dm,dn,do

MASGWSDFRADPVIVNQDVVVFGNVFVDYLIGNASEMTGAADFVPGNVVNVNIIGNTVSTFVKSDVLMGDTITIDGNITATRLYGDASNMSGLPTLPPNANIDMVGNIVANTNTNKFVSVDTFTGDVTTNVATISNANVGTVTTNTTFFGNVITNVFNIGNLILTSSNVDTLNVTSLVASNVVSSQVDVQATIANSDLNVTRFDATSISAEIFVSSETLAVSNITNLIANIANIQGTTTVTGNLVGNIANVNTLTGNVTGNLFFTNLIIGNITANIFNTTTANVSNLITSNVSASNVSASNVTSTLFTIGNLNTNVATISNLFVTGTTIAGNTTFSSFSVSSLVANISGNNASIPTFTPNVLSTSNITIDGNAVVTGNAGFRTLNVTSLTANVLTTRGDVSNLYTDVINVNTNVFISSANILANNVITVQMNNISNVNITGNAEAFDVSANSVLMSTLSVGGILSLGNVNTNDISFGNIVTGNFFANFANVGNVQGNANVITMYSTTLTSNSAQIGNISGFSIVSNLGNAVSMFVGNLNTGTLVANNSTVGNITYISGNIGNANAQTVRVSGLLSASGVALTFNSITSNVAGNSLTVHGNLRTNSVTTEILTGNVGNLSILNTGNLFANSISVGQSFVISNFANAFIISSQTTNASVITANISGNIRVTNTLEANVVNSDSANIIIKNVSTSGNVSNTFTTGNLTVTNAVFRSGITGNNIEVVGNVNCDGNTTVTTLSYGNLITSVYNTRNIFGNITANTVNITNSNIGNVVTSNINANSLIITNLIPTVDITANVLRASQVNTGWFYGNATCNVLSMSNSVSINTLLSAEVFTSETINANANVSVATINSLGNTVAISRPSFLGNANIRLVISNVITIGNLTANTLVGDSFTATGIVNAINSNSQSDSIATNVTGNIIIRGNLILASSASAQSNASVFNPTNLISLNANSLSSLTATNVSANNVVISNTWQVSNLIVSNISAPNVTANSFQAISMTGRYYRPGISIERAGNLIVSNSLTSTANILQVLTSNTGQVNITNTMFGNISMSNIIVTGVVVTGNLTMGNVIANAVTTSVSTITGNATFGNLTVTDAVIIRGNITANNISTGSYIYGNGAFITGNLTSSGNANISIATRMFGTNSAINVAGTFTGVGNTNTTNATIANLTTNTLLSIGNLSTTGNFTVNSLSVGNLFANGSTIQLSNLANIQVSNLIYSGNVVVSNLSANTLSYVQNIGTSTQLQSGTMNVNNILSAGRFRLSISSTAPVFAGWTMGRVSLSGQSLRTNSGNPRTITFTTPLPAGYSYGIQLSVYSTVFGQTMALFNITVVSLTNTSVQFYIWNNPGGSGDSNTYIGYFAYAY

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	56500

fit	/app/data/saxs_computation/h2/8h2i/8h2i.fit
pddf	/app/data/pr_computation/h2/8h2i/8h2i.pr.out
profile	/app/data/saxs_computation/h2/8h2i/8h2i.dat
