8h59

A fungal MAP kinase in complex with an inhibitor

Method: X-RAY DIFFRACTION D_max: 94.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

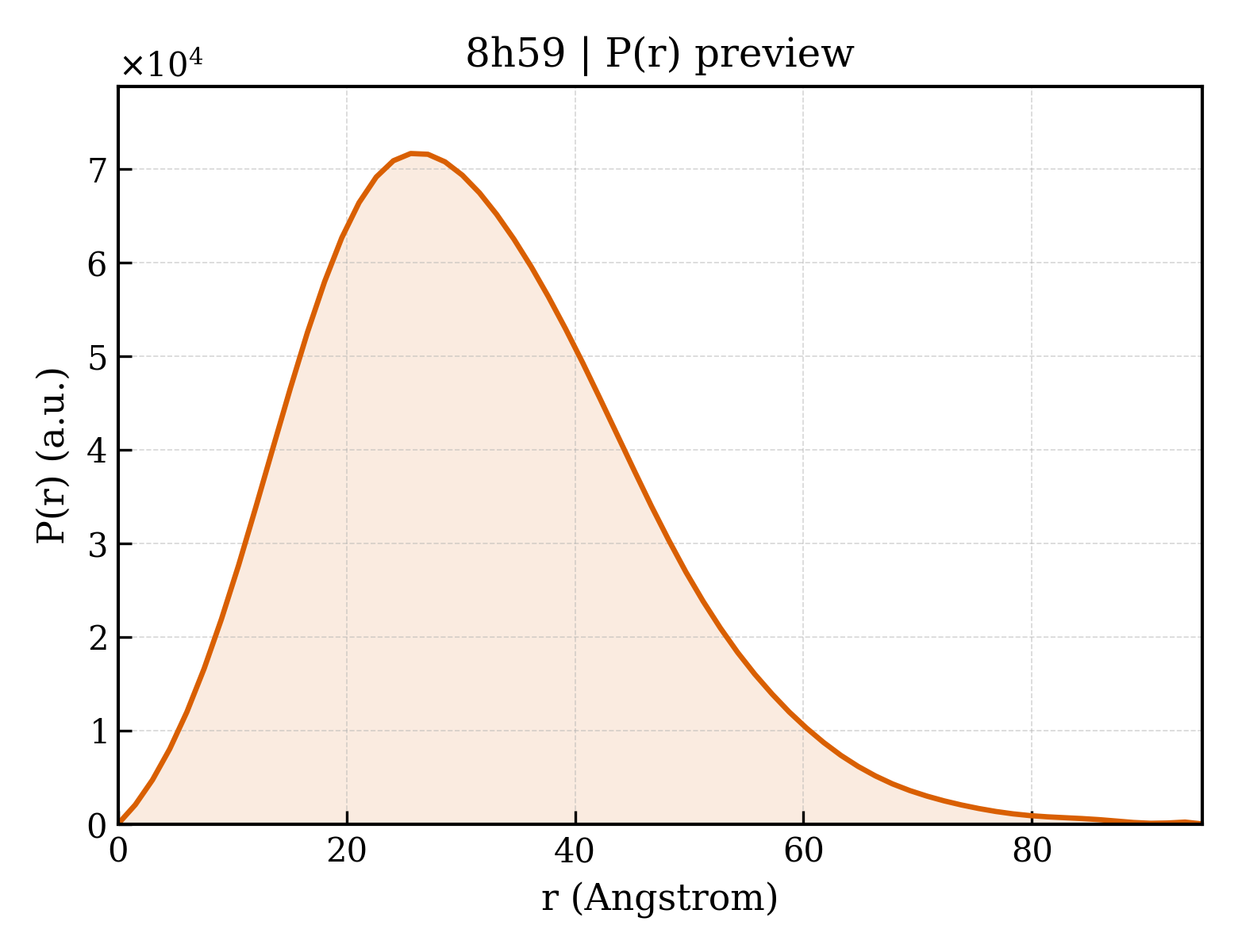

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8h59
沉积日期 deposition_date	2022-10-12
结构标题 title	A fungal MAP kinase in complex with an inhibitor
关键词 keywords	kinase, fungal, SIGNALING PROTEIN-INHIBITOR COMPLEX; SIGNALING PROTEIN/INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.25 Å
回转半径 Rg (电子) rg_electron	23.39 Å
零角强度 I(0) i0	31651500.00
分子量 molecular_weight	43477.0 kDa
排除体积 excluded_volume	54471 Å³
包络体积 envelope_volume	66288 Å³
水化壳体积 shell_volume	24444 Å³
包络直径 envelope_diameter	98.8 Å
壳层 Rg shell_rg	29.22 Å
包络 Rg envelope_rg	24.68 Å
形状 Rg shape_rg	23.38 Å
总 Rg total_rg	24.11 Å
总原子数 total_atoms	6038
残基数 n_residues	375
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	94.9 Å
Rg (实空间) rg_real	24.36 Å
Rg 误差 (实空间) rg_real_error	0.92 Å
I(0) (实空间) i0_real	3.1650e+07
I(0) 误差 (实空间) i0_real_error	5.7610e+05
Rg (倒空间) rg_reciprocal	24.34 Å
I(0) (倒空间) i0_reciprocal	31650000.0000
解质量估计 total_estimate	0.7772
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.6 Å
偏度 Skewness skewness	0.558
峰度 Kurtosis kurtosis	0.224
角度范围 angular_range	— – 0.3250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	8184000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.497; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.629; Smooth: 0.980

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Mitogen-activated protein kinase MPS1
分子量 formula_weight	46158.4 kDa
EC 编号 ec_number	2.7.11.24
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	6184

QGRKIFKVFNQDFIVDERYTVTKELGQGAYGIVCAAVNNQTSEGVAIKKVTNVFSKKILAKRALREIKLLQHFRGHRNITCLYDMDIPRPDNFNETYLYEELMECDLAAIIRSGQPLTDAHFQSFIYQILCGLKYIHSANVLHRDLKPGNLLVNADCELKICDFGLARGFSVDPEENAGYMTEYVATRWYRAPEIMLSFQSYTKAIDVWSVGCILAELLGGRPFFKGRDYVDQLNQILHILGTPNEETLSRIGSPRAQEYVRNLPFMAKKPFPTLFPNANPDALDLLDRMLAFDPSSRISVEQALEHPYLHIWHDASDEPDCPTTFNFDFEVVEDVGEMRKMILDEVYRFRQLVRTAPGAGGHGAPHAPQVPIPAGAGQGQWKAEDPRPQEYVGQMNDLEAELAGGLD

来源 Source

来源生物 organism	Pyricularia oryzae 70-15
NCBI 分类编号 ncbi_taxonomy_id	242507
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;~{N}-[(2~{S})-3-(1~{H}-indol-3-yl)-1-(methylamino)-1-oxidanylidene-propan-2-yl]-8-[2-methoxy-5-(trifluoromethyloxy)phenyl]-1,6-naphthyridine-2-carboxamide ;
分子量 formula_weight	563.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	146

▼

6. 折叠分类 (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

结构域编号 domain_id	8h59A01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	75.040 Å
晶胞边长 b length_b	75.040 Å
晶胞边长 c length_c	159.058 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 32 2 1
空间群编号 int_tables_number	154
晶系 crystal_system	—

分辨率 resolution	2.150 Å
最低分辨率 resolution_low	30.080 Å
R 因子 r_factor	0.1785
R_work r_work	0.1772
R_free r_free	0.2029
