8h8b

Type VI secretion system effector RhsP in its pre-autoproteolysis and monomeric form

Method: ELECTRON MICROSCOPY D_max: 105.5 Å Quality: GOOD

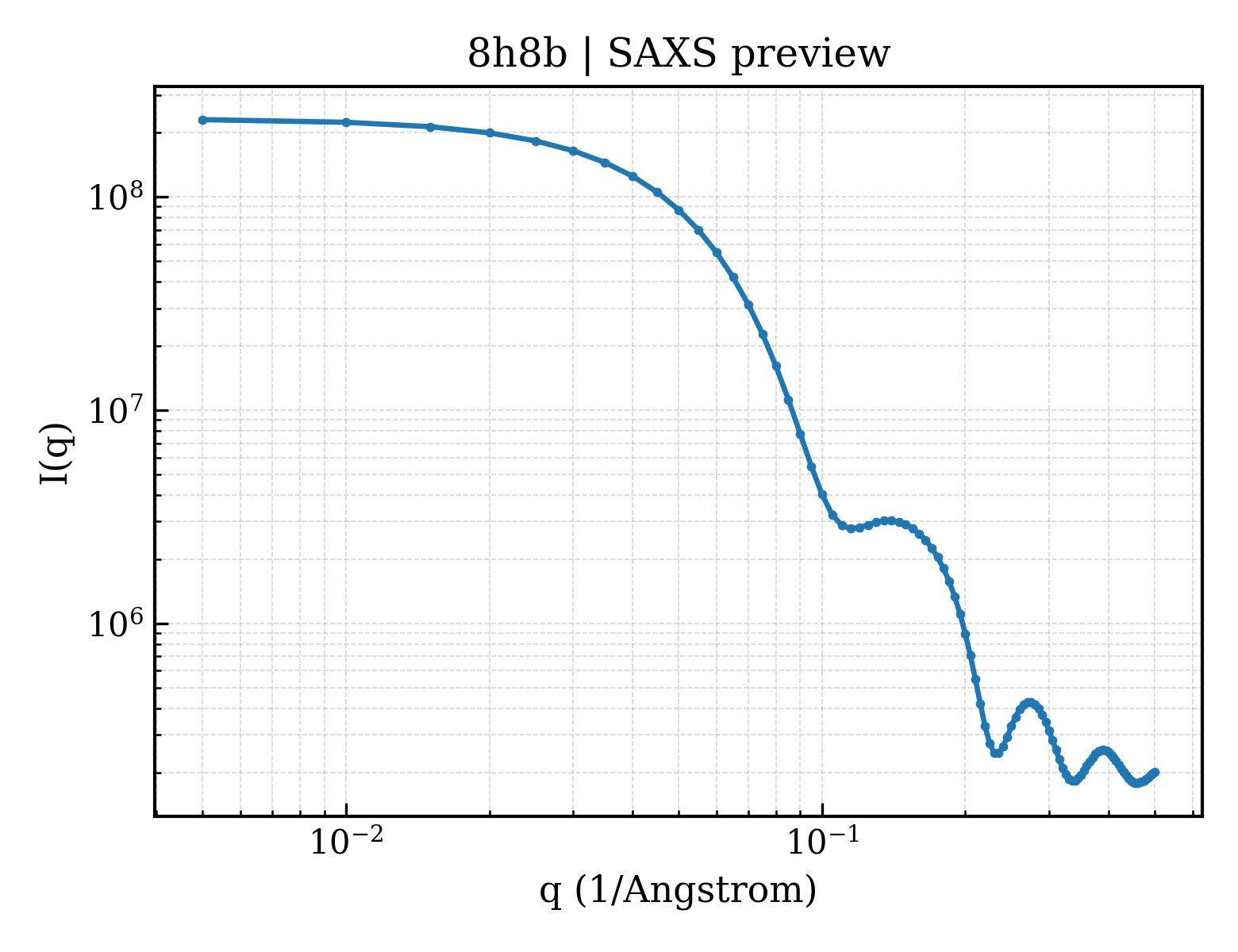

SAXS 散射曲线 SAXS Profile

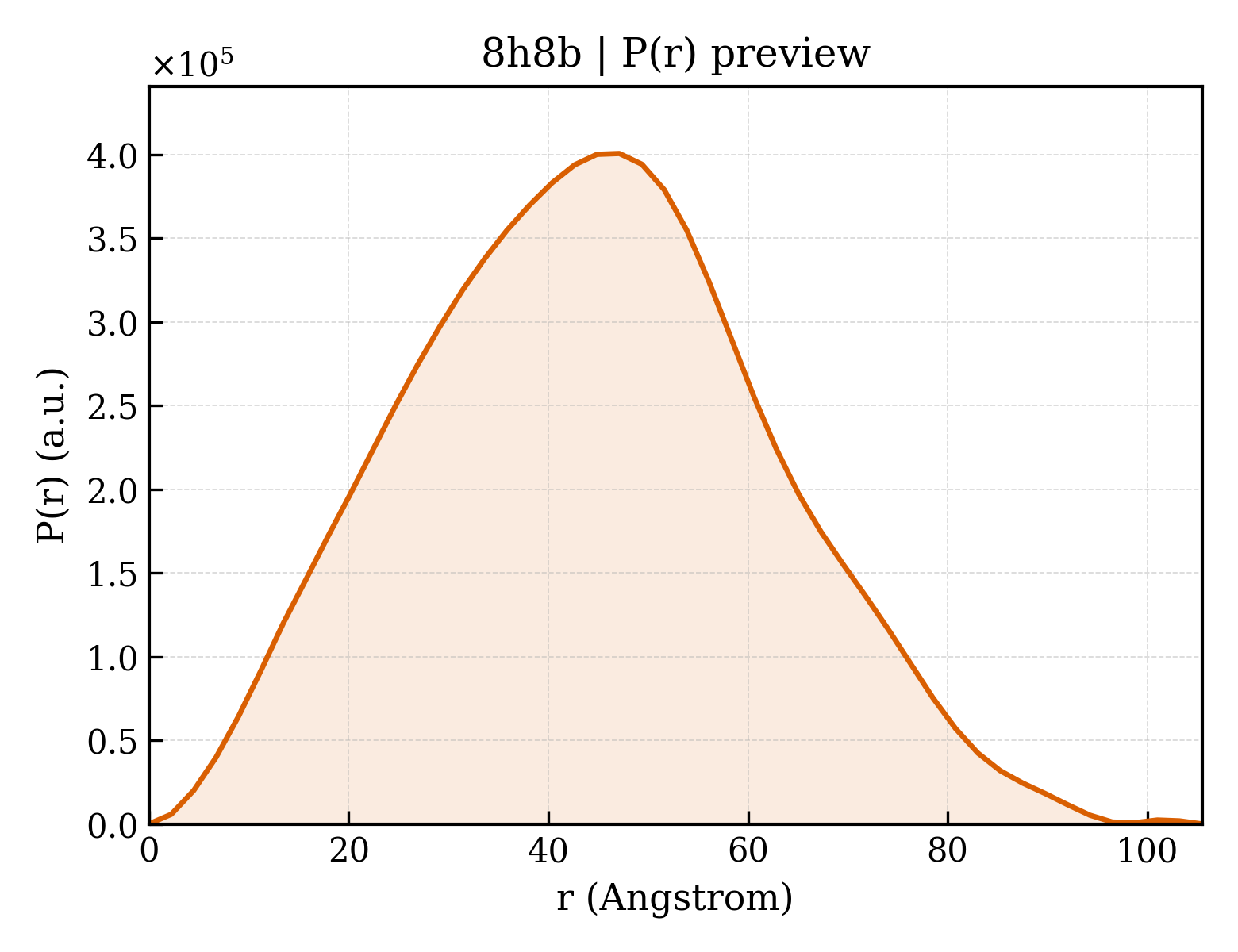

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8h8b
沉积日期 deposition_date	2022-10-22
结构标题 title	Type VI secretion system effector RhsP in its pre-autoproteolysis and monomeric form
关键词 keywords	T6SS, Rhs proteins, polymorphic toxins, TOXIN; TOXIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.84 Å
回转半径 Rg (电子) rg_electron	32.83 Å
零角强度 I(0) i0	232052000.00
分子量 molecular_weight	117820.0 kDa
排除体积 excluded_volume	145760 Å³
包络体积 envelope_volume	212000 Å³
水化壳体积 shell_volume	53958 Å³
包络直径 envelope_diameter	113.0 Å
壳层 Rg shell_rg	40.34 Å
包络 Rg envelope_rg	31.21 Å
形状 Rg shape_rg	32.82 Å
总 Rg total_rg	33.50 Å
总原子数 total_atoms	8344
残基数 n_residues	1027
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	105.5 Å
Rg (实空间) rg_real	33.67 Å
Rg 误差 (实空间) rg_real_error	0.72 Å
I(0) (实空间) i0_real	2.3210e+08
I(0) 误差 (实空间) i0_real_error	3.4770e+06
Rg (倒空间) rg_reciprocal	33.77 Å
I(0) (倒空间) i0_reciprocal	232100000.0000
解质量估计 total_estimate	0.8949
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	47.1 Å
偏度 Skewness skewness	0.145
峰度 Kurtosis kurtosis	-0.413
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	79450000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.886; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.988

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

Entity 1 polymer

描述 description	Putative Rhs-family protein
分子量 formula_weight	160008.5 kDa
突变 mutation	E161A/D1127A/H1354A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	8344

MGSSHHHHHHSQDPENLYFQSMIPQFVIPLTNCLGQSYHFSSQPIPKGEHKKFDSEQSAKAFLDDFVPLRSSRVEELYHLLGQFPPNVPDEELTPELYAPVFAKALVNGSLYVASFPKTKKNATISSEPTPVPKQVKAKSKQNKAHTSSKTQAKNSASAKPLQTGSECHEKAGDPVSLVTGAEILTLNDVELPNGFVWSRTYRSSKASRNQGLGYGWRHAFQFELKEVTDEKHNVTSWEFISDSADEIEFEPVEHGSTSYQVYVGASCHFLNPNIRIVTLSSGDQYRFELVEDIWLLKQVRNGIFSTFQLRYSRNHRLIEVAHNKRPVLECQYDKQGRLVELLNAKTEQVLTTYIYDEQDDLVGATNDLGLTERYEYQDQHLIAKRVRPTGFTHYFEWSGEGSSAKCIRNFGDSGIYDYRFHYEGAKSSYSDSLDNEWTFIHDEQGHLLEKSSPTGRTWQWHYDHLGRKEKAVFPDNSTTQYQYNQQGQLISKLHSSGAQIQYGYDSLGKLVKTVSPDGDLEKAYYNSLGQRVWDIDALGCVTEYEYDKHGQVVKRESEDGKKSRWWWDKQQRLVAHEVDGTLLRYSYGATDLVNGIAYPDGCVAQISYDDYGRRTSIRYFNDEDKVGYSEEYAYDEFSRVAQIQTPEGVTSYQWGALAQQEAVIFPDGSHISYEYDQQRNLTKLVRSDGLAFEFWYDSEGLLSGTVGFDGLHSQFKYDSMGRIIRKDVADRTVLYSYDDAGFLQHIKAGNGKNIVENHFNYTLGGRLTLASNRHQTLQYQYSSFGHLTKRIQGQFEIGEEFNRVGQRVSQTLPDKTSFNFSYDTNGRLSEIRFSDDSLPKIEFQYDVMGRLSVTETESFRESKLYDGVGRLVEQQWSGREKKYIYNAQNRISSILDNTAGATHYQYDTLGYVTKVSEAGSTSTFESDSFGNPALADSKVMSDRIEAYAGVRYKYDQQGNQVKREGDGTVQKRVFDALSQLVEVHGDSSISHYEYDALGRRTKKITQNGITEFLWEGERLLGERTADGFRWYLYQPETYIPLAVLENGSIYLYECDQVGKPERLKDSAGNIVWSASYDVHGFASIDVEEVRNPLRFQGQYFDQETNLHYNLARYYDPKLGRFIQQDPISIAGGINHYQYAVNPIQWIAPTGFLCEEGLKRLQQMLAEYQAQSDVPQEVCDQILEAAKESSVGEDGVRSQVKIRKPNGKNNIRYEYDLDHIDCKKNEITFYRHINYSDGSKRKIQYTVGIEGFVDIYDFVNVQKCDAQVYDTKTSKTVGGRKIINSEFAGKTVTTKGGDVRFDSDGFPDFTPYSKKTVRVIGLTGDMANDVPLAMARAKITKYDKSKYVWHHHQDGKTMMLIPKSVHSVRNGGVAATGGRSVIQHNLLNPNNKLNYSSPEELV

来源 Source

来源生物 organism	Vibrio parahaemolyticus serotype O3:K6 (strain RIMD 2210633)
NCBI 分类编号 ncbi_taxonomy_id	223926
宿主生物 host_organism	Escherichia coli BL21(DE3)

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.16 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	738487

fit	/app/data/saxs_computation/h8/8h8b/8h8b.fit
pddf	/app/data/pr_computation/h8/8h8b/8h8b.pr.out
profile	/app/data/saxs_computation/h8/8h8b/8h8b.dat
