1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8h9d
沉积日期 deposition_date	2022-10-25
结构标题 title	Crystal structure of Cas12a protein
关键词 keywords	CRISPR-Cas, Cas12a, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.58 Å
回转半径 Rg (电子) rg_electron	46.45 Å
零角强度 I(0) i0	858696000.00
分子量 molecular_weight	241000.0 kDa
排除体积 excluded_volume	301290 Å³
包络体积 envelope_volume	458100 Å³
水化壳体积 shell_volume	82898 Å³
包络直径 envelope_diameter	163.4 Å
壳层 Rg shell_rg	50.82 Å
包络 Rg envelope_rg	45.40 Å
形状 Rg shape_rg	46.47 Å
总 Rg total_rg	46.59 Å
总原子数 total_atoms	16980
残基数 n_residues	2081
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	160.0 Å
Rg (实空间) rg_real	46.58 Å
Rg 误差 (实空间) rg_real_error	1.60 Å
I(0) (实空间) i0_real	8.5870e+08
I(0) 误差 (实空间) i0_real_error	1.7830e+07
Rg (倒空间) rg_reciprocal	46.58 Å
I(0) (倒空间) i0_reciprocal	858700000.0000
解质量估计 total_estimate	0.8570
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	56.5 Å
偏度 Skewness skewness	0.385
峰度 Kurtosis kurtosis	-0.120
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	67140000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.789; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.778

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Cas12A
分子量 formula_weight	141200.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	16986

MYYESLTKQYPVSKTIRNELIPIGKTLDNIRQNNILESDVKRKQNYEHVKGILDEYHKQLINEALDNCTLPSLKIAAEIYLKNQKEVSDREDFNKTQDLLRKEVVEKLKAHENFTKIGKKDILDLLEKLPSISEDDYNALESFRNFYTYFTSYNKVRENLYSDKEKSSTVAYRLINENFPKFLDNVKSYRFVKTAGILADGLGEEEQDSLFIVETFNKTLTQDGIDTYNSQVGKINSSINLYNQKNQKANGFRKIPKMKMLYKQILSDREESFIDEFQSDEVLIDNVESYGSVLIESLKSSKVSAFFDALRESKGKNVYVKNDLAKTAMSNIVFENWRTFDDLLNQEYDLANENKKKDDKYFEKRQKELKKNKSYSLEHLCNLSEDSCNLIENYIHQISDDIENIIINNETFLRIVINEHDRSRKLAKNRKAVKAIKDFLDSIKVLERELKLINSSGQELEKDLIVYSAHEELLVELKQVDSLYNMTRNYLTKKPFSTEKVKLNFNRSTLLNGWDRNKETDNLGVLLLKDGKYYLGIMNTSANKAFVNPPVAKTEKVFKKVDYKLLPVPNQMLPKVFFAKSNIDFYNPSSEIYSNYKKGTHKKGNMFSLEDCHNLIDFFKESISKHEDWSKFGFKFSDTASYNDISEFYREVEKQGYKLTYTDIDETYINDLIERNELYLFQIYNKDFSMYSKGKLNLHTLYFMMLFDQRNIDDVVYKLNGEAEVFYRPASISEDELIIHKAGEEIKNKNPNRARTKETSTFSYDIVKDKRYSKDKFTLHIPITMNFGVDEVKRFNDAVNSAIRIDENVNVIGIDRGERNLLYVVVIDSKGNILEQISLNSIINKEYDIETDYHALLDEREGGRDKARKDWNTVENIRDLKAGYLSQVVNVVAKLVLKYNAIICLEDLNFGFKRGRQKVEKQVYQKFEKMLIDKLNYLVIDKSREQTSPKELGGALNALQLTSKFKSFKELGKQSGVIYYVPAYLTSKIDPTTGFANLFYMKCENVEKSKRFFDGFDFIRFNALENVFEFGFDYRSFTQRACGINSKWTVCTNGERIIKYRNPDKNNMFDEKVVVVTDEMKNLFEQYKIPYEDGRNVKDMIISNEEAEFYRRLYRLLQQTLQMRNSTSDGTRDYIISPVKNKREAYFNSELSDGSVPKDADANGAYNIARKGLWVLEQIRQKSEGEKINLAMTNAEWLEYAQTHLL

来源 Source

来源生物 organism	Lachnospiraceae bacterium
NCBI 分类编号 ncbi_taxonomy_id	1898203
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 polymer

描述 description	Cas12A
分子量 formula_weight	141313.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

LMYYESLTKQYPVSKTIRNELIPIGKTLDNIRQNNILESDVKRKQNYEHVKGILDEYHKQLINEALDNCTLPSLKIAAEIYLKNQKEVSDREDFNKTQDLLRKEVVEKLKAHENFTKIGKKDILDLLEKLPSISEDDYNALESFRNFYTYFTSYNKVRENLYSDKEKSSTVAYRLINENFPKFLDNVKSYRFVKTAGILADGLGEEEQDSLFIVETFNKTLTQDGIDTYNSQVGKINSSINLYNQKNQKANGFRKIPKMKMLYKQILSDREESFIDEFQSDEVLIDNVESYGSVLIESLKSSKVSAFFDALRESKGKNVYVKNDLAKTAMSNIVFENWRTFDDLLNQEYDLANENKKKDDKYFEKRQKELKKNKSYSLEHLCNLSEDSCNLIENYIHQISDDIENIIINNETFLRIVINEHDRSRKLAKNRKAVKAIKDFLDSIKVLERELKLINSSGQELEKDLIVYSAHEELLVELKQVDSLYNMTRNYLTKKPFSTEKVKLNFNRSTLLNGWDRNKETDNLGVLLLKDGKYYLGIMNTSANKAFVNPPVAKTEKVFKKVDYKLLPVPNQMLPKVFFAKSNIDFYNPSSEIYSNYKKGTHKKGNMFSLEDCHNLIDFFKESISKHEDWSKFGFKFSDTASYNDISEFYREVEKQGYKLTYTDIDETYINDLIERNELYLFQIYNKDFSMYSKGKLNLHTLYFMMLFDQRNIDDVVYKLNGEAEVFYRPASISEDELIIHKAGEEIKNKNPNRARTKETSTFSYDIVKDKRYSKDKFTLHIPITMNFGVDEVKRFNDAVNSAIRIDENVNVIGIDRGERNLLYVVVIDSKGNILEQISLNSIINKEYDIETDYHALLDEREGGRDKARKDWNTVENIRDLKAGYLSQVVNVVAKLVLKYNAIICLEDLNFGFKRGRQKVEKQVYQKFEKMLIDKLNYLVIDKSREQTSPKELGGALNALQLTSKFKSFKELGKQSGVIYYVPAYLTSKIDPTTGFANLFYMKCENVEKSKRFFDGFDFIRFNALENVFEFGFDYRSFTQRACGINSKWTVCTNGERIIKYRNPDKNNMFDEKVVVVTDEMKNLFEQYKIPYEDGRNVKDMIISNEEAEFYRRLYRLLQQTLQMRNSTSDGTRDYIISPVKNKREAYFNSELSDGSVPKDADANGAYNIARKGLWVLEQIRQKSEGEKINLAMTNAEWLEYAQTHLL

来源 Source

来源生物 organism	Lachnospiraceae bacterium
NCBI 分类编号 ncbi_taxonomy_id	1898203
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 polymer

描述 description	;RNA (5'-R(PAPAPUPUPUPCPUPAPCPUPAPAPGPUPGPUPAPGPAPUP*C)-3') ;
分子量 formula_weight	6660.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	G

AAUUUCUACUAAGUGUAGAUC

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	235.701 Å
晶胞边长 b length_b	85.628 Å
晶胞边长 c length_c	139.303 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	110.15 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	29.980 Å
R 因子 r_factor	0.2329
R_work r_work	0.2321
R_free r_free	0.2524

fit	/app/data/saxs_computation/h9/8h9d/8h9d.fit
pddf	/app/data/pr_computation/h9/8h9d/8h9d.pr.out
profile	/app/data/saxs_computation/h9/8h9d/8h9d.dat

Crystal structure of Cas12a protein

SAXS 散射曲线 SAXS Profile

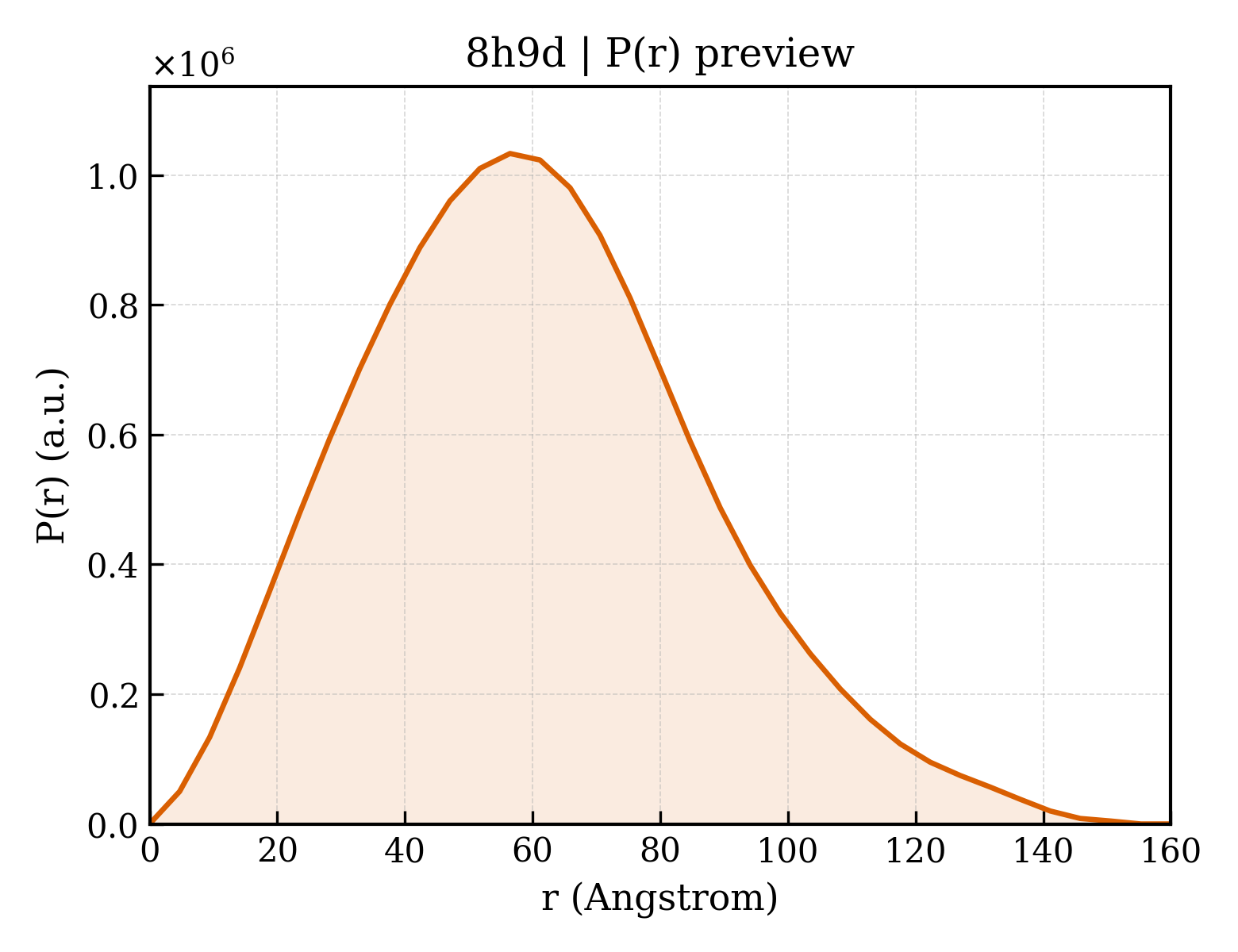

P(r) 距离分布 P(r) Distribution
