8hex

C5 portal vertex in HCMV B-capsid

Method: ELECTRON MICROSCOPY D_max: 271.1 Å Quality: GOOD

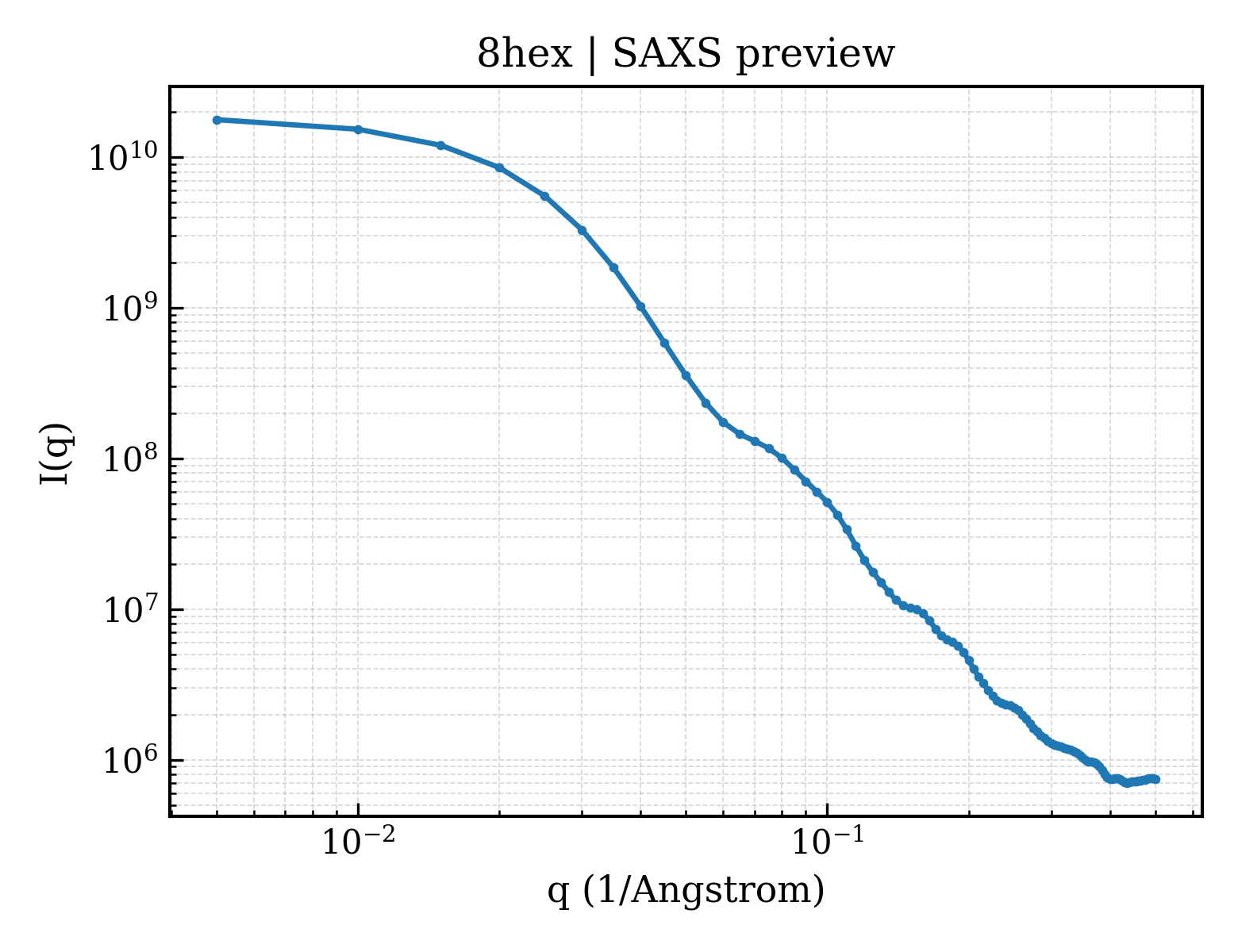

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hex
沉积日期 deposition_date	2022-11-08
结构标题 title	C5 portal vertex in HCMV B-capsid
关键词 keywords	B-capsid, C5 portal vertex, in-situ structure, VIRUS, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	76.54 Å
回转半径 Rg (电子) rg_electron	76.49 Å
零角强度 I(0) i0	18648000000.00
分子量 molecular_weight	1176800.0 kDa
排除体积 excluded_volume	1478900 Å³
包络体积 envelope_volume	2227100 Å³
水化壳体积 shell_volume	235050 Å³
包络直径 envelope_diameter	277.1 Å
壳层 Rg shell_rg	80.77 Å
包络 Rg envelope_rg	75.53 Å
形状 Rg shape_rg	76.49 Å
总 Rg total_rg	76.51 Å
总原子数 total_atoms	82790
残基数 n_residues	10455
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	271.1 Å
Rg (实空间) rg_real	79.73 Å
Rg 误差 (实空间) rg_real_error	1.61 Å
I(0) (实空间) i0_real	1.8660e+10
I(0) 误差 (实空间) i0_real_error	3.8180e+08
Rg (倒空间) rg_reciprocal	76.54 Å
I(0) (倒空间) i0_reciprocal	18650000000.0000
解质量估计 total_estimate	0.8792
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	94.9 Å
偏度 Skewness skewness	0.513
峰度 Kurtosis kurtosis	-0.013
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	1.1040
最高正则化参数 α highest_alpha	1442000000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.804; Stabil: 0.883; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.412

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Triplex capsid protein 2
分子量 formula_weight	34635.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h,I,n,o
原子数 atom_count	82790

MAAMEANIFCTFDHKLSIADVGKLTKLVAAVVPIPQRLHLIKHYQLGLHQFVDHTRGYVRLRGLLRNMTLTLMRRVEGNQILLHVPTHGLLYTVLNTGPVTWEKGDALCVLPPLFHGPLARENLLTLGQWELVLPWIVPMPLALEINQRLLIMGLFSLDRSYEEVKAAVQQLQTITFRDATFTIPDPVIDQHLLIDMKTACLSMSMVANLASELTMTYVRKLALEDSSMLLVKCQELLMRLDRERSVGEPRTPARPQHVSPDDEIARLSALFVMLRQLDDLIREQVVFTVCDVSPDNKSATCIFKG

Entity 2 polymer

描述 description	Triplex capsid protein 1
分子量 formula_weight	33071.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g,m

MDARAVAKRPRDPADEDNELVTALKAKREVNTISVRYLYHADHQALTARFFVPEGLVEFEAQPGALLIRMETGCDSPRHLYISLYLLGIRASNVSASTRCLLESVYTASAARAALQWLDLGPHLLHRRLETLGCVKTVSLGITSLLTCVMRGYLYNTLKTEVFALMIPKDMYLTWEETRGRLQYVYLIIVYDYDGPETRPGIYVLTSSIAHWQTLVDVARGKFARERCSFVNRRITRPRQIPLCTGVIQKLGWCLADDIHTSFLVHKELKLSVVRLDNFSVELGDFREFV

Entity 3 polymer

描述 description	Capsid vertex component 1
分子量 formula_weight	68567.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

METHLYSDLAFEARFADDEQLPLHLVLDQEVLSNEEAETLRYVYYRNVDSAGRSTGRAPGGDEDDAPASDDAEDAVGGDRAFDRERRTWQRACFRVLPRPLELLDYLRQSGLTVTLEKEQRVRMFYAVFTTLGLRCPDNRLSGAQTLHLRLVWPDGSYRDWEFLARDLLREEMEANKRDRQHQLATTTNHRRRGGLRNNLDNGSDRRLPEAAVASLETAVSTPFFEIPNGAGTSSANGDGRFSNLEQRVARLLRGDEEFIYHAGPLEPPSKIRGHELVQLRLDVNPDLMYATDPHDRDEVARTDEWKGAGVSRLREVWDVQHRVRLRVLWYVNSFWRSRELSYDDHEVELYRALDAYRARIAVEYVLIRAVRDEIYAVLRRDGGALPQRFACHVSRNMSWRVVWELCRHALALWMDWADVRSCIIKALTPRLSRGAAAAAQRARRQRERSAPKPQELLFGPRNESGPPAEQTWYADVVRCVRAQVDLGVEVRAARCPRTGLWIVRDRRGRLRRWLSQPEVCVLYVTPDLDFYWVLPGGFAVSSRVTLHGLAQRALRDRFQNFEAVLARGMHVEAGRQEPETPRVSGRRLPFDDL

Entity 4 polymer

描述 description	Capsid vertex component 2
分子量 formula_weight	71269.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,O

MSLLHTFWRLPVAVFFEPHEENVLRCPERVLRRLLEDAAVTMRGGGWREDVLMDRVRKRYLRQELRDLGHRVQTYCEDLEGRVSEAEALLNQQCELDEGPSPRTLLQPPCRPRSSSPGTGVAGASAVPHGLYSRHDAITGPAAAPSDVVAPSDAVAASAAAGASSTWLAQCAERPLPGNVPSYFGITQNDPFIRFHTDFRGEVVNTMFENASTWTFSFGIWYYRLKRGLYTQPRWKRVYHLAQMDNFSISQELLLGVVNALENVTVYPTYDCVLSDLEAAACLLAAYGHALWEGRDPPDSVATVLGELPQLLPRLADDVSREIAAWEGPVAAGNNYYAYRDSPDLRYYMPLSGGRHYHPGTFDRHVLVRLFHKRGVIQHLPGYGTITEELVQERLSGQVRDDVLSLWSRRLLVGKLGRDVPVFVHEQQYLRSGLTCLAGLLLLWKVTNADSVFAPRTGKFTLADLLGSDAVAGGGLPGGRAGGEEEGYGGRHGRVRNFEFLVRYYIGPWYARDPAVTLSQLFPGLALLAVTESVRSGWDPSRREDSAGGGDGGGAVLMQLSKSNPVADYMFAQSSKQYGDLRRLEVHDALLFHYEHGLGRLLSVTLPRHRVSTLGSSLFNVNDIYELLYFLVLGFLPSVAVL

Entity 5 polymer

描述 description	Small capsomere-interacting protein
分子量 formula_weight	8495.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,S,i,j

MSNTAPGPTVANKRDEKHRHVVNVVLELPTEISEATHPVLATMLSKYTRMSSLFNDKCAFKLDLLRMVAVSRTRR

Entity 6 polymer

描述 description	Major capsid protein
分子量 formula_weight	154048.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,B,C,D,Y,Z

MENWSALELLPKVGIPTDFLTHVKTSAGEEMFEALRIYYGDDPERYNIHFEAIFGTFCNRLEWVYFLTSGLAAAAHAIKFHDLNKLTTGKMLFHVQVPRVASGAGLPTSRQTTIMVTKYSEKSPITIPFELSAACLTYLRETFEGTILDKILNVEAMHTVLRALKNTADAMERGLIHSFLQTLLRKAPPYFVVQTLVENATLARQALNRIQRSNILQSFKAKMLATLFLLNRTRDRDYVLKFLTRLAEAATDSILDNPTTYTTSSGAKISGVMVSTANVMQIIMSLLSSHITKETVSAPATYGNFVLSPENAVTAISYHSILADFNSYKAHLTSGQPHLPNDSLSQAGAHSLTPLSMDVIRLGEKTVIMENLRRVYKNTDTKDPLERNVDLTFFFPVGLYLPEDRGYTTVESKVKLNDTVRNALPTTAYLLNRDRAVQKIDFVDALKTLCHPVLHEPAPCLQTFTERGPPSEPAMQRLLECRFQQEPMGGAARRIPHFYRVRREVPRTVNEMKQDFVVTDFYKVGNITLYTELHPFFDFTHCQENSETVALCTPRIVIGNLPDGLAPGPFHELRTWEIMEHMRLRPPPDYEETLRLFKTTVTSPNYPELCYLVDVLVHGNVDAFLLIRTFVARCIVNMFHTRQLLVFAHSYALVTLIAEHLADGALPPQLLFHYRNLVAVLRLVTRISALPGLNNGQLAEEPLSAYVNALHDHRLWPPFVTHLPRNMEGVQVVADRQPLNPANIEARHHGVSDVPRLGAMDADEPLFVDDYRATDDEWTLQKVFYLCLMPAMTNNRACGLGLNLKTLLVDLFYRPAFLLMPAATAVSTSGTTSKESTSGVTPEDSIAAQRQAVGEMLTELVEDVATDAHTPLLQACRELFLAVQFVGEHVKVLEVRAPLDHAQRQGLPDFISRQHVLYNGCCVVTAPKTLIEYSLPVPFHRFYSNPTICAALSDDIKRYVTEFPHYHRHDGGFPLPTAFAHEYHNWLRSPFSRYSATCPNVLHSVMTLAAMLYKISPVSLVLQTKAHIHPGFALTAVRTDTFEVDMLLYSGKSCTSVIINNPIVTKEERDISTTYHVTQNINTVDMGLGYTSNTCVAYVNRVRTDMGVRVQDLFRVFPMNVYRHDEVDRWIRHAAGVERPQLLDTETISMLTFGSMSERNAAATVHGQKAACELILTPVTMDVNYFKIPNNPRGRASCMLAVDPYDTEAATKAIYDHREADAQTFAATHNPWASQAGCLSDVLYNTRHRERLGYNSKFYSPCAQYFNTEEIIAANKTLFKTIDEYLLRAKDCIRGDTDTQYVCVEGTEQLIENPCRLTQEALPILSTTTLALMETKLKGGAGAFATSETHFGNYVVGEIIPLQQSMLFNS

Entity 7 polymer

描述 description	portal protein
分子量 formula_weight	3592.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 8 polymer

描述 description	portal protein
分子量 formula_weight	1294.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

XXXXXXXXXXXXXXX

Entity 9 polymer

描述 description	portal protein
分子量 formula_weight	1124.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

XXXXXXXXXXXXX

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	26181

fit	/app/data/saxs_computation/he/8hex/8hex.fit
pddf	/app/data/pr_computation/he/8hex/8hex.pr.out
profile	/app/data/saxs_computation/he/8hex/8hex.dat
