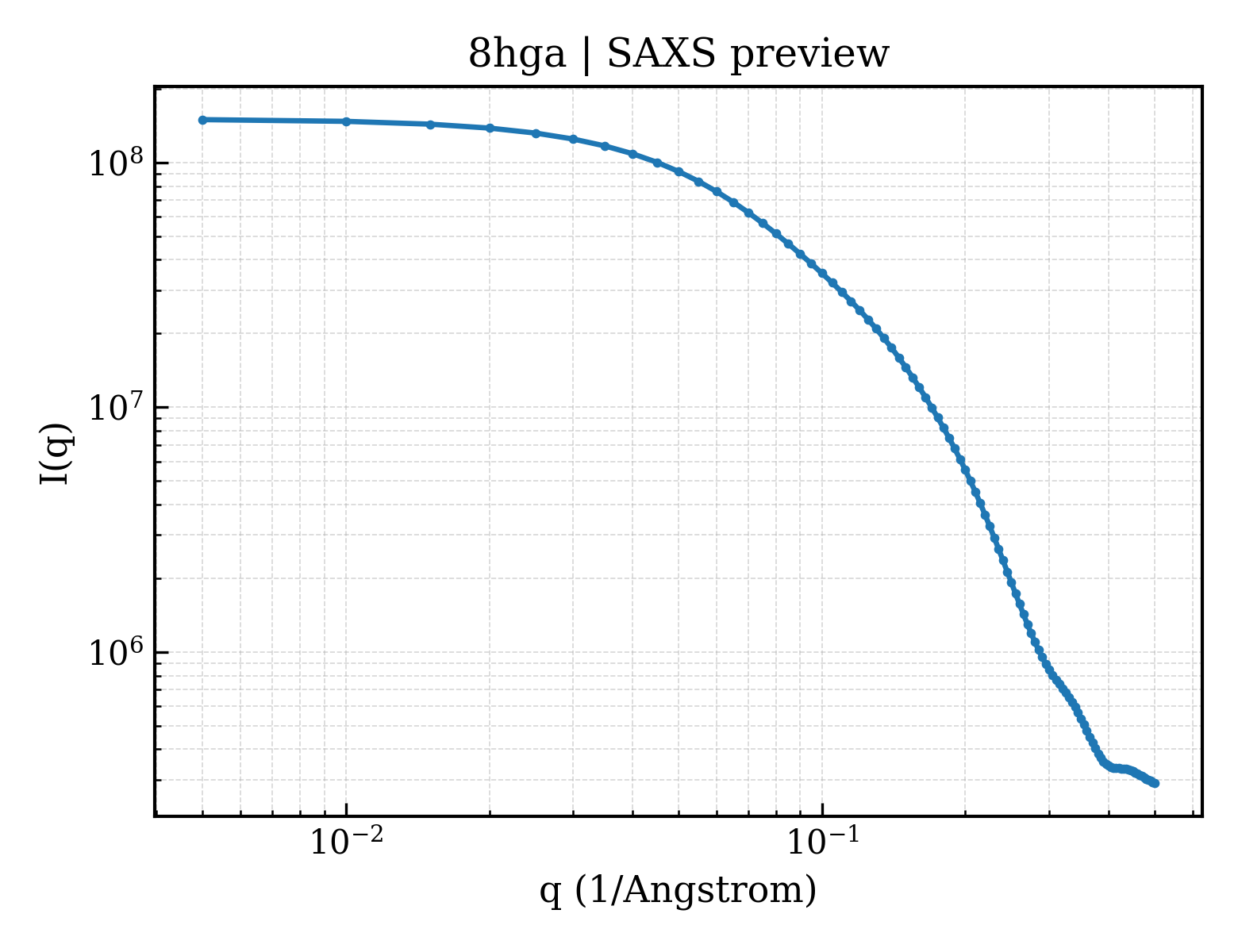

SAXS 散射曲线 SAXS Profile

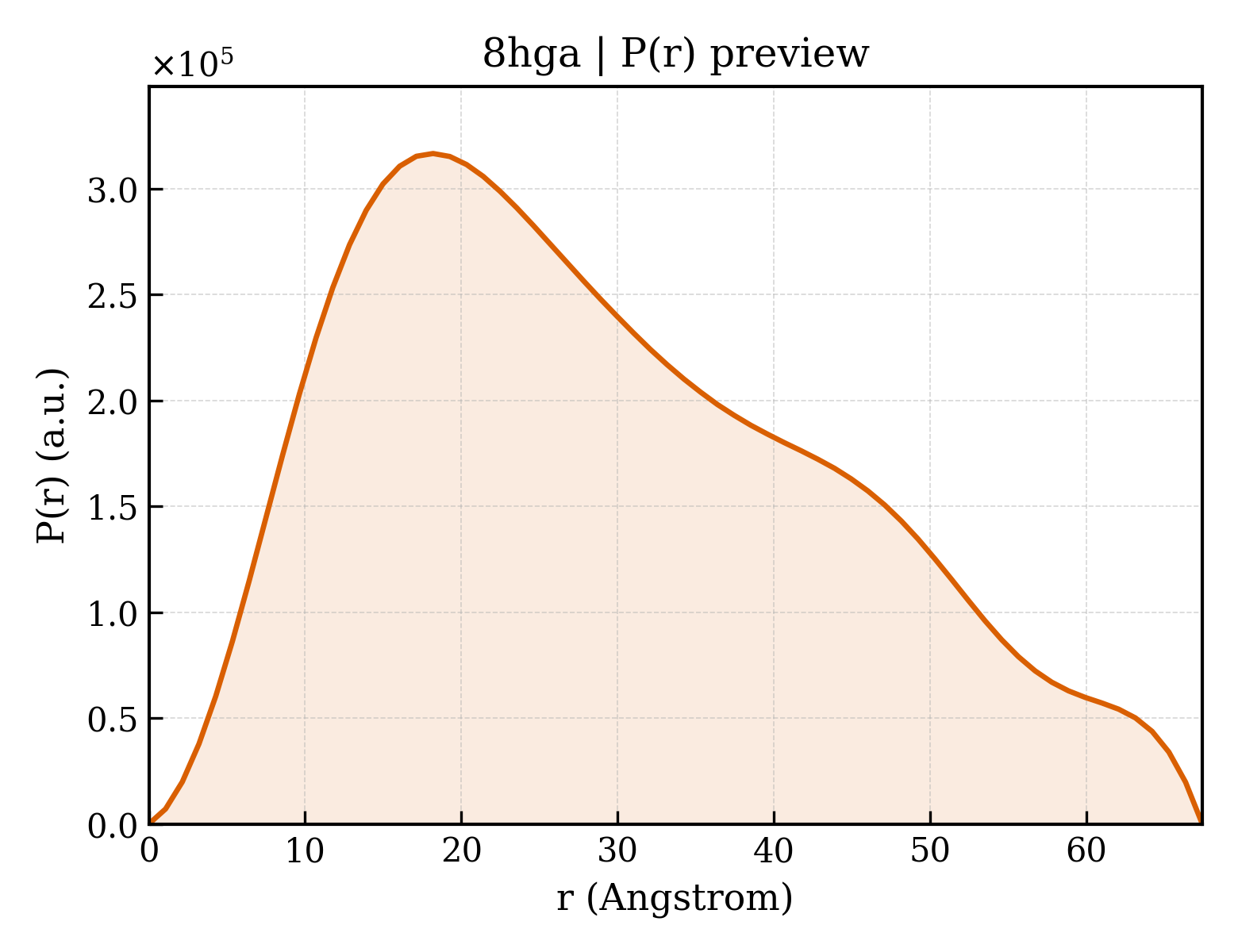

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 8hga |
| 沉积日期 deposition_date | 2022-11-14 |
| 结构标题 title | Monomer structure of transforming growth factor beta induced protein (TGFBIp) G623R fibril |
| 关键词 keywords | Pathological fibrils, TGFBI related corneal dystrophy, PROTEIN FIBRIL; PROTEIN FIBRIL |
| 实验方法 method | SOLID-STATE NMR |
| 回转半径 Rg (Guinier) rg_guinier | 24.73 Å |
| 回转半径 Rg (电子) rg_electron | 24.95 Å |
| 零角强度 I(0) i0 | 150261000.00 |
| 分子量 molecular_weight | 101080.0 kDa |
| 排除体积 excluded_volume | 126970 ų |
| 包络体积 envelope_volume | 65929 ų |
| 水化壳体积 shell_volume | 22355 ų |
| 包络直径 envelope_diameter | 105.2 Å |
| 壳层 Rg shell_rg | 31.61 Å |
| 包络 Rg envelope_rg | 28.23 Å |
| 形状 Rg shape_rg | 24.97 Å |
| 总 Rg total_rg | 25.24 Å |
| 总原子数 total_atoms | 14320 |
| 残基数 n_residues | 920 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 67.4 Å |
| Rg (实空间) rg_real | 22.95 Å |
| Rg 误差 (实空间) rg_real_error | 0.18 Å |
| I(0) (实空间) i0_real | 1.4320e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.4630e+06 |
| Rg (倒空间) rg_reciprocal | 25.22 Å |
| I(0) (倒空间) i0_reciprocal | 150200000.0000 |
| 解质量估计 total_estimate | 0.6366 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 18.2 Å |
| 偏度 Skewness skewness | 0.454 |
| 峰度 Kurtosis kurtosis | -0.637 |
| 角度范围 angular_range | — – 0.3200 Å−1 |
| 当前正则化参数 α current_alpha | 1.9330 |
| 最高正则化参数 α highest_alpha | 1303000.0000 |
| 实空间数据点数 n_real_points | 64 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.001;
Oscil: 0.895;
Stabil: 0.982;
Sysdev: 0.000;
Positv: 1.000;
Valcen: 0.662;
Smooth: 0.000
|
Entity 1
polymer
| 描述 description | Transforming growth factor-beta-induced protein ig-h3 |
| 分子量 formula_weight | 2547.9 kDa |
| 突变 mutation | G623R |
| 来源方法 src_method | man |
| 拷贝数 entity_count | 4 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | A,B,C,D |
| 原子数 atom_count | 14320 |
EPVAEPDIMATNRVVHVITNVLQ
来源 Source
| 来源生物 organism | Homo sapiens |
| 通用名 common_name | human |
| NCBI 分类编号 ncbi_taxonomy_id | 9606 |
| 宿主生物 host_organism | Escherichia coli |
Release of frustration drives corneal amyloid disaggregation by brain chaperone.
Commun Biol (2023)
Files (7)
- pr_distribution /app/data/pr_computation/hg/8hga/pr_distribution.json
- pr_output /app/data/pr_computation/hg/8hga/8hga.pr.out
- pr_plot /app/data/visualization/pr_computation/hg/8hga/8hga_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/hg/8hga/8hga.dat
- saxs_fit /app/data/saxs_computation/hg/8hga/8hga.fit
- saxs_log /app/data/saxs_computation/hg/8hga/8hga.log
- saxs_plot /app/data/visualization/saxs_computation/hg/8hga/8hga_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/hg/8hga/8hga.fit |
| pddf |
/app/data/pr_computation/hg/8hga/8hga.pr.out |
| profile |
/app/data/saxs_computation/hg/8hga/8hga.dat |
