8him

A cryo-EM structure of B. oleracea RNA polymerase V elongation complex at 2.73 Angstrom

Method: ELECTRON MICROSCOPY D_max: 151.6 Å Quality: GOOD

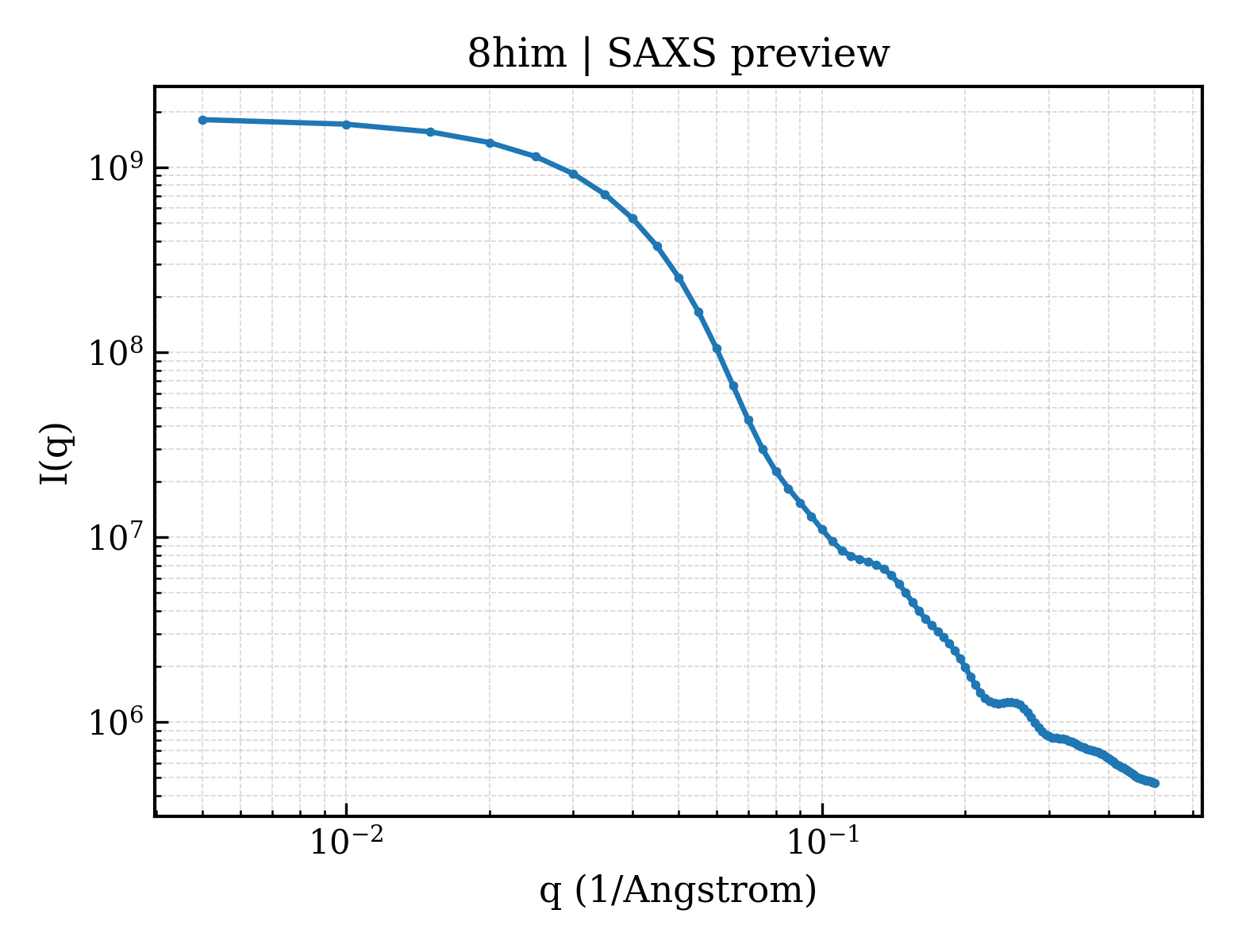

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8him
沉积日期 deposition_date	2022-11-21
结构标题 title	A cryo-EM structure of B. oleracea RNA polymerase V elongation complex at 2.73 Angstrom
关键词 keywords	DNA-dependent RNA polymerase V, TRANSCRIPTION; TRANSCRIPTION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.71 Å
回转半径 Rg (电子) rg_electron	47.40 Å
零角强度 I(0) i0	1842270000.00
分子量 molecular_weight	342580.0 kDa
排除体积 excluded_volume	422730 Å³
包络体积 envelope_volume	609150 Å³
水化壳体积 shell_volume	102270 Å³
包络直径 envelope_diameter	156.1 Å
壳层 Rg shell_rg	55.09 Å
包络 Rg envelope_rg	46.82 Å
形状 Rg shape_rg	47.40 Å
总 Rg total_rg	47.67 Å
总原子数 total_atoms	23948
残基数 n_residues	2912
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	151.6 Å
Rg (实空间) rg_real	47.47 Å
Rg 误差 (实空间) rg_real_error	0.98 Å
I(0) (实空间) i0_real	1.8420e+09
I(0) 误差 (实空间) i0_real_error	3.3600e+07
Rg (倒空间) rg_reciprocal	47.71 Å
I(0) (倒空间) i0_reciprocal	1843000000.0000
解质量估计 total_estimate	0.8217
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	59.7 Å
偏度 Skewness skewness	0.204
峰度 Kurtosis kurtosis	-0.468
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	279000000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (15)

Entity 1 polymer

描述 description	DNA (34-MER)
分子量 formula_weight	10482.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	T
原子数 atom_count	23948

AAGCTCAAGTATCGTAGCCTGGTCATTACGAGTA

Entity 2 polymer

描述 description	DNA (34-MER)
分子量 formula_weight	10463.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	N

TACTCGTAAGCTAGTATTGACGATACTTGAGCTT

Entity 3 polymer

描述 description	;RNA (5'-R(UPAPUPAPUPGPCPAPUPAPAPAPGPAPCPCPAPGPGPC)-3') ;
分子量 formula_weight	6414.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	P

UAUAUGCAUAAAGACCAGGC

Entity 4 polymer

描述 description	DNA-directed RNA polymerase V largest subunit
分子量 formula_weight	222876.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MEEASSSDILEAEIVGISFALATHRQIRLASISDAGINHASQLSNAFLGLPLEFGKCEACGATEPDKCEGHFGYIHLPVPIYHPAHVSELKQMLSLLCLKCLKIKKIKSTSSGLAERLLGVCCEEASNITIKDKSSDGASYLQLKLPSRTRLQEGFWNFLERYGYRYGSDHTRPLLAREVKEILRRIPEETRKKLTAKGHIPQEGYILEYLPVPPNCLSVPEVSDGSNSMSVDPSRIELKDVLRKVVAINNSRSGETNFESHRAEANEMFRVVDTYLQVRGTAKPTRNIDMRFGVSKISDSSSSKAWTEKMRTLFIRKGSGFSSRSVITGDAFRNVNEVGIPMEIAHRITFEERVSVHNIGYLQELVDNKMCLSYTQGSTTYSLRDGSKGHTVLKPGQIVHRRVMDGDVVFINRPPTTHKHSLQALRVYVHEDNTVKINPLMCGPLSADFDGDCVHLFYPQSLTAKAEVLELFSVDKQLRSSHTGQLILQLGLDSLLSLRVMMEQVFLDKASAQQLAMYGSRSLPSPAVVKSSKSGPAWTFFQILQLAFPERLSCRGDGFIVGGSDLLSFDFGVDALASIINGIVTGIMVEKGPKEALAFFDSLQPLLMEHLDPQGFSLSLEDLSMSREDMGVIHNLIVREISPMVSRLRLSYEDELQLENSIQKVKEVAANFMLKSYSMRNLIDIKSNSAINKLVQQIGFLGLQLSDKKKLYTKTLVEDMAQFYKKKYVSTSSSGDFGIVKGCFFHGLDPYEEMAHSVAAREVIVRSSRGLAEPGTLFKNLMAVLRDIVITNDGTVRNTCSNSIVQFKYELSSDNENQGLFEAGDPVGVLAATAMSNPAYKAVLDSSPNSNSSWELMKEVLLCKVNFQNTTNDRRVILYLNECRCGKKYCQENSAYTVRNKLKKVSLKDTAVEFLVEYRKQQAISEIFGMDICLHGHIHLNKTLLEGWNISMQDILQRCEDAINSLVQKKKKKAEDFKKMNLSVSECCSFRGPGSSKDSDMPCLMFSSYNATDPDLERTLDVLCNTIYPVLLETVIKGDPRIASANIIWNSPETTTWIRSLHASRRGEWVLDVTVEKSDVKQSGDAWRVVIDSCLSVLHLIDTKRSIPYSIKQVQELLGLSCAFEQAVQRLSASVRKVSKGVLKEHIILVANNMTCSGDMLGFNYGGYKALTRSLNIKAPFTEATLIAPRKCFEKAAEKCHKDSLSTVVGSCSWGKRVDVGTGSQFELLWNKKETGLENDDETDVFSFLQMVRSTKTADAYVSSPGFDVTEEEMAEWAESPERDSALGEPKFDDSAEFQNLLDEGKASESKWDNGSLWENGCSSGSEWGVSKNAGGEENTQSGWGKAANVENEDASSGWNSKKDAQEATNTDSWGAWGSKTKDDAENATPNWGTKPAQNDSVVIENGEPSSDVWGPKAVSDKPWGKKNSETEPAPAAWGKTNSESESAAAAWGSDDEKNTGTESDAAGWGSTYKKNPETELNAAAWGSGAKMNKETEPAPAAWGSWGKKSSETVSGGADWGNRGKRVSETESGAGGWASRNRSLENQSGGATWGSRDKSKFETESGGAAWGSQAKNNSETEPGSGAAALGTWDKKKPETETGGGGAAWGSQAKNNSETESGSGAAAWGTWDKKKSETESGGGAWGSQAKKNSETESGAGASTWGAWDKKKPETESGGGGAAWGSQAKNNSETESGSGAAAWGSQAKKNSESQLGTANWGSKDTNNSENGSDSAAWGKKKNSEAEPTSVAWCSWGQPSPPASDKDAQEDDGNPWVSLKATSSGDKEGNETSQWGVPNKRYPSAGSQSQGGGGGADWKRNRPPRTPGSESILGPMFTATRQRVDMFTSEEQELLSDVDPVMRRLRKIMHQSGYTDGEPISDEDKTYVLEQILNYHPDKDAKLGPGLDFITVDKHTTFTESRCFFVVSTDGTKQDFSYRKCINNYLVEKHPNLAEEFIAKYFRKRDNENRDKNSQEATPPGEQESQTQPIDNGSQDSQPQPIGNEGGDTQPQSQIEDIQPIGNGGEDSQTEPQA

Entity 5 polymer

描述 description	RPOLD domain-containing protein
分子量 formula_weight	35484.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MDTGATYQRFPKVKIRELKDDYAKFELRDTDVSMANALRRVMISEVPTVAIDLVEIEVNSSVLNDEFIAHRLGLIPLTSERAMSMRFSRDCDACDGDGQCEFCSVEFRLSAKCVTDQTLDVTSKDLYSADPTVTPVDFGDSSGADSSEQRGIIIVKLRRGQELKLRAIARKGIGKDHAKWSPAATVTFMYEPDIIINEDMMDTLTDDEKIDLIESSPTKVFDFDAVTRQVVVVDPEAYTYDEEVIKKAEAMGKQGLIEIRPKDDSFIFTVESTGAVKASQLVLNAIDLLKQKLDAVRLSDDTVEADDQFGELGAHMRGG

Entity 6 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC2
分子量 formula_weight	16686.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAEDDYNEVDDLGYEDEPAEPEIEEGIEEDADMKDNDDINGEPLETEDKVETEPVQRPRKTSKFMTKYERARILGTRALQISMNAPVMVELEGETDPLEIAMKELRQRKIPFTIRRYLPDGSFEEWGVDELIVEDSWKRQVGGD

Entity 7 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC5
分子量 formula_weight	7982.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MIIPVRCFTCGKVIGNKWDTYLDLLQADYTEGDALDAIGLVRYCCRRMLMTHVDLIEKLLNYNTLEKSD

Entity 8 polymer

描述 description	RNA_pol_L_2 domain-containing protein
分子量 formula_weight	13538.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MNAPDRYERFVVPEGTKKVSYERDTKIINAASFTIEREDHTIGNIVRMQLHRDENVLFAGYQLPHPLKYKIIVRIHTTSQSSPMQAYNQAINDLDKELDFLKSQFEAEVAKFSNPY

Entity 9 polymer

描述 description	DNA-directed RNA polymerases II, IV and V subunit 12
分子量 formula_weight	5983.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MDQQSEPVTYVCGDCGQENTLKSGDVIQCRECGYRILYKKRTRRVVQYEAR

Entity 10 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC3
分子量 formula_weight	16607.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MASSIIMFEDIFVVDKLDPDGKKFDKVTRIEATSHNLDMFMHLDVNTEVYPMAVGDKFTLAMAPTLNLDGTPDTGYFTPGAKKTLADKYEYVMHGKLYKITERDGQTPKAEMYVSFGGLLMLLRGDPAHISHFELDQRLFLLMRKL

Entity 11 polymer

描述 description	DNA-directed RNA polymerase subunit
分子量 formula_weight	13123.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MSTMKFCRECNNILYPKEDREQSILLYACRNCDHQEAADDNCVYRNEVHHSVSEQTQILSDVASDPTLPRTKAVRCAKCQHGEAVFFQATARGEEGMTLFFVCCNPNCGHRWRE

Entity 12 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC1
分子量 formula_weight	26260.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MEGIGNDKSSCSSSSTVPSPCLSKYVDPSSEESHRYYLARRNALEMLRDRGYEVSLEDINLSLQDFRTVYGERPDVDRLRISAHHRSDSSNKVKVVFFGTGKVKVNTIRSVAAEILSQETITGLILVLQNQVTDKALKAIELFTFKVEIFQITDLLVNLTKHVLSLRHRVLTDGEKKALLKQFNIEEKQLPRISKKDAVVRYYGLEKGQIVKVSYRGELTESYVAYRCVW

Entity 13 polymer

描述 description	DNA-directed RNA polymerase IV and V subunit 2
分子量 formula_weight	132377.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MTDIDIEEIEAAGEVDLRDLGEPFLQSFCKKAATSFFDEYGLVSHQLNSYNFFIEHGLQSVFESSGEMLVEPSFDPTKNKDHEWRYATVKFGEVSVDKPTLYSDDKELVFLPWHARLQNMTYSARMKVNVDVEVFVKKVVKRDKFKTGQDEYVEKQILSKKTQDIPIGRIPVMVKSVLCNTTEKGKNGESYRKGECAFDQGGYFVIKGAEKVFIAQEQICTKRLWISNSPWTVSYRSETKRNRFIVRLSENQKAEDFKRKEKVLTVYFLSTEIPVWVLFFALGVASDKEAVDLIAFDGGDASITNSVVASIQEADSVCEDFRHGRNALAYVEQQIKGTKFPPGESVDECLSLYLFPGLKSLTQKARFLGYMVKCLFSAYAGKRKCENRDNFRNKRIELAGELLERELRVHLAHARRTMTKAMQRHLTGDGDLKPIEHYLDASIITNGLSRAFSTGAWCHPFRKMERVSGVVANLGRANPLQSLIDLRRTRQQVLYTGRVGDARYPHPSHWGRLCFLSTPDGENCGLVKNLSLLGLVSTQIMEPVVEELFDSGMEELMDDTSTPLSGKHKVLLNGDWVGVCSDSDYFVADLKSRRRQSELPRQMEIKLDKDDKEVRIFTDAGRLLRPLLVVENLHKLKQSKPSKYTFEHLLDQGILELIGIEEEEDCTTAWGTKQLLKQQKSYTHCELDLSFLLGVSCAIVPFANHDHGRRVLYQSQKHCQQAIGFCSTNPNIRCDTLSQQLFYPQRPLFKTMASECLQKDVLFNGQNAIVAVNVHLGFNQEDSIVMNKASLERGMFRSEQIRSYKADVDSKDSEKRKKMDEVVQFGKTHSKIGRVDSLDDDGFPFVGANMHSGDIVIGRCTESGTDHSVKLKHTERGIVQKVVLSSNDDGKNYATVSLRQVRSPCLGDKFSSMHGQKGVLGYIEEQENFAFTNQGIVPDIVINPHAFPSRQTPGQLLEAALSKGIACPMQKKKGKSDAYSKVTRHATPFSTPSVDDITDQLHRAGFSRSGNERVYNGRTGEMMRSLIFMGPNFYQRLIHMSEDKVKFRNTGPVHPLTRQPVADRKRFGGIKFGEMERDCLIAHGASANLHERLFTLSDSSQMHICRNCKSAANVIERVASSGRRIRGPYCRLCESPDYVVMVNVPYGAKLLYQELFSMGICLNFETNLC

Entity 14 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 15 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

结构域编号 domain_id	8himB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1110 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; domain 3
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase Rpb2, domain 2

结构域编号 domain_id	8himK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	503124

fit	/app/data/saxs_computation/hi/8him/8him.fit
pddf	/app/data/pr_computation/hi/8him/8him.pr.out
profile	/app/data/saxs_computation/hi/8him/8him.dat
