8hla

;Heteromeric ring comprised of peroxiredoxin from Thermococcus kodakaraensis (TkPrx) F42C/C46S/C205S/C211S mutant modified with 2-(bromoacetyl)naphthalene (Naph@TkPrxF42C) and TkPrx C46S/F76C/C205S/C211S mutant modified with 2-(bromoacetyl)naphthalene (Naph@TkPrxF76C) (Naph@(MIX|3:3)) ;

Method: ELECTRON MICROSCOPY D_max: 162.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

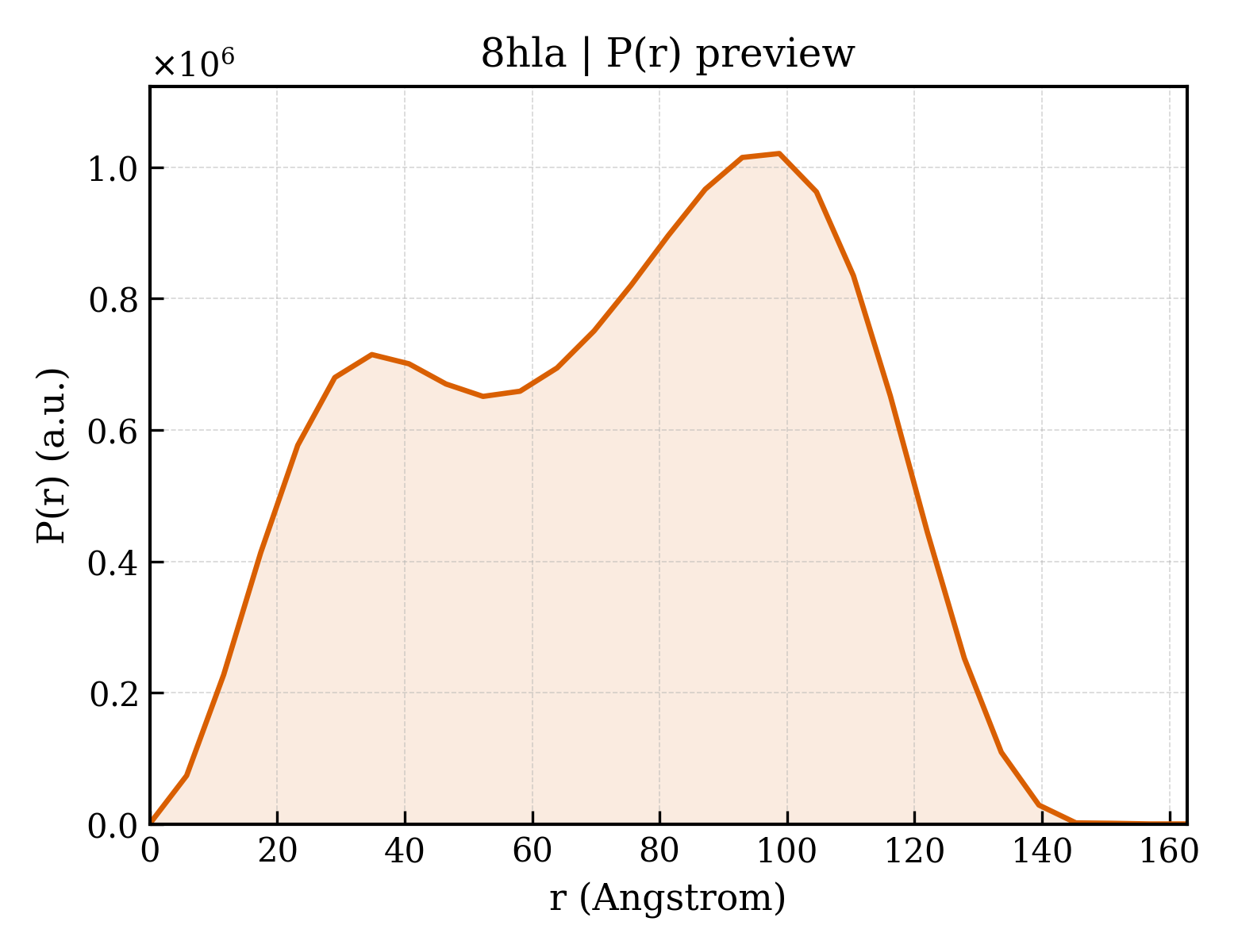

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hla
沉积日期 deposition_date	2022-11-29
结构标题 title	;Heteromeric ring comprised of peroxiredoxin from Thermococcus kodakaraensis (TkPrx) F42C/C46S/C205S/C211S mutant modified with 2-(bromoacetyl)naphthalene (Naph@TkPrxF42C) and TkPrx C46S/F76C/C205S/C211S mutant modified with 2-(bromoacetyl)naphthalene (Naph@TkPrxF76C) (Naph@(MIX\|3:3)) ;
关键词 keywords	Peroxiredoxin, Complex, Protein protein interactions, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	56.77 Å
回转半径 Rg (电子) rg_electron	55.97 Å
零角强度 I(0) i0	1081990000.00
分子量 molecular_weight	294830.0 kDa
排除体积 excluded_volume	375440 Å³
包络体积 envelope_volume	541660 Å³
水化壳体积 shell_volume	77229 Å³
包络直径 envelope_diameter	159.1 Å
壳层 Rg shell_rg	67.22 Å
包络 Rg envelope_rg	52.00 Å
形状 Rg shape_rg	56.00 Å
总 Rg total_rg	56.11 Å
总原子数 total_atoms	20868
残基数 n_residues	2580
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	162.7 Å
Rg (实空间) rg_real	56.48 Å
Rg 误差 (实空间) rg_real_error	1.31 Å
I(0) (实空间) i0_real	1.0820e+09
I(0) 误差 (实空间) i0_real_error	2.2470e+07
Rg (倒空间) rg_reciprocal	56.97 Å
I(0) (倒空间) i0_reciprocal	1083000000.0000
解质量估计 total_estimate	0.8081
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	98.8 Å
偏度 Skewness skewness	-0.183
峰度 Kurtosis kurtosis	-1.019
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	43060000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.742; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.282

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Peroxiredoxin
分子量 formula_weight	24585.1 kDa
EC 编号 ec_number	1.11.1.24
突变 mutation	C46S,F76C,C205S,C211S
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,E,F,I,J
原子数 atom_count	20868

MVVIGEKFPEVEVKTTHGVIKLPDYFAEQGKWFVLFSHPADFTPVSTTEFYAMQKRVDQFRELGVEPIGLSVDQVCSHIKWMEWIKENLGEEITFPVIADDRGELADKLGMIPSGATITARAVFIVDDKGIIRAIVYYPAEVGRDWDEILRLVKALKVSDEKGVALPHKWPNNELIGDKAIVPPASTVDEVKQREEAKAKGEIESYDWWFSYKKLE

来源 Source

来源生物 organism	Thermococcus kodakarensis KOD1
NCBI 分类编号 ncbi_taxonomy_id	69014
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Peroxiredoxin
分子量 formula_weight	24585.1 kDa
EC 编号 ec_number	1.11.1.24
突变 mutation	F42C,C46S,C205S,C211S
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D,G,H,K,L

MVVIGEKFPEVEVKTTHGVIKLPDYFAEQGKWFVLFSHPADCTPVSTTEFYAMQKRVDQFRELGVEPIGLSVDQVFSHIKWMEWIKENLGEEITFPVIADDRGELADKLGMIPSGATITARAVFIVDDKGIIRAIVYYPAEVGRDWDEILRLVKALKVSDEKGVALPHKWPNNELIGDKAIVPPASTVDEVKQREEAKAKGEIESYDWWFSYKKLE

来源 Source

来源生物 organism	Thermococcus kodakarensis KOD1
NCBI 分类编号 ncbi_taxonomy_id	69014
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	1-naphthalen-2-ylethanone
分子量 formula_weight	170.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

▼

6. 折叠分类 (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

结构域编号 domain_id	8hlaA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8hlaL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.81 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	599283

fit	/app/data/saxs_computation/hl/8hla/8hla.fit
pddf	/app/data/pr_computation/hl/8hla/8hla.pr.out
profile	/app/data/saxs_computation/hl/8hla/8hla.dat
