8hmw

Double methyl modification on guanosine promotes unusual structural distortion and conformational transition in Z-DNA

Method: SOLUTION NMR D_max: 29.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

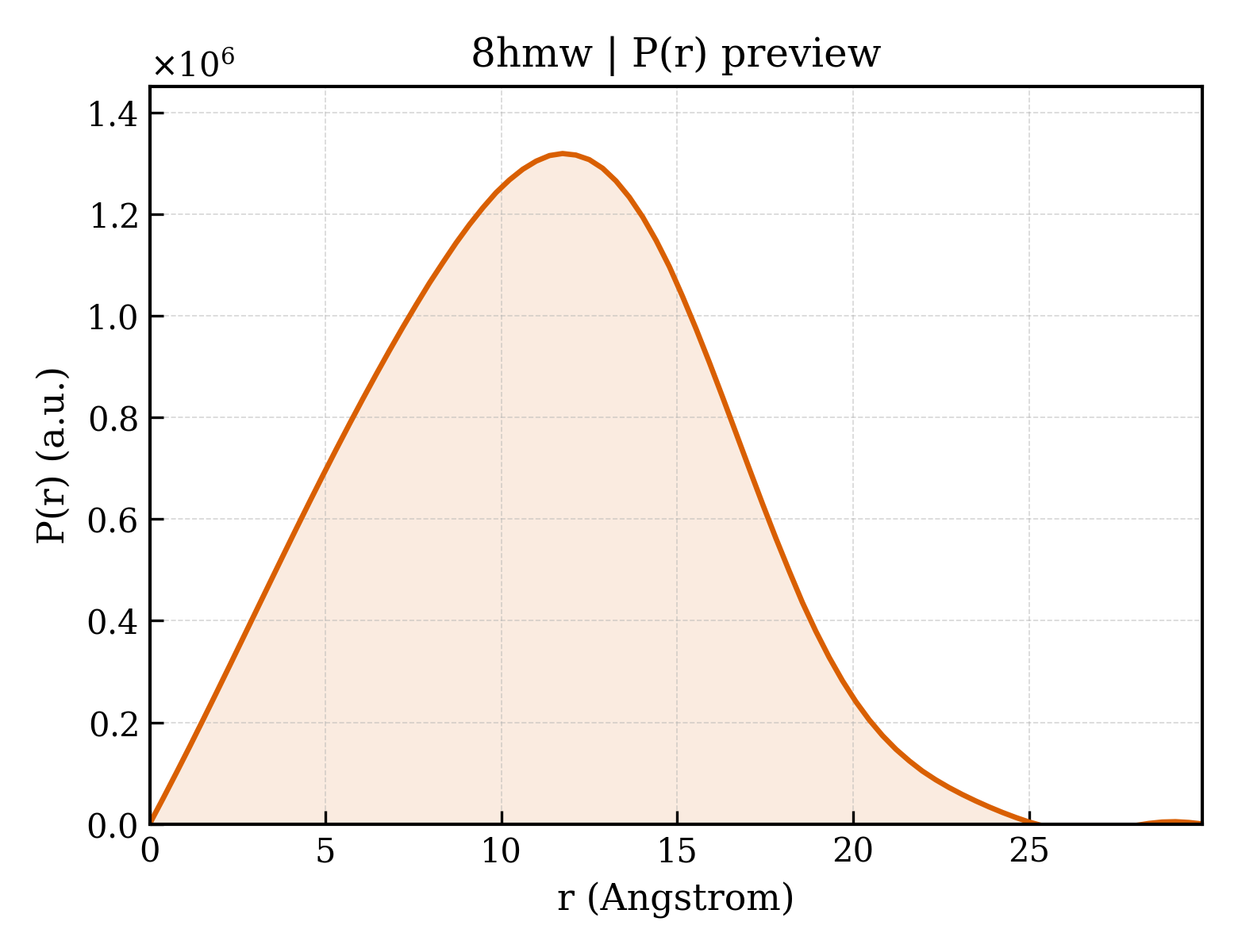

P(r) distribution for 8hmw

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hmw
沉积日期 deposition_date	2022-12-06
结构标题 title	Double methyl modification on guanosine promotes unusual structural distortion and conformational transition in Z-DNA
关键词 keywords	methylation, Z-DNA, guanosine, DNA; DNA
实验方法 method	SOLUTION NMR

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	8.61 Å
回转半径 Rg (电子) rg_electron	8.82 Å
零角强度 I(0) i0	208819000.00
分子量 molecular_weight	73692.0 kDa
排除体积 excluded_volume	72077 Å³
包络体积 envelope_volume	4804 Å³
水化壳体积 shell_volume	5109 Å³
包络直径 envelope_diameter	28.4 Å
壳层 Rg shell_rg	13.32 Å
包络 Rg envelope_rg	9.14 Å
形状 Rg shape_rg	8.80 Å
总 Rg total_rg	8.92 Å
总原子数 total_atoms	7800
残基数 n_residues	200
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	29.9 Å
Rg (实空间) rg_real	8.55 Å
Rg 误差 (实空间) rg_real_error	0.31 Å
I(0) (实空间) i0_real	2.0880e+08
I(0) 误差 (实空间) i0_real_error	2.3090e+06
Rg (倒空间) rg_reciprocal	8.55 Å
I(0) (倒空间) i0_reciprocal	208800000.0000
解质量估计 total_estimate	0.8736
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	11.7 Å
偏度 Skewness skewness	0.025
峰度 Kurtosis kurtosis	-0.585
角度范围 angular_range	— – 0.5000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13280.0000
实空间数据点数 n_real_points	80
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.802; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.977

▶
