8hpj

Crystal structure of the bacterial oxalate transporter OxlT in a ligand-free outward-facing form

Method: X-RAY DIFFRACTION D_max: 158.3 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

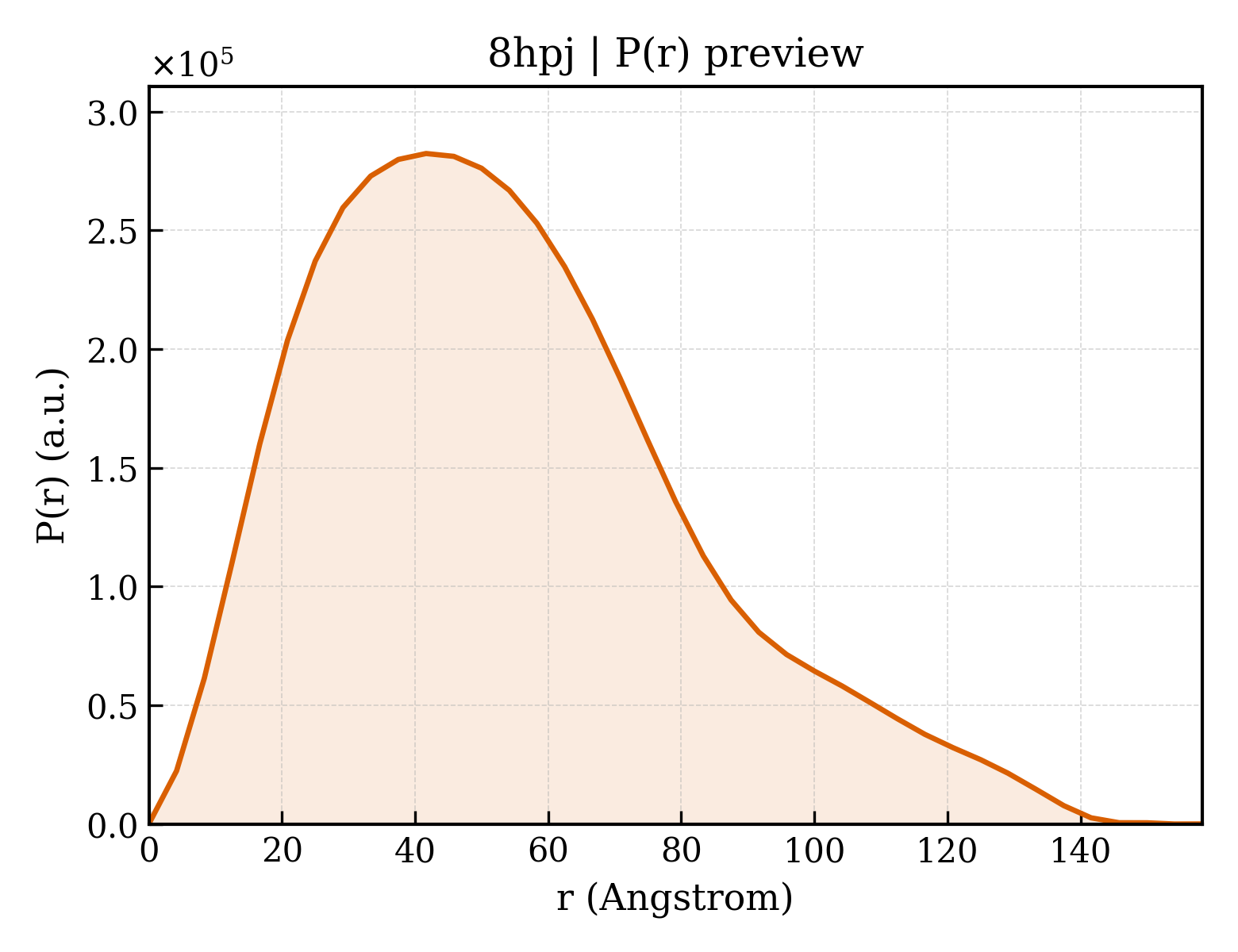

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hpj
沉积日期 deposition_date	2022-12-12
结构标题 title	Crystal structure of the bacterial oxalate transporter OxlT in a ligand-free outward-facing form
关键词 keywords	Transporter, TRANSPORT PROTEIN, TRANSPORT PROTEIN-IMMUNE SYSTEM complex; TRANSPORT PROTEIN/IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.05 Å
回转半径 Rg (电子) rg_electron	43.22 Å
零角强度 I(0) i0	241899000.00
分子量 molecular_weight	134760.0 kDa
排除体积 excluded_volume	171870 Å³
包络体积 envelope_volume	225250 Å³
水化壳体积 shell_volume	48253 Å³
包络直径 envelope_diameter	158.3 Å
壳层 Rg shell_rg	42.56 Å
包络 Rg envelope_rg	42.67 Å
形状 Rg shape_rg	43.21 Å
总 Rg total_rg	43.20 Å
总原子数 total_atoms	9517
残基数 n_residues	1253
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	158.3 Å
Rg (实空间) rg_real	42.53 Å
Rg 误差 (实空间) rg_real_error	2.39 Å
I(0) (实空间) i0_real	2.4190e+08
I(0) 误差 (实空间) i0_real_error	5.5160e+06
Rg (倒空间) rg_reciprocal	42.05 Å
I(0) (倒空间) i0_reciprocal	241800000.0000
解质量估计 total_estimate	0.7331
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	41.7 Å
偏度 Skewness skewness	0.654
峰度 Kurtosis kurtosis	0.028
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	18910000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.600; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.726; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Oxalate:formate antiporter
分子量 formula_weight	45787.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	9517

MNNPQTGQSTGLLGNRWFYLVLAVLLMCMISGVQYSWTLYANPVKDNLGVSLAAVQTAFTLSQVIQAGSQPGGGYFVDKFGPRIPLMFGGAMVLAGWTFMGMVDSVPALYALYTLAGAGVGIVYGIAMNTANRWFPDKRGLASGFTAAGYGLGVLPFLPLISSVLKVEGVGAAFMYTGLIMGILIILIAFVIRFPGQQGAKKQIVVTDKDFNSGEMLRTPQFWVLWTAFFSVNFGGLLLVANSVPYGRSLGLAAGVLTIGVSIQNLFNGGCRPFWGFVSDKIGRYKTMSVVFGINAVVLALFPTIAALGDVAFIAMLAIAFFTWGGSYALFPSTNSDIFGTAYSARNYGFFWAAKATASIFGGGLGAAIATNFGWNTAFLITAITSFIAFALATFVIPRMGRPVKKMVKLSPEEKAVHHHHHHHHHH

来源 Source

来源生物 organism	Oxalobacter formigenes
NCBI 分类编号 ncbi_taxonomy_id	847
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Fv fragment Heavy chain
分子量 formula_weight	15111.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E

LEVMLVESGGGLVKPGGSLKLSCAASGFTFSNYAMSWVRQTPEKRLEWVALISSGGYTYYPDSVKGRFTISRDKARNILHLQMSSLRSEDTAMYFCARGPYDFDDGPPFGNWGQGTLVTVSAAKTTAPSVTSENLYFQ

来源 Source

来源生物 organism	Mus musculus
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Brevibacillus choshinensis

Entity 3 polymer

描述 description	Fv fragment Light chain
分子量 formula_weight	12947.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

ELDIVLTQSQKFMSTSVGDRVSVTCKASQNVGTNVAWYQQKPGQSPKALIYSASYRYSGVPDRFTGSGSGTDFTLTISNVQSEDLAEYFCQQYNSYPLTFGAGTKLELKTSENLYFQ

来源 Source

来源生物 organism	Mus musculus
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Brevibacillus choshinensis

▼

6. 折叠分类 (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

结构域编号 domain_id	8hpjB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8hpjC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8hpjE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8hpjF01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	76.870 Å
晶胞边长 b length_b	181.670 Å
晶胞边长 c length_c	81.170 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	111.36 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

分辨率 resolution	3.300 Å
最低分辨率 resolution_low	47.260 Å
R 因子 r_factor	0.2610
R_work r_work	0.2596
R_free r_free	0.2859
