8hpo

Cryo-EM structure of a SIN3/HDAC complex from budding yeast

Method: ELECTRON MICROSCOPY D_max: 206.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

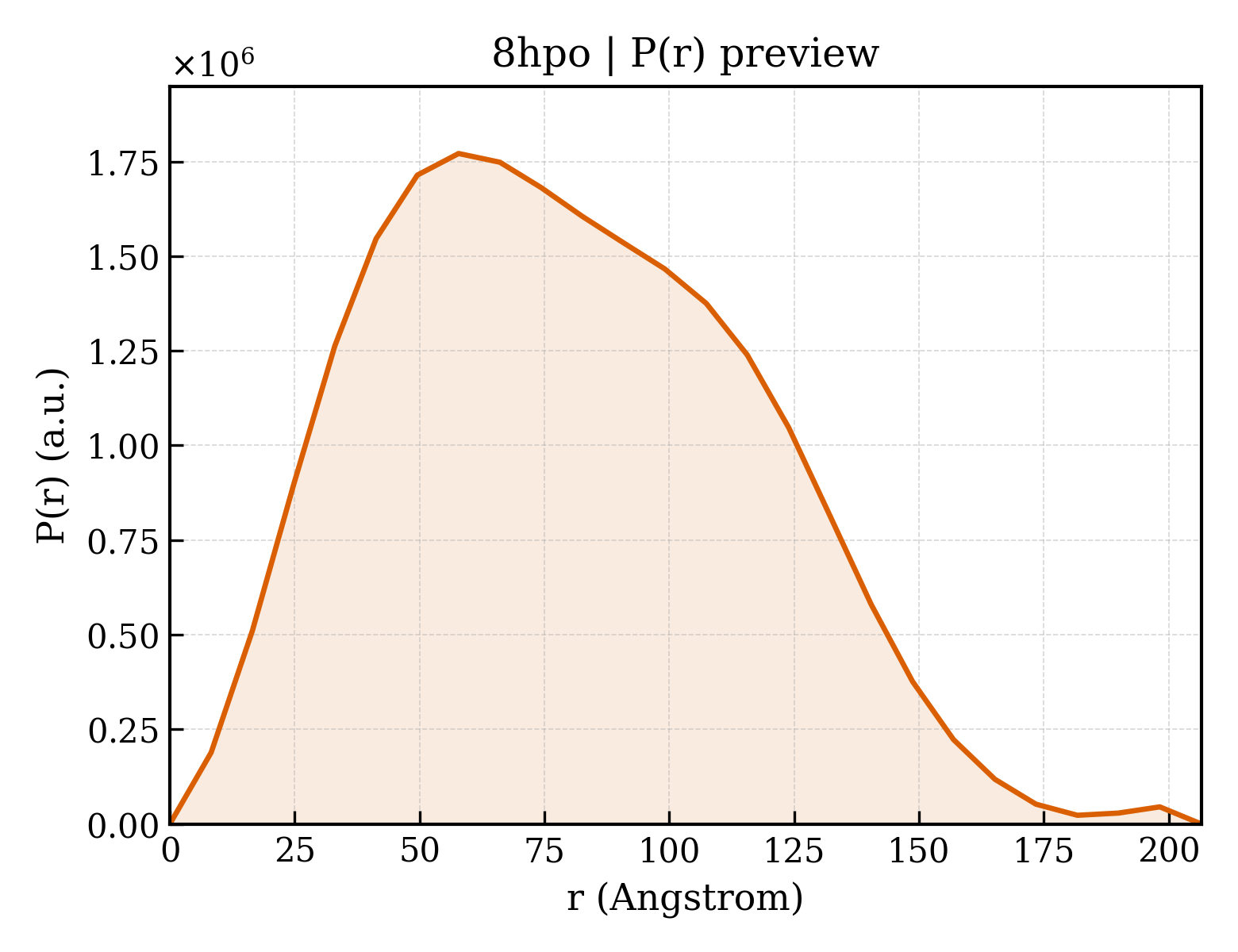

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hpo
沉积日期 deposition_date	2022-12-12
结构标题 title	Cryo-EM structure of a SIN3/HDAC complex from budding yeast
关键词 keywords	SIN3, HDAC, deacetylase, Rpd3, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	61.61 Å
回转半径 Rg (电子) rg_electron	61.17 Å
零角强度 I(0) i0	2269190000.00
分子量 molecular_weight	396450.0 kDa
排除体积 excluded_volume	493860 Å³
包络体积 envelope_volume	818940 Å³
水化壳体积 shell_volume	109110 Å³
包络直径 envelope_diameter	242.4 Å
壳层 Rg shell_rg	63.48 Å
包络 Rg envelope_rg	62.63 Å
形状 Rg shape_rg	61.26 Å
总 Rg total_rg	60.91 Å
总原子数 total_atoms	27950
残基数 n_residues	3561
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	206.5 Å
Rg (实空间) rg_real	61.65 Å
Rg 误差 (实空间) rg_real_error	1.60 Å
I(0) (实空间) i0_real	2.2680e+09
I(0) 误差 (实空间) i0_real_error	4.3290e+07
Rg (倒空间) rg_reciprocal	61.43 Å
I(0) (倒空间) i0_reciprocal	2268000000.0000
解质量估计 total_estimate	0.6555
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	57.8 Å
偏度 Skewness skewness	0.310
峰度 Kurtosis kurtosis	-0.492
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0108
最高正则化参数 α highest_alpha	199200000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.883; Stabil: 1.000; Sysdev: 0.004; Positv: 1.000; Valcen: 1.000; Smooth: 0.854

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	Transcriptional regulatory protein UME1
分子量 formula_weight	51075.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K
原子数 atom_count	27950

MSTLDIAEDNKIKNEEFKIWKKSIPSLYQHISSLKPIFGSGVDESPSTLRSIVFTNDSSCNKSKGVLSVPLLYSQGSEIFEVDCIVPLGLHYKKPESISEPLVQPDYTMESQKVEQTVLIPKWEFKGETIAKMIYVDNSEINVKVIALSTNGSLAWFREGVKSPVYTMMEPSTSLSSASSGNQNKPCVDFAISNDSKTLTVTKEKHLDNENATIKLIDNSGKIGEVLRTIPVPGIKNIQEIKFLNNQIFATCSDDGIIRFWGNEIGKKPLWILNDSLDGKTTCFAASPFVDTLFMTGTSGGALKVWDIRAVIALGDADAELNINQGHNKVNELFKVHHFYSEQVSKIEFSSISPMEVVTIGGLGNVYHWNFEPVFAIYNEIHEDFQGIISDELEAESMAFYHTEGCRREIGENNKVNTVAYHKYIEDLVATVDSDGLLTVYKPFTGKVLDGSREVGAAKS

Entity 2 polymer

描述 description	Transcriptional regulatory protein SDS3
分子量 formula_weight	37765.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MAIQKVSNKDLSRKDKRRFNIESKVNKIYQNFYSERDNQYKDRLTALQTDLTSLHQGDNGQYARQVRDLEEERDLELVRLRLFEEYRVSRSGIEFQEDIEKAKAEHEKLIKLCKERLYSSIEQKIKKLQEERLLMDVANVHSYAMNYSRPQYQKNTRSHTVSGWDSSSNEYGRDTANESATDTGAGNDRRTLRRRNASKDTRGNNNNQDESDFQTGNGSGSNGHGSRQGSQFPHFNNLTYKSGMNSDSDFLQGINEGTDLYAFLFGEKNPKDNANGNEKKKNRGAQRYSTKTAPPLQSLKPDEVTEDISLIRELTGQPPAPFRLRSD

Entity 3 polymer

描述 description	Histone deacetylase RPD3
分子量 formula_weight	49441.8 kDa
EC 编号 ec_number	3.5.1.98
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MVYEATPFDPITVKPSDKRRVAYFYDADVGNYAYGAGHPMKPHRIRMAHSLIMNYGLYKKMEIYRAKPATKQEMCQFHTDEYIDFLSRVTPDNLEMFKRESVKFNVGDDCPVFDGLYEYCSISGGGSMEGAARLNRGKCDVAVNYAGGLHHAKKSEASGFCYLNDIVLGIIELLRYHPRVLYIDIDVHHGDGVEEAFYTTDRVMTCSFHKYGEFFPGTGELRDIGVGAGKNYAVNVPLRDGIDDATYRSVFEPVIKKIMEWYQPSAVVLQCGGDSLSGDRLGCFNLSMEGHANCVNYVKSFGIPMMVVGGGGYTMRNVARTWCFETGLLNNVVLDKDLPYNEYYEYYGPDYKLSVRPSNMFNVNTPEYLDKVMTNIFANLENTKYAPSVQLNHTPRDAEDLGDVEEDSAEAKDTKGGSQYARDLHVEHDNEFY

Entity 4 polymer

描述 description	Histone deacetylase RPD3
分子量 formula_weight	48962.0 kDa
EC 编号 ec_number	3.5.1.98
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

Entity 5 polymer

描述 description	Transcriptional regulatory protein SAP30
分子量 formula_weight	23144.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MARPVNTNAETESRGRPTQGGGYASNNNGSCNNNNGSNNNNNNNNNNNNNSNNSNNNNGPTSSGRTNGKQRLTAAQQQYIKNLIETHITDNHPDLRPKSHPMDFEEYTDAFLRRYKDHFQLDVPDNLTLQGYLLGSKLGAKTYSYKRNTQGQHDKRIHKRDLANVVRRHFDEHSIKETDCIPQFIYKVKNQKKKFKMEFRG

Entity 6 polymer

描述 description	Transcriptional regulatory protein SIN3
分子量 formula_weight	175047.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

MSQVWHNSNSQSNDVATSNDATGSNERNEKEPSLQGNKPGFVQQQQRITLPSLSALSTKEEDRRDSNGQQALTSHAAHILGYPPPHSNAMPSIATDSALKQPHEYHPRPKSSSSSPSINASLMNAGPAPLPTVGAASFSLSRFDNPLPIKAPVHTEEPKSYNGLQEEEKATQRPQDCKEVPAGVQPADAPDPSSNHADANDDNNNNENSHDEDADYRPLNVKDALSYLEQVKFQFSSRPDIYNLFLDIMKDFKSQAIDTPGVIERVSTLFRGYPILIQGFNTFLPQGYRIECSSNPDDPIRVTTPMGTTTVNNNISPSGRGTTDAQELGSFPESDGNGVQQPSNVPMVPSSVYQSEQNQDQQQSLPLLATSSGLPSIQQPEMPAHRQIPQSQSLVPQEDAKKNVDVEFSQAISYVNKIKTRFADQPDIYKHFLEILQTYQREQKPINEVYAQVTHLFQNAPDLLEDFKKFLPDSSASANQQVQHAQQHAQQQHEAQMHAQAQAQAQAQAQVEQQKQQQQFLYPASGYYGHPSNRGIPQQNLPPIGSFSPPTNGSTVHEAYQDQQHMQPPHFMPLPSIVQHGPNMVHQGIANENPPLSDLRTSLTEQYAPSSIQHQQQHPQSISPIANTQYGDIPVRPEIDLDPSIVPVVPEPTEPIENNISLNEEVTFFEKAKRYIGNKHLYTEFLKILNLYSQDILDLDDLVEKVDFYLGSNKELFTWFKNFVGYQEKTKCIENIVHEKHRLDLDLCEAFGPSYKRLPKSDTFMPCSGRDDMCWEVLNDEWVGHPVWASEDSGFIAHRKNQYEETLFKIEEERHEYDFYIESNLRTIQCLETIVNKIENMTENEKANFKLPPGLGHTSMTIYKKVIRKVYDKERGFEIIDALHEHPAVTAPVVLKRLKQKDEEWRRAQREWNKVWRELEQKVFFKSLDHLGLTFKQADKKLLTTKQLISEISSIKVDQTNKKIHWLTPKPKSQLDFDFPDKNIFYDILCLADTFITHTTAYSNPDKERLKDLLKYFISLFFSISFEKIEESLYSHKQNVSESSGSDDGSSIASRKRPYQQEMSLLDILHRSRYQKLKRSNDEDGKVPQLSEPPEEEPNTIEEEELIDEEAKNPWLTGNLVEEANSQGIIQNRSIFNLFANTNIYIFFRHWTTIYERLLEIKQMNERVTKEINTRSTVTFAKDLDLLSSQLSEMGLDFVGEDAYKQVLRLSRRLINGDLEHQWFEESLRQAYNNKAFKLYTIDKVTQSLVKHAHTLMTDAKTAEIMALFVKDRNASTTSAKDQIIYRLQVRSHMSNTENMFRIEFDKRTLHVSIQYIALDDLTLKEPKADEDKWKYYVTSYALPHPTEGIPHEKLKIPFLERLIEFGQDIDGTEVDEEFSPEGISVSTLKIKIQPITYQLHIENGSYDVFTRKATNKYPTIANDNTQKGMVSQKKELISKFLDCAVGLRNNLDEAQKLSMQKKWENLKDSIAKTSAGNQGIESETEKGKITKQEQSDNLDSSTASVLPASITTVPQDDNIETTGNTESSDKGAKIQ

Entity 7 polymer

描述 description	Transcriptional regulatory protein DEP1
分子量 formula_weight	47035.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MSQQTPQESEQTTAKEQDLDQESVLSNIDFNTDLNHNLNLSEYCISSDAGTEKMDSDEEKSLANLPELKYAPKLSSLVKQETLTESLKRPHEDEKEAIDEAKKMKVPGENEDESKEEEKSQELEEAIDSKEKSTDARDEQGDEGDNEEENNEEDNENENEHTAPPALVMPSPIEMEEQRMTALKEITDIEYKFAQLRQKLYDNQLVRLQTELQMCLEGSHPELQVYYSKIAAIRDYKLHRAYQRQKYELSCINTETIATRTFIHQDFHKKVTDLRARLLNRTTQTWYDINKERRDMDIVIPDVNYHVPIKLDNKTLSCITGYASAAQLCYPGEPVAEDLACESIEYRYRANPVDKLEVIVDRMRLNNEISDLEGLRKYFHSFPGAPELNPLRDSEINDDFHQWAQ

Entity 8 polymer

描述 description	Transcriptional regulatory protein PHO23
分子量 formula_weight	37081.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSSPANLFPGLNDITDVLEEFPLATSRYLTLLHEIDAKCVHSMPNLNERIDKFLKKDFNKDHQTQVRLLNNINKIYEELMPSLEEKMHVSSIMLDNLDRLTSRLELAYEVAIKNTEIPRGLRLGVDNHPAMHLHHELMEKIESKSNSKSSQALKSESRREAMAANRRQGEHYSASTHQQDDSKNDANYGGSRHESQDHTGNNTNSRKRANAANTNNADPETKKRKRRVATTAVSPSTISTATAVNNGRIGTSTASRGVSSVGNSNNSRISRPKTNDYGEPLYCYCNQVAYGEMVGCDGADCELEWFHLPCIGLETLPKGKWYCDDCKKKL

Entity 9 polymer

描述 description	Transcriptional regulatory protein RXT2
分子量 formula_weight	48844.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MTIRSSMKNNAELESKSVLANESNIISTFTRRIIKEKSGNYQVLKRSLDGKLIYPEATGISSNRGNKLLQRSEVVTRRDLNNSKPMIEQTVFYNGSEHRLLQTNIVTDSRRKRIKFTPDINVEPVLVGDENDIDGSEKEDENITDEYYGEEDDDDLSKLVNVKEILTPILSLGDIINHKTISRTFSSPILKNLALQIILMIEKEQMSVVRYSQFLEVFLGDHPEPIYESNLNLPSYNHNLTLPEDRGASDEDDINNKNNINEVNSNSLSTEAGHINNGMEEFGEEDPFFALPRLEQSNALLSLLPSSSGSASISTLTAAEQQQLNEEIESARQLSQIALQRNKEFIRNLQKIRKSVIKANRIRGRILNWSREYLGISDDDITIPVALRVVKRGLISATTNKTTNFEEEIENTMEDGVVDDNEPDEEANRA

Entity 10 polymer

描述 description	Transcriptional regulatory protein RXT3
分子量 formula_weight	33851.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MSVSEQDPNRAYRETQSQIYKLQETLLNSARTKNKQEEGQESNTHSFPEQYMHYQNGRNSAYDLPNVSSQSVLAFTEKHYPNKLKNLGTLYYNRFKEGSFDEDSTSYSDRHSFPYNLYDNTLPPPFLPAIGIQNINNIATLKITYEDIQASFNNIESPRKRNNEIWGCDIYSDDSDPILVLRHCGFKIGAPSGGSFHKLRRTPVNVTNQDNVTGNLPLLEGTPFDLEVELLFLPTLQKYPSVKRFDITSREWGSEATVIHDGLSYGIYSIVIKQRLDRDKPHEPNGYIKNLKWT

Entity 11 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 12 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

结构域编号 domain_id	8hpoF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	800 — Arginase; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Histone deacetylase domain

结构域编号 domain_id	8hpoG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	800 — Arginase; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Histone deacetylase domain

结构域编号 domain_id	8hpoK01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	665105

fit	/app/data/saxs_computation/hp/8hpo/8hpo.fit
pddf	/app/data/pr_computation/hp/8hpo/8hpo.pr.out
profile	/app/data/saxs_computation/hp/8hpo/8hpo.dat
