SAXSdb — 8hqo

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hqo
沉积日期 deposition_date	2022-12-13
结构标题 title	Neck of DT57C bacteriophage in the full state
关键词 keywords	Neck, Portal, T5, VIRUS, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.38 Å
回转半径 Rg (电子) rg_electron	59.13 Å
零角强度 I(0) i0	1163880000.00
分子量 molecular_weight	287950.0 kDa
排除体积 excluded_volume	361830 Å³
包络体积 envelope_volume	555600 Å³
水化壳体积 shell_volume	82241 Å³
包络直径 envelope_diameter	276.8 Å
壳层 Rg shell_rg	54.68 Å
包络 Rg envelope_rg	64.39 Å
形状 Rg shape_rg	59.09 Å
总 Rg total_rg	59.15 Å
总原子数 total_atoms	20871
残基数 n_residues	2552
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	222.0 Å
Rg (实空间) rg_real	58.61 Å
Rg 误差 (实空间) rg_real_error	2.35 Å
I(0) (实空间) i0_real	1.1600e+09
I(0) 误差 (实空间) i0_real_error	2.6870e+07
Rg (倒空间) rg_reciprocal	57.50 Å
I(0) (倒空间) i0_reciprocal	1160000000.0000
解质量估计 total_estimate	0.7612
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	49.3 Å
偏度 Skewness skewness	0.675
峰度 Kurtosis kurtosis	0.119
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0553
最高正则化参数 α highest_alpha	146800000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.490; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.488; Smooth: 0.929

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Portal protein
分子量 formula_weight	45408.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,B,C
原子数 atom_count	20871

MGFKSWITEKLNPGQRIIRDMEPVSHRTNRKPFTTGQAYSKIEILNRTANMVIDSAAECSYTVGDKYNIVTYANGVKTKTLDTLLNVRPNPFMDISTFRRLVVTDLLFEGCAYIYWDGTSLYHVPAALMQVEADANKFIKKFIFNNQINYRVDEIIFIKDNSYVCGTNSQISGQSRVATVIDSLEKRSKMLNFKEKFLDNGTVIGLILETDEILNKKLRERKQEELQLDYNPSTGQSSVLILDGGMKAKPYSQISSFKDLDFKEDIAGFNKSICLAFGVPQVLIDGGNNANIRPNIELFYYMTIIPMLNKLTSSLTFFFGYKITPNTKEVAALTPDKEAEAKHLTSLVNNGIMTGNEARLELNLEPLDDEQMNRIRIPANVAGSATGVSGQEGGRPQGSTEGDKE

Entity 2 polymer

描述 description	Head completion protein
分子量 formula_weight	19203.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,S,P,Q

MQIITAEDYRLYGGLKRPELESGVEMMITAANALITSLLGMDDADAVDQLINTKPTRKKYFLSSPSATSVTKMTINDKEIDPEQYKLYSDGVILLKFSPPEGYMDVEYTQGGFNPIPEDLKLAACMLVDHWHKQDYRQAKTIGGETVTFNNTKSGIPEHIRTIIEVYRRV

Entity 3 polymer

描述 description	Tail terminator protein
分子量 formula_weight	18317.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b

MDHRTSIAQALVDRIAQQMDGSQPDEYFNNLYGNVSRQTYKFEEIREFPYVAVHIGTETGQYLPSGQQWMFLELPILVYDKEKTDIQEQLEKLVADIKTVIDTGGNLEYTVSKPNGSTFPCEATDMSITSVSTDEGLLAPYGLAEINVTVRYQPPRRSLRR

Entity 4 polymer

描述 description	Tape measure protein
分子量 formula_weight	132626.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	x

MTDKLIRELLIDVKQKGATRTAKSIENVSDALENAAAASELTNEQLGKMPKTLYSIERAADRAAKSLTKMQASRGMAGITKSIDSIGAKLDDLSIAMIEVADKLEAGFDGVSRSVKVMGNDVAAATEKVQDRLYDTNRVLGGTARGFNDTAGAAGRASRAIGNTSGSARGATRDFAAMAKVGGGLPLLYAAIASNIFVLQSAFEQLKLGDQLNRLEEFGVIVGTQTGTPVQSLARSLQEAAGYAISFEEAMRQASSASAYGFDAEQLNKFGLVARRAAAVLGVDMTDALNRVIKGVSKQEIELLDELGVTIRLNDAYADYVKQLNAANTGITYNINSLTTFQKQQAYANAVIAESTKRFGYLDEVLRATPWEQFAANADAALRTIQQAAAKYLGPVIDAINTVFYTSQASISAEAARAQEQTNKQIDPTNVGAVALSLSASEEGYNKALDMYKESLDKRNKLKSEFDKRMEQADFYTKLAIRQVGEGIPAGLATAGASEANKKFVEETAAMGLQVARLDKEVTDSTENLNAWKSAYQAAGAAAAKANPEFQKQINLQRDTTDPGAVYDFNSTVLKGLTEQQKAYNQTKKTASDLANDIQNVAQNTDTAAKTSATLADAIKNIESLSLGTGKSADEYVKNLNLGYNTLSEMKTASQALSEYVKLTGNETKNQLAVQQKIADVYNQTKDKEKAQEAGRRLELQQLEEQEAALRRVLQTNQGNKAVEREIEKIQLEKIKLTNQGMEAQKKVKDYTDKILGVDREIALLNNRTMTDTQYRLAQLNLELTIEKEKYEWYTKQADKQKEAEQSRRAQAQIEREIWKFHQDQQAEMTSKRQEAFENTLTSMFPLAGEMQKMEMQLDFYTQMKELTKDNANEQMRWNAEIAKTRAQMSALTAQRNAQMQSSVGSSLGAVYTPTTGLSGEDKKFADMGNQLASYDQAISKLSELNSEATAVAQSMGNLANAMIQFSQGSLDTTSTIAVGMQTVASMIQYSTSQQVSAIDQAIAAEQKRDGKSEASKAKLKKLEAEKLKIQQDAAKKQIIIQTAVAVMQAATAVPYPFSIPLMIAAGLAGALALAQASSASGMSSIGDSGADTASYLTLGERQKNIDVSMSANAGELSYVRGDKGIGNANSFVPRAEGGNMYPGVSYQMGEHGTEVVTPMVPMKATPNDELKNSSNSTAGRPIILNISAMDAASFREFASSNSGALRDAVELALNENGASLKTLGNS

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	34102

fit	/app/data/saxs_computation/hq/8hqo/8hqo.fit
pddf	/app/data/pr_computation/hq/8hqo/8hqo.pr.out
profile	/app/data/saxs_computation/hq/8hqo/8hqo.dat

Neck of DT57C bacteriophage in the full state

SAXS 散射曲线 SAXS Profile

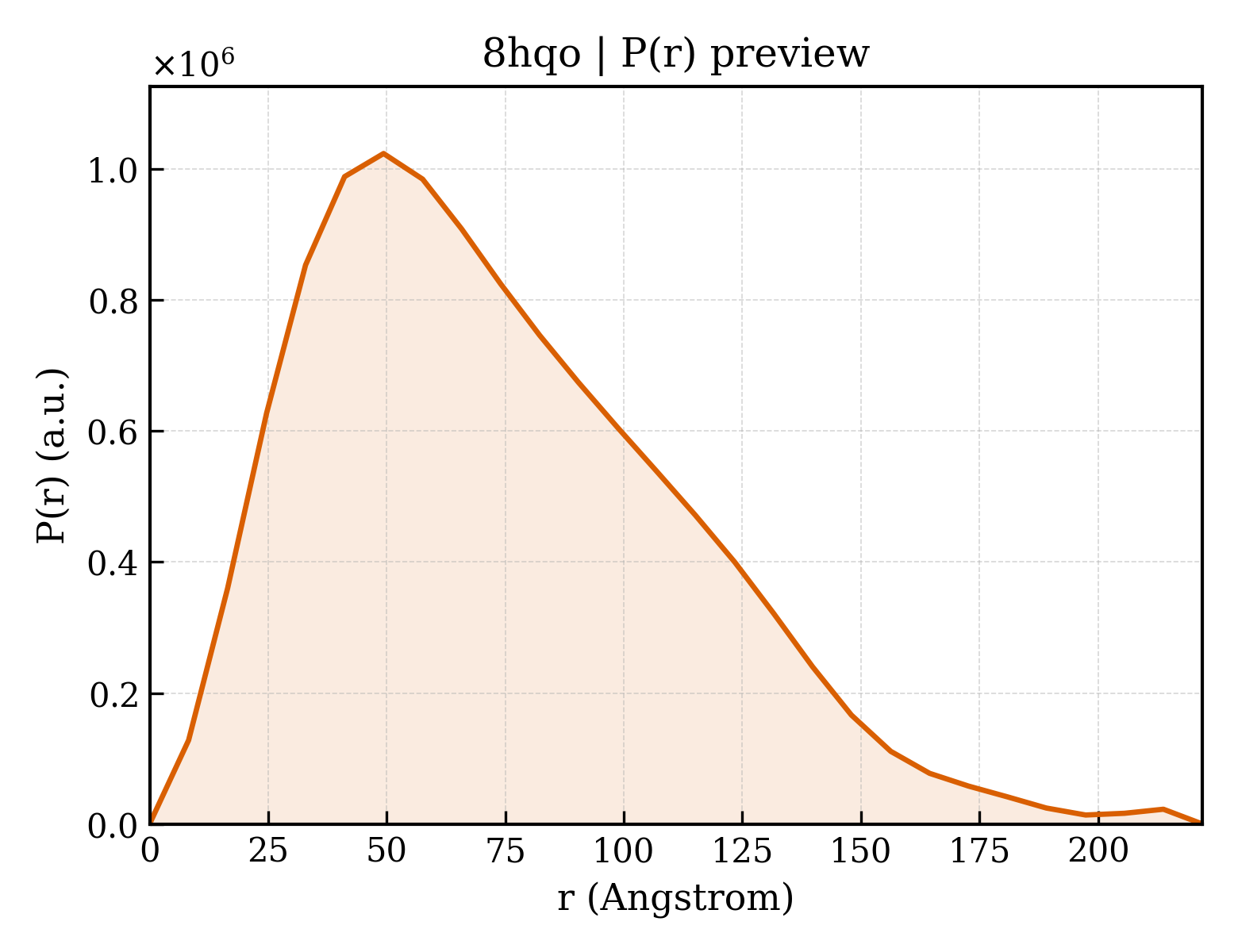

P(r) 距离分布 P(r) Distribution
