SAXSdb — 8hqz

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hqz
沉积日期 deposition_date	2022-12-14
结构标题 title	Baseplate of DT57C bacteriophage in the full state
关键词 keywords	Baseplate, T5, VIRUS, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	71.02 Å
回转半径 Rg (电子) rg_electron	72.09 Å
零角强度 I(0) i0	1393880000.00
分子量 molecular_weight	313630.0 kDa
排除体积 excluded_volume	392330 Å³
包络体积 envelope_volume	659510 Å³
水化壳体积 shell_volume	86882 Å³
包络直径 envelope_diameter	281.5 Å
壳层 Rg shell_rg	59.20 Å
包络 Rg envelope_rg	70.47 Å
形状 Rg shape_rg	72.11 Å
总 Rg total_rg	71.71 Å
总原子数 total_atoms	22127
残基数 n_residues	2830
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	220.2 Å
Rg (实空间) rg_real	68.69 Å
Rg 误差 (实空间) rg_real_error	1.71 Å
I(0) (实空间) i0_real	1.3740e+09
I(0) 误差 (实空间) i0_real_error	3.1530e+07
Rg (倒空间) rg_reciprocal	67.86 Å
I(0) (倒空间) i0_reciprocal	1383000000.0000
解质量估计 total_estimate	0.8286
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	60.1 Å
偏度 Skewness skewness	0.575
峰度 Kurtosis kurtosis	-0.349
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0708
最高正则化参数 α highest_alpha	67010000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.822; Stabil: 0.992; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.234

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Baseplate hub protein
分子量 formula_weight	107114.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	22127

MKQILDSARNYLKNNSRIKTASLISLELPGSTGTSTAFIYLTDYFRDVIYNGILYQAGKVKSISPHKQNRDLSIGSLSFTITGTAQDEVLKLVQNGVSFLDRTVSIHQAIITEDGSILPVDPDTNGPLLYFRGRITGGGIKDNISTSGVGTSTITWNCSNQFYDFDRVNGRYTDDASHRGLEVVAGQLLPSNGAKRLEYQEDYGFFHANKSISILAKYQVQEERYKLKSKKKLFGLSRSYSLKKYYETVTKEVDIDFNLAAKYIPVVYGVQKIPGIPIFADTELHNPNIVYVVYAFAEGEIDGFLDFSFGDNPMICVDANDSSARTCFGTKKIVGDTMQRIASGISSSSPSVHGQEYRYNDGNGDIRIWTYHGKSNQTASDVLVNIARNRGFYLQNMNGNGPEYWDARYKLLDTAYAVVRFTINENRTEIPEVSAEIQGKKVKVYHSDGRVTANSTSLNGIWQTLDYLTSDRYGANITIDQFPLQQLIQEAAILDIIDESYQVSWQPYWRYVGWTNPLAENRQIVQMNTILDTSESVFKNVQGLLESYGGAINNLSGQYRVTVEKYSNTPLEINFLDTYGDLELSDTTGRNKFNSVQASIVDPALSWKTNSITFYNSNYKEQDKNLDKKLQLSFANITNYYTARSFADRELKKSRYSRTLSFSLPYQFIGIEPNDAIAFTYDRYGWDRKYFLVDEVENSREGKINVTLQEYGEDVFINSGQVDNSGNDIPDISNNVLPPRDFKYTPTPGGLVGSIGKNGELSWLPSLTNNVVYYSIVHSGHAEPYIVQQLETNPNERMIQEIIGEPAGLAIFEIRAVDINGRRSSPVTLSIELNSAKNLSVVSNFRVTNTASGDVTEFVGPDVKLAWDRIPEEDIIESIFYTLEIHDPQNRMLRSVRIENQYTYDYLLTYNKADFALQNSDALGINRKLYFRIRAEGDDGEQSVEWASI

Entity 2 polymer

描述 description	Distal tail protein
分子量 formula_weight	22666.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I

MRLPDPYTNPELSGLGFESVNLIDNDPVIRDELPNGKVNEVKVSAQYWGINISYPELFPDEYSVLDAFILEYKRTGGYIDVILPQYEAFRVRGNTNLVNIPAGQKGSNITMDTQGVLTGIPKPGDLFKLSNHPKVYKITSFNRSGNSWSINVYPDLFITTTGAEKPVFNGILFRTKLMNGDAFGSTLNNNGTYSGISLNLRESL

Entity 3 polymer

描述 description	Minor tail protein
分子量 formula_weight	34513.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MYYSLMRESKVIVEYDGRAFHFDALSNYDVQTSYEEFKTLRRTIHRRTNYADSVINAQTPSSISLAINFSNTLTEANFFEWLGFDRKGNTFLLPLYSNNIEPIMFNIYIVNKDNNCVYFENCYVSTVDFSLDKNIPILNVGIESGKFSEVSTYREAASIIQGEAMSYSPVIVSTNGNILPGLISASLSFQQQCSWREDKSVFDINKIYNNKRAYVNEMNASATISLYYLKRFAGDMVYNIEPETDVPLNIRNNNISIDFPLARISKRLNFSDVYKVEWDIIPTASSDPVRIDFFGEIKND

Entity 4 polymer

描述 description	L-shaped tail fiber assembly
分子量 formula_weight	15384.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q,R,S,T

MSTENRVIDIVVDEKVPYGLIMQFMDVDDSVYPPSEIPVNLTGYSLRGTIKSSLDENAETLASFTTSIIDAAQGAAAISLSVADVTNIGEKASKERDKYNPRQRFAGYYDILMTRDVIGSEVSSFRIMEGKVYISDGVTQ

Entity 5 polymer

描述 description	L-shaped tail fiber assembly
分子量 formula_weight	113712.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d,e,f

MALKTKIIVQQILNIDDTTTTASKYPKYTVVLGNSISSITAGELTAAVEASAGSAAAAKGSEIAAKESELNAKDSENEAAISAGASEESASQSAASAAESERQAGLSKGSADNSAASAQESEGFRDSAELAAQNAEQSRLLAEQAKTAAQQAQTAAEAAKTGAETAKDGADAAATTAGEHAAAARQSELNAKISETNAAGSATEAGDKAIDATTEADRAKAEADRATQIVDSKLDKVDISGFIKVYKTKAEADADVVNRVLDEKVLVWNQTNSKYGWYKVAGTAETPVLELVETEQKLTSVNNVRADDAGNVQITLPGGNPSLWLGEVTWFPYDKDSGVGYPGVLPADGREVLRVDYPDTWEAIEAGLIPSVSEAEWQAGASLYFSTGDGSTTFRLPDMMQGQAFRAPTKGEEDAGVIKDQIPYVVTVNGISPDAITGNVEIDTSLQGTVSINQGGTGATTKEDARIALELYSTTEVDSALADKADIATTYTKTEVDSALADKADIATTYTKVEVDSALADAKTQSDTDYLLKANNLSDLADRAAAWLNVRPIGSTPLAGDPVGDYDAVTKRWVENKINTGTVGPTMNGVMNYGVGDFHLRDSRAYIQPYEVVSDGQLLNRADWPELWAYAQMLSPISDADWLADPTKRGQYSLGDGSTTFRVPDRNGVQTGSISALFGRGDGGASSTGGTILDSAAPNITGSFGRLVYASTGTIYEANTGTGAFSAVLSQAKYKRLSEISAADGTAATYPSGFEFFASNSSPVYGRGSTEVRPKAFTGVWVIRASGGFVAANTSWSVINGDATRPADGTTADGGEIISRYNVNGVREAQMSWRIRAQIGAEHYARLNVYNATANRTAVYDFNDLGTFSAENLHSKGAIYSDGNLTIQNQGWPGINFKSNRYNTPATQIGGSTIIEVSGTDGNVSGVNLIRRRGDGNQAGQIIVSFPTTGGAIALQGTSGIEYKKDVTDADAQEAMDRINGQRLVNFVYKDDEQERVRFGVIAEEAELIAPQYIKHNQVSYEDILDEEGNKIGEKTRDRPSVDVNPIVMDLMGCVQALNAKIAALEARIAELESKE

Entity 6 polymer

描述 description	Tape measure protein
分子量 formula_weight	132626.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MTDKLIRELLIDVKQKGATRTAKSIENVSDALENAAAASELTNEQLGKMPKTLYSIERAADRAAKSLTKMQASRGMAGITKSIDSIGAKLDDLSIAMIEVADKLEAGFDGVSRSVKVMGNDVAAATEKVQDRLYDTNRVLGGTARGFNDTAGAAGRASRAIGNTSGSARGATRDFAAMAKVGGGLPLLYAAIASNIFVLQSAFEQLKLGDQLNRLEEFGVIVGTQTGTPVQSLARSLQEAAGYAISFEEAMRQASSASAYGFDAEQLNKFGLVARRAAAVLGVDMTDALNRVIKGVSKQEIELLDELGVTIRLNDAYADYVKQLNAANTGITYNINSLTTFQKQQAYANAVIAESTKRFGYLDEVLRATPWEQFAANADAALRTIQQAAAKYLGPVIDAINTVFYTSQASISAEAARAQEQTNKQIDPTNVGAVALSLSASEEGYNKALDMYKESLDKRNKLKSEFDKRMEQADFYTKLAIRQVGEGIPAGLATAGASEANKKFVEETAAMGLQVARLDKEVTDSTENLNAWKSAYQAAGAAAAKANPEFQKQINLQRDTTDPGAVYDFNSTVLKGLTEQQKAYNQTKKTASDLANDIQNVAQNTDTAAKTSATLADAIKNIESLSLGTGKSADEYVKNLNLGYNTLSEMKTASQALSEYVKLTGNETKNQLAVQQKIADVYNQTKDKEKAQEAGRRLELQQLEEQEAALRRVLQTNQGNKAVEREIEKIQLEKIKLTNQGMEAQKKVKDYTDKILGVDREIALLNNRTMTDTQYRLAQLNLELTIEKEKYEWYTKQADKQKEAEQSRRAQAQIEREIWKFHQDQQAEMTSKRQEAFENTLTSMFPLAGEMQKMEMQLDFYTQMKELTKDNANEQMRWNAEIAKTRAQMSALTAQRNAQMQSSVGSSLGAVYTPTTGLSGEDKKFADMGNQLASYDQAISKLSELNSEATAVAQSMGNLANAMIQFSQGSLDTTSTIAVGMQTVASMIQYSTSQQVSAIDQAIAAEQKRDGKSEASKAKLKKLEAEKLKIQQDAAKKQIIIQTAVAVMQAATAVPYPFSIPLMIAAGLAGALALAQASSASGMSSIGDSGADTASYLTLGERQKNIDVSMSANAGELSYVRGDKGIGNANSFVPRAEGGNMYPGVSYQMGEHGTEVVTPMVPMKATPNDELKNSSNSTAGRPIILNISAMDAASFREFASSNSGALRDAVELALNENGASLKTLGNS

Entity 7 polymer

描述 description	Tail tube protein
分子量 formula_weight	50759.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MSLQLLRNTRIFVSTVKTGHDTTNTQEILVQDDISWGQDSNSTDITVNEAGPRPTRGSKRFNDSLNAAEWSFSTYILPYEDTTTGKQIVPDYMLWHALSSGKAIDLDGDTGAHNNATNFMVNFKDNAYHELAMLHIYILTDNAWSYIDSCQINQAEVNVDIEDIGRVTWSGNGNQLIPLDEQPFDPDALGIDDETYMTIQSSYIKNKLTILKIKDMDSDKEYDIPITGGTFTINNNITYLTPNIMSRVNIPIGSFTGAFELTGSLTAYLNDKSLGSMELYKDLVRTLKVVNRFEIALILGGEYDDERPAAVLVAKQAHVNIPTIETDDVLGTSVEFKAIPTDLDTGDEGYLGFSNKYTKTTVANLIATGDGAETPPILVESITVKSAADATSVTNSDTLQMSVEVTPPEATNTAVTWSISSGDAATIDAESGLLTADVSKTGEVIVKAVAKDGSGVEGTKTITVSAGE

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	42697

fit	/app/data/saxs_computation/hq/8hqz/8hqz.fit
pddf	/app/data/pr_computation/hq/8hqz/8hqz.pr.out
profile	/app/data/saxs_computation/hq/8hqz/8hqz.dat

Baseplate of DT57C bacteriophage in the full state

SAXS 散射曲线 SAXS Profile

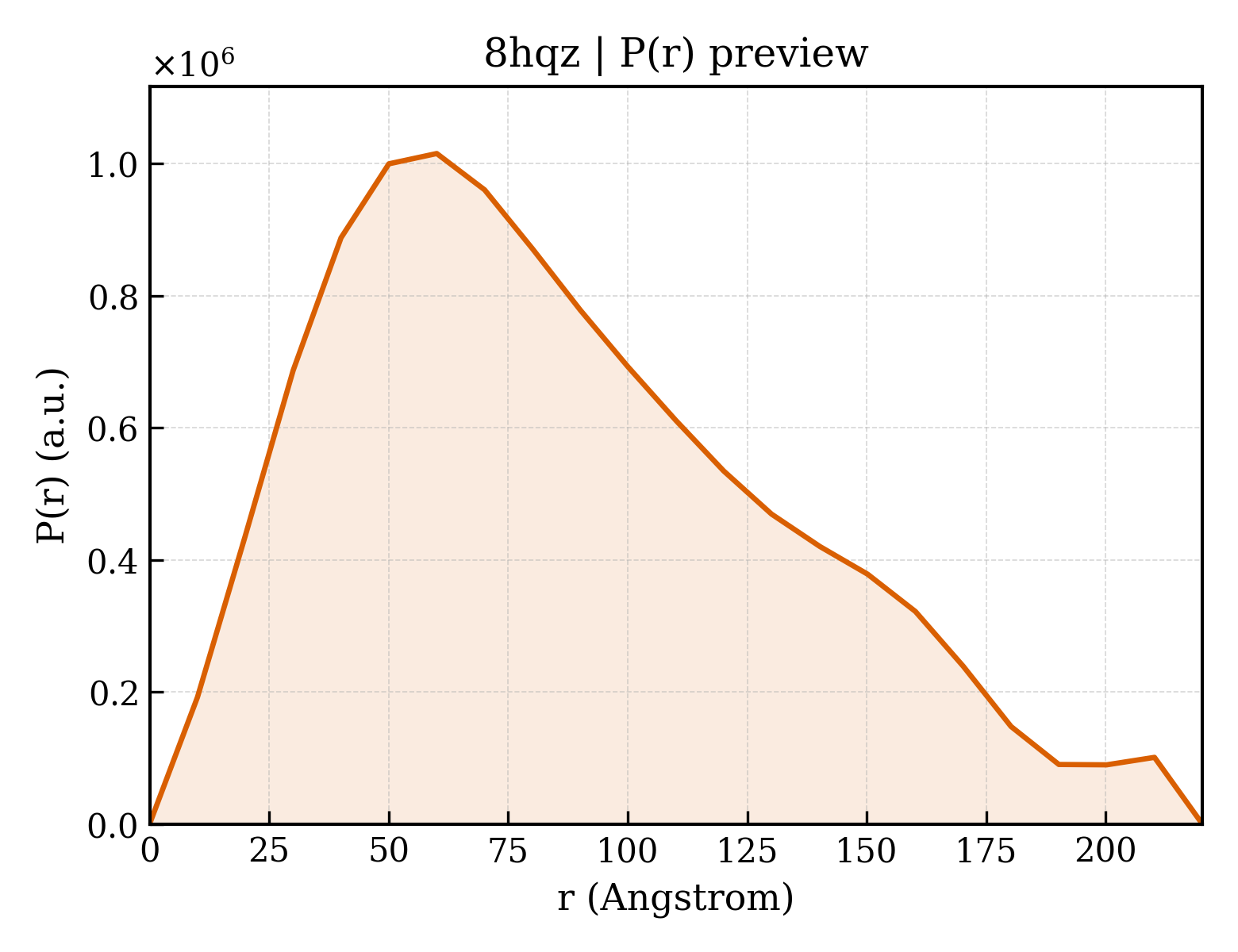

P(r) 距离分布 P(r) Distribution
