8hw4

Cryo-EM structure of dehydroepiandrosterone sulfate-bound human ABC transporter ABCC3 in nanodiscs

Method: ELECTRON MICROSCOPY D_max: 138.4 Å Quality: GOOD

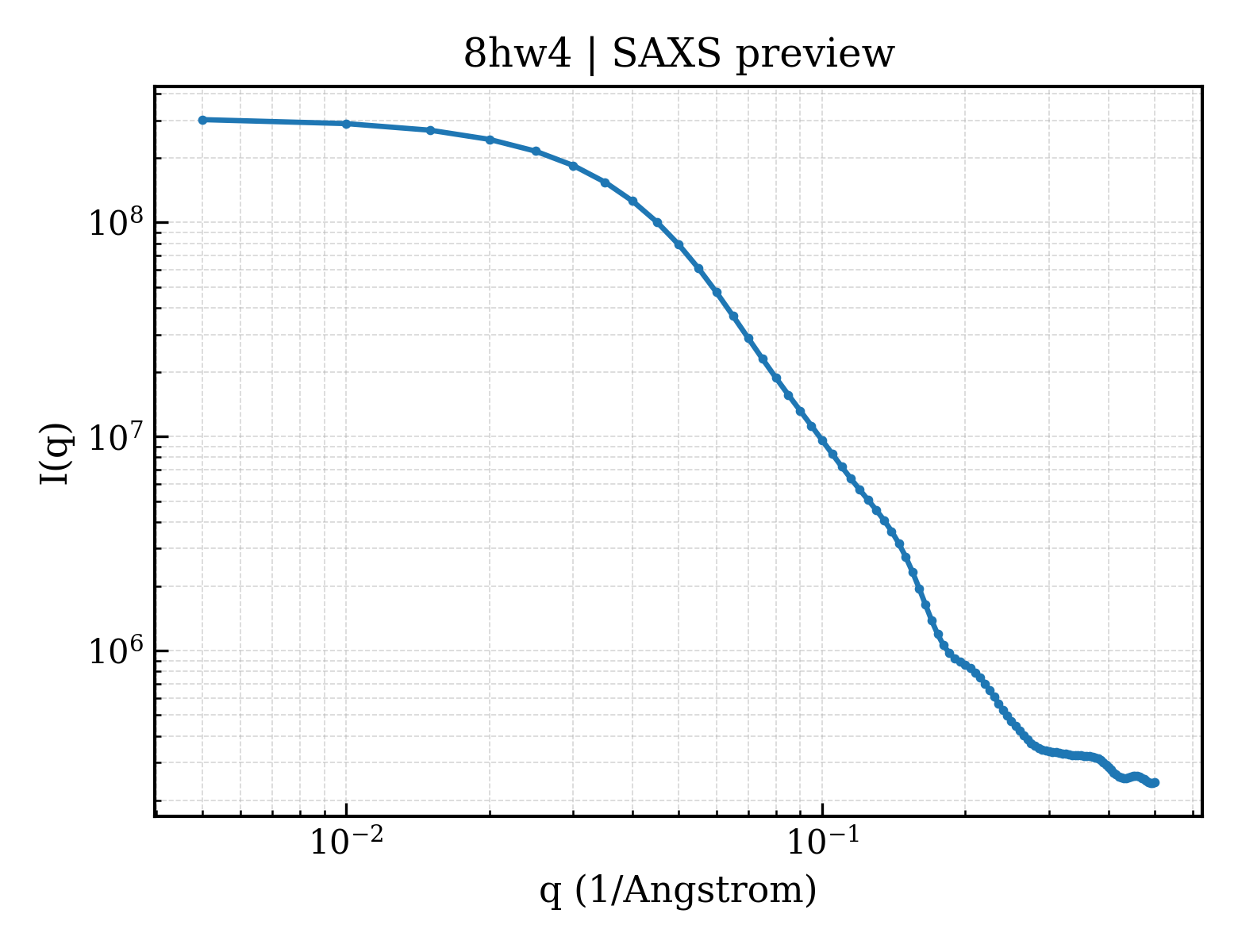

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hw4
沉积日期 deposition_date	2022-12-28
结构标题 title	Cryo-EM structure of dehydroepiandrosterone sulfate-bound human ABC transporter ABCC3 in nanodiscs
关键词 keywords	ABC transporter, TRANSPORT PROTEIN, multidrug resistance protein, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.19 Å
回转半径 Rg (电子) rg_electron	41.02 Å
零角强度 I(0) i0	306597000.00
分子量 molecular_weight	152490.0 kDa
排除体积 excluded_volume	194840 Å³
包络体积 envelope_volume	261290 Å³
水化壳体积 shell_volume	54618 Å³
包络直径 envelope_diameter	146.5 Å
壳层 Rg shell_rg	45.22 Å
包络 Rg envelope_rg	40.23 Å
形状 Rg shape_rg	41.05 Å
总 Rg total_rg	41.16 Å
总原子数 total_atoms	10746
残基数 n_residues	1364
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	138.4 Å
Rg (实空间) rg_real	41.24 Å
Rg 误差 (实空间) rg_real_error	1.28 Å
I(0) (实空间) i0_real	3.0660e+08
I(0) 误差 (实空间) i0_real_error	5.5940e+06
Rg (倒空间) rg_reciprocal	41.19 Å
I(0) (倒空间) i0_reciprocal	306600000.0000
解质量估计 total_estimate	0.8897
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	47.4 Å
偏度 Skewness skewness	0.336
峰度 Kurtosis kurtosis	-0.438
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42300000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.893; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.890

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	ATP-binding cassette sub-family C member 3
分子量 formula_weight	169504.7 kDa
EC 编号 ec_number	7.6.2.-,7.6.2.2,7.6.2.3
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	10746

MDALCGSGELGSKFWDSNLSVHTENPDLTPCFQNSLLAWVPCIYLWVALPCYLLYLRHHCRGYIILSHLSKLKMVLGVLLWCVSWADLFYSFHGLVHGRAPAPVFFVTPLVVGVTMLLATLLIQYERLQGVQSSGVLIIFWFLCVVCAIVPFRSKILLAKAEGEISDPFRFTTFYIHFALVLSALILACFREKPPFFSAKNVDPNPYPETSAGFLSRLFFWWFTKMAIYGYRHPLEEKDLWSLKEEDRSQMVVQQLLEAWRKQEKQTARHKASAAPGKNASGEDEVLLGARPRPRKPSFLKALLATFGSSFLISACFKLIQDLLSFINPQLLSILIRFISNPMAPSWWGFLVAGLMFLCSMMQSLILQHYYHYIFVTGVKFRTGIMGVIYRKALVITNSVKRASTVGEIVNLMSVDAQRFMDLAPFLNLLWSAPLQIILAIYFLWQNLGPSVLAGVAFMVLLIPLNGAVAVKMRAFQVKQMKLKDSRIKLMSEILNGIKVLKLYAWEPSFLKQVEGIRQGELQLLRTAAYLHTTTTFTWMCSPFLVTLITLWVYVYVDPNNVLDAEKAFVSVSLFNILRLPLNMLPQLISNLTQASVSLKRIQQFLSQEELDPQSVERKTISPGYAITIHSGTFTWAQDLPPTLHSLDIQVPKGALVAVVGPVGCGKSSLVSALLGEMEKLEGKVHMKGSVAYVPQQAWIQNCTLQENVLFGKALNPKRYQQTLEACALLADLEMLPGGDQTEIGEKGINLSGGQRQRVSLARAVYSDADIFLLDDPLSAVDSHVAKHIFDHVIGPEGVLAGKTRVLVTHGISFLPQTDFIIVLADGQVSEMGPYPALLQRNGSFANFLCNYAPDEDQGHLEDSWTALEGAEDKEALLIEDTLSNHTDLTDNDPVTYVVQKQFMRQLSALSSDGEGQGRPVPRRHLGPSEKVQVTEAKADGALTQEEKAAIGTVELSVFWDYAKAVGLCTTLAICLLYVGQSAAAIGANVWLSAWTNDAMADSRQNNTSLRLGVYAALGILQGFLVMLAAMAMAAGGIQAARVLHQALLHNKIRSPQSFFDTTPSGRILNCFSKDIYVVDEVLAPVILMLLNSFFNAISTLVVIMASTPLFTVVILPLAVLYTLVQRFYAATSRQLKRLESVSRSPIYSHFSETVTGASVIRAYNRSRDFEIISDTKVDANQRSCYPYIISNRWLSIGVEFVGNCVVLFAALFAVIGRSSLNPGLVGLSVSYSLQVTFALNWMIRMMSDLESNIVAVERVKEYSKTETEAPWVVEGSRPPEGWPPRGEVEFRNYSVRYRPGLDLVLRDLSLHVHGGEKVGIVGRTGAGKSSMTLCLFRILEAAKGEIRIDGLNVADIGLHDLRSQLTIIPQDPILFSGTLRMNLDPFGSYSEEDIWWALELSHLHTFVSSQPAGLDFQCSEGGENLSVGQRQLVCLARALLRKSRILVLDEATAAIDLETDNLIQATIRTQFDTCTVLTIAHRLNTIMDYTRVLVLDKGVVAEFDSPANLIAARGIFYGMARDAGLA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 non-polymer

描述 description	17-oxoandrost-5-en-3beta-yl hydrogen sulfate
分子量 formula_weight	368.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

结构域编号 domain_id	8hw4A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.52 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	240291
