8i03

Cryo-EM structure of the SIN3L complex from S. pombe

Method: ELECTRON MICROSCOPY D_max: 211.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8i03
沉积日期 deposition_date	2023-01-10
结构标题 title	Cryo-EM structure of the SIN3L complex from S. pombe
关键词 keywords	SIN3, SIN3L, Pst1, Pst3, Clr6, deacetylase, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	70.96 Å
回转半径 Rg (电子) rg_electron	71.13 Å
零角强度 I(0) i0	2485390000.00
分子量 molecular_weight	418020.0 kDa
排除体积 excluded_volume	521670 Å³
包络体积 envelope_volume	872310 Å³
水化壳体积 shell_volume	106770 Å³
包络直径 envelope_diameter	290.4 Å
壳层 Rg shell_rg	64.97 Å
包络 Rg envelope_rg	70.43 Å
形状 Rg shape_rg	71.18 Å
总 Rg total_rg	70.83 Å
总原子数 total_atoms	29430
残基数 n_residues	3634
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

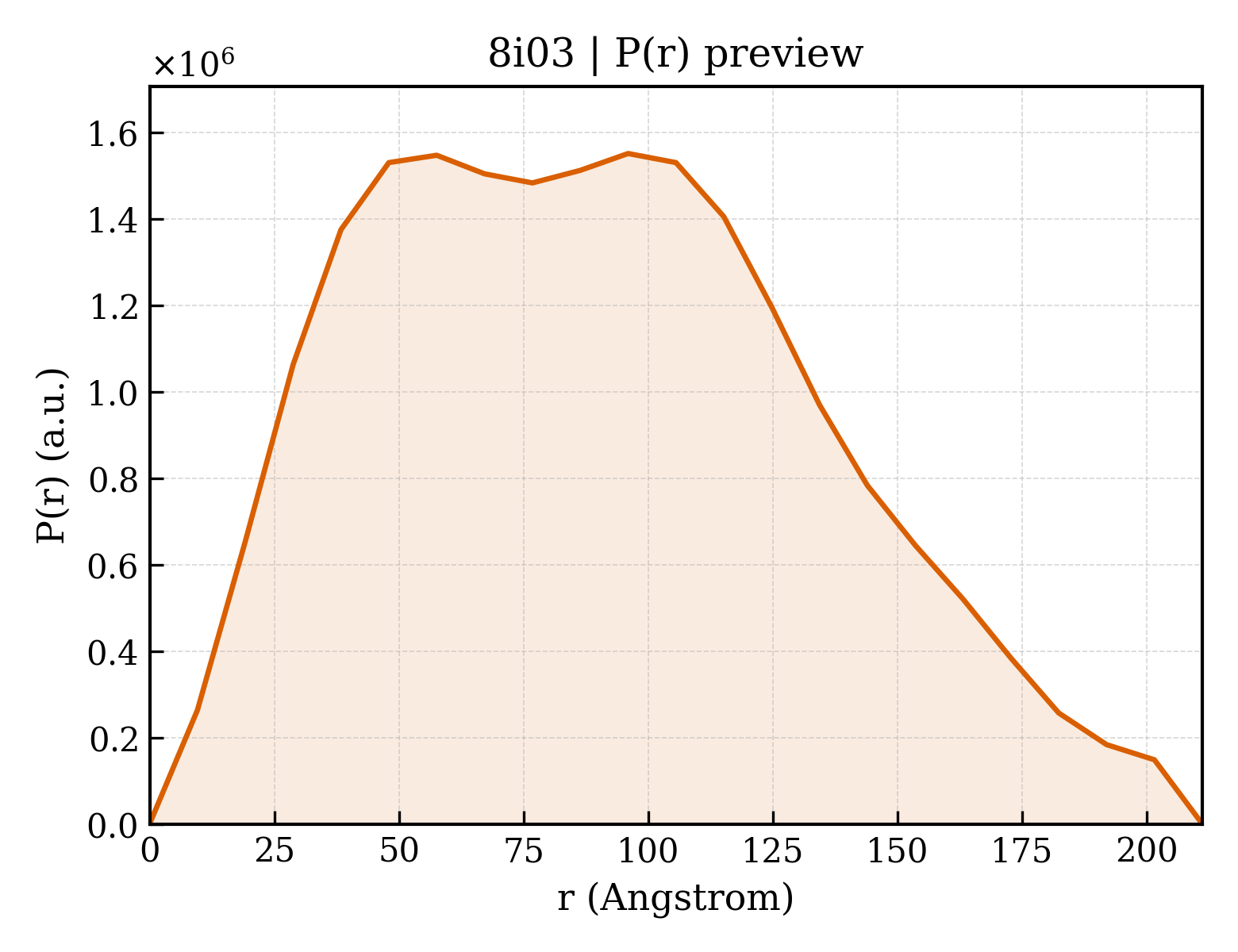

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	211.2 Å
Rg (实空间) rg_real	70.34 Å
Rg 误差 (实空间) rg_real_error	1.31 Å
I(0) (实空间) i0_real	2.4740e+09
I(0) 误差 (实空间) i0_real_error	4.9080e+07
Rg (倒空间) rg_reciprocal	69.74 Å
I(0) (倒空间) i0_reciprocal	2478000000.0000
解质量估计 total_estimate	0.8394
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	96.0 Å
偏度 Skewness skewness	0.328
峰度 Kurtosis kurtosis	-0.591
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0192
最高正则化参数 α highest_alpha	118300000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.970; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.007

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	Paired amphipathic helix protein pst1
分子量 formula_weight	171667.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	29430

MAKDWQDARLGQCHRLEDYSNVAINYTGPYLTPSGTMAYHPGNAPLFTQAPPHTNPQGPPPFPLFNSISPVYDPATGRLLYRNVNTQVSHTAIPNPANGYAAVYGGPPSQLPPPPQPQSHPNVTVISASPARAIEQQPTILSSTDSNIPRPGTVKSSASPFVPNQNPSAPPPPPQEYRQLNVTDALSYLDLVKLQFHQEPEIYNEFLDIMKEFKSQAIETPEVITRVSKLFAGYPNLIQGFNTFLPPGYSIEISSADPGSLAGIHITTPQGPLMINDLGKTTAPPPPHGSTTPLPAAASYTSMNMKQSSASHPVLQPPAPSTLQFNPSPSPAAPSYPPVDASVKQAADLDQAINFVNNVKNRFSHKPEAYNSFLDILKSYQHDQRPIQLVYFQVSQLFAEAPDLLEEFKRFLPDVSVNAPAETQDKSTVVPQESATATPKRSPSATPTSALPPIGKFAPPTTAKAQPAPEKRRGEPAVQTRNHSKRTRTATSSVEETTPRAFNVPIAQNKNPSELEFLEHARQYLANESKYNEFIKLLELYSQEVFDKNALVERCYVFFGSNEHLMNWLKDLVKYNPANPIPVPRPRVDLTQCKSCGPSYRLLPKIELLLPCSGRDDLCWTILNDAWVSFPTLASEDSGFIAHRKNQFEENLHKLEEERYEYDRHIGANMRFIELLQIHADKMLKMSEVEKANWTLPSNLGGKSVSIYHKVIKKVYGKEHAQQIIENLQKNPSVTIPIVLERLKKKDREWRSLQNHWNELWHDIEEKNFYRSLDHQGVSFKSVDKKSTTPKFLISELRNLAQQQKVELSEGKVTPSHQFLFSYKDPNIITDIARLFGVFLIHGSTHSAEDNEKMSNFLRSFLSLFFDVPYDSFIPYLPTHFNEEESDIDSLSSSLIEKPRASSSPIHHANNNGLRLLKDVLKKTYRGARENRSSVKEDYVSESTERTPDASEIDEHISEHEENDDESSSVFSTGEVWVNCKFTDTDGSLLDDGTKLSDRSVYNLFGNMSLYCFFRLFHTLYSRLEEIKNLEQMAYSKQHDVKSNPVAVELGLVRHPSERLGFALPTADTVYEQAIQLCERLMEGEIDQNGFEDALRCLYGIHAFRLYTVEKLVTSIIKQLHSVTTNRRLAQVFMYYEKDRVQRRTSPRQQIMYRIQTETAFGPDENLCCIDWNSQTRQSAIRLMGREDLTMGTLKSDAEKWCYYIGSYIMSSPTEGILPEHVRIPFLRKCLPSDEGNEDDESSSVVKSANAIITSFLESGLALTIPINTVKIRYENGTEDVFARNSEQVYNGPYDKIRDYRQSKWREWLNSDEGWTQGLSKDKVRRIKPCTIESLFNESTLRSGKAERFSENAGVESIGKKGKNLLNESGNGKKLDKGLPPKVNGKSSVTRGNKTNLKARNGRNNDDSSNKINLSEKEKEKESIEDEEKNREGSMSPVAKHASDVEDDHDVAKSTAPDFETSSHRPERSSEKKSPSPVFTSVKQTAENDADNEDDKTDMDDQTEETLDADNTMEEEPSKDDL

Entity 2 polymer

描述 description	Paired amphipathic helix protein pst3
分子量 formula_weight	133049.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MDVMNVPVDSERDNPGDKVETQSDKNHLPKASPSQSQSPVNTSLHNGDGKDNGVATEPVENKQILSERSVTRDDYEKGKTIVSSLALSSISGKDGSISSQNAEGLSSSSNRPLDVNDALSYLELVKYYFSERREIYNRFLEIMRDFKSQALDTLGVINRVSELFNGYPQLIEGFNTFLPSGYKIEVQLDSSNTSVVRVGTPMHPLPQQGVQSTLPVAPSNEDQRTMESTSPTDSQPQPSAPNLVSSTENEKPRVDFNYAIAYMNKVKARYPPNSDTYMEFLGVLRTYQKAQKSIFEVRARVAEIFKDSPDLLEEFKLFLPDNVDSTEPSTPNVQKSPNRLPPVGNFSLPPSAPVREKRNRPAHSAQISRSISKTSRMYRQTAEEPLNSYSLHVYPQKITAPTSPYAATQEELLAFTTIRQHLPDTLAFHKFLELLHLYREKLLDKTELLNSFSKLVRNDNLTLWFSEFIRWSDNPILVKNEPVDERVYLPETFECISLTYRKLPDSWKQDKCSGRDDLDNSVLNDDYISVAPKPSHVKNIMHHENQYLQALQLVEDERYDYDRVLNTTESAIKILANFCEPTIHEHLETALQELERSKRIIKNALIIVYGKEHANLALDTLFKKLPTAAPVLLKRIKTKDQEWRRSKREWSKIWRQIEKKNAQAAFDDRYCRIEGRDRRGLSYSRILRDIDDIYQRQKHRIDGAKLGFQFTQVLCDSLIFLNILRLSDAQLTNSSFYSYADKGRISAVLKALLSQFFGIPLPREALETNLASENIESVKKHRDGLSKIFIRPESADNSNNTNVSFQTDETQTEDETMSDIHPDDVENHSKSKFLGEESKNIIGYNFFGNATMYVLFRLICVCYSRLEHIKLFVESSTIYASSTGGYENILNICEKYLKGSCSRLEFRKYLQKFNNETCYMICSIERLLKVIFYRIHEILLDPKLGQLLLLFESDGANSVTTPREQMVYRNHVESILAPESKIFNMRWYPLEKRLCIQQLLPADLTMHDFENPAKAFMYYVDSYAISHITEGVDLMQVKMPFLRRSLQRISQQGYLAGRGSGRLHSLFNEHFCKSNLQLFFSTDTYVIFFEPNTENVYINSYNLWVDQSSQSKKQNRTTNWRRWLESDEGWRKSKANTDIKFFSETTLDQCIEAM

Entity 3 polymer

描述 description	Histone deacetylase clr6
分子量 formula_weight	46165.8 kDa
EC 编号 ec_number	3.5.1.98
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MGFGKKKVSYFYDEDVGNYHYGPQHPMKPHRVRMVHNLVVNYNLYEKLNVITPVRATRNDMTRCHTDEYIEFLWRVTPDTMEKFQPHQLKFNVGDDCPVFDGLYEFCSISAGGSIGAAQELNSGNAEIAINWAGGLHHAKKREASGFCYVNDIALAALELLKYHQRVLYIDIDVHHGDGVEEFFYTTDRVMTCSFHKFGEYFPGTGHIKDTGIGTGKNYAVNVPLRDGIDDESYESVFKPVISHIMQWFRPEAVILQCGTDSLAGDRLGCFNLSMKGHSMCVDFVKSFNLPMICVGGGGYTVRNVARVWTYETGLLAGEELDENLPYNDYLQYYGPDYKLNVLSNNMENHNTRQYLDSITSEIIENLRNLSFAPSVQMHKTPGDFTFENAEKQNIAKEEIMDERV

Entity 4 polymer

描述 description	Transcriptional regulatory protein dep1
分子量 formula_weight	55701.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MTENLQSESIPHEILPKEPFDLPMNNLKSSPKNKDSEKRINNSIAESEQVVDSALSNPETNANEDIIAPQLPSQNSEIIEKNSPVNKLNSSTSLTTHQLASLPKLEVTDHDNVSEAETVVLNEDEEKETSLVGSVSVTEDLGDSSAIGRTILVNNSVEPQMENTANITIVSPSLKESDFESEEKATNDNNGLIETNHNSKLEESSEHEEEEDEESNIERTEDSDHQIPQRGGTLEAPRKGGPRSGVGSRKRKRATVSRKWSTNSESKIKRVALETSQEESDREIADRRSASEQAHEADDEKAIKRKEAFDALLNIETEFTFLRNRLYGKKLLKLNEHEEMIQNETHERFNACIDLITERRDDRVRLATENLMKQLGNIKNVMDYVTKQRKYQLLFDKRRIRQALLTKIATKCFQLLNKQKSVHDPTYITQKTMSYRQSALLQKQRIEYEAAVLCELNSFAGFPTAPIIETASFDDIRNDLLEMGCLSENQD

Entity 5 polymer

描述 description	Transcriptional regulatory protein rxt2
分子量 formula_weight	27429.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MKQFEEQIERFKQALFEDSDASDSDSSIGEALTNRGLKRKKGSKNVYYGCVGNSSGSSIDIDYYNIGNTKRGVVSHFRRRIDPEWLDHDNPYNDINIAEIMSPLTKPQDLLTHPAISSIFEQNYLSILASSALEIISAEHKYTAHLEQLMVALLGDDPSLPGPPHEVFGISPEQCRELTITVQEALEKSKEFIRCWTNVRMDLLRAIRFKNKVIAYCQGEDYNGNTQVLSKNESDGKPNS

Entity 6 polymer

描述 description	Transcriptional regulatory protein sds3
分子量 formula_weight	30800.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MDVLSRVFDNEKEELDPLLNNPLTASEFRAKKAELEAELESIRNGTCKTLLDLADELRRSRDEELEIAERWRTFLVNRAQEEYEVEMKAAKEEYEYRCKTLKEMVLSHLNEKKRKIYEAKDMFDIGSESSTLLLHDASSQFIDRRKLRHRRNAGNQQNTQQLPSLNFFDDYLLFPTDETAVIPQSVKNAVRNSVNSVKPTSAEASLFSPLLSMANANPTNGRERDPRASERAERDREKAVEKGLSGATEEDIQSDLQLLKKELAKKK

Entity 7 polymer

描述 description	Chromatin modification-related protein png2
分子量 formula_weight	34925.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MGTSGIEIFAALNDFTDAIVSVPESVCGKFTSLKEIDAQVRDIRQNVIQEIGVVLKNEKNDELSGEERCERLQKTLKEILPYSDSKICLATDAMNNIKSCIDRLDAGFEYVELEIPQQLRLGYPDDRALMNYHSTVTPQTSERRRETRRHQNNQHSQQYSSQERSSSYNNFEDASSPQSSYHTPTKRRKNAVPRKSSSPPLSSTKHAPQSTERRPVRRSESRLKQTNGEPLVKHDTLDSSDISREGEQLYCYCQQVSYGQMIGCDNENCKREWFHLPCVGLVEPPKGIWYCKECEELAKSSESRQ

Entity 8 polymer

描述 description	Transcriptional regulatory protein rxt3
分子量 formula_weight	39464.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MEEKTPENEQSKKTFDPKDSMKIEETSTNGSSQPSQPSNIKLSIGSILESSNDNGDPEYSENGMGNMNMNTLPMATSTPMSYTKQPSEAKYPNSVWERKGVSDQEENTSSVKRQKTLPTQSSGEEEAKYSHPGAPTATSADSISMESRPSNLSTSLSKTTSYPQFQVRQFVSPIISIDNSALEPFLNRYPASESLFPVTEYEYTPWLEFPLLYSSIGKFVRVTIDIKWLNAAINPRLCRREIWGTDVYTDDSDIATILAHCGCFSLLKPVRKIAVVDLYILPPLVHYKGTRKNQIESRSWSSRQDGISLKIKEVTWKPACASIFENSIHTLTLEERLQARLELSRSSTFKI

Entity 9 polymer

描述 description	RbAp48-related WD40 repeat-containing protein prw1
分子量 formula_weight	48528.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,K

MAVSAVPHPSKQAQASEEGINQEKCINEEYKIWKKNSPFLYDLIITRALEWPCMSLQWYPEQQIFAEHGYTEQKMFLGVRADVGKYLLAVASIQLPYLNQTVPPTTMEGASAGDESSLRVNISNLYSHPESVCSAKLMPQDDSCVATVGNYHNDVLVFDKESFESYSSASESPLKPKYRLTKHTQPCTSVCWNFLSKGTLVSGSQDATLSCWDLNAYNESDSASVLKVHISSHEKQVSDVRFHYKHQDLLASVSYDQYLHVHDIRRPDASTKPARSVHAHSGPIHSVAFNPHNDFILATCSTDKTIALWDLRNLNQRLHTLEGHEDIVTKISFSPHEEPILASTSADRRTLVWDLSRIGEDQPAEEAQDGPPELLFMHGGHTSCTIDMDWCPNYNWTMATAAEDNILQIWTPSRSIWGNEQLEEDATAYLS

Entity 10 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 11 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

结构域编号 domain_id	8i03C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	800 — Arginase; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Histone deacetylase domain

结构域编号 domain_id	8i03D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	800 — Arginase; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Histone deacetylase domain

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	389222

fit	/app/data/saxs_computation/i0/8i03/8i03.fit
pddf	/app/data/pr_computation/i0/8i03/8i03.pr.out
profile	/app/data/saxs_computation/i0/8i03/8i03.dat
