SAXSdb — 8i4m

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8i4m
沉积日期 deposition_date	2023-01-19
结构标题 title	Portal-tail complex structure of the Cyanophage P-SCSP1u
关键词 keywords	Whole virus, Capsid, cyanophage, T7-like virus, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	91.27 Å
回转半径 Rg (电子) rg_electron	90.98 Å
零角强度 I(0) i0	51649000000.00
分子量 molecular_weight	1910800.0 kDa
排除体积 excluded_volume	2380300 Å³
包络体积 envelope_volume	4006100 Å³
水化壳体积 shell_volume	349360 Å³
包络直径 envelope_diameter	347.8 Å
壳层 Rg shell_rg	97.28 Å
包络 Rg envelope_rg	91.08 Å
形状 Rg shape_rg	90.98 Å
总 Rg total_rg	91.04 Å
总原子数 total_atoms	134400
残基数 n_residues	17436
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	241.8 Å
Rg (实空间) rg_real	86.77 Å
Rg 误差 (实空间) rg_real_error	0.51 Å
I(0) (实空间) i0_real	4.9080e+10
I(0) 误差 (实空间) i0_real_error	8.3400e+08
Rg (倒空间) rg_reciprocal	91.14 Å
I(0) (倒空间) i0_reciprocal	51630000000.0000
解质量估计 total_estimate	0.9093
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	99.5 Å
偏度 Skewness skewness	0.233
峰度 Kurtosis kurtosis	-0.418
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.6502
最高正则化参数 α highest_alpha	5487000000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.002; Oscil: 0.978; Stabil: 0.965; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Portal protein(gp 16) of the cyanophage P-SCSP1u
分子量 formula_weight	62460.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S,T,U,V,W,X,Y,Z,a,b,c,d
原子数 atom_count	134400

MKTRLTNNVDRQSALYGSSGGTAAQRYEQLRVDRNSPLKRARDCSKVTIPGLIEDENYGDAGRLDTPYQSSGARGVGHMTSKLAVTLFPTNEHFFKLEIDSLAILASDQNPEMITEFDSALVKVEQAVMRMFETIGGRAAMHEALKHLLVGGNVLLYVSDEGIKVIHLDSYVLCRDPMGNVTEIVVEEEIFKDALPEEYLDEEDDDDDDMGKKMVKIYTCIKFMDDQCHWYQEIKGKEVPGTHGKCAADVAPWIALRQDRVDSEMYGRSYVEQYYGDLLALENLYKAILEASASLSKVLFLCNPNGTTRPRTLSQASNGSIVQGNAADVTVLQAAGKSQDLQIANQTIERIENRLAFAFMLNTAIQRPGERVTAEEIRYMAQELDAGISGLYSILSRELQLPLVRRLIHILRRKRKLPDFPRSEVTGEPLIKEKAVTGIEAIGRGDDRNKLIDFITTANQALGPQAMTQFLNVEEALRRLAASGSIDTTNLVKTKAQLQQEAAAQAEAEQQAQQQQLLETGIKSPAMAQAVKNFQGADPERAAQALSAITSETGGIDADQLTEAV

Entity 2 polymer

描述 description	Nozzle protein(gp 23) of the cyanophage P-SCSP1u
分子量 formula_weight	87444.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F

MPLISSSIPNLINGVSQQPAALRLASQAEEVINCMPSPVEGLKKRPPMQHIKKLFAGSAGTGRPFTHIVDRDGVIRYLIFIQDNAIKVFDLDGNAQTVSTPNGTSYLNITGEPSSTFRVASIADFTFIVNREKTVAMDTTNKSYNWGTKSMVFIKSADFSTTYRVKLNGTEKSVTTGNSSGSAPDTVTIASDLATQLNTISGFTVTSTDYIIRITKDDGGDYTLESSDTKTADATSAIKGTVDSITDLPTIAEHNFTVRIQGSATTAFDDYFVKFEATAGSGFGPGVWRETVAPNIDHLLDKSTMPHTLVRNANGTFTFAQFNYTGRVAGDTTTAPNPTFVGSKIKNINLFRNRLVFLADENVILSAADSFERFFPETVQTLLDSDPIDISSGGTSVNFLNSSLAFANTLLLFSLHGQFRLDTGSTSVGTALTPKTATITAITTFDIVDAIDPIGVGRTVYFGIPKGDFSGLREYFLPDASGPIPLSEEVTSSVPRFVPGNLISMSPSVSEEVITMISKDQPRRVYIYKFFFDDDQKLQSSWSYWEVAANKTLLGGNVLDSDLYTCVEYSDGVYLEKTQLRPETVDSGTEFEILLDRKTTEAACSTSLINSGALGVQTVITLPYPMSGTGTMAVVGRFASNNTIAHGQVIKATAETLTGGASGNGTMTVPGDLSSAKFFVGEIYNMTYEFSTPYLKETPPGGGLAVLANPRLQLRTWSIVFDETSNFSMKITPGQRDELTYPFNGYKIGSGQFPIGTPSLATGRFRVPVMAQNIETKIVLFSDSPLPCRVQSAEWEGWYQERARRL

Entity 3 polymer

描述 description	Adaptor protein(gp22) of the cyanophage P-SCSP1u
分子量 formula_weight	22811.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J,K,L,q,r,s,t,u,v

MAARTSFLDAVNRVLQMLGEAPVNSLQGQFGLAKQAEVALNDVSRTIQTEGWSFNTDLEKKLERNSSNEIELSSNVSRVVVDNLEYPDIDVVQRGDKLYDRKNNRYTFDEDLIVDMTTILEWDLLPEHARQYITIKAGRQLQEAIIGSAELTKLNLTQEVEARSAFLEEETTKSEHSMLRGHLNRTSPVNTYIPSRTLER

Entity 4 polymer

描述 description	Fiber protein(gp 28) of the cyanophage P-SCSP1u
分子量 formula_weight	113856.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e,f,g,h,j,l,i,k,m,n,o,p,M,N,O,P,Q,R

MAFAQRIITSNSAGDQEFTFTFDYIKEEHIKVFVNFVEKAQGTGSNEFQVITNTTPKKISLNTGLSADNTRVEIRRVSSLSTPLVDFADGSTLTAADLDTAEKQSLFIDQELDDALKQGISIDTSTGVPTLNSQRLSNVSDPVNAQDAVTKAYLERSGSITSTQILNGTIVDADINASAAIAKSKLAALNIVNADVNASAAIAGSKLADASIAYTKIQNVSATNRILGRDSSGAGVIEEITPANLRTMINVEDGATADQSAAEIRTLVESASDSNVFTDADHTKLNAIEASADVTDATNVDAAGAVMNSDTSTAAMQFVIDEDTFGSNLDTKVPTQQSVKAYITATSQPLDSELSQLAGMQSGTASKLADSTALTADIADLNQLDGMAKETSITNSNTKFPTSAAVVNFVANQIAPVGGLEVIADEDSFPATQPVSGVVISISNADGLVINNAGEASNARTVGSGSDNVTIKNFPASLRNQTLAPNLGLLVSSTGASQEYNYHKLLAKETDVLQLSDDINDFNNRYRVENTLPAANDSSNHDGDLVYAKEEKKIYVYSGDYNGTPVGSFGEVQSIGNFFISTLSPAFNGSLQDFTITNAPSNAQQIILSINGVIQKPNSGTSTPSEGFALSGSTIKLAAAPPSGADYFAIVLGSTVNIGTPSNNTVTSSILQNGSVIEAKLGSGAVTRTKLNLVSTSSAPGLEVKGDGSSDGYLQLNCSQNSHGIKLKSPPHSAGQSYTLTFPSNIVSGQFLTTDANGNLSWAAVVTDLVNDTSPQLGGNLDCNDKNILLNDSSGSANNRIRLGASQDFALFHNGTINIIEAVSGDLHLRLNGSEEGIIVKQNGAVELYYDNSKKFHTSSVGATVTGNLFLSGGYINLNDNYSYGMGSGNRAQLYHSGNHQYLLNTVGNMYFQPKSGENGIVIIPDDAVELYHNNVKRLETTSGGVTVSGSVTATGHLFVGANTHYLYFTSTAGYSPRIGNADGGTGVNMTFHTNNTMRMMLQNDGHLRPASNNTYDLGTSSDRWRNVYTNDLNLSNEGGANDVDGTWGSYTIQEGAEDLFLINKRTSKKYKFNLTEVS

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.81 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	86469

fit	/app/data/saxs_computation/i4/8i4m/8i4m.fit
pddf	/app/data/pr_computation/i4/8i4m/8i4m.pr.out
profile	/app/data/saxs_computation/i4/8i4m/8i4m.dat

Portal-tail complex structure of the Cyanophage P-SCSP1u

SAXS 散射曲线 SAXS Profile

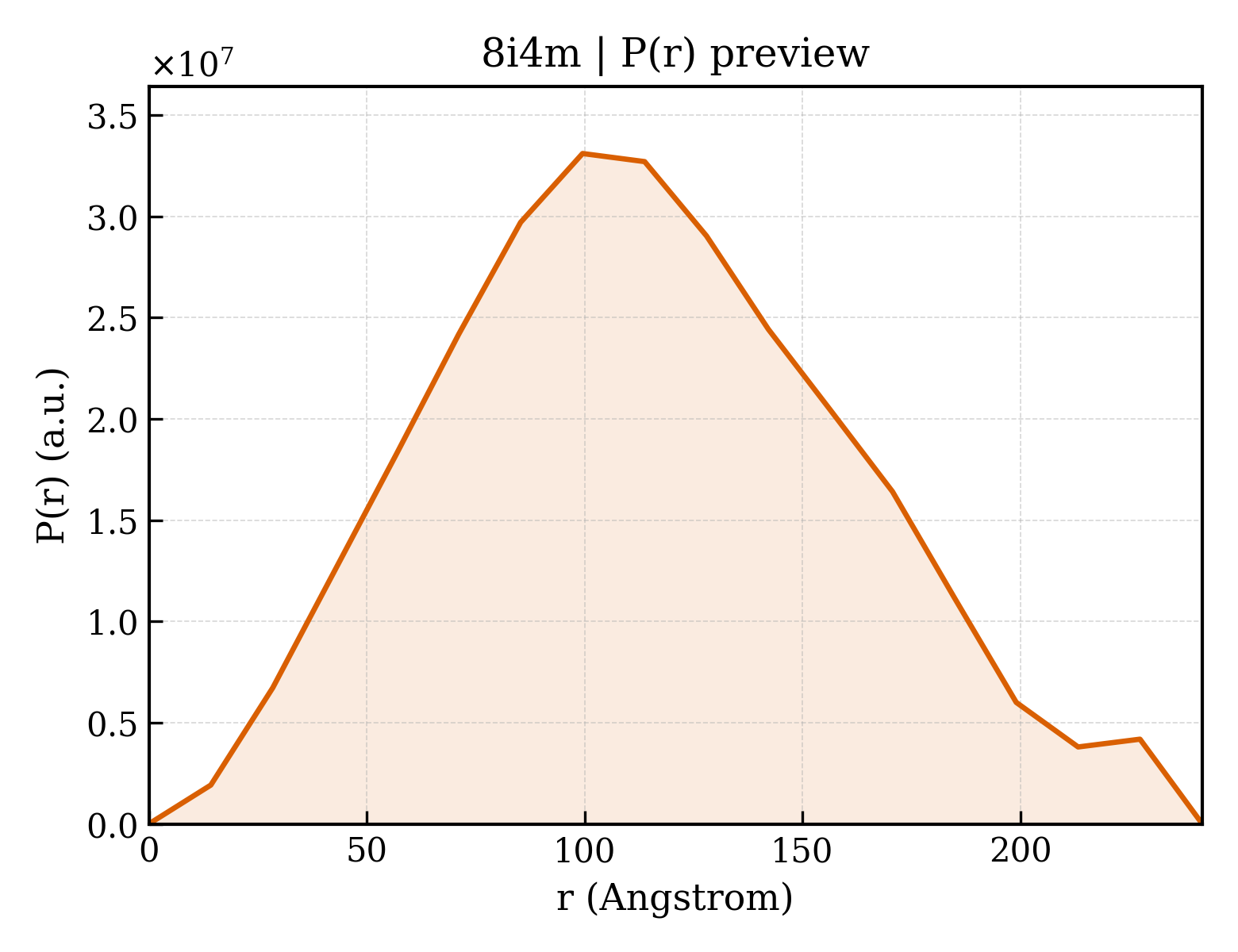

P(r) 距离分布 P(r) Distribution
