SAXSdb — 8i4x

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8i4x
沉积日期 deposition_date	2023-01-21
结构标题 title	Cryo-EM structure of 5-subunit Smc5/6
关键词 keywords	CELL CYCLE; CELL CYCLE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	133.50 Å
零角强度 I(0) i0	1978150000.00
分子量 molecular_weight	380310.0 kDa
排除体积 excluded_volume	477100 Å³
包络体积 envelope_volume	1140400 Å³
水化壳体积 shell_volume	83042 Å³
包络直径 envelope_diameter	422.7 Å
壳层 Rg shell_rg	89.29 Å
包络 Rg envelope_rg	127.90 Å
形状 Rg shape_rg	133.50 Å
总 Rg total_rg	133.30 Å
总原子数 total_atoms	26724
残基数 n_residues	3299
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	266.5 Å
Rg (实空间) rg_real	94.20 Å
Rg 误差 (实空间) rg_real_error	1.43 Å
I(0) (实空间) i0_real	1.6450e+09
I(0) 误差 (实空间) i0_real_error	3.8960e+07
Rg (倒空间) rg_reciprocal	93.75 Å
I(0) (倒空间) i0_reciprocal	1767000000.0000
解质量估计 total_estimate	0.7178
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	44.4 Å
偏度 Skewness skewness	0.306
峰度 Kurtosis kurtosis	-1.093
角度范围 angular_range	— – 0.0600 Å⁻¹
当前正则化参数 α current_alpha	1.3970
最高正则化参数 α highest_alpha	43050000.0000
实空间数据点数 n_real_points	13
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.094; Oscil: 0.673; Stabil: 0.864; Sysdev: 1.000; Positv: 1.000; Valcen: 0.718; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Structural maintenance of chromosomes protein 5
分子量 formula_weight	123390.0 kDa
突变 mutation	M824A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	26724

KRVKIAKPDLSSFQPGSIIKIRLQDFVTYTLTEFNLSPSLNMIIGPNGSGKSTFVCAVCLGLAGKPEYIGRSKKVEDFIKNGQDVSKIEITLKNSPNVTDIEYIDARDETIKITRIITRSKRRSDYLINDYQVSESVVKTLVAQLNIQLDNLCQFLSQERVEEFARLKSVKLLVETIRSIDASLLDVLDELRELQGNEQSLQKDLDFKKAKIVHLRQESDKLRKSVESLRDFQNKKGEIELHSQLLPYVKVKDHKEKLNIYKEEYERAKANLRAILKDKKPFANTKKTLENQVEELTEKCSLKTDEFLKAKEKINEIFEKLNTIRDEVIKKKNQNEYYRGRTKKLQATIISTKEDFLRSQEILAQTHLPEKSVFEDIDIKRKEIINKEGEIRDLISEIDAKANAINHEMRSIQRQAESKTKSLTTTDKIGILNQDQDLKEVRDAVLMVREHPEMKDKILEPPIMTVSAINAQFAAYLAQCVDYNTSKALTVVDSDSYKLFANPILDKFKVNLRELSSADTTPPVPAETVRDLGFEGYLSDFITGDKRVMKMLCQTSKIHTIPVSRRELTPAQIKKLITPRPNGKILFKRIIHGNRLVDIKQSAYGSKQVFPTDVSIKQTNFYQGSIMSNEQKIRIENEIINLKNEYNDRKSTLDALSNQKSGYRHELSELASKNDDINREAHQLNEIRKKYTMRKSTIETLREKLDQLKREARKDVSQKIKDIDDQIQQLLLKQRHLLSKMASSMKSLKNCQKELISTQILQFEAQNMDVSMNDVIGFFNEREADLKSQYEDKKKFVKEARDTPEFQSWMREIRSYDQDTKEKLNKVAEKYEEEGNFNLSFVQDVLDKLESEIAMVNHDESAVTILDQVTAELRELEHTVPQQSKDLETIKAKLKEDHAVLEPKLDDIVSKISARFARLFNNVGSAGAVRLEKPKDYAEWKIEIMVKFRDNAPLKKLDSHTQSGGERAVSTVLYMIALQEFTSAPFRVVDEINQGMDSRNERIVHKAMVENACAENTSQYFLITPKLLTGLHYHEKMRIHCVMAGSWIPNPSEDPKMIHFGETSNYSFD

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	Structural maintenance of chromosomes protein 6
分子量 formula_weight	126889.4 kDa
突变 mutation	L464A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MISTTISGKRPIEQVDDELLSLTAQQENEEQQQQRKRRRHQFAPMTQFNSNTLDEDSGFRSSSDVATADQDNFLEESPSGYIKKVILRNFMCHEHFELELGSRLNFIVGNNGSGKSAILTAITIGLGAKASETNRGSSLKDLIREGCYSAKIILHLDNSKYGAYQQGIFGNEIIVERIIKRDGPASFSLRSENGKEISNKKKDIQTVVDYFSVPVSNPMCFLSQDAARSFLTASTSQDKYSHFMKGTLLQEITENLLYASAIHDSAQENMALHLENLKSLKAEYEDAKKLLRELNQTSDLNERKMLLQAKSLWIDVAHNTDACKNLENEISGIQQKVDEVTEKIRNRQEKIERYTSDGTTIEAQIDAKVIYVNEKDSEHQNARELLRDVKSRFEKEKSNQAEAQSNIDQGRKKVDALNKTIAHLEEELTKEMGGDKDQMRQELEQLEKANEKLREVNNSLVVSAQDVKNEERDIQHERESELRTISRSIQNKKVELQNIAKGNDTFLMNFDRNMDRLLRTIEQRKNEFETPAIGPLGSLVTIRKGFEKWTRSIQRAISSSLNAFVVSNPKDNRLFRDIMRSCGIRSNIPIVTYCLSQFDYSKGRAHGNYPTIVDALEFSKPEIECLFVDLSRIERIVLIEDKNEARNFLQRNPVNVNMALSLRDRRSGFQLSGGYRLDTVTYQDKIRLKVNSSSDNGTQYLKDLIEQETKELQNIRDRYEEKLSEVRSRLKEIDGRLKSTKNEMRKTNFRMTELKMNVGKVVDTGILNSKINERKNQEQAIASYEAAKEELGLKIEQIAQEAQPIKEQYDSTKLALVEAQDELQQLKEDINSRQSKIQKYKDDTIYYEDKKKVYLENIKKIEVNVAALKEGIQRQIQNACAFCSKERIENVDLPDTQEEIKRELDKVSRMIQKAEKSLGLSQEEVIALFEKCRNKYKEGQKKYMEIDEALNRLHNSLKARDQNYKNAEKGTCFDADMDFRASLKVRKFSGNLSFIKDTKSLEIYILTTNDEKARNVDTLSGGEKSFSQMALLLATWKPMRSRIIALDEFDVFMDQVNRKIGTTLIVKKLKDIARTQTIIITPQDIGKIADIDSSGVSIHRMRDP

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	E3 SUMO-protein ligase MMS21
分子量 formula_weight	30388.3 kDa
EC 编号 ec_number	2.3.2.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MALNDNPIPKSVPLHPKSGKYFHNLHARDLSNIYQQCYKQIDETINQLVDSTSPSTIGIEEQVADITSTYKLLSTYESESNSFDEHIKDLKKNFKQSSDACPQIDLSTWDKYRTGELTAPKLSELYLNMPTPEPATMVNNTDTLKILKVLPYIWNDPTCVIPDLQNPADEDDLQIEGGKIELTCPITCKPYEAPLISRKCNHVFDRDGIQNYLQGYTTRDCPQAACSQVVSMRDFVRDPIMELRCKIAKMKESQEQDKRSSQAIDVL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 polymer

描述 description	Nse6
分子量 formula_weight	44498.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

PILKRTIISKRKAPSNNEDEEIVKTPRKLVNYVPLKIFNLGDSFDDTITTTVAKLQDLKKEILDSPRSNKSIVITSNTVAKSELQKSIKFSGSIPEIYLDVVTKETISDKYKDWHFISKNCHYEQLMDLEMKDTAYSFLFGSSRSQGKVPEFVHLKCPSITNLLVLFGVNQEKCNSLKINYEKKENSRYDNLCTIFPVNKMLKFLMYFYSDDDNDDVREFFLKAFICLILDRKVFNAMESDHRLCFKVLELFNEAHFINSYFEIVDKNDFFLHYRLLQIFPHLQSALLRRRFSEKQGRTETIQQNIIKEFNEFFDCKNYKNLLYFILTMYGSKFIPFGPKCQVTEYFKDCILDISNETTNDVEISILKGILNLFSKIR

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 polymer

描述 description	Non-structural maintenance of chromosome element 5
分子量 formula_weight	64079.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MDGALINSVLYVSPRNGAHYFVELTEKHLLAFEMLNSMCLLENYDHVLLFLECQFGKSHNLAVIPFDIILVLFTLSTLSEYYKEPILRANDPYNTSRETLSRRALKLLQKYLAILKEFDSEQYNLYDLELLRCQFFLAIDTLTPKKQKWGFDRFRRTKSESGVTYRQNASVDPELDQAKTFKNPYRSYISCLEQRNTILGNRLLNLKLNEPGEFINMILWTLSNSLQESTPLFLSSHEIWMPLLEILIDLFSCRQDYFIQHEVAQNVSKSLFVQRLSESPLAVFFESLNTRNFANRFSEYVFLNCDYKLPSDNYATPVHPVYNGENTIVDTYIPTIKCSPLYKSQKSLALRRKLIGSCFKLLLRVPDGHRLITPRIVADDVIQGISRTLASFNDILQFKKFFMTENLSQESYFIPLLAEGTLSEILKDTQECVVILTLVENLSDGVSFCNEVIGLVKSKCFAFTEQCSQASYEEAVLNIEKCDVCLLVLLRYLLHLIGTEAILDAKEQLEMLHAIEKNDSGRRQWAKALNLGNDPPLLYPIVSQMFGVHDKSVIIE

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Spodoptera frugiperda

▶

7. 引用文献 (1)

▶

分辨率 resolution	8.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	268567

fit	/app/data/saxs_computation/i4/8i4x/8i4x.fit
pddf	/app/data/pr_computation/i4/8i4x/8i4x.pr.out
profile	/app/data/saxs_computation/i4/8i4x/8i4x.dat

Cryo-EM structure of 5-subunit Smc5/6

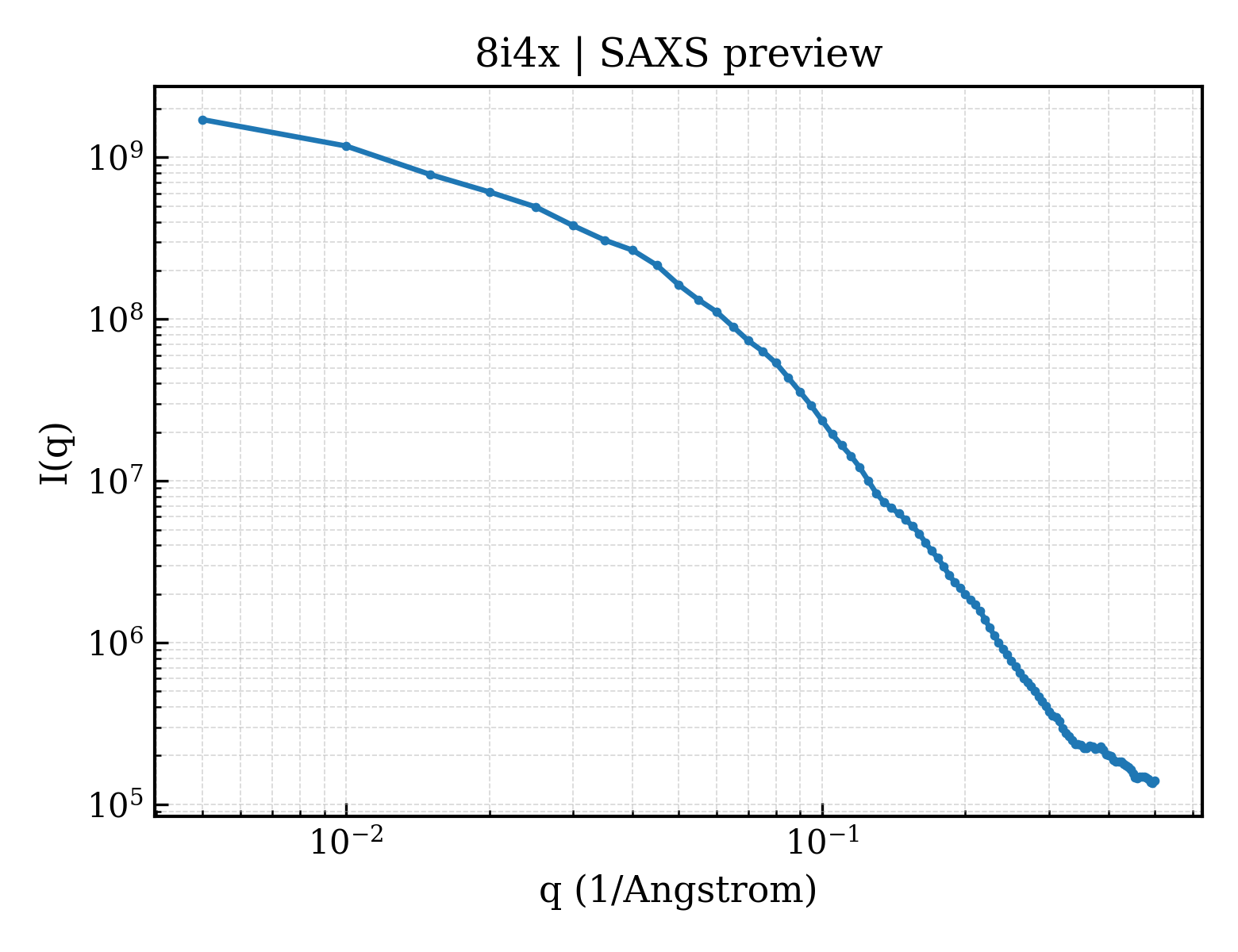

SAXS 散射曲线 SAXS Profile

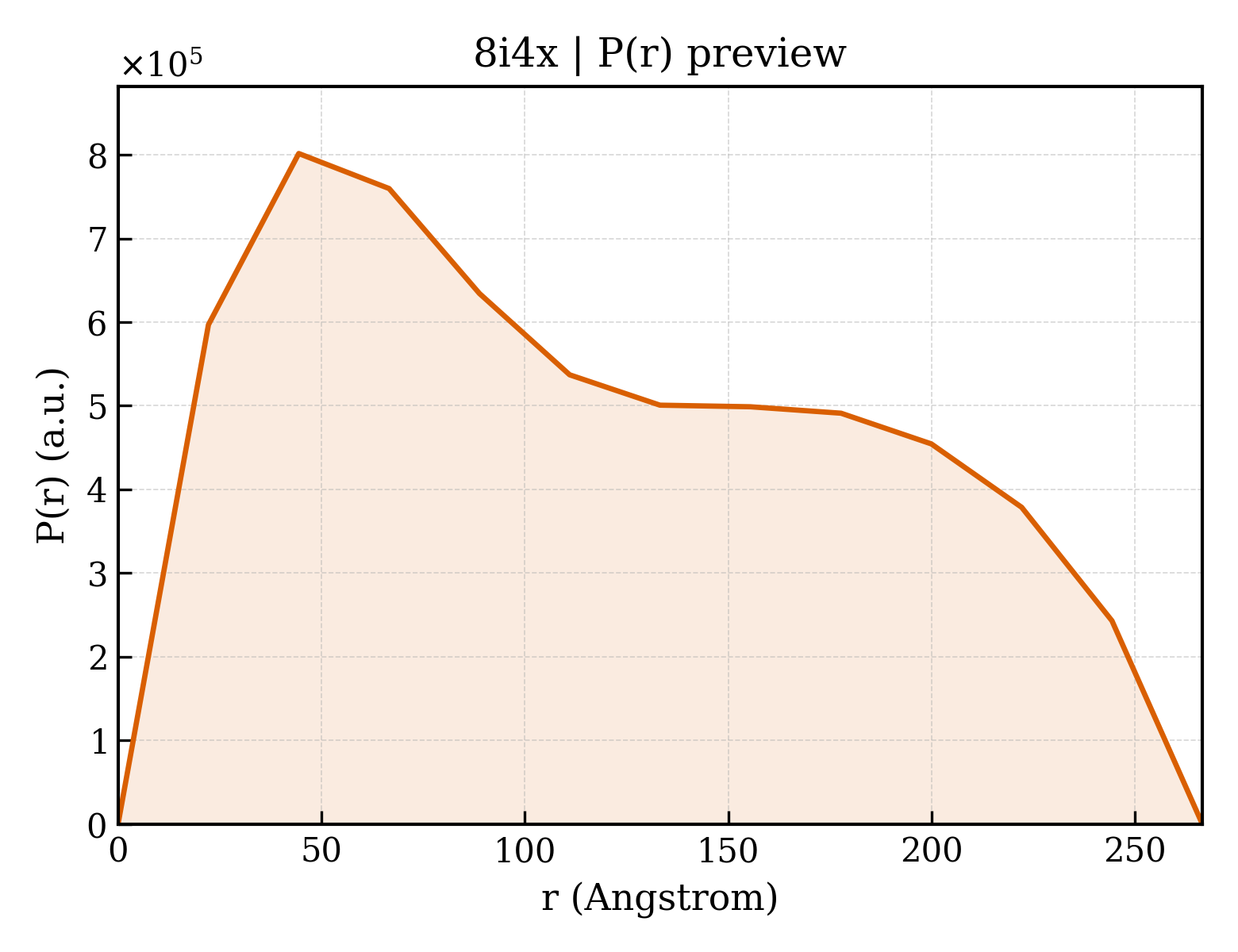

P(r) 距离分布 P(r) Distribution
