8i66

;Crystal structure of Mycobacterium tuberculosis Uracil-DNA glycosylase in complex with isoorotic acid (2,4-Dihydroxypyrimidine-5-carboxylic Acid) and citric acid, Form I ;

Method: X-RAY DIFFRACTION D_max: 55.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

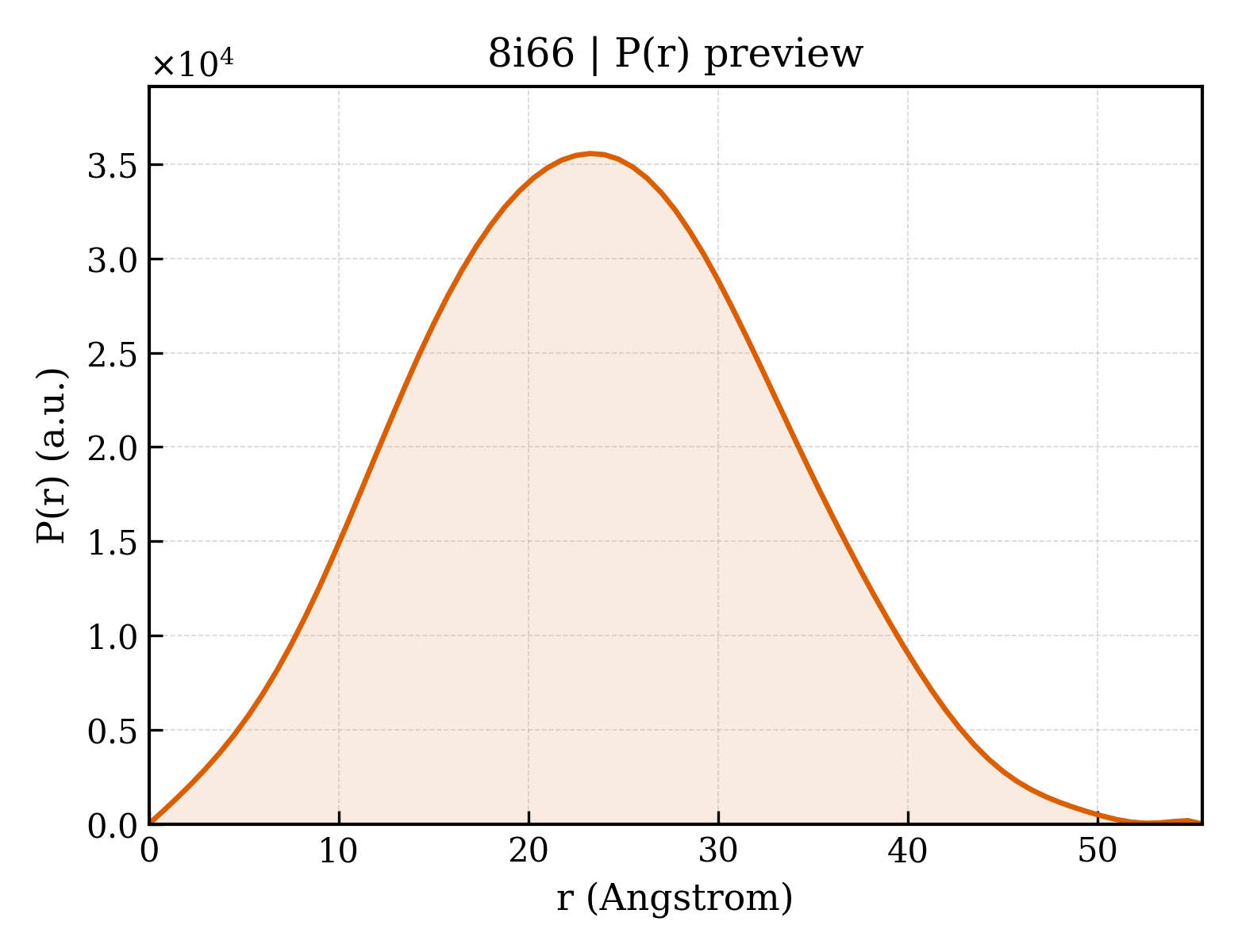

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8i66
沉积日期 deposition_date	2023-01-27
结构标题 title	;Crystal structure of Mycobacterium tuberculosis Uracil-DNA glycosylase in complex with isoorotic acid (2,4-Dihydroxypyrimidine-5-carboxylic Acid) and citric acid, Form I ;
关键词 keywords	DNA repair, Base excision repair, Inhibitor-complex, HYDROLASE, HYDROLASE-INHIBITOR complex; HYDROLASE/INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	18.07 Å
回转半径 Rg (电子) rg_electron	16.62 Å
零角强度 I(0) i0	11052700.00
分子量 molecular_weight	24800.0 kDa
排除体积 excluded_volume	31048 Å³
包络体积 envelope_volume	34572 Å³
水化壳体积 shell_volume	17237 Å³
包络直径 envelope_diameter	55.7 Å
壳层 Rg shell_rg	23.03 Å
包络 Rg envelope_rg	16.84 Å
形状 Rg shape_rg	16.60 Å
总 Rg total_rg	17.68 Å
总原子数 total_atoms	1752
残基数 n_residues	228
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	55.5 Å
Rg (实空间) rg_real	17.93 Å
Rg 误差 (实空间) rg_real_error	0.22 Å
I(0) (实空间) i0_real	1.1050e+07
I(0) 误差 (实空间) i0_real_error	1.1260e+05
Rg (倒空间) rg_reciprocal	17.95 Å
I(0) (倒空间) i0_reciprocal	11050000.0000
解质量估计 total_estimate	0.8975
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	23.2 Å
偏度 Skewness skewness	0.115
峰度 Kurtosis kurtosis	-0.416
角度范围 angular_range	— – 0.4400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1987000.0000
实空间数据点数 n_real_points	75
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.959

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Uracil-DNA glycosylase
分子量 formula_weight	25813.5 kDa
EC 编号 ec_number	3.2.2.27
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	1788

MHHHHHHGMASMTARPLSELVERGWAAALEPVADQVAHMGQFLRAEIAAGRRYLPAGSNVLRAFTFPFDNVRVLIVGQDPYPTPGHAVGLSFSVAPDVRPWPRSLANIFDEYTADLGYPLPSNGDLTPWAQRGVLLLNRVLTVRPSNPASHRGKGWEAVTECAIRALAARAAPLVAILWGRDASTLKPMLAAGNCVAIESPHPSPLSASRGFFGSRPFSRANELLVGMGAEPIDWRLP

来源 Source

来源生物 organism	Mycobacterium tuberculosis H37Rv
NCBI 分类编号 ncbi_taxonomy_id	83332
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	2,4-dioxo-1,2,3,4-tetrahydropyrimidine-5-carboxylic acid
分子量 formula_weight	156.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	CITRIC ACID
分子量 formula_weight	192.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	36

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	39.120 Å
晶胞边长 b length_b	63.970 Å
晶胞边长 c length_c	45.390 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	112.29 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.600 Å
最低分辨率 resolution_low	36.220 Å
R 因子 r_factor	0.1814
R_work r_work	0.1782
R_free r_free	0.2341
