1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8i8b
沉积日期 deposition_date	2023-02-03
结构标题 title	Outer shell and inner layer structures of Autographa californica multiple nucleopolyhedrovirus (AcMNPV)
关键词 keywords	virus, capsid protein, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.06 Å
回转半径 Rg (电子) rg_electron	59.72 Å
零角强度 I(0) i0	2477060000.00
分子量 molecular_weight	426650.0 kDa
排除体积 excluded_volume	536890 Å³
包络体积 envelope_volume	852790 Å³
水化壳体积 shell_volume	118500 Å³
包络直径 envelope_diameter	206.7 Å
壳层 Rg shell_rg	62.84 Å
包络 Rg envelope_rg	57.68 Å
形状 Rg shape_rg	59.71 Å
总 Rg total_rg	59.84 Å
总原子数 total_atoms	30015
残基数 n_residues	3660
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	205.9 Å
Rg (实空间) rg_real	59.94 Å
Rg 误差 (实空间) rg_real_error	2.47 Å
I(0) (实空间) i0_real	2.4770e+09
I(0) 误差 (实空间) i0_real_error	5.2980e+07
Rg (倒空间) rg_reciprocal	60.13 Å
I(0) (倒空间) i0_reciprocal	2478000000.0000
解质量估计 total_estimate	0.8761
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	71.3 Å
偏度 Skewness skewness	0.242
峰度 Kurtosis kurtosis	-0.443
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	133300000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.848; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.863

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Major viral capsid protein
分子量 formula_weight	38991.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W,X,Y,Z
原子数 atom_count	30015

MALVPVGMAPRQMRVNRCIFASIVSFDACITYKSPCSPDAYHDDGWFICNNHLIKRFKMSKMVLPIFDEDDNQFKMTIARHLVGNKERGIKRILIPSATNYQDVFNLNSMMQAEQLIFHLIYNNENAVNTICDNLKYTEGFTSNTQRVIHSVYATTKSILDTTNPNTFCSRVSRDELRFFDVTNARALRGGAGDQLFNNYSGFLQNLIRRAVAPEYLQIDTEELRFRNCATCIIDETGLVASVPDGPELYNPIRSSDIMRSQPNRLQIRNVLKFEGDTRELDRTLSGYEEYPTYVPLFLGYQIINSENNFLRNDFIPRANPNATLGGGAVAGPAPGVAGEAGGGIAV

Entity 2 polymer

描述 description	Viral capsid associated protein
分子量 formula_weight	79974.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C

MNDSNSLLITRLAAQILSRNMQTVDVIVDDKTLSLEEKIDTLTSMVLAVNSPPQSPPRVTSSDLAASIIKNNSKMVGNDFEMRYNVLRMAVVFVKHYPKYYNETTAGLVAEIESNLLQYQNYVNQGNYQNIEGYDSLLNKAEECYVKIDRLFKESIKKIMDDTEAFEREQEAERLRAEQTAANALLERRAQTSADDVVNRADANIPTAFSDPLPGPSAPRYMYESSESDTYMETARRTAEHYTDQDKDYNAAYTADEYNSLVKTVLLRLIEKALATLKNRLHITTIDQLKKFRDYLNSDADAGEFQIFLNQEDCVILKNLSNLASKFFNVRCVADTLEVMLEALRNNIELVQPESDAVRRIVIKMTQEIKDSSTPLYNIAMYKSDYDAIKNKNIKTLFDLYNDRLPINFLDTSATSPVRKTSGKRSAEDDLLPTRSSKRANRPEINVISSEDEQEDDDVEDVDYEKESKRRKLEDEDFLKLKALEFSKDIVNEKLQKIIVVTDGMKRLYEYCNCKNSLETLPSAANYGSLLKRLNLYNLDHIEMNVNFYELLFPLTLYNDNDNSDKTLSHQLVNYIFLASNYFQNCAKNFNYMRETFNVFGPFKQIDFMVMFVIKFNFLCDMRNFAKLIDELVPNKQPNMRIHSVLVMRDKIVKLAFSNLQFQTFSKKDKSRNTKHLQRLIMLMNANYNVI

Entity 3 polymer

描述 description	AcOrf-109 peptide
分子量 formula_weight	44851.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MECPFQIQVCISDRFFAFPHNLVEPQSDVGNKLIENLIVYVPTDDDRLYIDKKQFPKFNSVLVYRHEHDVNIDSRSPKKTASATIVYWNPLVPITEIGAGETRVFSVLLTNNLFYCNTMIVHHENPKCPIEFTYPETDMQSACSALLKNRNGQSVPPPIKSNLRPIACEIPLSHFKELVESNDFLLCFNLETSTMVKILSLKRIFCIFQYRKQPARYVINLPHEEIDNLYNKLNWERTRRLMKGDVPSNCATVNRSSLKYIKQAQSLLGIPDYSQTVVDFVKMFQKIIFPYQLVPNVIIKLNNFDQMVSSAPNKAEPYKKIRLFCKNDSIAISSSGIVPINMPDFSPPNTFDYSDYANRTNINFVTQRVLTDGGFSSGITVTPVKYNYYL

Entity 4 polymer

描述 description	Early 49 Daa protein
分子量 formula_weight	55480.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSGGGNLLTLERDHFKYLFLTSYFDLKDNEHVPSEPMAFIRNYLNCTFDLLDDAVLMNYFNYLQSMQLKHLVGSTSTNIFKFVKPQFRFVCDRTTVDILEFDTRMYIKPGTPVYATNLFTSNPRKMMAFLYAEFGKVFKNKIFVNINNYGCVLAGSAGFLFDDAYVDWNGVRMCAAPRLDNNMHPFRLYLLGEDMAKHFVDNNILPPHPSNAKTRKINNSMFMLKNFYKGLPLFKSKYTVVNSTKIVTRKPNDIFNEIDKELNGNCPFIKFIQRDYIFDAQFPPDLLDLLNEYMTKSSIMKIITKFVIEENPAMSGEMSREIILDRYSVDNYRKLYIKMEITNQFPVMYDHESSYIFVSKDFLQLKGTMNAFYAPKQRILSILAVNRLFGATETIDFHPNLLVYRQSSPPVRLTGDVYVVDKNEKVFLVKHVFSNTVPAYLLIRGDYESSSDLKSLRDLNPWVQNTLLKLLIPDSVQ

Entity 5 polymer

描述 description	P40
分子量 formula_weight	41583.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,G

MSAIALYLEINKLRLKIDEPMQLAIWPQLFPLLCDEHQSVQLNTDVLINFMMHVARKSQNTILNNNAAIASQYAAGNADVVAAPASAQPTPRPVINLFARANAAAPAQPSEELINMRRYRNAARKLIHHYSLNSTSSTEYKISDVVMTMIFLLRSEKYHSLFKLLETTFDDYTCRPQMTQVQTDTLLDAVRSLLEMPSTTIDLTTVDIMRSSFARCFNSPIMRYAKIVLLQNVALQRDKRTTLEELLIERGEKIQMLQPQQYINSGTEIPFCDDAEFLNRLLKHIDPYPLSRMYYNAANTMFYTTMENYAVSNCKFNIEDYNNIFKVMENIRKHSNKNSNDQDELNIYLGVQSSNAKRKKY

Entity 6 polymer

描述 description	Occlusion-derived virus envelope/capsid protein
分子量 formula_weight	33568.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I

MKRIKCNKVRTVTEIVNSDEKIQKTYELAEFDLKNLSSLESYETLKIKLALSKYMAMLSTLEMTQPLLEIFRNKADTRQIAAVVFSTLAFIHNRFHPLVTNFTNKMEFVVTETNDTSIPGEPILFTENEGVLLCSVDRPSIVKMLSREFDTEALVNFENDNCNVRIAKTFGASKRKNTTRSDDYESNKQPNYDMDLSDFSITEVEATQYLTLLLTVEHAYLHYYIFKNYGVFEYCKSLTDHSLFTNKLRSTMSTKTSNLLLSKFKFTIEDFDKINSNSVTSGFNIYNFNK

Entity 7 polymer

描述 description	38K
分子量 formula_weight	38070.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MASSLQSKWICLRLNDAIIKRHVLVLSEYADLKYLGFEKYKFFEYVIFQFCNDPQLCKIIENNYNYCMQIFKAPADDMRDIRHNIKRAFKTPVLGHMCVLSNKPPMYSFLKEWFLLPHYKVVSLKSESLTWGFPHVVVFDLDSTLITEEEQVEIRDPFVYDSLQELHEMGCVLVLWSYGSRDHVAHSMRDVDLEGYFDIIISEGSTVQEERSDLVQNSHNAIVDYNLKKRFIENKFVFDIHNHRSDNNIPKSPKIVIKYLSDKNVNFFKSITLVDDLPTNNYAYDFYVKVKRCPTPVQDWEHYHNEIIQNIMDYEQYFIK

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.31 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	337988

fit	/app/data/saxs_computation/i8/8i8b/8i8b.fit
pddf	/app/data/pr_computation/i8/8i8b/8i8b.pr.out
profile	/app/data/saxs_computation/i8/8i8b/8i8b.dat

Outer shell and inner layer structures of Autographa californica multiple nucleopolyhedrovirus (AcMNPV)

SAXS 散射曲线 SAXS Profile

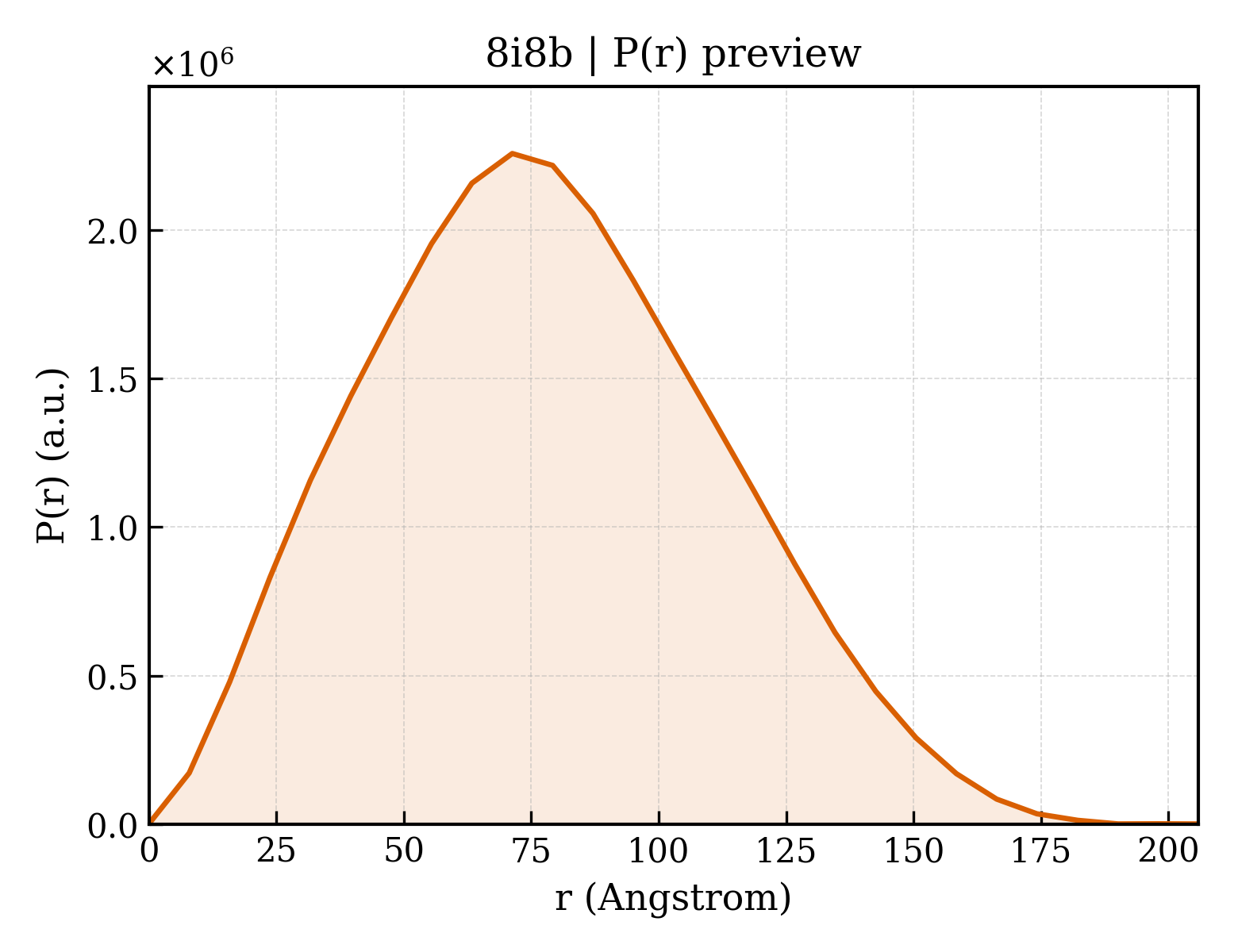

P(r) 距离分布 P(r) Distribution
