8i8f

Crystal structure of NDM-1 at pH5.5 (Succinate) in complex with hydrolyzed compound 1

Method: X-RAY DIFFRACTION D_max: 80.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

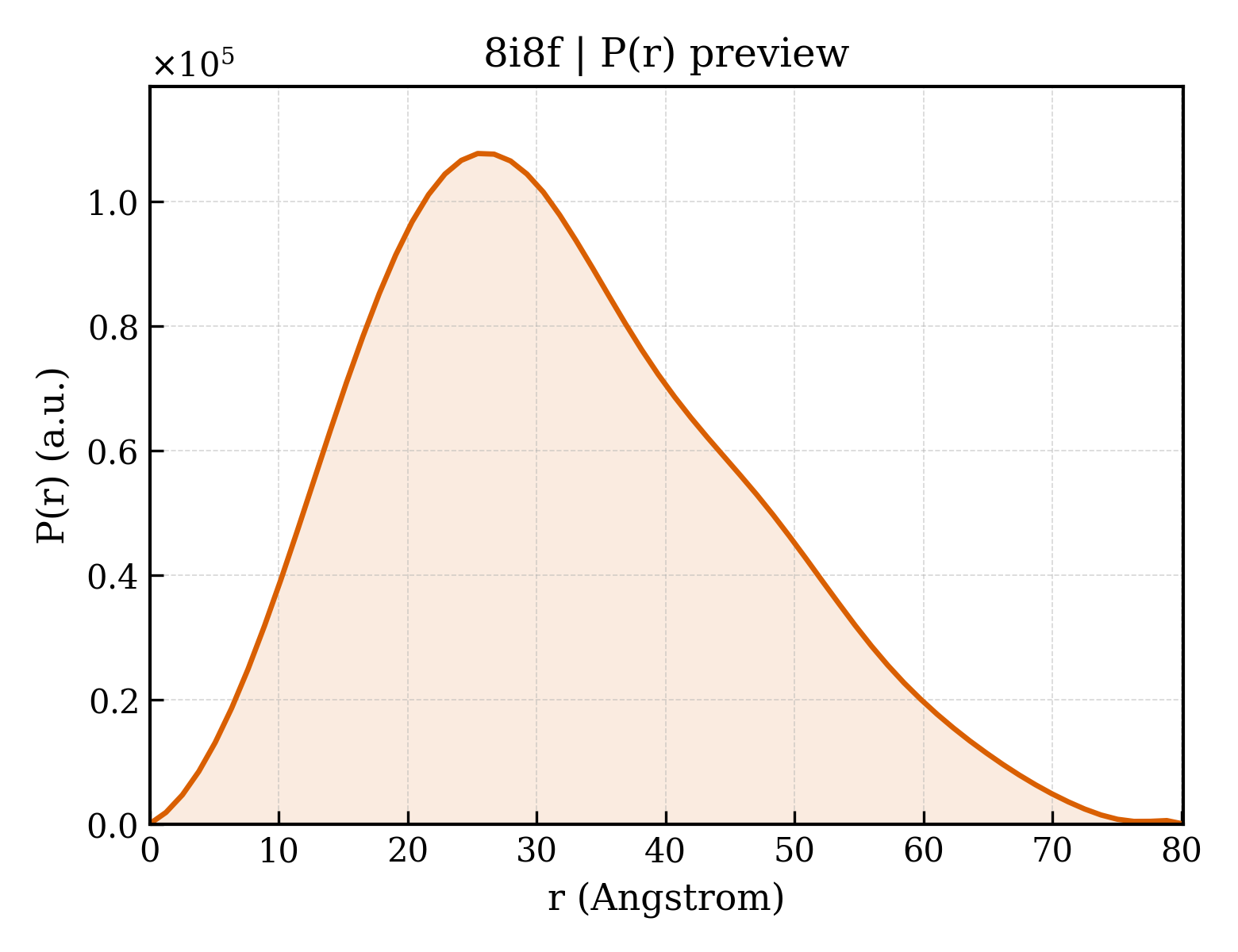

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8i8f
沉积日期 deposition_date	2023-02-04
结构标题 title	Crystal structure of NDM-1 at pH5.5 (Succinate) in complex with hydrolyzed compound 1
关键词 keywords	penicillin, hydrolase-inhibitor complex, HYDROLASE-INHIBITOR; HYDROLASE-INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.48 Å
回转半径 Rg (电子) rg_electron	24.10 Å
零角强度 I(0) i0	47413600.00
分子量 molecular_weight	51781.0 kDa
排除体积 excluded_volume	64045 Å³
包络体积 envelope_volume	73906 Å³
水化壳体积 shell_volume	26032 Å³
包络直径 envelope_diameter	81.7 Å
壳层 Rg shell_rg	30.92 Å
包络 Rg envelope_rg	24.17 Å
形状 Rg shape_rg	24.15 Å
总 Rg total_rg	24.68 Å
总原子数 total_atoms	3670
残基数 n_residues	479
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	80.1 Å
Rg (实空间) rg_real	24.54 Å
Rg 误差 (实空间) rg_real_error	0.51 Å
I(0) (实空间) i0_real	4.7410e+07
I(0) 误差 (实空间) i0_real_error	6.8080e+05
Rg (倒空间) rg_reciprocal	24.53 Å
I(0) (倒空间) i0_reciprocal	47410000.0000
解质量估计 total_estimate	0.8795
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.4 Å
偏度 Skewness skewness	0.429
峰度 Kurtosis kurtosis	-0.334
角度范围 angular_range	— – 0.3250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17650000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.838; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.958

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Metallo beta lactamase NDM-1
分子量 formula_weight	28527.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4269

MELPNIMHPVAKLSTALAAALMLSGCMPGEIRPTIGQQMETGDQRFGDLVFRQLAPNVWQHTSYLDMPGFGAVASNGLIVRDGGRVLVVDTAWTDDQTAQILNWIKQEINLPVALAVVTHAHQDKMGGMDALHAAGIATYANALSNQLAPQEGMVAAQHSLTFAANGWVEPATAPNFGPLKVFYPGPGHTSDNITVGIDGTDIAFGGCLIKDSKAKSLGNLGDADTEHYAASARAFGAAFPKASMIVMSHSAPDSRAAITHTARMADKLR

来源 Source

来源生物 organism	Klebsiella pneumoniae
NCBI 分类编号 ncbi_taxonomy_id	573
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	;(2R,4S)-5,5-dimethyl-2-[(1R)-1-(2-naphthalen-1-yloxyethanoylamino)-2-oxidanyl-2-oxidanylidene-ethyl]-1,3-thiazolidine-4-carboxylic acid ;
分子量 formula_weight	418.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	558

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	39.114 Å
晶胞边长 b length_b	78.847 Å
晶胞边长 c length_c	133.534 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	1.890 Å
最低分辨率 resolution_low	27.770 Å
R 因子 r_factor	0.1529
R_work r_work	0.1510
R_free r_free	0.1895
