8ibr

Crystal structure of GH42 beta-galactosidase BiBga42A from Bifidobacterium longum subspecies infantis in complex with glycerol

Method: X-RAY DIFFRACTION D_max: 83.5 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ibr
沉积日期 deposition_date	2023-02-10
结构标题 title	Crystal structure of GH42 beta-galactosidase BiBga42A from Bifidobacterium longum subspecies infantis in complex with glycerol
关键词 keywords	Glycoside Hydrolase family 42, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.28 Å
回转半径 Rg (电子) rg_electron	26.14 Å
零角强度 I(0) i0	99902200.00
分子量 molecular_weight	77575.0 kDa
排除体积 excluded_volume	96413 Å³
包络体积 envelope_volume	114470 Å³
水化壳体积 shell_volume	35274 Å³
包络直径 envelope_diameter	89.5 Å
壳层 Rg shell_rg	34.61 Å
包络 Rg envelope_rg	26.31 Å
形状 Rg shape_rg	26.14 Å
总 Rg total_rg	27.01 Å
总原子数 total_atoms	5485
残基数 n_residues	691
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

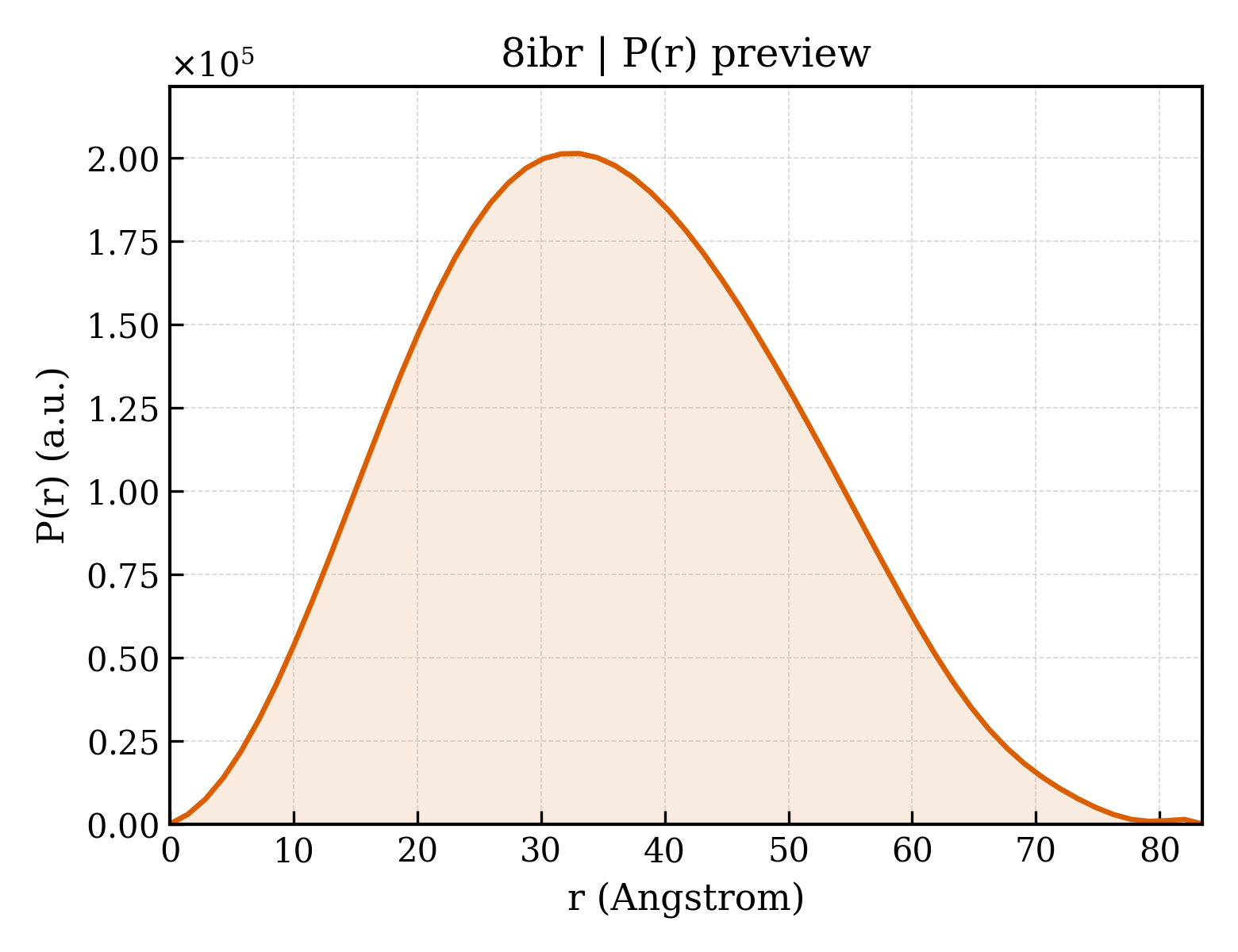

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	83.5 Å
Rg (实空间) rg_real	27.14 Å
Rg 误差 (实空间) rg_real_error	0.39 Å
I(0) (实空间) i0_real	9.9900e+07
I(0) 误差 (实空间) i0_real_error	1.3110e+06
Rg (倒空间) rg_reciprocal	27.19 Å
I(0) (倒空间) i0_reciprocal	99910000.0000
解质量估计 total_estimate	0.9088
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.1 Å
偏度 Skewness skewness	0.198
峰度 Kurtosis kurtosis	-0.501
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	25640000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.949; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.971

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Beta-galactosidase
分子量 formula_weight	78806.9 kDa
EC 编号 ec_number	3.2.1.23
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	6160

MEHRAFKWPQPLAGNKPRIWYGGDYNPDQWPEEVWDEDVALMQQAGVNLVSVAIFSWAKLEPEEGVYDFDWLDRVIDKLGKAGIAVDLASGTASPPMWMTQAHPEILWVDYRGDVCQPGARQHWRATSPVFLDYALNLCRKMAEHYKDNPYVVSWHVSNEYGCHNRFDYSEDAERAFQKWCEKKYGTIDAVNDAWGTAFWAQRMNNFSEIIPPRFIGDGNFMNPGKLLDWKRFSSDALLDFYKAERDALLEIAPKPQTTNFMVSAGCTVLDYDKWGHDVDFVSNDHYFSPGEAHFDEMAYAACLTDGIARKNPWFLMEHSTSAVNWRPTNYRLEPGELVRDSLAHLAMGADAICYFQWRQSKAGAEKWHSAMVPHAGPDSQIFRDVCELGADLNKLADEGLLSTKLVKSKVAIVFDYESQWATEHTATPTQEVRHWTEPLDWFRALADNGLTADVVPVRGPWDEYEAVVLPSLAILSEQTTRRVREYVANGGKLFVTYYTGLVDDRDHVWLGGYPGSIRDVVGVRVEEFAPMGTDAPGTMDHLDLDNGTVAHDFADVITSVADTAHVVASFKADKWTGFDGAPAITVNDFGDGKAAYVGARLGREGLAKSLPALLEELGIETSAEDDRGEVLRVERADETGENHFVFLFNRTHDVAVVDVEGEPLVASLAQVNESEHTAAIQPNGVLVVKLAAALEHHHHHH

来源 Source

来源生物 organism	Bifidobacterium longum subsp. infantis (strain ATCC 15697 / DSM 20088 / JCM 1222 / NCTC 11817 / S12)
NCBI 分类编号 ncbi_taxonomy_id	391904
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	670

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	145.642 Å
晶胞边长 b length_b	145.642 Å
晶胞边长 c length_c	66.845 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 3 2 1
空间群编号 int_tables_number	150
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	45.910 Å
R 因子 r_factor	0.1623
R_work r_work	0.1611
R_free r_free	0.1857

fit	/app/data/saxs_computation/ib/8ibr/8ibr.fit
pddf	/app/data/pr_computation/ib/8ibr/8ibr.pr.out
profile	/app/data/saxs_computation/ib/8ibr/8ibr.dat
