1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） scFv16 × 1 Guanine nucleotide-binding protein G(i) subunit alpha-1 × 1 （P63096） Free fatty acid receptor 4 × 1 （Q5NUL3） 5,8,11,14,17-EICOSAPENTAENOIC ACID × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–339； UniProt 2–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） scFv16 × 1 Guanine nucleotide-binding protein G(i) subunit alpha-1 × 1 （P63096） Free fatty acid receptor 4 × 1 （Q5NUL3） 5,8,11,14,17-EICOSAPENTAENOIC ACID × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain Y； PDBConstruct 1–71； UniProt 1–71

Guanine nucleotide-binding protein G(i) subunit alpha-1

Homo sapiens

UniProt P63096

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） scFv16 × 1 Free fatty acid receptor 4 × 1 （Q5NUL3） 5,8,11,14,17-EICOSAPENTAENOIC ACID × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAI1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 1–354； UniProt 1–354

Free fatty acid receptor 4

Homo sapiens

UniProt Q5NUL3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） scFv16 × 1 Guanine nucleotide-binding protein G(i) subunit alpha-1 × 1 （P63096） 5,8,11,14,17-EICOSAPENTAENOIC ACID × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FFAR4_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 1–361； UniProt 1–361

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8id9
Deposition date deposition_date	2023-02-12
Structure title title	Cryo-EM structure of the eicosapentaenoic acid bound GPR120-Gi complex
Keywords keywords	GPCR, GPR120, complex, fatty acid hormones, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8id9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8id9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

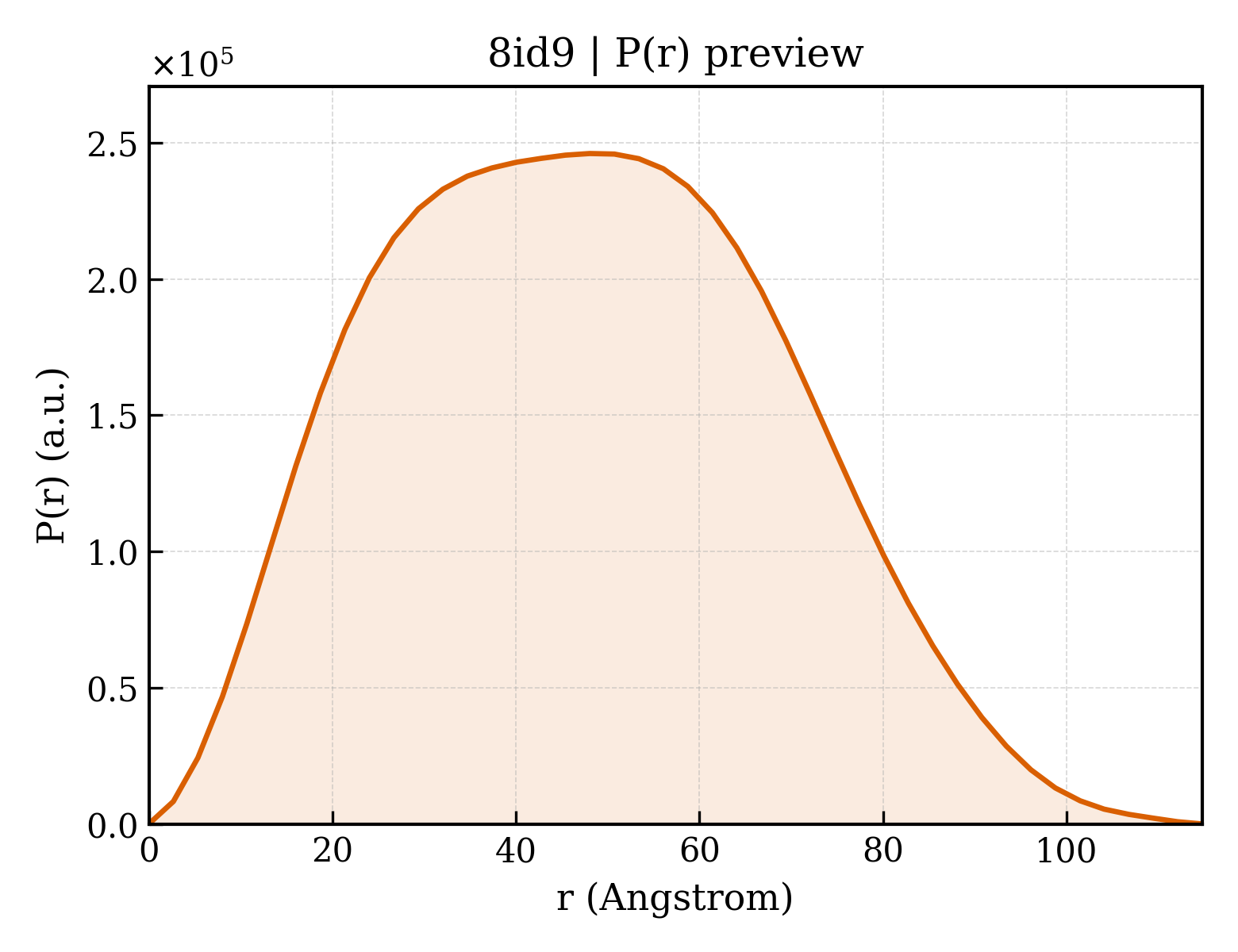

8id9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.74 Å
Rg (electron density)	36.72 Å
Total Rg	36.87 Å
Atom count	7996
Residues	1095
Excluded volume	142670 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8id9__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37285.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	7996

SELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7861.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	scFv16
Molecular weight formula_weight	30363.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MLLVNQSHQGFNKEHTSKMVSAIVLYVLLAAAAHSAFAVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSAGGGGSGGGGSGGGGSADIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLEL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Guanine nucleotide-binding protein G(i) subunit alpha-1
Molecular weight formula_weight	40415.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MGCTLSAEDKAAVERSKMIDRNLREDGEKAAREVKLLLLGAGESGKSTIVKQMKIIHEAGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTTGIVETHFTFKDLHFKMFDVGGQRSERKKWIHCFEGVTAIIFCVALSDYDLVLAEDEEMNRMHESMKLFDSICNNKWFTDTSIILFLNKKDLFEEKIKKSPLTICYPEYAGSNTYEEAAAYIQCQFEDLNKRKDTKEIYTHFTCATDTKNVQFVFDAVTDVIIKNNLKDCGLF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Free fatty acid receptor 4
Molecular weight formula_weight	40533.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MSPECARAAGDAPLRSLEQANRTRFPFFSDVKGDHRLVLAAVETTVLVLIFAVSLLGNVCALVLVARRRRRGATACLVLNLFCADLLFISAIPLVLAVRWTEAWLLGPVACHLLFYVMTLSGSVTILTLAAVSLERMVCIVHLQRGVRGPGRRARAVLLALIWGYSAVAALPLCVFFRVVPQRLPGADQEISICTLIWPTIPGEISWDVSFVTLNFLVPGLVIVISYSKILQITKASRKRLTVSLAYSESHQIRVSQQDFRLFRTLFLLMVSFFIMWSPIIITILLILIQNFKQDLVIWPSLFFWVVAFTFANSALNPILYNMTLCRNEWKKIFCCFWFPEKGAILTDTSVKRNDLSIISG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 6 Entity 6 non-polymer

Description description	5,8,11,14,17-EICOSAPENTAENOIC ACID
Molecular weight formula_weight	302.5 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	8id9B01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	8id9R01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily	10 — Rhodopsin 7-helix transmembrane proteins

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	880881
