SAXSdb — 8ij9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras-related protein Rab-6B

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ELKS/Rab6-interacting/CAST family member 1 × 1 （Q811U3） GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	ELKS/Rab6-interacting/CAST family member 1 × 1 （Q811U3） GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1 TRIETHYLENE GLYCOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAB6B_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–173； UniProt 8–176 Author chain B； PDBConstruct 5–173； UniProt 8–176

ELKS/Rab6-interacting/CAST family member 1

Rattus norvegicus

UniProt Q811U3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ras-related protein Rab-6B × 1 （P61294） GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ras-related protein Rab-6B × 1 （P61294） GUANOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1 TRIETHYLENE GLYCOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RB6I2_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 5–78； UniProt 849–922 Author chain D； PDBConstruct 5–78； UniProt 849–922

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ij9
Deposition date deposition_date	2023-02-26
Structure title title	Crystal structure of the ELKS1/Rab6B complex
Keywords keywords	small GTPase, scaffold protein, protein complex, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ij9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

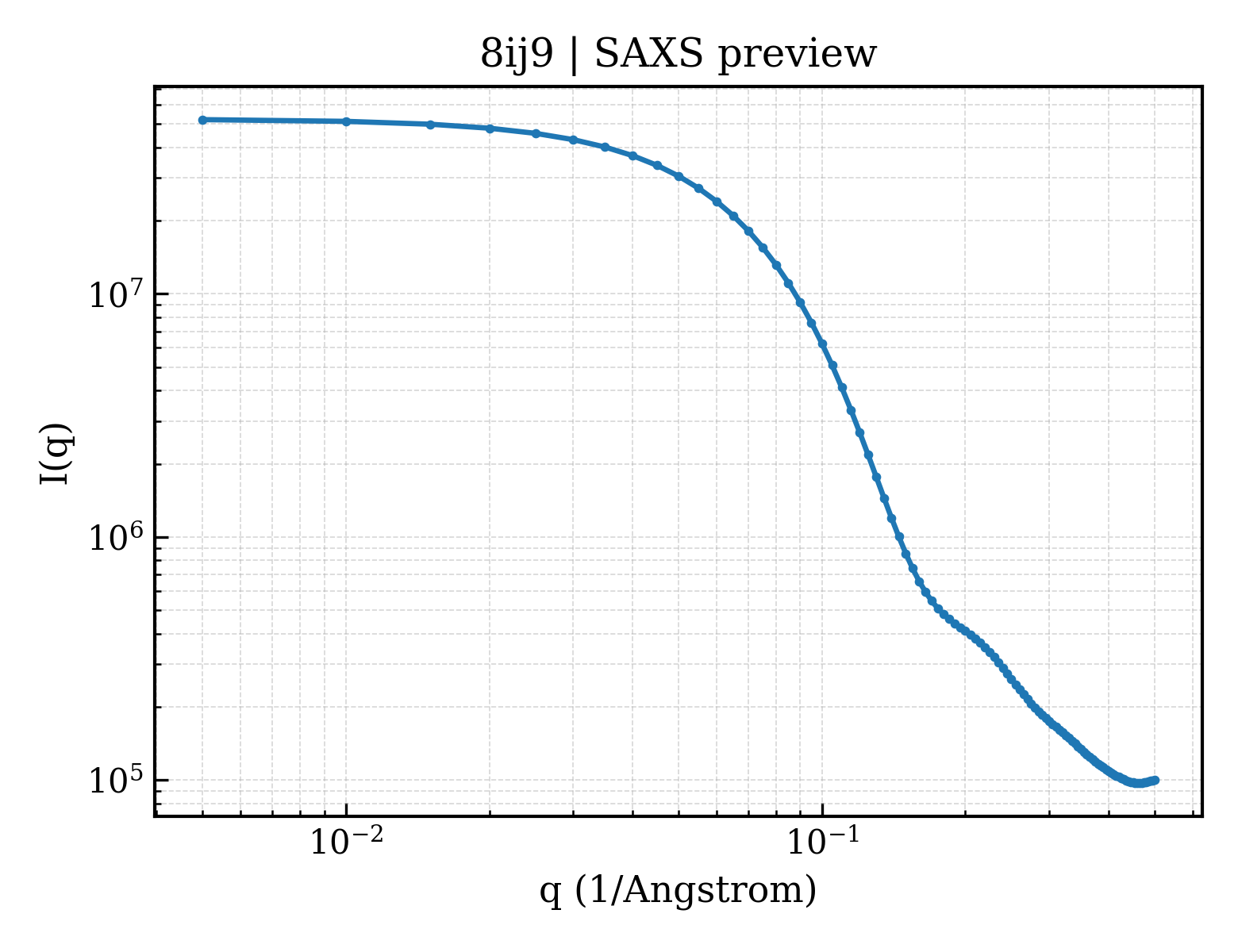

8ij9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

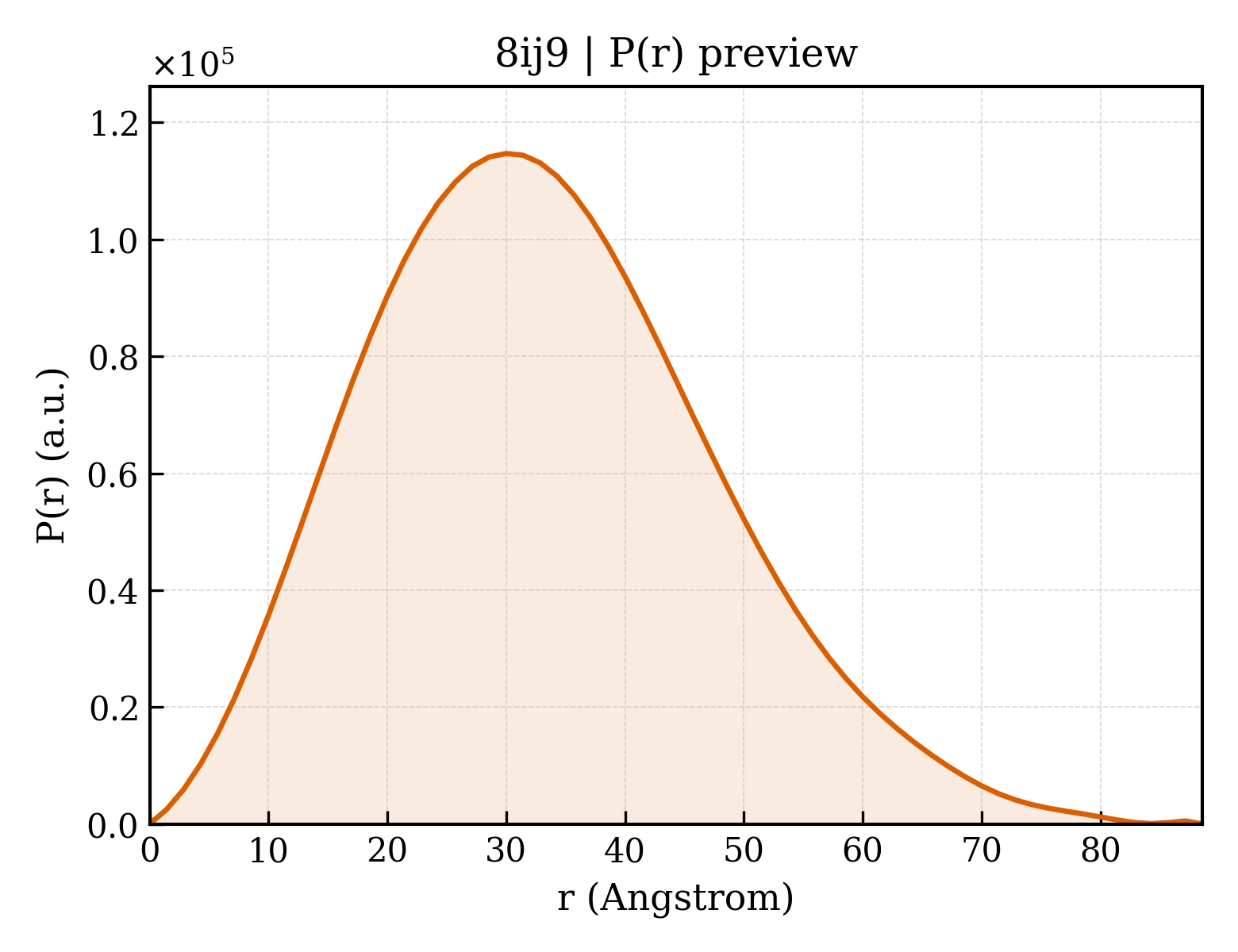

8ij9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.61 Å
Rg (electron density)	18.46 Å
Total Rg	19.38 Å
Atom count	1943
Residues	239
Excluded volume	34591 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ij9__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8ij9__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Ras-related protein Rab-6B
Molecular weight formula_weight	19641.3 kDa
EC 编号 ec_number	3.6.5.2
Mutation mutation	Q72L
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4124

GPGSGNPLRKFKLVFLGEQSVGKTSLITRFMYDSFDNTYQATIGIDFLSKTMYLEDRTVRLQLWDTAGLERFRSLIPSYIRDSTVAVVVYDITNLNSFQQTSKWIDDVRTERGSDVIIMLVGNKTDLADKRQITIEEGEQRAKELSVMFIETSAKTGYNVKQLFRRVASALPG

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	ELKS/Rab6-interacting/CAST family member 1
Molecular weight formula_weight	8925.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GPGSRKHLEEVLEMKQEALLAAISEKDANIALLELSSSKKKTQEEVAALKREKDRLVQQLKQQTQNRMKLMADNYEDD

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	TRIETHYLENE GLYCOL
Molecular weight formula_weight	150.2 kDa
Source method src_method	nat
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	226

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	8ij9A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	8ij9B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	49.193 Å
Unit-cell length b length_b	93.227 Å
Unit-cell length c length_c	53.077 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.74 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.040 Å
Low-resolution limit resolution_low	51.560 Å
R factor r_factor	0.1745
R_work r_work	0.1719
R_free r_free	0.2251
