8imi

;A1-A2, A3-A4, B'1-B'2, C'1-C'2 cylinder in cyanobacterial phycobilisome from Anthocerotibacter panamensis (Cluster A) ;

Method: ELECTRON MICROSCOPY D_max: 227.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

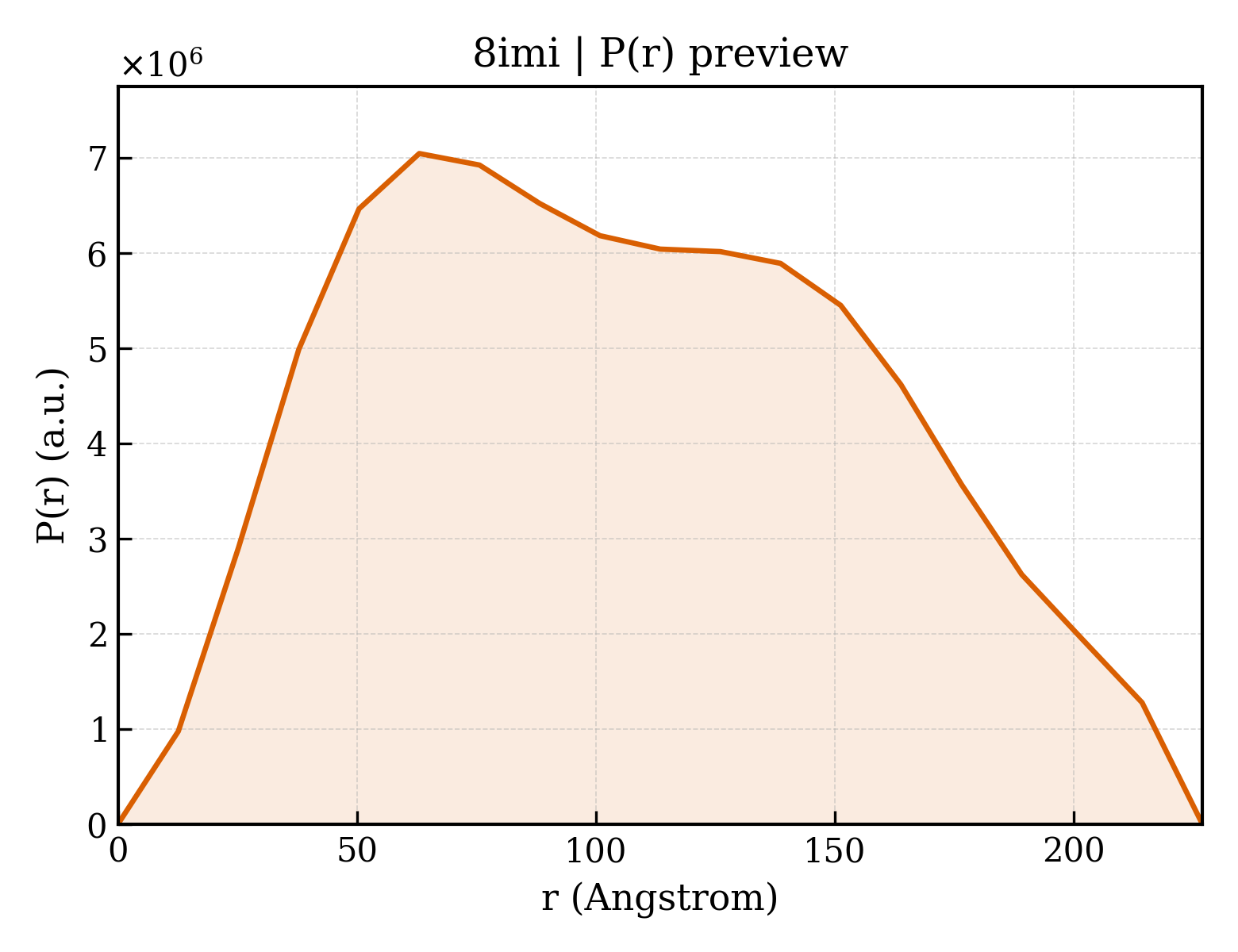

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8imi
沉积日期 deposition_date	2023-03-07
结构标题 title	;A1-A2, A3-A4, B'1-B'2, C'1-C'2 cylinder in cyanobacterial phycobilisome from Anthocerotibacter panamensis (Cluster A) ;
关键词 keywords	Complex, PHOTOSYNTHESIS; PHOTOSYNTHESIS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	85.68 Å
回转半径 Rg (电子) rg_electron	85.91 Å
零角强度 I(0) i0	13154200000.00
分子量 molecular_weight	993540.0 kDa
排除体积 excluded_volume	1249600 Å³
包络体积 envelope_volume	1837400 Å³
水化壳体积 shell_volume	176410 Å³
包络直径 envelope_diameter	279.2 Å
壳层 Rg shell_rg	85.78 Å
包络 Rg envelope_rg	82.83 Å
形状 Rg shape_rg	85.90 Å
总 Rg total_rg	85.93 Å
总原子数 total_atoms	69970
残基数 n_residues	8859
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	227.0 Å
Rg (实空间) rg_real	82.67 Å
Rg 误差 (实空间) rg_real_error	0.70 Å
I(0) (实空间) i0_real	1.2580e+10
I(0) 误差 (实空间) i0_real_error	2.0250e+08
Rg (倒空间) rg_reciprocal	84.07 Å
I(0) (倒空间) i0_reciprocal	13090000000.0000
解质量估计 total_estimate	0.8997
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	63.1 Å
偏度 Skewness skewness	0.213
峰度 Kurtosis kurtosis	-0.873
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.3130
最高正则化参数 α highest_alpha	1103000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.996; Stabil: 0.962; Sysdev: 1.000; Positv: 1.000; Valcen: 0.824; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	ApcE
分子量 formula_weight	127950.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0
原子数 atom_count	69970

MPIKGTSGSNIARPRFYNTVMVETIEGANAEERYFNPGELSSMAGFFNDAQRRLAIVQILTTNAEAIVSRAAGRIFTGGSPMAFSVQQANRQKDAEKERVSARVVQAESEQPIGNEVVIEDKGGFLERLKSFFSYGGAEVETPGFRPIPIAVYGPERMQKSLRDLDWFLRYVNYSLVAGDSNMILLNCLGLREILEKACSIDATIVAVQEMRRAATGYLKSNDDKELVGSYFDVIIRSLNADKSDTPADVVRPSSPDRAGLVLPAIYALAGQSRPAFKMSRTLTSAEKERVVRAAYRQVFERDILAYGQSISYLDSKVKNGEISVKEFIRLLGKSELYRKQFFEPFINSRVLELAFKHFLGRAPESRTEVQNYYSIVAAQGLGGLVDALVDGEEYGRIFGEDTVPFIRDLGQEAQPSWNWGAAYSLYNYAAPRRKVPQFITLYADYVKPLPNQHPYGSGNDPLEIQFGAIFKSETKAPSARPAPIGKDVQRILIRSGNPITNERGNPAGGISDKTSLSPQIFKLTQDNRRIRGKSGKGSLITNAGAGSVEVNVQAVIRAAYQQVFGRQLYEGQHLSVSEIKLENGEISVKEFVRDLATSEIFRKLYWQNFYVCKSIEYIHRRLLGRPTYGRDETNRYYDLAFKKGFAGVVNAILDTMEYAEVFGDDVVPYERYVTPAGLNLRKLRAGTVPTLPSFEETPKFIEKGTAPDRALPQIRSAINQGVSKKRDQRKIFSTVGIQTSLASRTEFDALIRAAYRQVFERDMDSYRITEVFSVLETKLRNREITTKEFIQALASSDLYRKQFFEPYPPTKNVELSLKHLLGRATKDQAELRKYNQIIATQGFKPFINAILDSKEYGEVFGDGTVPYNRYPTLPAANFPNTEILYNQLTKQSAEVVVPSFKPVTSPRGMDMSQTPLMLQAMGDIAEAEQEVALQKPLFIQKGKALRGAEGDPYTIGTRRSPKPIFWVPQGGTNPTEFQNVIRAAYRQVFERDVPDYQRLSYPESRLKNGEISMREFIRQLAESDLYRKQFYEPYPNTKVIELLTKHFLGRAPQDQAEIQRYNRILAGKGLKVAIEEVLNSDEYTQLFGEDVVPFKRYPTLPTGTYLASVATNDEMIQQSGSSYSPSYAGYSYPFS

Entity 2 polymer

描述 description	ApcA2
分子量 formula_weight	17470.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	23

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,N,O,P,Q,R,S,a,b,c,d,e,f,n,o,p,q,r,s

MSVVTKAIVSADAEARYLSPGELDRIRGFVSSGERRLRVAQTLTESRERIIKQAGDQLFQKRPDLVSPGGNAYGAERTASCLRDLDYYLRLVTFGIVAGDVTPIEEIGVIGVKEMYRNLEVPLPGMVEAVKAMKSVATGLLSGDDSAEVGYYFDYLAGALA

Entity 3 polymer

描述 description	ApcB3
分子量 formula_weight	17673.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MQDVIGKVIAEYDTKGKYLDAAALDLLRSYFDSGDLRLKAAQAITANAEVIVRAASAKALHYTPVTKPGGNMYYARRYASCIRDLDYFLRYATYAMLADNTTLLDEYVLKGLTETYRALGVPLDISVRAINALKEVVAGQVGPKAGQEMAKYFDHLAKGLG

Entity 4 polymer

描述 description	ApcB2
分子量 formula_weight	17524.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	23

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I,J,K,L,T,U,V,W,X,Y,g,h,i,j,k,l,t,u,v,w,x,y

MQDAITSVINTYDVQGKYFDTSAFDKLKAYYATGELRVRAAGTISANAATIIKEASAKLFSNQPDLVRPGGNAYTTRRYAACVRDMDYFLRYATYAMLAGDTSILDERVLNGLKETYNSLGVPISSTVQGIQAMKEVTGSLVGSGAAKEMGVYFDYLSSGLS

Entity 5 polymer

描述 description	ApcC2
分子量 formula_weight	7801.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,Z,m,z

MTRLFKVTALIPSYKKVRGGRELQNTYFTKLVEYDRWFAEQQRIQKQGGKILSVKMVAGKPGLNTGVL

Entity 6 non-polymer

描述 description	PHYCOCYANOBILIN
分子量 formula_weight	588.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	48

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.59 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1109579
