8iof

Crystal structure of N-methyl-Cis-4-hydroxy-D-proline dehydratase in Clostridium sp. FS41

Method: X-RAY DIFFRACTION D_max: 138.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

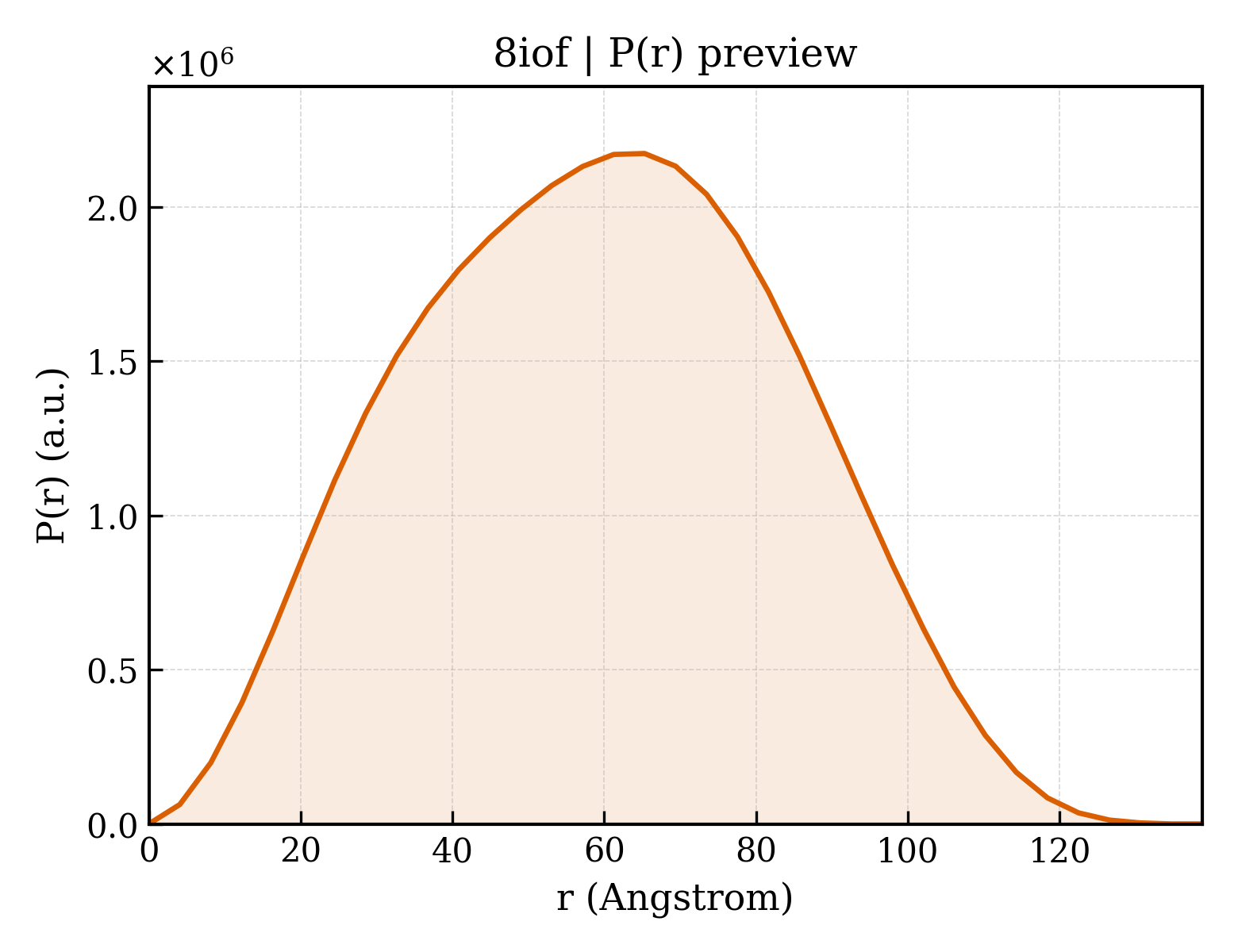

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8iof
沉积日期 deposition_date	2023-03-11
结构标题 title	Crystal structure of N-methyl-Cis-4-hydroxy-D-proline dehydratase in Clostridium sp. FS41
关键词 keywords	Glycyl Radical Enzyme, dehydratase, N-methyl-Cis-4-hydroxy-D-proline, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.90 Å
回转半径 Rg (电子) rg_electron	45.15 Å
零角强度 I(0) i0	1856790000.00
分子量 molecular_weight	355930.0 kDa
排除体积 excluded_volume	443340 Å³
包络体积 envelope_volume	528880 Å³
水化壳体积 shell_volume	91069 Å³
包络直径 envelope_diameter	139.3 Å
壳层 Rg shell_rg	55.16 Å
包络 Rg envelope_rg	44.58 Å
形状 Rg shape_rg	45.12 Å
总 Rg total_rg	45.55 Å
总原子数 total_atoms	24982
残基数 n_residues	3165
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	138.8 Å
Rg (实空间) rg_real	45.60 Å
Rg 误差 (实空间) rg_real_error	0.68 Å
I(0) (实空间) i0_real	1.8570e+09
I(0) 误差 (实空间) i0_real_error	2.9910e+07
Rg (倒空间) rg_reciprocal	45.89 Å
I(0) (倒空间) i0_reciprocal	1857000000.0000
解质量估计 total_estimate	0.8941
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	65.3 Å
偏度 Skewness skewness	0.043
峰度 Kurtosis kurtosis	-0.660
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	441100000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.759

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Benzylsuccinate synthase alpha subunit
分子量 formula_weight	89175.4 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	26256

MSKDYMKRIQALRENYMSRRVEMDILDAYYVTQGFKATEGQPWQIQKAVAMKTVYENKPIFIQDHELLVGGVAFKPRAGILNPDSACSVIEKELDTISTRKYDPFYLSEENKKLFMEEVAPYWRGKCVLDRWNAMMPEDVRTMRDGGMLYVDKKFVRGYGENTPGWRTLLAKGITGIKKEAEEKLAALDDAHGEDVLKQIIFYKSLIISAEGIIALANRHADLAEKMAEKEADEKRRAELLKIAEVNRNVPANPPRNFYEALQSMLTYEFCIFMEQNASSYNLGRMDQYLIQYYEKDLADGTMTQDEAQELMDCFWIKISEMGLFQDGESAAFSAGYNMTVQVCAGGIDQYGNDAVNDLSYMTIQATQDTALKEPNMTVRYSISKNPDSFLRKAAECIRMGRTMPAVYHDDAGIKMLLNKGIPMSQAWDWTPCGCVETNLEGRLKSYTDIGEISMGGVVDMVMNNGRSRKTGEQISIRTGDPRDFKTFDDFMAAVKKQIDHFVHTMATMNSYLDYLSENYRPVPALSLTYPNCMAVGKDYANGGAEFNVGNGINIIGQADIINSVADIKYLVFDEKKISMDELCRALDADFEGYEHIHKMCMDAPKYGNDDPKADFCVGEIYNYLVDQIEQYDSPFGKLTAGMLPVSGNVPIGQSVGALPSGRKAWTPLADGIGATGGTDINGATALLKSISNLPHARFTQGTQMNLKIDPKLLEGERGLNSMMVLLKTQCTLDIYHTQYNVINPEILMDAQKNPGDHKDLLVRVAGYTAFFVELGKDIQDDIIQRTEIENWG

来源 Source

来源生物 organism	Clostridium sp. FS41
NCBI 分类编号 ncbi_taxonomy_id	1609975
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	(2R,4R)-1-methyl-4-hydroxyl-pyrrolidine-2-carboxylic acid
分子量 formula_weight	145.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1274

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	78.967 Å
晶胞边长 b length_b	103.603 Å
晶胞边长 c length_c	114.254 Å
晶胞夹角 α angle_alpha	83.13 °
晶胞夹角 β angle_beta	75.71 °
晶胞夹角 γ angle_gamma	79.84 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.330 Å
最低分辨率 resolution_low	39.427 Å
R 因子 r_factor	0.1912
R_work r_work	0.1901
R_free r_free	0.2656

fit	/app/data/saxs_computation/io/8iof/8iof.fit
pddf	/app/data/pr_computation/io/8iof/8iof.pr.out
profile	/app/data/saxs_computation/io/8iof/8iof.dat
