1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ipt
沉积日期 deposition_date	2023-03-14
结构标题 title	Cryo-EM structure of heme transporter CydDC from Escherichia coli in the occluded ATP bound state
关键词 keywords	ABC transporter, Heme, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	61.95 Å
回转半径 Rg (电子) rg_electron	62.20 Å
零角强度 I(0) i0	908744000.00
分子量 molecular_weight	257960.0 kDa
排除体积 excluded_volume	326080 Å³
包络体积 envelope_volume	482210 Å³
水化壳体积 shell_volume	71762 Å³
包络直径 envelope_diameter	221.8 Å
壳层 Rg shell_rg	52.18 Å
包络 Rg envelope_rg	61.68 Å
形状 Rg shape_rg	62.16 Å
总 Rg total_rg	62.04 Å
总原子数 total_atoms	18178
残基数 n_residues	2322
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	199.9 Å
Rg (实空间) rg_real	63.09 Å
Rg 误差 (实空间) rg_real_error	1.86 Å
I(0) (实空间) i0_real	9.0860e+08
I(0) 误差 (实空间) i0_real_error	1.7670e+07
Rg (倒空间) rg_reciprocal	60.90 Å
I(0) (倒空间) i0_reciprocal	905400000.0000
解质量估计 total_estimate	0.4976
解质量评级 solution_quality	SUSPICIOUS a SUSPICIOUS solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	40.0 Å
偏度 Skewness skewness	0.567
峰度 Kurtosis kurtosis	-0.573
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	62770000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.600; Stabil: 0.999; Sysdev: 0.004; Positv: 1.000; Valcen: 0.653; Smooth: 0.002

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	ABC transporter, CydDC cysteine exporter (CydDC-E) family, permease/ATP-binding protein CydC
分子量 formula_weight	62978.9 kDa
突变 mutation	E500Q
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D
原子数 atom_count	18178

MRALLPYLALYKRHKWMLSLGIVLAIVTLLASIGLLTLSGWFLSASAVAGVAGLYSFNYMLPAAGVRGAAITRTAGRYFERLVSHDATFRVLQHLRIYTFSKLLPLSPAGLARYRQGELLNRVVADVDTLDHLYLRVISPLVGAFVVIMVVTIGLSFLDFTLAFTLGGIMLLTLFLMPPLFYRAGKSTGQNLTHLRGQYRQQLTAWLQGQAELTIFGASDRYRTQLENTEIQWLEAQRRQSELTALSQAIMLLIGALAVILMLWMASGGVGGNAQPGALIALFVFCALAAFEALAPVTGAFQHLGQVIASAVRITDLTDQKPEVTFPDTQTRVADRVSLTLRDVQFTYPEQSQQALKGISLQVNAGEHIAILGRTGCGKSTLLQLLTRAWDPQQGEILLNDSPIASLNEAALRQTISVVPQRVHLFSATLRDNLLLASPGSSDEALSEILRRVGLEKLLEDAGLNSWLGEGGRQLSGGELRRLAIARALLHDAPLVLLDQPTEGLDATTESQILELLAEMMREKTVLMVTHRLRGLSRFQQIIVMDNGQIIEQGTHAELLARQGRYYQFKQGL

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 polymer

描述 description	ABC transporter, CydDC cysteine exporter (CydDC-E) family, permease/ATP-binding protein CydD
分子量 formula_weight	65144.0 kDa
突变 mutation	E511Q
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E

MNKSRQKELTRWLKQQSVISQRWLNISRLLGFVSGILIIAQAWFMARILQHMIMENIPREALLLPFTLLVLTFVLRAWVVWLRERVGYHAGQHIRFAIRRQVLDRLQQAGPAWIQGKPAGSWATLVLEQIDDMHDYYARYLPQMALAVSVPLLIVVAIFPSNWAAALILLGTAPLIPLFMALVGMGAADANRRNFLALARLSGHFLDRLRGMETLRIFGRGEAEIESIRSASEDFRQRTMEVLRLAFLSSGILEFFTSLSIALVAVYFGFSYLGELDFGHYDTGVTLAAGFLALILAPEFFQPLRDLGTFYHAKAQAVGAADSLKTFMETPLAHPQRGEAELALTDPLTIEAEDLFITSPEGKTLAGPLNFTLPAGQRAVLVGRSGSGKSSLLNALSGFLSYQGSLRINGIELRDLSPESWRKHLSWVGQNPQLPAATLRDNVLLARPDASEQELQAALDNAWVSEFLPLLPQGVDTPVGDQAARLSVGQAQRVAVARALLNPCSLLLLDQPAASLDAHSEQRVMEALNAASLRQTTLMVTHQLEDLADWDVIWVMQDGRIIEQGRYAELSVAGGPFATLLAHRQEEI

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	469008
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

结构域编号 domain_id	8iptA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1560 — ABC transporter transmembrane region fold
同源超家族 H-superfamily homologous superfamily	10 — ABC transporter type 1, transmembrane domain

结构域编号 domain_id	8iptA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	8iptC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1560 — ABC transporter transmembrane region fold
同源超家族 H-superfamily homologous superfamily	10 — ABC transporter type 1, transmembrane domain

结构域编号 domain_id	8iptC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	8iptD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1560 — ABC transporter transmembrane region fold
同源超家族 H-superfamily homologous superfamily	10 — ABC transporter type 1, transmembrane domain

结构域编号 domain_id	8iptD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	8iptE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1560 — ABC transporter transmembrane region fold
同源超家族 H-superfamily homologous superfamily	10 — ABC transporter type 1, transmembrane domain

结构域编号 domain_id	8iptE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	119296

fit	/app/data/saxs_computation/ip/8ipt/8ipt.fit
pddf	/app/data/pr_computation/ip/8ipt/8ipt.pr.out
profile	/app/data/saxs_computation/ip/8ipt/8ipt.dat

Cryo-EM structure of heme transporter CydDC from Escherichia coli in the occluded ATP bound state

SAXS 散射曲线 SAXS Profile

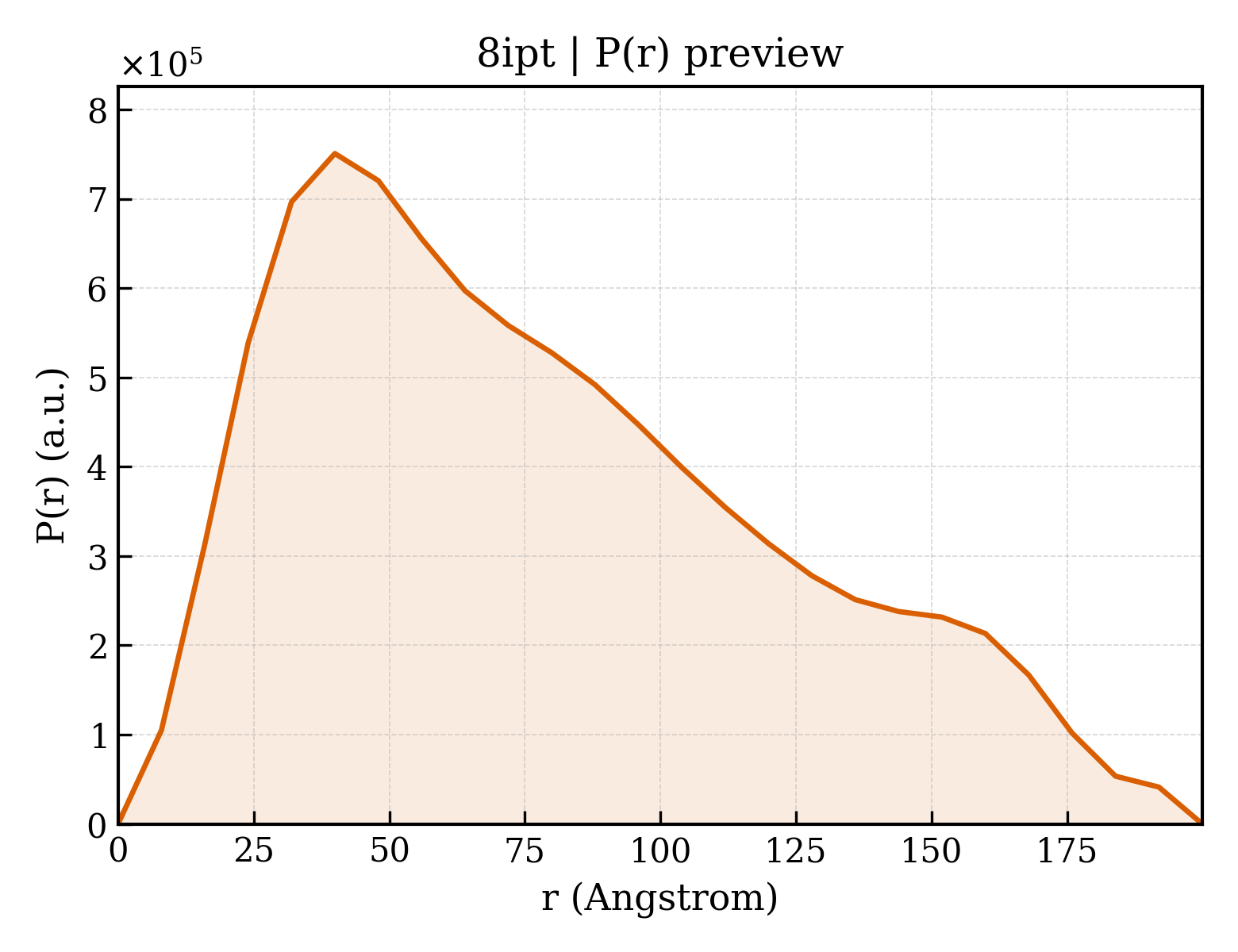

P(r) 距离分布 P(r) Distribution
