8itt

Crystal structure of lysophosphatidylcholine in complex with human serum albumin and myristate

Method: X-RAY DIFFRACTION D_max: 168.4 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8itt
沉积日期 deposition_date	2023-03-22
结构标题 title	Crystal structure of lysophosphatidylcholine in complex with human serum albumin and myristate
关键词 keywords	lysophosphatidylcholine, myristate, human serum albumin, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	53.80 Å
回转半径 Rg (电子) rg_electron	54.17 Å
零角强度 I(0) i0	244392000.00
分子量 molecular_weight	131020.0 kDa
排除体积 excluded_volume	164270 Å³
包络体积 envelope_volume	252300 Å³
水化壳体积 shell_volume	40096 Å³
包络直径 envelope_diameter	180.1 Å
壳层 Rg shell_rg	54.53 Å
包络 Rg envelope_rg	52.34 Å
形状 Rg shape_rg	54.18 Å
总 Rg total_rg	54.15 Å
总原子数 total_atoms	9167
残基数 n_residues	1158
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

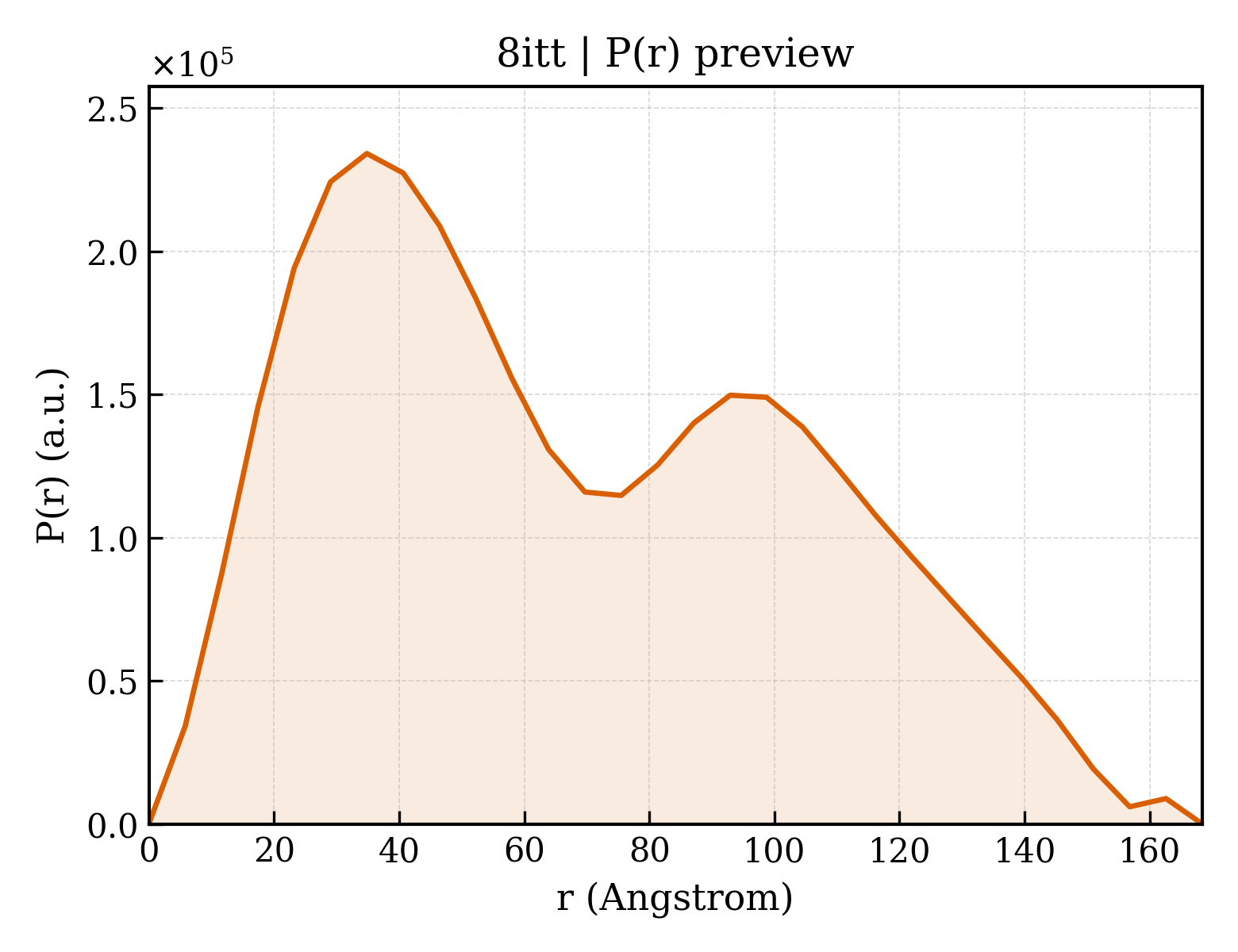

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	168.4 Å
Rg (实空间) rg_real	54.33 Å
Rg 误差 (实空间) rg_real_error	1.93 Å
I(0) (实空间) i0_real	2.4440e+08
I(0) 误差 (实空间) i0_real_error	5.1450e+06
Rg (倒空间) rg_reciprocal	53.31 Å
I(0) (倒空间) i0_reciprocal	244000000.0000
解质量估计 total_estimate	0.6869
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	34.9 Å
偏度 Skewness skewness	0.379
峰度 Kurtosis kurtosis	-0.921
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13040000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.472; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.520; Smooth: 0.003

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Albumin
分子量 formula_weight	66102.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9167

HKSEVAHRFKDLGEENFKALVLIAFAQYLQQCPFEDHVKLVNEVTEFAKTCVADESAENCDKSLHTLFGDKLCTVATLRETYGEMADCCAKQEPERNECFLQHKDDNPNLPRLVRPEVDVMCTAFHDNEETFLKKYLYEIARRHPYFYAPELLFFAKRYKAAFTECCQAADKAACLLPKLDELRDEGKASSAKQRLKCASLQKFGERAFKAWAVARLSQRFPKAEFAEVSKLVTDLTKVHTECCHGDLLECADDRADLAKYICENQDSISSKLKECCEKPLLEKSHCIAEVENDEMPADLPSLAADFVESKDVCKNYAEAKDVFLGMFLYEYARRHPDYSVVLLLRLAKTYETTLEKCCAAADPHECYAKVFDEFKPLVEEPQNLIKQNCELFEQLGEYKFQNALLVRYTKKVPQVSTPTLVEVSRNLGKVGSKCCKHPEAKRMPCAEDYLSVVLNQLCVLHEKTPVSDRVTKCCTESLVNRRPCFSALEVDETYVPKEFNAETFTFHADICTLSEKERQIKKQTALVELVKHKPKATKEQLKAVMDDFAAFVEKCCKADDKETCFAEEGKKLVAASEAA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Komagataella pastoris

Entity 2 non-polymer

描述 description	MYRISTIC ACID
分子量 formula_weight	228.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	[1-MYRISTOYL-GLYCEROL-3-YL]PHOSPHONYLCHOLINE
分子量 formula_weight	468.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	95.262 Å
晶胞边长 b length_b	38.467 Å
晶胞边长 c length_c	182.455 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	104.78 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.030 Å
最低分辨率 resolution_low	47.630 Å
R 因子 r_factor	0.2610
R_work r_work	0.2610
R_free r_free	0.2910

fit	/app/data/saxs_computation/it/8itt/8itt.fit
pddf	/app/data/pr_computation/it/8itt/8itt.pr.out
profile	/app/data/saxs_computation/it/8itt/8itt.dat
