Cryo-EM structure of Euglena gracilis complex I, turnover state

Method: ELECTRON MICROSCOPY D_max: 238.5 Å Quality: EXCELLENT

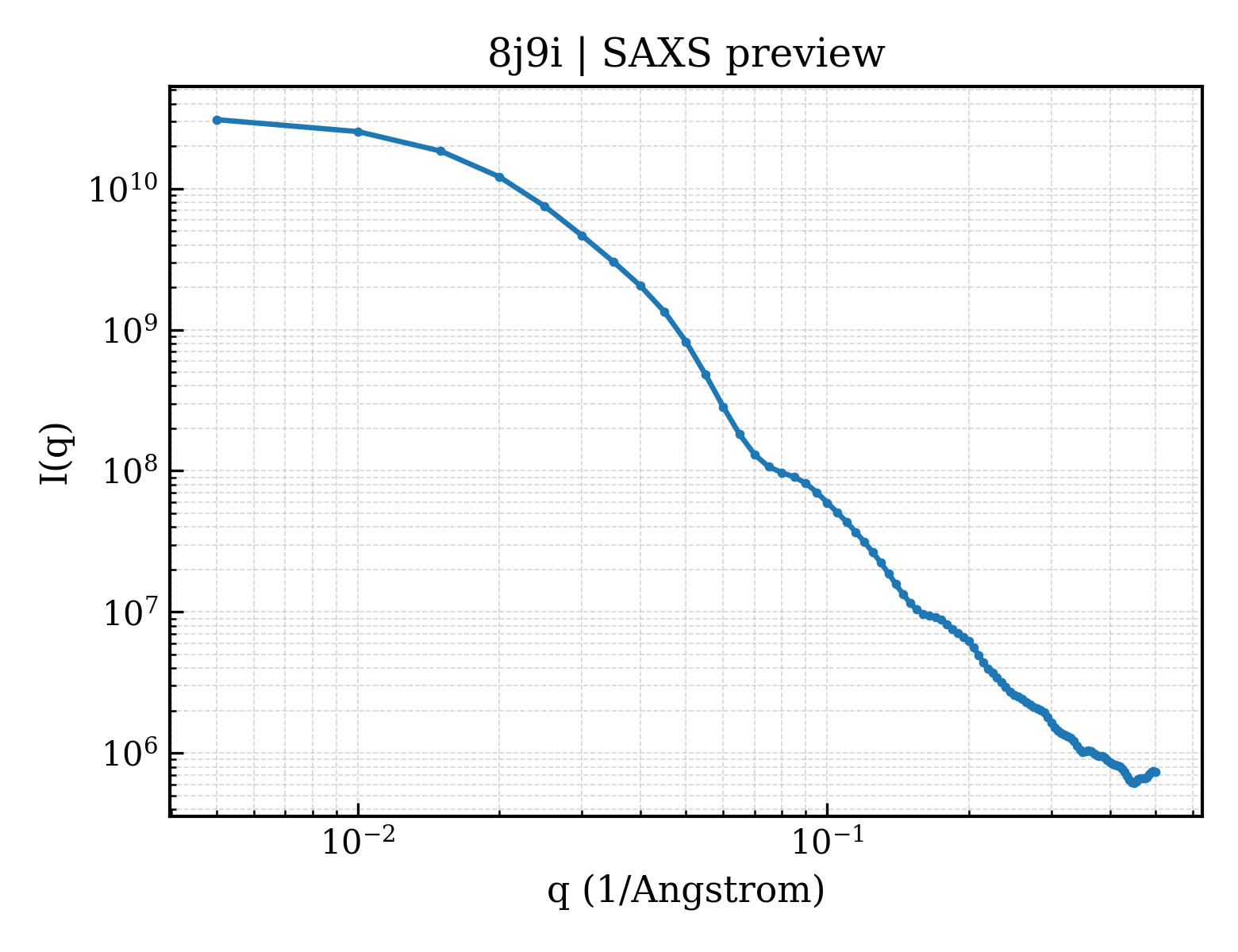

SAXS 散射曲线 SAXS Profile

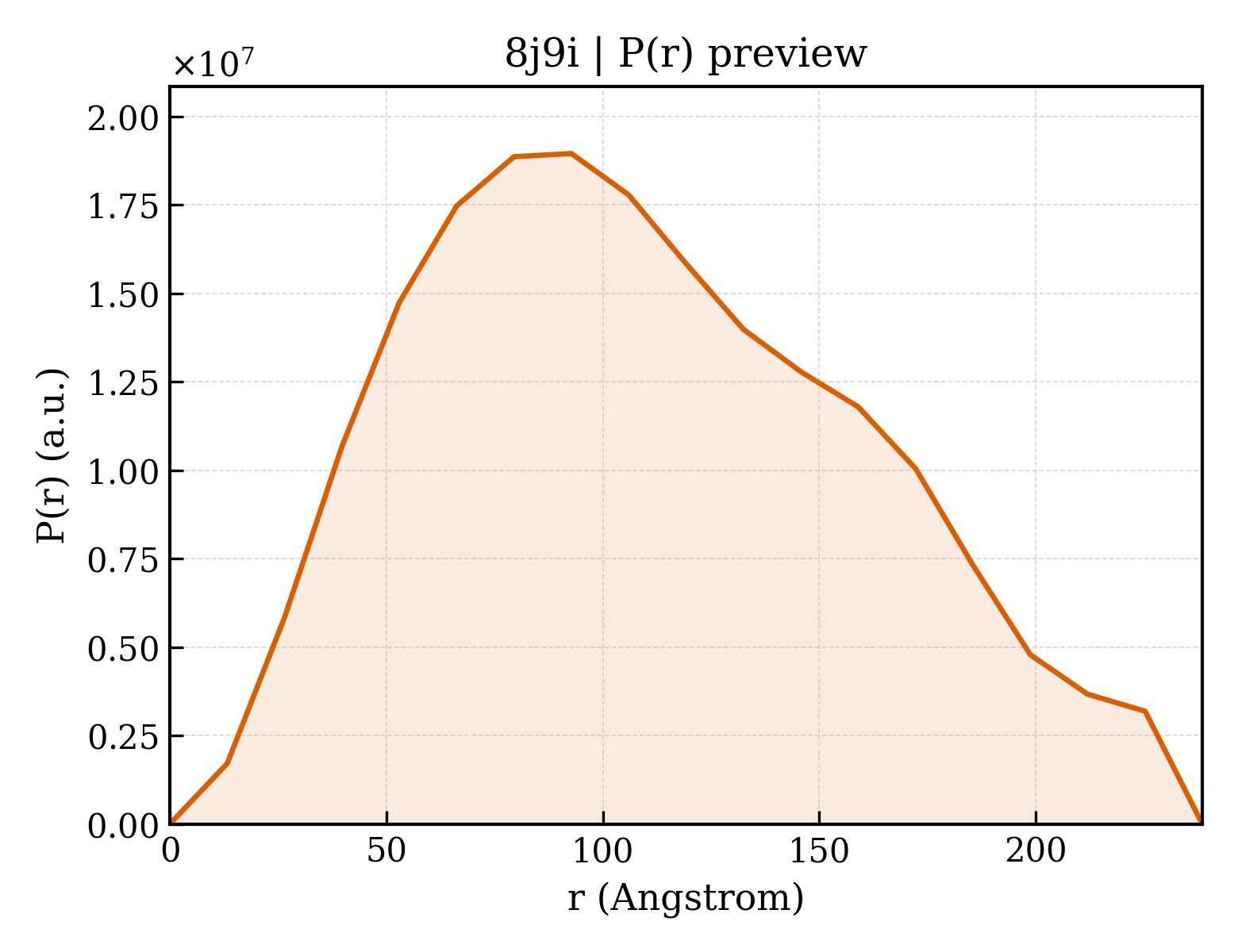

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8j9i
沉积日期 deposition_date	2023-05-03
结构标题 title	Cryo-EM structure of Euglena gracilis complex I, turnover state
关键词 keywords	Electron transport chain, respiratory complex, membrane protein, Euglena gracilis, ELECTRON TRANSPORT; ELECTRON TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	88.45 Å
回转半径 Rg (电子) rg_electron	88.78 Å
零角强度 I(0) i0	32890400000.00
分子量 molecular_weight	1617000.0 kDa
排除体积 excluded_volume	2049100 Å³
包络体积 envelope_volume	2793800 Å³
水化壳体积 shell_volume	255970 Å³
包络直径 envelope_diameter	308.9 Å
壳层 Rg shell_rg	86.93 Å
包络 Rg envelope_rg	88.69 Å
形状 Rg shape_rg	88.79 Å
总 Rg total_rg	88.70 Å
总原子数 total_atoms	226854
残基数 n_residues	13863
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	238.5 Å
Rg (实空间) rg_real	84.85 Å
Rg 误差 (实空间) rg_real_error	0.86 Å
I(0) (实空间) i0_real	3.1540e+10
I(0) 误差 (实空间) i0_real_error	6.6480e+08
Rg (倒空间) rg_reciprocal	86.56 Å
I(0) (倒空间) i0_reciprocal	32700000000.0000
解质量估计 total_estimate	0.9137
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	92.8 Å
偏度 Skewness skewness	0.320
峰度 Kurtosis kurtosis	-0.654
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.7310
最高正则化参数 α highest_alpha	3004000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.990; Stabil: 0.983; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (71)

Entity 1 polymer

描述 description	NDUFS1A
分子量 formula_weight	43888.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1A
原子数 atom_count	226854

MRRVLARFGPHVPRSFHTTVSRLQEAVPASILNAPVGLQPSQTVTCWIDHILCEFQYPADITVFELARRNGINIPHFCYNRNLPIAGNCRMCMCHRVSDKKYAIACNEIAEPNAKYITVDDNLKNIRQYILEFILANHSLDCPICDQGGECDLQDLAELYGYDTSRYDYSDIKHEPDDMPINFLIKSDMNRCIHCTKCVRFLDNFSDDGKEGELGLMGRDPQTICVFRDDGNPQSYVADILSANVIEICPVGALTGRETNHETRPWEITRLDAINIFDGTLSAINVEVKEGTELYRVNASKDPQNPDMLLNNEFITDRAREAPQGNEFKRMTANYAISLDNKKLLLHHALRLYAIDPLFRSKALFLLADIMNEDRHLPETKQLGH

Entity 2 polymer

描述 description	NDUFS1B
分子量 formula_weight	59671.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1B

MASGSEVLRQFLTIRKNSYKYAPAFQRLHALVNGANSAAKLRARHQKRLGINVVLGEKSDLGLCQLADTLADRLKLADLGVSARPAKSPAVYYGHLAAQQHRYAVPSELKYTESSYSSRNVYIWLWTDVQQEAPDLHTQIFTGPTSNCNVYSFGHVHNARAGVKPVGGMEEFVGWLEGRTNLFSRTPKLETRLSNVYVLYSDNFLEMFPTNYGDIFKKIEELLGDQTFVSFSYLSRHPVSYNAVQTYAFPPVTQLLKRNDQYRLNVLTNVQRQDYSENESRGRFTARLMCHSTLLRADQPMNELVIAQKTPAEDNAALAYIDKFGDYKSAINSIFISEFSDKLQLMHPHQLLTYAFALLAWPRALARLLPLTSIPKADEEKTFKATHSQFLERLIRDFDNDPTRLSLIHALSLGRPALVEDLRLRLWPYTVVPGTAFNVVKAKALLQRLNATPEYSPDGPYYEFQTPAAPVPSAAPTPAPQRVALKSDSIFAIDCEFVRHSMPLRGHINEVNRKQHLSWCKLAPESK

Entity 3 polymer

描述 description	ND2B
分子量 formula_weight	15756.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2B

MNNNLQIENYTNKNKIVISPISYIGNNHPYKMYTIINLCISSSLLITNYTIAKTSIFLYLIYIFNNNIYFIIIMLFFVLYPIIFIVLIHPFIIISVNNHLINKANNKGIIINNFIXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 4 polymer

描述 description	ND4L
分子量 formula_weight	19673.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4L

MLKAIQPMSLRSRVVSRALSSGYKQFGGLTFKEVQNNEVKQNPTTFMQRPLAQIASNGLFVAWPGQFETVFDLLTSQIGPYCVIGLYLGARGCFKPEMAWTDRLIHVEASTFLLYGVFFITFASTPLLYWAWFFMLFSNSLKTLMFVHLSNPWYLVLDQPMQVKFSLKRLK

Entity 5 polymer

描述 description	NDUFA1
分子量 formula_weight	15659.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A1

MPGGGGWSNMVPIIILNGVVWAALGRASLACSPPEFHKRTKNDTEFNKYLHLRFNKAVQNPESVAGQAVKAGCAPEFRPFDSPANPLVVVYGWKDEIQPRPNPGSLAQSFDDRGLSWYQSHFSNRVVDDPKHNSLPFPGYY

Entity 6 polymer

描述 description	NDUFA2
分子量 formula_weight	21331.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A2

MAQVWRSRLSCHFRKLRVRYPAAKLPEAAAINWATYLDVPSPANLPAADLNKALEAMRRPNPALASSRGVREFVQRVVPELEAENPFCPLIVDKFDPEVASQFPSESTDPTLHAHFLDGTQVNVPLANKSAAEIEDILADLVKLAGLLQPQAPLEGDNLPVEDTIYAAASRPRFPNYSRHAKQARLGDESTEM

Entity 7 polymer

描述 description	NDUFA3
分子量 formula_weight	14950.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A3

MDRYEFQKIRRQPPTLHWEAGNRFENIQRLRWENAALLKDPKLTWFRREMLMRPAFFHCTLFAGAVAVGYPFVAYFYEKVFPDRQDFRSTMTLLRAVGGLEEQEYYIMERAKAIERAKARAAVQG

Entity 8 polymer

描述 description	NDUFA5
分子量 formula_weight	20961.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A5

MLRAGLRCASAAAVIGRRGYATKVKDFTGLAGYPVEPKWRGKLLALYAETLEAVQGIPADHPYRRSVENLTRHYARVVEEAEDYEVVETTVGLGQVEQLIRMATNELQLVRDFTVWRTWEIDERVLDKMDVDLRTSIGGHYTKRAYEVLDEVEDERRLLEKLQQEVDLEKARVAAKAAEGPKTL

Entity 9 polymer

描述 description	NDUFA6
分子量 formula_weight	48787.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A6

MPQMRVATKGVRPFSVRAAGGQYVLPDHGRYGQVVRPARLEEFELNPHQNPSRDRDWSVEIRGFYRDLLKSIPTMKQRFRLVIPNDVVRQNIRKRFEQGPKLTDPAALRHRALMVSADLEEYFREDFLDSQVQGKYNNMDPRTLLNQEIAAAASETQTAHRFFNEGTNVLLETGIGGEDVTENRVYITREQAYRKGLASLRGDAAVRHLLPAVDPANQTTLQALAAENDLQALVDLLGHLPAAKTAEAYVQRCEAFHKEAGLRHQKASGGAVLAAWEKFKDEEVNSTVLLHPAYKALIADPSRNPLLRGAADWVRLVEAGGLSTTEPDSAADKLLKVAQHLYYSDQLPEGFAQDLGVSYLADLKGVDRRLDLLLDEEIAYRQELLLKIYAHTVESIKATASNPTDPAAVKKHLDAHDWSAFVVPTEGVKSSYEALAL

Entity 10 polymer

描述 description	NDUFA7
分子量 formula_weight	16358.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A7

MTTLKLNLKERWLAMVHKRIQQWWQVGGDERWVHTDPANYWWGAPAGLASAREERQFFPSYYQRDLRRIKRKSFIMNRPMMKTNALALADGQLPPRPHLNLADPSPFWWQSHPKDRGDRTMIYQSRSEDAIEHYPR

Entity 11 polymer

描述 description	NDUFA8
分子量 formula_weight	25916.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A8

MTAPWNSSYTAKDWKKFPEIESHAALQEKLDREVSSKDVVNVEKVVDDILSHPHRKHFGTLNIPNEQTKKEHEGIFGMGIPENVLFSFGHWYRMSQPLEKAREEYLVCKHNAPKRAAPTECLEEAKNMFNLYLHMSEIPFRTCPKQTADYTYCVETQGHRKPGMDYGARSFTSFVRYCLPEQEAFEECLGKTYGCKFPPAPAHGQFYQRSARFTNLPWDNIYA

Entity 12 polymer

描述 description	NDUFA9
分子量 formula_weight	54983.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A9

MARPPAEVTMLIKNAGDLLTKVKLENPPTRLLLDPKTIKLATQDPTVKGKVKDLMLKGVKVEPSTAARVEHTFIPAPKQTENQYSKPLLGYRLRELRTKVLSNEVYSTPRPRPLRGVVATVFGGNGFLGNQVVAQLAQYGATVICPTRINNEEHPVVMNTRDFRQIKSLGDQGQVFPVVYNPTVFDEVAQCVERSQVVFNCIGGFYPAMNQSQSFGPEALFANLPRNIARACAMKGVQRLVHTSHINADVSSPIPFFKYKALGEEAVLDEFPNGIIIRPADIFGDRDNFTTLMVNLLKGSNWPIMSTNTYLLEGNEYVECQPVWVVDVARAMVRAAMREYTFGQTYQLPGPDRYKLIEVMRYIEAITQLQPSHVRVYSPLEAQLRFDRPGGENHRSWIDLHLRENVVPKPGVKTWQDLEIDNSILTKMENITGDWMSKAPYRDMPTGFDEELTDLSLPRVWGDYDKKLIAFPAVSAVAAVLYALAILFP

Entity 13 polymer

描述 description	NDUFAB1-alpha
分子量 formula_weight	14936.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AB

MLARFGRVLSVAYRTYPVGKSLVRATPFIEAQKRWGGGHGHGPVTPLDSAIHFLDREDVTKRVLKIVAAFDKVTKEVKADSHFVNDLGLDSLDVVEVVMSLEQEFNVDMSNQDAEKIHTVKDAIDYFCAHPASM

Entity 14 polymer

描述 description	NDUFAB1-beta
分子量 formula_weight	14899.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AC

MLARFGRVLSVAYRTYPVGKSLVRATPFIEAQKRWGGGHGHGPVTPLDSAIHFLDREDVTKRVLKIVAAFDKVTKEVKADSHFVNDLGLDSLDVVEVVMALEWEFQVEMHSSEAEMIASVADAIDYFCLHPAAH

Entity 15 polymer

描述 description	NDUFA12
分子量 formula_weight	33338.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AL

MIRTLLLRHSAPAVITGRPQWWTQAIAVPPTQAEMELFQPKEVVHTKPYKPHPWFKDFGQGRRHIVGPPERGEFWRFRKFYAVMREKTKELGVRGALRFLVRKLRTQREAWYEKGYEEDILVGEDEMGNKYWQSSYTTAVQSRWVEYGTGSTFTKDASVVAPEWYQWLHGAPDPEVQELRPRHPAALTKGLTGDYWYRMKHSESQYAFGRKYWPRGNPHPKNTKYDDFLLRKRRLSKRRGFMEFDPFVLPAERLRKRAKWAPNPVSDRRHSAYSKNLPLGA

Entity 16 polymer

描述 description	NDUFA13
分子量 formula_weight	22683.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AM

MAEKAPEVHHPQDKLPEWFDPNSQQFTRNWRQAMPPKGGYPAVRHRYLSPGKGVSMRTAWAIIGSLTLFGLYQRRVDRAFILDLGDDFHARNCAAVPYMEAENQLKDLISLHYEKEYRNFVAPGLKLDPSQFFNHPIPGAVGEYIRKTKPQRSTKNRVAWMNLELCTEPISQLSGAPQSGPDKYERMLGFTVYEGPAF

Entity 17 polymer

描述 description	NDUFA11
分子量 formula_weight	32617.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AN

MFQPVWQPILMVGSPDIILHSAERRALAWDHPNRFSALRNALYQARLLEQPRPENRIALLGQDLLEDTIYTTVGAYLFAGVSCIQRLGGHVPFTPSFTGQNIWTMPKWASRLLHQVRMMRYFSAYWAVGMTYFTTYNILTGFMGFPVNEYHNYQPQASVLSVIPTALIYAALHPNRRPERLWVGKATPFVGRFFLSGIVGAALAVFAARRFAHATVSELYHPSGSDSYFETLRNSAPSADLVADMPYIPFYKEARCSPGLPVKSPYYDPEYVAKAKEEVKRKLDSLY

Entity 18 polymer

描述 description	NDUFB2
分子量 formula_weight	17202.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B2

RSSDLVRRGALIASLVRNRTIRPKPLQVRTGSGGHHSHSVDPNDPFDGVENELFLPPQAYYYFSRILFVTTLIVWLKTYRDKAIDQFSFKKWVDSLPEMTIKEEEIYLDEWEDWEAPQHDVARLFPRYTKKFRKADDWNFGATVW

Entity 19 polymer

描述 description	NDUFB3
分子量 formula_weight	6831.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B3

MVFWNHRRYQFHPFINAWGKNMRHAFFPNLFWSRXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 20 polymer

描述 description	NDUFB4
分子量 formula_weight	19511.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B4

MAERTFRSLGRLPAPSAPLPHDKIAWPEKIRFLPEGSIMMPDGYSLDPNQHFEDPYHWSVLRRAWEPKQDVFVGKDSHGNVVKQYNSPQVRHLHPGFKLFYLYRKGAARRFQVNAQNIAYAAIFAGTCLALCEFGLRVQNWAGGVNTLEKLQSTERKVKMNGKVIVAPDSF

Entity 21 polymer

描述 description	NDUFB5
分子量 formula_weight	15815.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B5

FWQAEHKVYPPSKIHPGVHKGYIRTGVVHNLMRLLAXXXXXXWAPVTALASFATWRYRAEVAEWLDNLSNVDYPKWLAEREIAIRRVETEIFWRIEGHAQQRSQVASGQGRAMLNKAAKASYEESEASRLHGAGVSDLLK

Entity 22 polymer

描述 description	NDUFB6
分子量 formula_weight	10926.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B6

DIDLGPHPYRPDFAGHAPNPKHWRRNTFFLSCGILLIYYQCCKLEFYHGRFLEPPIRPFPLQGYFRNVYLDDPNYDDKKKLMKEDFAKLKA

Entity 23 polymer

描述 description	NDUFB7
分子量 formula_weight	12247.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B7

EVFDNELVSYEGVDWEKIPNRFKRRRMPLSDEVMDEWKIPYRERDYCVHKLLELRKCVQKTFYRGECDHHRHEYHMCQHLELRRRKAIKDLREELGR

Entity 24 polymer

描述 description	NDUFB8
分子量 formula_weight	20488.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B8

MLATRLRRPAVGLARTTIRMQARTRFMQMEYWEVPMEADHPEYRPVVHDQFLPFVGAPGVHWNPTPYPVGYDLWWNSFEALAMDIHDMGHQESIGESLEKYLLGAGLCFAIFNFLILFDCHFWFSEVNAGHPLYPKQFHYLLRGGDPTDEIWLAQQQREKELMEHGKALVKGEAKA

Entity 25 polymer

描述 description	NDUFB9
分子量 formula_weight	18347.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B9

MKRSLLKLKDLKKVKVTQPQSSIVLKPVPIGEPIIWSRVQHLYWRALHVIEDFPWMGPSQTSEQFDIMLSVKEEIQKNANAAGALKDRLLEDFEAHIKRRDWMQRRVHYFANGGPGYQTFASERHTLEQQGVWKAGTPIPFPKSDYNDDGPVEKGPYY

Entity 26 polymer

描述 description	NDUFB10
分子量 formula_weight	17471.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BL

MGQHFGKLGWDADDVYKVTTFEKHNYTVEEPRTPAFKAPRRPFPICDRPPMPDQEGLYETHADLYEMKRWVMWEWSVYCKELSLVREELKWCVAREGSNAHRECHDLARQYTDMTRKLKMEERFSWLNHFKKPLVKDVLFDLKQ

Entity 27 polymer

描述 description	NDUFB11
分子量 formula_weight	13048.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BM

GGVSRPVRSKRETDFNSSDPWETPFGRIEHDDEDIPYTTTVYQPRRPTEWSTDVIWHAVLLMFFVWFTTLQGILVPQNKENDMAWEEALRRRRLFREKQVXXXXXXXXXXXX

Entity 28 polymer

描述 description	NDUFC2
分子量 formula_weight	22010.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C4

MDRSSVTPRQVFLEPVELPFAKKDASLEIFTESQLKSLLEPADASLFKWKNLAKWKKEVRTLLPQEFQSWDPISNQETIVDLNPYLVGGIFGGFNAMAHNYLSCTVWWKVPWRFPMWMAAWAGVSAYLFEFRREVEYENRKSRLLVNNYYNRVRTVIVEREKRKNGPDHQFKDLPWMDREEQRSG

Entity 29 polymer

描述 description	NDUEG1
分子量 formula_weight	53352.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E1

MRRVGVYALRCARGHASSALAAAPASETLTVGSLYSKKLREYPHKVLWRRKTGFENSSWNQCRRSHEALATNFSEIEVGDRALFITDCDSLMVNVALAIQKRGAQVCIVPAQGLTSNKLETYIEQLRPKVIFLGKDKVSVPDPLGGDEAPQKMTLDLYSMIWKIFPISNVVEGLPLQSKRYPFVKSVVLCSQVDAINQHDMITNIKYFETPRDQDYYESPLVHIAMHIAPDFPALSVVDSAGKWTTHSHTTLLNAGRLFAAKYFGKAEHVLLLPGSESTPGGILTLYAALHAHAVLCYGEDQLVTKGDCKRVTRAVHQHEATAVVGTKAQWDFLLKYGDAATKKEDATKEWFKSLKWAAVFLNDVEDAGDLASKIRSSFGIDRVECIRGSPETLNLTSDGSGKLFDSLSVVIKDKDGVATRGDAEGFVWIKGPHVSAQYWNHIGLMSAPKDPNGYVKLPYVGKKKPDGGFTITTVQPVRELVL

Entity 30 polymer

描述 description	NDUEG2
分子量 formula_weight	50515.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E2

MVIGTFFKTGFEKGLPLHEQVVRHLLPLVPKARKGFWPYYFAVNERVVLPRRAGAALNSRLRIPGKNRRECLPTSASSPLELAQLRKATDKPVEDVKPQVFVSTSSPSDAVPLHNESVHSKWLEALDEVNKTASTFSDAFEIQNESLSKEIFHRLAVPASLKAGNIFAHDGAFGSNSADDIKFTAVTHDPTAALFLRHMVNPVPQVDPVDFPNLFSVFHIHDYEFTDPRIVEEFDGVKKEQLGITSPRFVLYDLAERNVYVSGSSQDLRDAIVCLGGLVAFHLYGSLTLACNSFIDKDGKLTLVFGSEANLNSPQLFGAHHSLWTPNGVSRAWNGVTVEGAKAQFASDLVEVTAKGPRLTAPLPLQLGGTARPRGANLLAGAAAGTPEPPLAVDPKLPWRPNVVSAAGAKFVFVGKEEAKLSVDDAAALFADSHAAYPLGFSTKKKLAAKFKELAATAPGASFVTTP

Entity 31 polymer

描述 description	NDUEG3
分子量 formula_weight	46409.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E3

MSRNVLTKGWRFHAHAGTFQSALRFEEFQLKKSVGDVVLRLQCAPVTGFDLDQVRGLQGKVPLPAVGGLSGVGVVTEGSGIFKEGDRAVLLGANGAWSQYAVSSANHLLSVPATIPVEYASLLASGPFAAYRILKAAHLKAGDLVLVNGAHTAIGLAALQIAKAWGIDAVGVAHGAPALQVEKLKQMGLNVVSSFALDPKQVFGTSQPKFAISLVGGNAAAYVTHLIGSDGHIITCPLASDEPHILPNVDLVNKNLTIQTFSPWKSLLSATATENEQMVSELCDLIAAHKLKANAVVRHEFGNLLDAIREAEHGTHNAVILHEGTEKTWDNKNHDIYMEIDDKLQANWDAAAAAQDPYLKTGRDQPWQVLAEAEEVALPDELRVKLAAVTTEAELLAVLDTLTLKERHLLGLPATQAITVSAEELKKMVSEFAS

Entity 32 polymer

描述 description	NDUEG4
分子量 formula_weight	41313.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E4

MQSLKRAGTLSRPFLRCFYDAGAPQIFRSNVPGRPLPWRQERQVPPNPSQSKWQWEPEHIPTAEEYEAFPEVITLYGGDGLLRSSVIQELVQSPRVSTIRVGTPWPDEFASKLPGEWQSKVVAEFVDILDRHSVLAAAEGSQALVNMMDIPYECELTYYQAHVGSAQMISHAANTCMCSRVIHVSSLASRVDSWSRYSESKFRGEDMSLACFPWTTILRFGPLVGKNSPALKQFASYMKYAPIYPCVAKDTKIQPTFVGDAAKAILAALGNPSTRQLQFDLGGPEVFKHADFIKEVMRLTKASRPVVPVPGVIGDSIVALLQWLPDPLVTRDMVYLIRSHHIANHDSMRTWKDLLPEHKLKTMAEALQ

Entity 33 polymer

描述 description	NDUEG5
分子量 formula_weight	29182.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E5

MALAKGWRFSAHGGTWKAVLKLEDFPLTKTAGAAVLKVQAAPVTPRDLDRIRGLYGALPLPAVAGTSGVGIVTQAGGAFKEGDRAVLAAANPAGSYATLAAVDPAHLIKVPAALPVDVAATLAVGPFAAYQILKLSGLKSGDSLALDGEATLLGKSVALLAKSRGITVVSGAAAGKDIKFALSLQGGRSASSLLGALGHGGQLLLHVAPSDEATVLDGALVADKSVTIRSFAPAAVSAKEAEAMVEEVVELVKGNALGLKVVRHDLAKLLEAVEEVTAGPSDTVHILTLS

Entity 34 polymer

描述 description	NDUEG6
分子量 formula_weight	43669.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E6

MWRTSGCALRSRASFTTAVTAHASGVKAIDPFKILSLPDSATRDDLRNQFFELAKSNHPDVGGDKAKFQAIQDAYEDAIRIADQKHPVAPWDGISPMTYAQAWQGKDYWRKLWEEHWAARLAHMYKHNAELTTLEANKKWREAQYMQVKDWMVLAKDVLDPKTKAEWQAGCELARDMLLWTQANKKNYRRYFLSNQNVAVNMRQVYDEHEYWRQYENVQWAQWDAFFARASAWALEHEEQIRSVNSTEGPLAAKFDYLFHGRLQYSSMSLEERLSRRAQEEKAYTRQYWIAELMKAMRFSFRWVERFSRAFFPVLILVVIAGYITDFQLIIRWLNITRSETGALEVHNRKMDMVDWLLAGTPTPQNIEGTI

Entity 35 polymer

描述 description	NDUEG8
分子量 formula_weight	23994.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E8

MTTHRPPLVTDRMFPWTWNSRYYMMTPLATYGREDIFANPHLPADKKLHAAAVEGGEFMKDAYAPPHKAVSLVRRVGRKAMVGAGLYFHLFLMDKFVSKGLLDRNTSPYFYMTLYEKAIYCLLPNKNKPNEEDLLKLFREARLESNYKSVSMWTYRLRSERVPKSYFDKPPVSYDADRRTSGFVEWAFWMVGLESFGKSVVPEAW

Entity 36 polymer

描述 description	NDUEG10
分子量 formula_weight	14140.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	EA

MSKQNHGLHNRLIPIFVKENAFNGFPLVNKGKWGSWLWFRNTQLKNLYHPLGAVLKWPRSFLMLNGTETAFWMVFFWAAANTWLYSRQRKEFIKDCDYGXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 37 polymer

描述 description	NDUEG11
分子量 formula_weight	11472.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	EB

XXXXXXXXXXXXXXXXXXXXXXXXXXXSLQCHDTRNRRDKCMVQHGFCAQQIEDHFECLEQYYQKEKVDQLRREFRSQSFQMVKQMKLEDLGHFDRYGNLR

Entity 38 polymer

描述 description	NDUEG12
分子量 formula_weight	11323.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	EC

MHRIATRVAMQQRFYGVARPDVQNRVIQTVQPFVDICCRPRTEVKPTSHFVLDLNLPAVHLKQVVLALEGEFAAPVPDAQFKNIVSVADAVEYFAGHPQAK

Entity 39 polymer

描述 description	NDUEG13
分子量 formula_weight	17731.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ED

MAHDKPHNEPPKRLLSKQEKTDMAVRENIEKPSWIKENGFQRWCYEMVRGVGRHPWPRYFELTDFFGDKRHGDAIPRSWAAVKKLERGQVIGPAVCVTLTLWVFVAGTISKRNNTVWCDSIQEKYGFKQPYSREFRTQHDGVLKPKLPAIY

Entity 40 polymer

描述 description	NDUFX
分子量 formula_weight	37197.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	FX

MTTIHAYTATQKTVDGPSKKDWRGGRAAAITMVFRPLFRSFVNPFSLARLMAFRPTSVLALRTCQLRLGGGHGHGHGHGHGHGGHGGKPNKFENHIYRDASGQPWFDLHKWELGRKPGKEDLEHPGRHESFSQTKRLVSLTFIDKDGNPHNIKCEPGMNMADAALQAGVSLDWLDGEGNQGFSAWSHMVISSPQFEMLVPPDHREDKYLWDLEQWGTSHRNSRFVKFLFVQPWMEGMVVTHPFFADVVTPNFTDPFTGKIEDKDQAVAPTYFVSKVVDPEKPDYKFPNPFELLWAGIDTYEQLWDYTRQSWLKRLEARRQKQQQA

Entity 41 polymer

描述 description	NDUCA1
分子量 formula_weight	48726.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G1

MAKLTWLKNLLNPYSRVPPSTFLRFFPRLLNKFGSAERDINAEFPGTVHKHIKTYQERFMEQGAGDRIATKWNPKPWEKAYMGQPDHPMTKAEQAKKEDFMVGIHWDRSAGGRWTPNDKFPLFDYEFPIHPGRIILRWLYKQGKEPVNMQRSILVTDDFATPSVYPFGWHAPSAILIGDACISNDAAVFDHCVLRADRAAIWVGPKSHVLEGCTLTTAPPTPDRPALGSVLIGENTVVGAGSSLNACWIGDHCIIGSGCTIGFGARIDDGAVVGAGSVVEDDQYIPAGEVWVGRPARYLRKTGDVDTFTAVAENDTLRSLHLAYSEYETTHGNVWAESDKVCDNLEEEVAHRLQAHDVARAMVSKNFDAKLLKLPKSLVADLMDIVSDDDHPNPKPTVSAQARQHFSSQWDFNRKQEQRPVFTGNYNSPTMSRDMA

Entity 42 polymer

描述 description	NDUCA2
分子量 formula_weight	28858.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G2

MPLPQKSTLVRLGAAIRECGQALDRWGSFLQGRYGHLEKLQRTRRINGFHNFFPEVKGVRFIAPSASVIGQVTVSPGSSIWYNSVVRGDRGKVTIGEDTHILERVVIRSGILSVRDVKIGKDVIIEPGAIISPCQIEDGAYIGANAVLMEGCKIGKGVVVGPGAVVTEFAELTQPGVYQGVPAKSATALTTEAAEAITTRRAEFAKLAEEHEEMNTKLIEKQTEERVILKDILENQLNEGNEFTMRSHHVARAPNVSPGNIAAGSAA

Entity 43 polymer

描述 description	NDUCA3
分子量 formula_weight	28016.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G3

XXXXXXXGAAIRECGQALDRWGSFLQGRYGHLEKLQRTRRINGFHNFFPEVKGVRFIAPSASVIGQVTVSPGSSIWYNSVVRGDRGKVTIGEDTHILERVVIRSGILSVRDVKIGKDVIIEPGAIISPCQIEDGAYIGANAVLMEGCKIGKGVVVGPGAVVTEFAELTQPGVYQGVPAKSATALTTEAAEAITTRRAEFAKLAEEHEEMNTKLIEKQTEERVILKDILEDQLNEGNEFTMRSHHVARAPNVSPGNIAAGSA

Entity 44 polymer

描述 description	ND1
分子量 formula_weight	79682.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N1

MLNSNIYIIIYGGIIMYSIMIIIQMFLYNFSNKIYIEVEINKYILSKNNIDIYWIICNCTIIIIITTLNHIINKIGIYNMIEYNICYWLIGTGLGLYISPFIVFGYKFFVYIMDLNNYSLNIYHNNNKMNDIQQIYNGTNYNDTMIFFIKDINNIFTIYRSINFFMNWLYQMIYYGVRMWLVFVLHSFSLGSFGELITVITDNNLIFNVFYIGLLGLGVILYLIVIFYLGIQIYVYISFSLSFLHSTILLFLVNYIPHYNNKSIFNTFTNKSIYLIPVSLVDLININIIFYILLLYTLLLFFIPLFLASINYTYHYIYKYYNYNYNFINNNTNTNNNNKFINISYNFFIILIILNIINISSIYNILQILLIMLIVLSLSSLLTVLERKGLASSQRRIGPSYNGWFGLVQIVQDGIKLIYKDYNRYNNINNKYIMISCILNFIYSYLLFIFIYIDLILYINISYIIFMIIIILMINHITIIICGIVINNSKWTILSSIRLILLYFMYDIIFLLILLYLSPINNLGINLLYNNNNLNLNNYIESQFYYINLYKYPLLLYIYIFIVLIEAGRIPVDLIESESELISGYSIEYSGFLYALFASAEYSIILFHSILLSLLFFSYYSFNILFIHITILFFIFVIIRSTLPRFKYTNLFNLTYYYILPFILTYLLLL

Entity 45 polymer

描述 description	ND2A
分子量 formula_weight	35864.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N2

MLYNNNLIIIILMISIIIGISLQNILVNDISELRWINRFNLDNFIIIYIILLYNNIILILGIISLIISTNKNTTNNKVQLIHMIIIIINTIYICNNNNNTIINIILMIITIDILSVLNIILIQKGEGIWYYFLYQSLMTILIWWVLILDLSSLLSFFYYYKLGSGIGGYYIPSLYSSIIYYNINLMIYIGTTNIILMYNPIFLFNNFNHNYFLIISNFLFILYILYIWIFNGYLFINLWLYSISFSTIILANIYYLFTSIDFIYYNLFYYIYYFTISSIIIWFIFILSLYFINNYNNHIN

Entity 46 polymer

描述 description	ND3
分子量 formula_weight	34504.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N3,N6

MINNIIDIYIFNNNIINKSLINIIDIIILNIGILLILVEGSIRGIIGLIIVGISINIYLINNGYILISLLLIISIISISIIISLIKYNTMSIYKFNNNKYIQLFFILYLYIILINNNNYNNNINNIEIIGYILIFESNILLSLLILIMFMFIIILVKFNNKISINYNIIYFNVINYIILNIYILFIIALLICYIPIIIRYKSKIYKWSSDIYEVGIGVNMSNSIYNSISNYNIGNYFIYFYIYLFIFLDIIINIIILIYFININLFTYYFTLFFLILAISYSLLFSYNFSNNF

Entity 47 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 4
分子量 formula_weight	56417.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N4

MIYKIIILRYISILIIMIIQLMKMYNKEYRLISIISIISILSIMNWPQSIKEINIYIINLIIGYEINLSYNYIGIYMSLILDILIWISILYERYYIKNNNTYNIIIYYIINNIFFSSNDIITISLIYEFQTIPLLLIINNSYNKINIYNKKGIGISNILLILYSIISGLLLYNSMYNIYLLNHTSNISHNINILNYSYNHILINYILINILISGSMKLSIFPFHIWLGKVHVEAPTIGSILLAGISLKTGFYLHYLFIYLYQYIYINYLIYFIYILFIGIIINNINIFYQIDTKRWIALYSIIHMNLYYIIMLILLISNNNNLYYIIFINILIYGMIGHSLISGGLFLIIGYIYDITNNKNLYLINNNIISSYIYFILLLLLLANSSFPLFVLFIFELLAFTSLSIFNILLSIFLLILSCSNLLSSLYIYYKYFYTHYYSPIITFTSFDFILIILAIPILIIIILMGFNLLLPIHFLI

Entity 48 polymer

描述 description	ND5
分子量 formula_weight	68375.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N5

MLIISIIKWLIISIIMNLSGNIIGINGLIYIIMLILVLSPIISWYVLYNIIIINIYNNKLIYLLSYNFINYYNYNIDLEIGISIYEMITVILLINVSYMINIYILKYLYKDKNVIRFVCIIMLFTYNMILLIISNDLIMLFIGWEMIGIISLLLINYYNNRIEATKAGLKAVVYNRIGDVFLLLSIILSINMYNSNSILLYNILISYMYYNINYININLIIGMSFIICAWSKSTQLGFQPWLLDAMEGPTPVSALLHSATLVTAGIILLYKNRYILYYNSSLAILLLILGGISCLLNSFSSINYLDIKRIVAYSTCTHISLMIMILGIDILINISEISLLHLFYHGWSKSLIFMLCGYMISIIHSQDLRFFGNLFQHIPILFVIINISLLTILGFPGSYLSYSKDIILEFGLISIYGYNIILLFIIIILLSQGYSLGILLYLIYNYSYYNSTHNIYNFYSNKNNYIYIFAFLYLIIIIIYLPFLLYDILIYNNISIMHHISYIDPFSLIAFLGFILSYYNYNYNHTLYIFNIHNNRLYIDKLLSSFMSIFSIHIIYYFQFILEYGFIMHYLHITNIIIFLIFLI

Entity 49 polymer

描述 description	NDUFS2
分子量 formula_weight	45251.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S2

MPARADARTMQHFTLNFGPAHPAAHGVLRLILEMNHEYIIRADPHIGFLHRGTEKLMEMKPVIQVTPYMDRLDYMSAMANEHAFIMAVEKLCEIPVPLRGSYIRVIFLEITRLLNHLLAVACAAADVGALTPILWTFEEREKLMTFYECVSGSRMHPNFFRPGGVASDLPYGFLDQLYEFINQFAARLDEVEDLLTQNNIWRERLKAGYMDLDRALSYGFSGPMLRATGVAWDLRVTAPYEVYPYLDVEVPYGVNSDSYDRYLIRMQEMRNSIRIIHQCINDIVPGDYRLHDAKFATIPFRDCKDSMENLIAHFKYYSEGFRIPEGFVYCGTESPKGELGVYLQSNGDSLPYRVRIRAPGFYHLAALPALAQDTMFPDLVTVIGTLDIVFGEVDR

Entity 50 polymer

描述 description	NDUFS3
分子量 formula_weight	32466.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S3

MFRRVATHVVPKLSTLLRARNSIKFVTTQEVPPVHQGREVKSTPQNKGKDEFVRYLSSVLYPMASEIMWDDVTNDVTINVYPQYIRPVAKMLRDHQQFQYKVLVDVTCVDTMTNLKRFDVVYNFLSVVFRHRVMVRASVDDASGIDSLTPLFHSAMWAEREAWDMFGVFFVGHPDLRRMLSDYGFEGHPLRKDFPLGGYTEVYWDAPNSTIKYASPPIFREEYRDYENIETEWDDLYHRCNTAWAYDRMVKQGMESCDADYTYDDPAAHKKPQQTQG

Entity 51 polymer

描述 description	NDUFS4
分子量 formula_weight	23736.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S4

AGLAARPLHTSAPRLIFPFRRPFKSEPEDETKIPDCYVNGKPIADGQGYQAIGLAEHFERIRRNVNIRRRVPSRFTQMVGGRRARTFSIHFERGSVEREWNQGGRLGVEPFAMMRRKMKNFPTVEDAEAFALSAGWKINSSNPGNMRFNPRVGGNRREFKQRYEFAKDSYMAKDSGKGAQYPQDPHSSGTRGTSSFQAKVTKRVVQQE

Entity 52 polymer

描述 description	NDUFS5
分子量 formula_weight	14244.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S5

MDRYGKKDESTWWVLHPFHEKTYTEDLGKVSTVEPSVCDEYIELFKRCAAKSLDPEAQCRSYQEDLKECRLGAKQRKFLSQYEFATNSFTVNEKNDFRNRWHETFFRGSLLXXXXXXXXXXX

Entity 53 polymer

描述 description	NDUFS6
分子量 formula_weight	17101.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S6

MATTSRLSKVTVNIMPASRALGVKPHRHRKQWQMPEVSFLKDVFSDPLMTEQKITERFIKAEFGPNRIDVRRAVPPIVVPKTFKHAWCDGNWGNRSTHGHPRISIRMKAGKVSQCKYCENKFVRDDFPAFFAKREQVAAEEKYHDED

Entity 54 polymer

描述 description	NDUFS7
分子量 formula_weight	22837.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S7

PQVKLLATWNPYNDPSLESVLQGDRKQTHMQRYAERQTLLGEELTPGQTHIRPGDNSVSWVSTTVSQVFKWGRSGSVWPLTFGLACCAIEMMQAYASRYDLDRYGTVPRGSPRQSDLIIVAGTLTNKMAPCLRKVYDQMATPCYVISMGSCANGGGYYHFSYAVVRGCNRVVPVDIYVPGCPPTAEALVYGILLLQRKIKMGXXXXX

Entity 55 polymer

描述 description	NDUFS8
分子量 formula_weight	24370.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S8

MQHLKLARRGLPLQQLRSFHWTAPPLLRQPHPDVPKDVSGLGMGLAFMNQFLLKEIMKAMWIVTIYTFRQPSVTIHYPYERNTKSTRFRGEHALLIYPDGDERCITCQLCEVTCPAQAIAIDGVEDDDGSRMASRFDLDMHKCIYCGLCQEACPVDAIVETPHAEFCSTEYDSLLYDKARLLENGIRWTSAIEYMVAKERSDFPTNSQRFKS

Entity 56 polymer

描述 description	UNK-UNK-UNK-UNK-UNK-UNK-UNK-UNK-UNK-UNK-UNK-UNK
分子量 formula_weight	1039.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U1,U2

XXXXXXXXXXXX

Entity 57 polymer

描述 description	NDUFV1
分子量 formula_weight	57940.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V1

MLLRGVRCGALAGKQRRSIIQVPDKAPKTPAGFLQDKDRIFQNIYNDHGQGLKNAQKLGDWYRTKDLLAKGPEWIIDQIKKSGLRGRGGAGFPSGLKWSFMPKKPPADGRPSYVVINADESEPGTCKDREIMRMEPHKLVEGTLIAGFAMRARAAYIYVRGEFYNETLSVEKAIKEAYDAGLLGDNACGSGYKFDIVLCRGAGAYICGEETGLIESLEGKSGKPRLKPPFPANIGLWGCPTIVTNVETVSVSPTILRRGPEWFASFGRKNNSGTKLFCISGHVNTPCTVEESMSIPLRELLEKHCGGVRGGWDNLLAVIPGGSSVPVLPKSICDDVLMDFDALMDEGSALGTAAVIVMDKSTDLIKALARISMFYKNESCNQCTPCREGAGVMANIMDRIWKGNGFGPEVDMIKDIADNVELRSICALGAAAAWPIQGLHKHFREEMIQRIEDFTDISYNLHKDEMFGHGAAFDWRRTPKTFHGTLDSFQDSTYRPPAANNNAYRGQYPHVPIYEKEKSEADKIAA

Entity 58 polymer

描述 description	NDUFV2
分子量 formula_weight	25189.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V2

XXXXHIEWHNVRNAASDPFDFLPELYPEVYKILAKFPETKQQSAIIPLLHLAQRQNGGWVPLPGMLKIAEICEVPQKRVFECATFYCMFNHKPVGKYHIQVCVTTPCMIRGADEILHGLCHHLGVGEEEVTADGLFSICEMECMGACVHAPMICISDYSNPPNYRYDYIEDLTLEQAIEVVDNLKKGIYPKVGSQQGRASAIPLAGRTSLFDPPRGPFCRDLDKA

Entity 59 polymer

描述 description	NDUEG7
分子量 formula_weight	26818.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E7

QKLLPKISCKYLALFLGLAGATTALGFGLAPPTELVQGKIKSAELQVGDLLTYKDGGHAKCHIKEHWAVYLGTGEEIAQLVGQDAAALKLQPEERYIGHRLANTHHEEPVVRIDPLSTARPPQGGALYKAEAPALGEPEDREAIVKGILARRAEKDGSLAAKNCQHFSTWARYQYPYSNDSLETSSRFIVTRAGATAAAVFLGTLAVSQAPLFSTMFGAMGWMVGIFRPICNRQKVVTLQKWEVEQ

Entity 60 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 61 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 62 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 63 non-polymer

描述 description	1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE
分子量 formula_weight	790.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	26

Entity 64 non-polymer

描述 description	CARDIOLIPIN
分子量 formula_weight	1464.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	18

Entity 65 non-polymer

描述 description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	745.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 66 non-polymer

描述 description	S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] tetradecanethioate
分子量 formula_weight	568.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 67 non-polymer

描述 description	1,2-Distearoyl-sn-glycerophosphoethanolamine
分子量 formula_weight	748.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 68 non-polymer

描述 description	UBIQUINONE-10
分子量 formula_weight	863.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 69 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 70 non-polymer

描述 description	FLAVIN MONONUCLEOTIDE
分子量 formula_weight	456.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 71 non-polymer

描述 description	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE
分子量 formula_weight	665.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	2.87 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	86599

fit	/app/data/saxs_computation/j9/8j9i/8j9i.fit
pddf	/app/data/pr_computation/j9/8j9i/8j9i.pr.out
profile	/app/data/saxs_computation/j9/8j9i/8j9i.dat

Cryo-EM structure of Euglena gracilis complex I, turnover state

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (71)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
