8j9w

Cryo-EM structure of the African swine fever virus topoisomerase 2 complexed with Cut02bDNA and etoposide (EDI-2)

Method: ELECTRON MICROSCOPY D_max: 122.4 Å Quality: GOOD

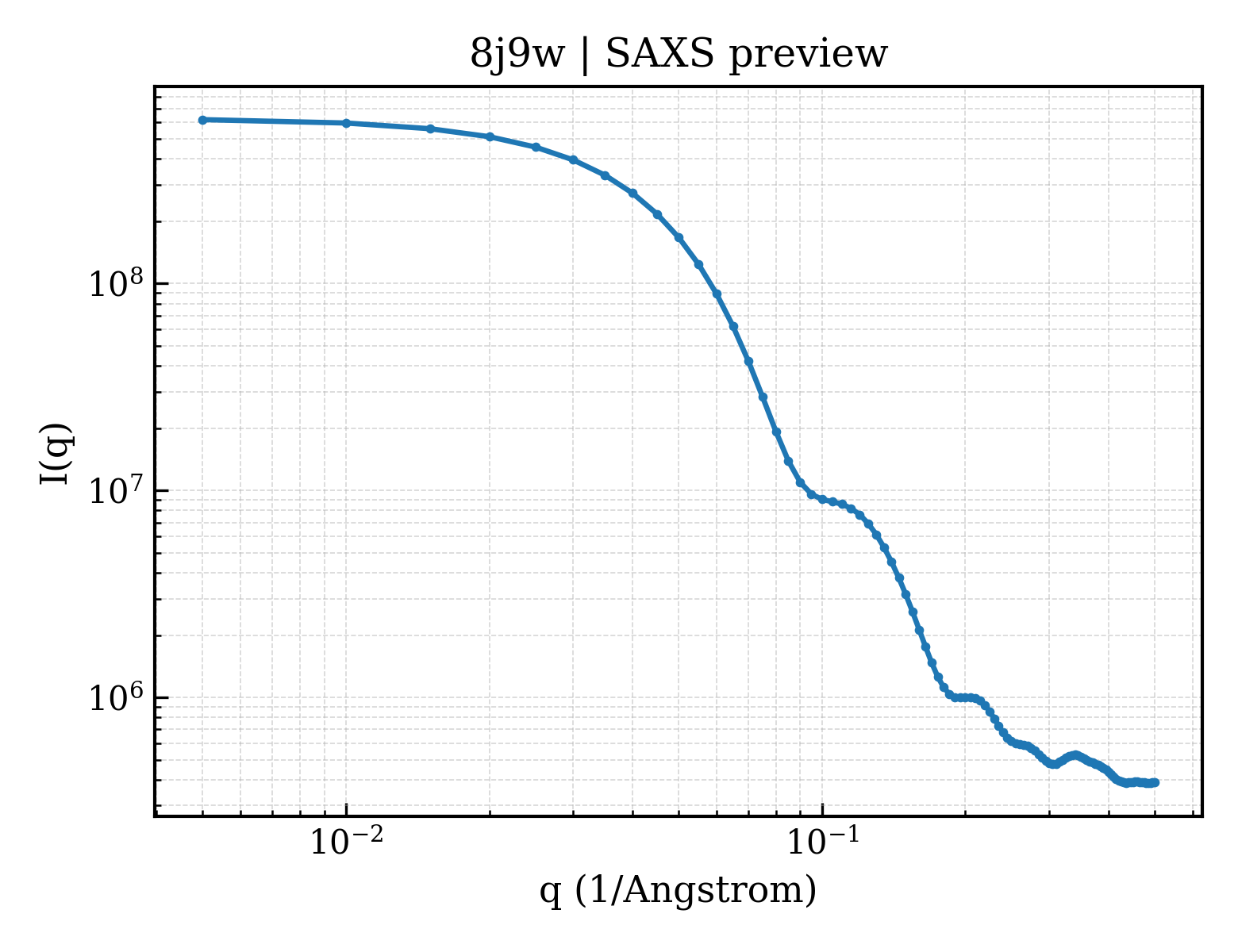

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8j9w
沉积日期 deposition_date	2023-05-05
结构标题 title	Cryo-EM structure of the African swine fever virus topoisomerase 2 complexed with Cut02bDNA and etoposide (EDI-2)
关键词 keywords	Topoisomerase, ASFV, inhibitor, VIRAL PROTEIN, ISOMERASE-DNA complex; ISOMERASE/DNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.04 Å
回转半径 Rg (电子) rg_electron	38.53 Å
零角强度 I(0) i0	626576000.00
分子量 molecular_weight	197340.0 kDa
排除体积 excluded_volume	243910 Å³
包络体积 envelope_volume	337880 Å³
水化壳体积 shell_volume	70417 Å³
包络直径 envelope_diameter	120.7 Å
壳层 Rg shell_rg	46.42 Å
包络 Rg envelope_rg	38.03 Å
形状 Rg shape_rg	38.53 Å
总 Rg total_rg	38.96 Å
总原子数 total_atoms	13841
残基数 n_residues	1610
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	122.4 Å
Rg (实空间) rg_real	38.77 Å
Rg 误差 (实空间) rg_real_error	0.83 Å
I(0) (实空间) i0_real	6.2660e+08
I(0) 误差 (实空间) i0_real_error	1.0370e+07
Rg (倒空间) rg_reciprocal	38.94 Å
I(0) (倒空间) i0_reciprocal	626700000.0000
解质量估计 total_estimate	0.8981
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	52.0 Å
偏度 Skewness skewness	0.117
峰度 Kurtosis kurtosis	-0.521
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	155200000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.944

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	DNA topoisomerase 2
分子量 formula_weight	136422.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	13841

MEAFEISDFKEHAKKKSMWAGALNKVTISGLMGVFTEDEDLMALPIHRDHCPALLKIFDELIVNATDHERACHSKTKKVTYIKISFDKGVFSCENDGPGIPIAKHEQASLIAKRDVYVPEVASCFFLAGTNINKAKDCIKGGTNGVGLKLAMVHSQWAILTTADGAQKYVQQINQRLDIIEPPTITPSREMFTRIELMPVYQELGYAEPLSETEQADLSAWIYLRACQCAAYVGKGTTIYYNDKPCRTGSVMALAKMYTLLSAPNSTIHTATIKADAKPYSLHPLQVAAVVSPKFKKFEHVSIINGVNCVKGEHVTFLKKTINEMVIKKFQQTIKDKNRKTTLRDSCSNIFVVIVGSIPGIEWTGQRKDELSIAENVFKTHYSIPSSFLTSMTRSIVDILLQSISKKDNHKQVDVDKYTRARNAGGKRAQDCMLLAAEGDSALSLLRTGLTLGKSNPSGPSFDFCGMISLGGVIMNACKKVTNITTDSGETIMVRNEQLTNNKVLQGIVQVLGLDFNCHYKTQEERAKLRYGCIVACVDQDLDGCGKILGLLLAYFHLFWPQLIIHGFVKRLLTPLIRVYEKGKTMPVEFYYEQEFDAWAKKQTSLVNHTVKYYKGLAAHDTHEVKSMFKHFDNMVYTFTLDDSAKELFHIYFGGESELRKRELCTGVVPLTETQTQSIHSVRRIPCSLHLQVDTKAYKLDAIERQIPNFLDGMTRARRKILAGGVKCFASNNRERKVFQFGGYVADHMFYHHGDMSLNTSIIKAAQYYPGSSHLYPVFIGIGSFGSRHLGGKDAGSPRYISVQLASEFIKTMFPAEDSWLLPYVFEDGQRAEPEYYVPVLPLAIMEYGANPSEGWKYTTWARQLEDILALVRAYVDKDNPKHELLHYAIKHKITILPLRPSNYNFKGHLKRFGQYYYSYGTYDISEQRNIITITELPLRVPTVAYIESIKKSSNRMTFIEEIIDYSSSETIEILVKLKPNSLNRIVEEFKETEEQDSIENFLRLRNCLHSHLNFVKPKGGIIEFNSYYEILYAWLPYRRELYQKRLMREHAVLKLRIIMETAIVRYINESAELNLSHYEDEKEASRILSEHGFPPLNHTLIISPEFASIEELNQKALQGCYTYILSLQARELLIAAKTRRVEKIKKMQARLDKVEQLLQESPFPGASVWLEEIDAVEKAIIKGRNTQWKFHHHHHH

来源 Source

来源生物 organism	African swine fever virus
NCBI 分类编号 ncbi_taxonomy_id	10497
宿主生物 host_organism	Saccharomyces

Entity 2 polymer

描述 description	;DNA (5'-D(APAPGPAPAPCPTPCPTPGPTPAP*G)-3') ;
分子量 formula_weight	3999.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,C

AAGAACTCTGTAG

Entity 3 polymer

描述 description	;DNA (5'-D(CPAPTPGPCPTPAPCPAPGPAPGPTPTPCPTP*T)-3') ;
分子量 formula_weight	5177.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D,F

CATGCTACAGAGTTCTT

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	;(5S,5aR,8aR,9R)-9-(4-hydroxy-3,5-dimethoxyphenyl)-8-oxo-5,5a,6,8,8a,9-hexahydrofuro[3',4':6,7]naphtho[2,3-d][1,3]dioxol -5-yl 4,6-O-[(1R)-ethylidene]-beta-D-glucopyranoside ;
分子量 formula_weight	588.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.76 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	650266

fit	/app/data/saxs_computation/j9/8j9w/8j9w.fit
pddf	/app/data/pr_computation/j9/8j9w/8j9w.pr.out
profile	/app/data/saxs_computation/j9/8j9w/8j9w.dat
