SAXSdb — 8jfk

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8jfk
沉积日期 deposition_date	2023-05-18
结构标题 title	PhK holoenzyme in inactive state, muscle isoform
关键词 keywords	glycogen phosphorylase b kinase, muscle isoform, inactive state, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	92.27 Å
回转半径 Rg (电子) rg_electron	92.12 Å
零角强度 I(0) i0	17672200000.00
分子量 molecular_weight	1156800.0 kDa
排除体积 excluded_volume	1456500 Å³
包络体积 envelope_volume	2257300 Å³
水化壳体积 shell_volume	207970 Å³
包络直径 envelope_diameter	331.7 Å
壳层 Rg shell_rg	87.63 Å
包络 Rg envelope_rg	90.49 Å
形状 Rg shape_rg	92.09 Å
总 Rg total_rg	92.20 Å
总原子数 total_atoms	81428
残基数 n_residues	10140
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	244.4 Å
Rg (实空间) rg_real	88.14 Å
Rg 误差 (实空间) rg_real_error	0.87 Å
I(0) (实空间) i0_real	1.6900e+10
I(0) 误差 (实空间) i0_real_error	3.1950e+08
Rg (倒空间) rg_reciprocal	90.84 Å
I(0) (倒空间) i0_reciprocal	17590000000.0000
解质量估计 total_estimate	0.9155
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	115.0 Å
偏度 Skewness skewness	0.160
峰度 Kurtosis kurtosis	-0.662
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.9253
最高正则化参数 α highest_alpha	464000000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.997; Stabil: 0.972; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Phosphorylase b kinase regulatory subunit beta
分子量 formula_weight	125033.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,N,J,F
原子数 atom_count	81428

MAGAAGLTAEVSWKVLERRARTKRSGSVYEPLKSINLPRPDNETLWDKLDHYYRIVKSTLLLYQSPTTGLFPTKTCGGDQKAKIQDSLYCAAGAWALALAYRRIDDDKGRTHELEHSAIKCMRGILYCYMRQADKVQQFKQDPRPTTCLHSVFNVHTGDELLSYEEYGHLQINAVSLYLLYLVEMISSGLQIIYNTDEVSFIQNLVFCVERVYRVPDFGVWERGSKYNNGSTELHSSSVGLAKAALEAINGFNLFGNQGCSWSVIFVDLDAHNRNRQTLCSLLPRESRSHNTDAALLPCISYPAFALDDEVLFSQTLDKVVRKLKGKYGFKRFLRDGYRTSLEDPNRCYYKPAEIKLFDGIECEFPIFFLYMMIDGVFRGNPKQVQEYQDLLTPVLHHTTEGYPVVPKYYYVPADFVEYEKNNPGSQKRFPSNCGRDGKLFLWGQALYIIAKLLADELISPKDIDPVQRYVPLKDQRNVSMRFSNQGPLENDLVVHVALIAESQRLQVFLNTYGIQTQTPQQVEPIQIWPQQELVKAYLQLGINEKLGLSGRPDRPIGCLGTSKIYRILGKTVVCYPIIFDLSDFYMSQDVFLLIDDIKNALQFIKQYWKMHGRPLFLVLIREDNIRGSRFNPILDMLAALKKGIIGGVKVHVDRLQTLISGAVVEQLDFLRISDTEELPEFKSFEELEPPKHSKVKRQSSTPSAPELGQQPDVNISEWKDKPTHEILQKLNDCSCLASQAILLGILLKREGPNFITKEGTVSDHIERVYRRAGSQKLWLAVRYGAAFTQKFSSSIAPHITTFLVHGKQVTLGAFGHEEEVISNPLSPRVIQNIIYYKCNTHDEREAVIQQELVIHIGWIISNNPELFSGMLKIRIGWIIHAMEYELQIRGGDKPALDLYQLSPSEVKQLLLDILQPQQNGRCWLNRRQIDGSLNRTPTGFYDRVWQILERTPNGIIVAGKHLPQQPTLSDMTMYEMNFSLLVEDTLGNIDQPQYRQIVVELLMVVSIVLERNPELEFQDKVDLDRLVKEAFNEFQKDQSRLKEIEKQDDMTSFYNTPPLGKRGTCSYLTKAVMNLLLEGEVKPNNDDPCLIS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Phosphorylase b kinase regulatory subunit alpha, skeletal muscle isoform
分子量 formula_weight	137469.4 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,A,I,E

MRSRSNSGVRLDGYARLVQQTILCHQNPVTGLLPASYDQKDAWVRDNVYSILAVWGLGLAYRKNADRDEDKAKAYELEQSVVKLMRGLLHCMIRQVDKVESFKYSQSTKDSLHAKYNTKTCATVVGDDQWGHLQLDATSVYLLFLAQMTASGLHIIHSLDEVNFIQNLVFYIEAAYKTADFGIWERGDKTNQGISELNASSVGMAKAALEALDELDLFGVKGGPQSVIHVLADEVQHCQSILNSLLPRASTSKEVDASLLSVVSFPAFAVEDSQLVELTKQEIITKLQGRYGCCRFLRDGYKTPKEDPNRLYYEPAELKLFENIECEWPLFWTYFILDGVFSGNAEQVQEYKEALEAVLIKGKNGVPLLPELYSVPPDRVDEEYQNPHTVDRVPMGKLPHMWGQSLYILGSLMAEGFLAPGEIDPLNRRFSTVPKPDVVVQVSILAETEEIKTILKDKGIYVETIAEVYPIRVQPARILSHIYSSLGCNNRMKLSGRPYRHMGVLGTSKLYDIRKTIFTFTPQFIDQQQFYLALDNKMIVEMLRTDLSYLCSRWRMTGQPTITFPISHSMLDEDGTSLNSSILAALRKMQDGYFGGARVQTGKLSEFLTTSCCTHLSFMDPGPEGKLYSEDYDDNYDYLESGNWMNDYDSTSHARCGDEVARYLDHLLAHTAPHPKLAPTSQKGGLDRFQAAVQTTCDLMSLVTKAKELHVQNVHMYLPTKLFQASRPSFNLLDSPHPRQENQVPSVRVEIHLPRDQSGEVDFKALVLQLKETSSLQEQADILYMLYTMKGPDWNTELYNERSATVRELLTELYGKVGEIRHWGLIRYISGILRKKVEALDEACTDLLSHQKHLTVGLPPEPREKTISAPLPYEALTQLIDEASEGDMSISILTQEIMVYLAMYMRTQPGLFAEMFRLRIGLIIQVMATELAHSLRCSAEEATEGLMNLSPSAMKNLLHHILSGKEFGVERSVRPTDSNVSPAISIHEIGAVGATKTERTGIMQLKSEIKQVEFRRLSISAESQSPGTSMTPSSGSFPSAYDQQSSKDSRQGQWQRRRRLDGALNRVPVGFYQKVWKVLQKCHGLSVEGFVLPSSTTREMTPGEIKFSVHVESVLNRVPQPEYRQLLVEAILVLTMLADIEIHSIGSIIAVEKIVHIANDLFLQEQKTLGADDTMLAKDPASGICTLLYDSAPSGRFGTMTYLSKAAATYVQEFLPHSICAMQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Calmodulin-1
分子量 formula_weight	16852.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,H,L,P

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	Phosphorylase b kinase gamma catalytic chain, skeletal muscle/heart isoform
分子量 formula_weight	45084.7 kDa
EC 编号 ec_number	2.7.11.19,2.7.11.1,2.7.11.26
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G,K,O

MTRDEALPDSHSAQDFYENYEPKEILGRGVSSVVRRCIHKPTSQEYAVKVIDVTGGGSFSPEEVRELREATLKEVDILRKVSGHPNIIQLKDTYETNTFFFLVFDLMKRGELFDYLTEKVTLSEKETRKIMRALLEVICTLHKLNIVHRDLKPENILLDDNMNIKLTDFGFSCQLEPGERLREVCGTPSYLAPEIIECSMNEDHPGYGKEVDMWSTGVIMYTLLAGSPPFWHRKQMLMLRMIMSGNYQFGSPEWDDYSDTVKDLVSRFLVVQPQNRYTAEEALAHPFFQQYLVEEVRHFSPRGKFKVIALTVLASVRIYYQYRRVKPVTREIVIRDPYALRPLRRLIDAYAFRIYGHWVKKGQQQNRAALFENTPKAVLLSLAEEDY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 non-polymer

描述 description	FARNESYL
分子量 formula_weight	206.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	623973

fit	/app/data/saxs_computation/jf/8jfk/8jfk.fit
pddf	/app/data/pr_computation/jf/8jfk/8jfk.pr.out
profile	/app/data/saxs_computation/jf/8jfk/8jfk.dat

PhK holoenzyme in inactive state, muscle isoform

SAXS 散射曲线 SAXS Profile

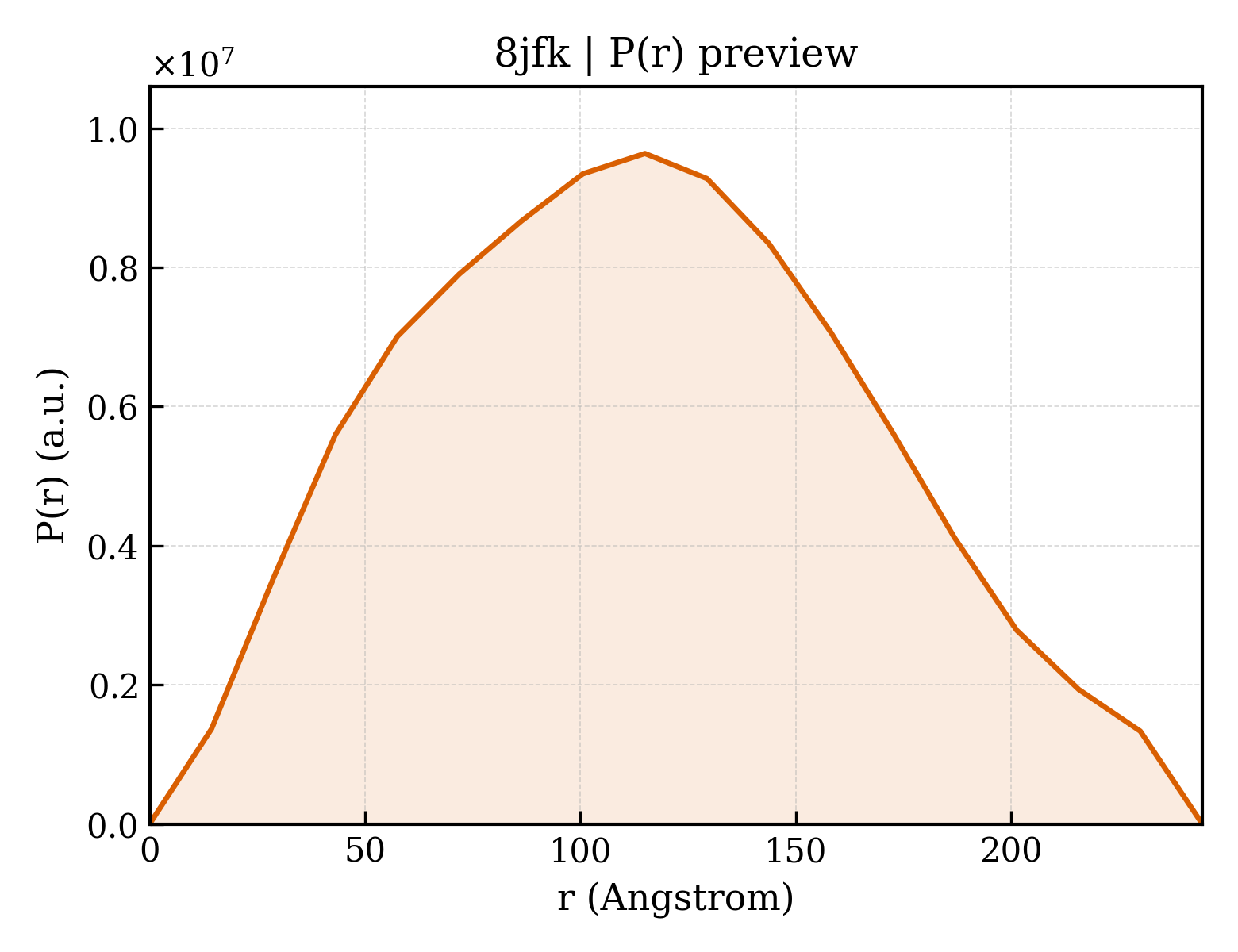

P(r) 距离分布 P(r) Distribution
