SAXSdb — 8jov

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8jov
沉积日期 deposition_date	2023-06-08
最后修订 last_revision	2023-11-01
结构标题 title	Portal-tail complex of phage GP4
关键词 keywords	Complex, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	99.03 Å
回转半径 Rg (电子) rg_electron	98.98 Å
零角强度 I(0) i0	47825300000.00
分子量 molecular_weight	1818400.0 kDa
排除体积 excluded_volume	2254900 Å³
包络体积 envelope_volume	3870000 Å³
水化壳体积 shell_volume	325040 Å³
包络直径 envelope_diameter	388.1 Å
壳层 Rg shell_rg	93.93 Å
包络 Rg envelope_rg	97.81 Å
形状 Rg shape_rg	99.06 Å
总 Rg total_rg	98.68 Å
总原子数 total_atoms	128070
残基数 n_residues	16764
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	267.1 Å
Rg (实空间) rg_real	94.49 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	4.5690e+10
I(0) 误差 (实空间) i0_real_error	9.3240e+08
Rg (倒空间) rg_reciprocal	95.80 Å
I(0) (倒空间) i0_reciprocal	47300000000.0000
解质量估计 total_estimate	0.9102
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	100.1 Å
偏度 Skewness skewness	0.388
峰度 Kurtosis kurtosis	-0.531
角度范围 angular_range	— – 0.0800 Å⁻¹
当前正则化参数 α current_alpha	0.6838
最高正则化参数 α highest_alpha	16450000000.0000
实空间数据点数 n_real_points	17
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.015; Oscil: 0.960; Stabil: 0.986; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.009

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Portal protein
分子量 formula_weight	87929.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0,3,6,U,Y,c,g,k,o,r,u,x
原子数 atom_count	128070

MFDLRDDQNTRVIADHPEARMPTEEPGKDDAPPSHPLDSEEMKELHRRLRSYLHQELDRQAENRFQMAVDEDYYDSIQWTEADAQVLKERGQAPLVFNVIAQSVNWIIGSEKRGRTDFNILPRKKADAKPAEAKTKLLKYLSDVNRLPFHRSRSFEDTVKVGLGWIEDSYDDSTDGEPIYSRYESWRNVIFDSASTELDGTDMRYIFRPKWLDVDVACALVPDRADEIKKAAVAAERYGNYSEEDGDEAMDWAEFDRDTYSQSRTVSTHKRQRVRLIECWYRKPMRATKFLSGDLRGETLDESNPAHVEARDSGLYSLGERITMRVRVAIFTSRDLLFEGASPFRHNRFSLTPIWGFRRGRDNLPYGVIRWMRDIQDDINKRASKALYILSSNKVVMDEGAVEDIEEFREEVARPDAVLVKKPGKQIELNVDRELAAAHMDMMSRDIQMLQQVGGVTDELMGRSTNAVSGVAIQARQEQGTVATNKLFDNLRFAVQMQGEIQLSLIEQFVTEEKTFRITNERGKADFITVNDGLPENDIVRTKADFIIGESDWRATYRQAASEQLSQMIMKMPPQVGLVMLDLWADSTDLPNRDEIVKRIRQINGMRDPDATEPTPEELQQQQAAAEQAQAQKAMFMAELSEKQGKADKAQADAVAAQANADLRAAQAEQVRRQTVNTNVTSIAAAMEAATAIVTMPTIAKVGDAVLVEAGYENNGIAPAGGLHTPAPQQAVNPAAQGLPPQQPQPQQPQEPAVSPSPEQLNGAAPSNTGEPVTPDQTLQQ

Entity 2 polymer

描述 description	Putative tail fiber protein
分子量 formula_weight	45894.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,4,7,M,N,O,P,Q,R,V,Z,d,h,l,p,s,v,y

MAAVQFANNAASRLVGPLAPSGTSLTVTPGDGALFPTLGAGDWFMATLIRSDGAREIVKVTSRTVDAMSITRAQEGSSALSFNPNDRIEARLTAGELGDFRDGIASAQSAASAAQGTADGKISKAGDTMTGNLNMEGAAPIITFRETDQAAPAGRWRLVADGGNWSLRRSTAGEFASENSTMWFGPDDSVHFLNDILIGRGNLGSVYDALASKATSAALASGLSAKPDADGVSVTGFVNGNFYEPYFRKSSDNTVRRLVANTSANGIALSWSGSFLSRTIDNTATATIWDTANAPGAGTTNLDKTFYCGDGTRIGRSWVPGSGFLSITVDGTNYGISISASDERLKREIAPSEASALSKLGRIELFSFRYKEGNAFLDPSQHHDIGFIAQQLASVDPTFVAGGGETMLSPNLQPIVATLVKAVQELRSQVDALKAQVGA

Entity 3 polymer

描述 description	Virion associated protein
分子量 formula_weight	23545.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,5,T,X,b,f,j,n,q,t,w,z

MAFPASVVLSRAATLLQDEDHERWTVDELLEWLTDGTREIVVRKPSAYMKTTTAALVAGSKQALPEDAIQLIDVPRNLKTDGSPGRAVTATDRRLLDTENPDWHSMKPAGQIRHYTYDSNVPTVFYTYPPAAAGVQVELVCAWRHPALTTQNDVVQMGAEFVSALVSWCLYRASSKDSEFANGAVAAAHYSAFSDALGAQATGTPTTQAAAAAAAAGAAQ

Entity 4 polymer

描述 description	Virion-associated phage protein
分子量 formula_weight	62764.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F

MTTLKLTAYSGEVPRTLPRLLPDTASQRALNVRLDNGGLTPTRQPRFEANISVDNAKTIYKHNGAWLAWQNVVHAAPGPVAQDRLYYMGDGKPKMIVDGTTYDLAVPMPTAAPALTVTGTGTGNVTSIAYVYTFVTAFGEESEPSALSNVAGWQSGQTRTLTGIQAPPAGRNITKQRFYRSQTGSGGTDLFFIEERAASAANFVDTHATNDFGEMLPSLEYNAPPDGLKGLISLPNGMMAAFTGKDLYFCEPFIPHAWPEKYILTMDYQIVALGAYGTTIVVMTEGLPYIVSGTAPENMQQQRVELNLPCINARGVIDLGYSVAYPSHDGLVMAGSNGMQVITEQLMTRNDWMKTGPGNIVGGQFNGRYFASYEYIEPSGAAFSGTLIFDTTGAAPFIIRSNHKADAFFHELQTGALYFLVGKEIFEWDALGQVNETLSWRSKQFVLPMPTNFGAILIEGSTAASEEEQAAYDAERQRIEVENATNFALPSIGGEMNGAEVNLFAVNGDMMQRLPAEGFVSVSIYADGKLVKTVSKMNRMARLPSGFLARIWEIEVNSNINISDIVLATTGQELRNV

Entity 5 polymer

描述 description	gp81 of phage GP4
分子量 formula_weight	23197.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J,K,L,S,W,a,e,i,m

MKPLDVFMPIIHRFAPGCPEPTAFAAIREAAIKFCERTRLWRCDDEFNVGADECAEVAVPYGAALYEMELVQFNGRNMRPVSTQWLDEQVPDWRTTTQSGQAQYVTQQSEDTLTFVPAEAGSVRVYGLLKPTLDADSLPDLLADTYRKTIADGALSELLIIPGKAWMSADLAVFFGTRFDRELDRLSTKTIKGQQRAPVRTRAQFF

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	39883

fit	/app/data/saxs_computation/jo/8jov/8jov.fit
pddf	/app/data/pr_computation/jo/8jov/8jov.pr.out
profile	/app/data/saxs_computation/jo/8jov/8jov.dat

Portal-tail complex of phage GP4

SAXS 散射曲线 SAXS Profile

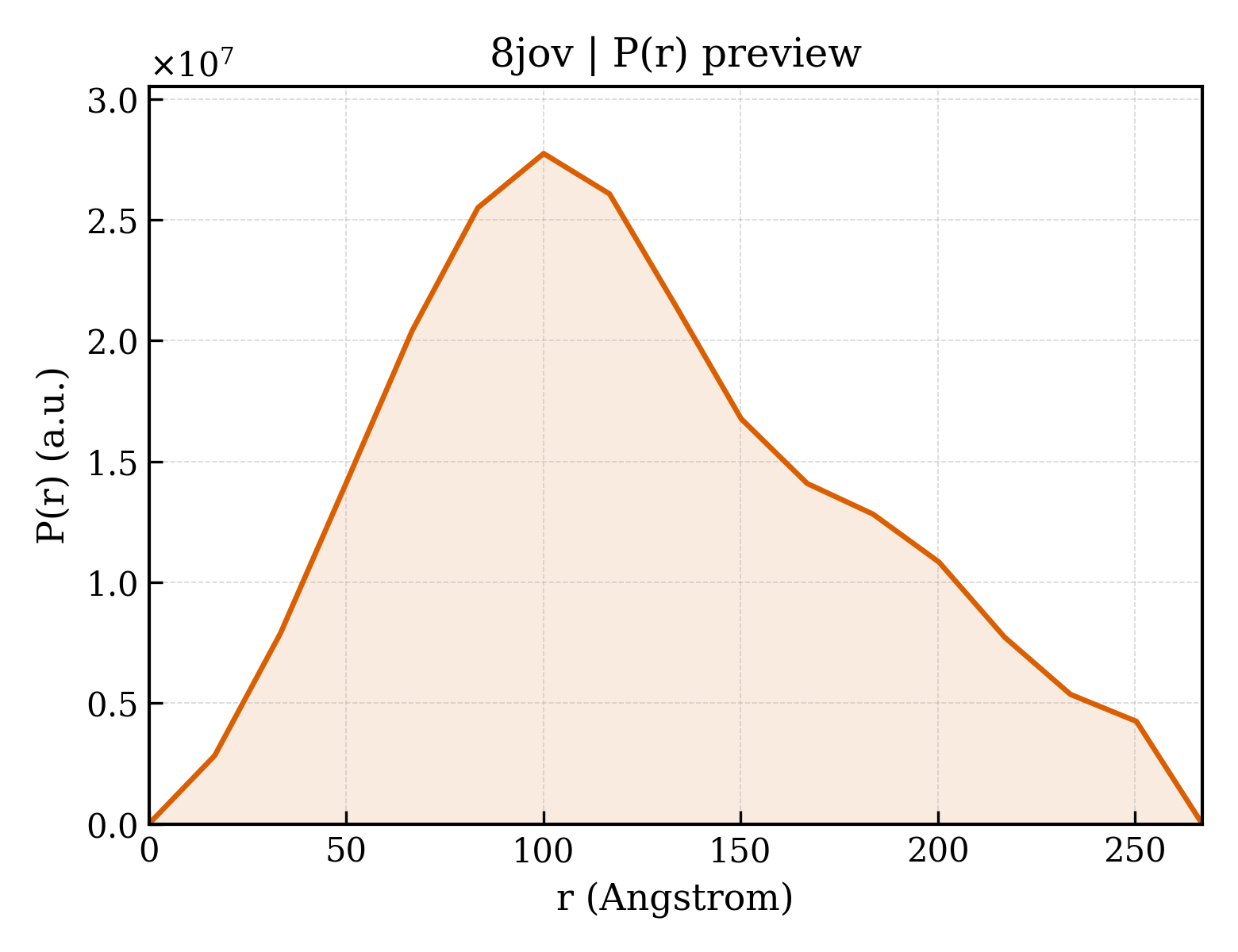

P(r) 距离分布 P(r) Distribution
