8jut

rat megalin RAP complex

Method: ELECTRON MICROSCOPY D_max: 353.0 Å Quality: GOOD

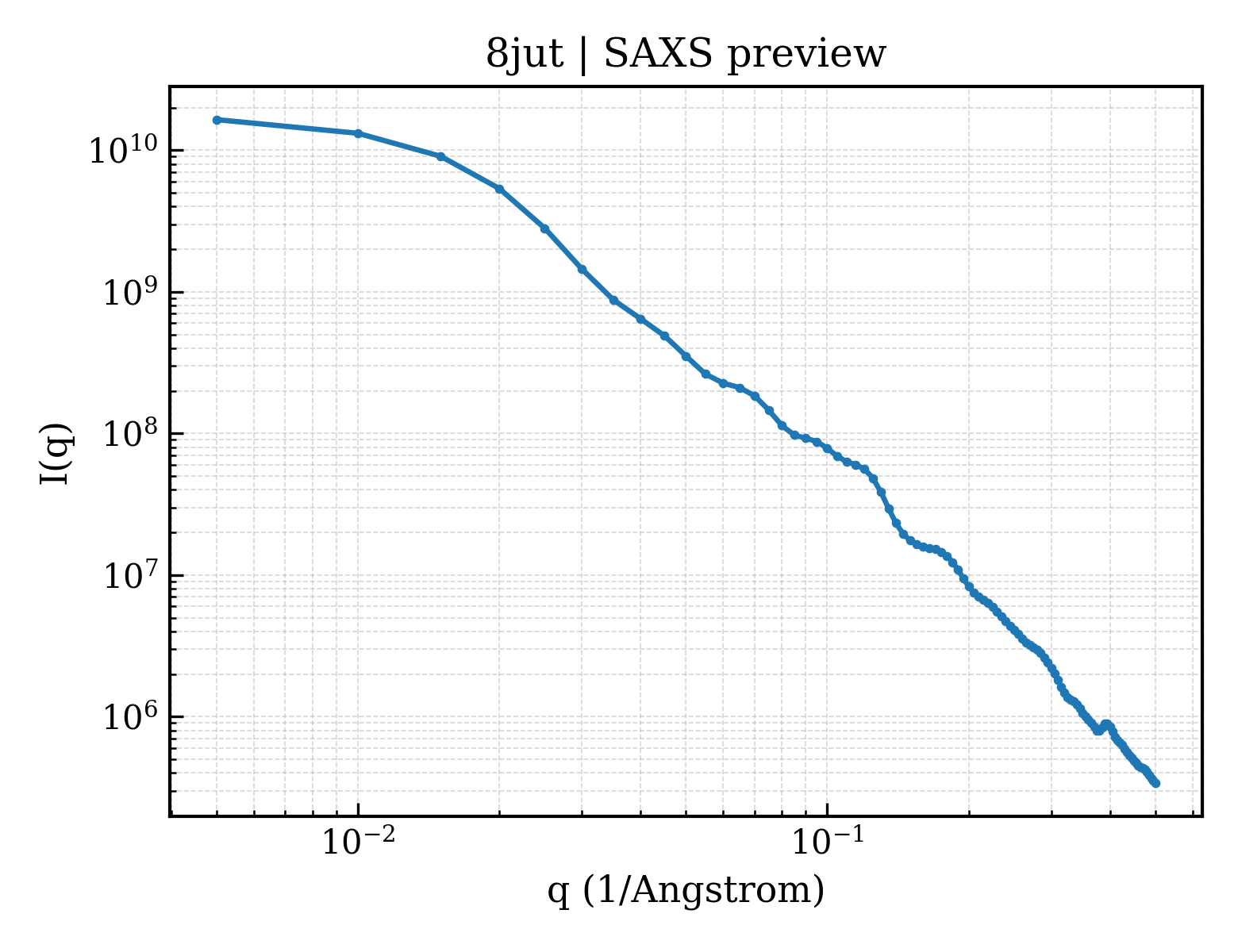

SAXS 散射曲线 SAXS Profile

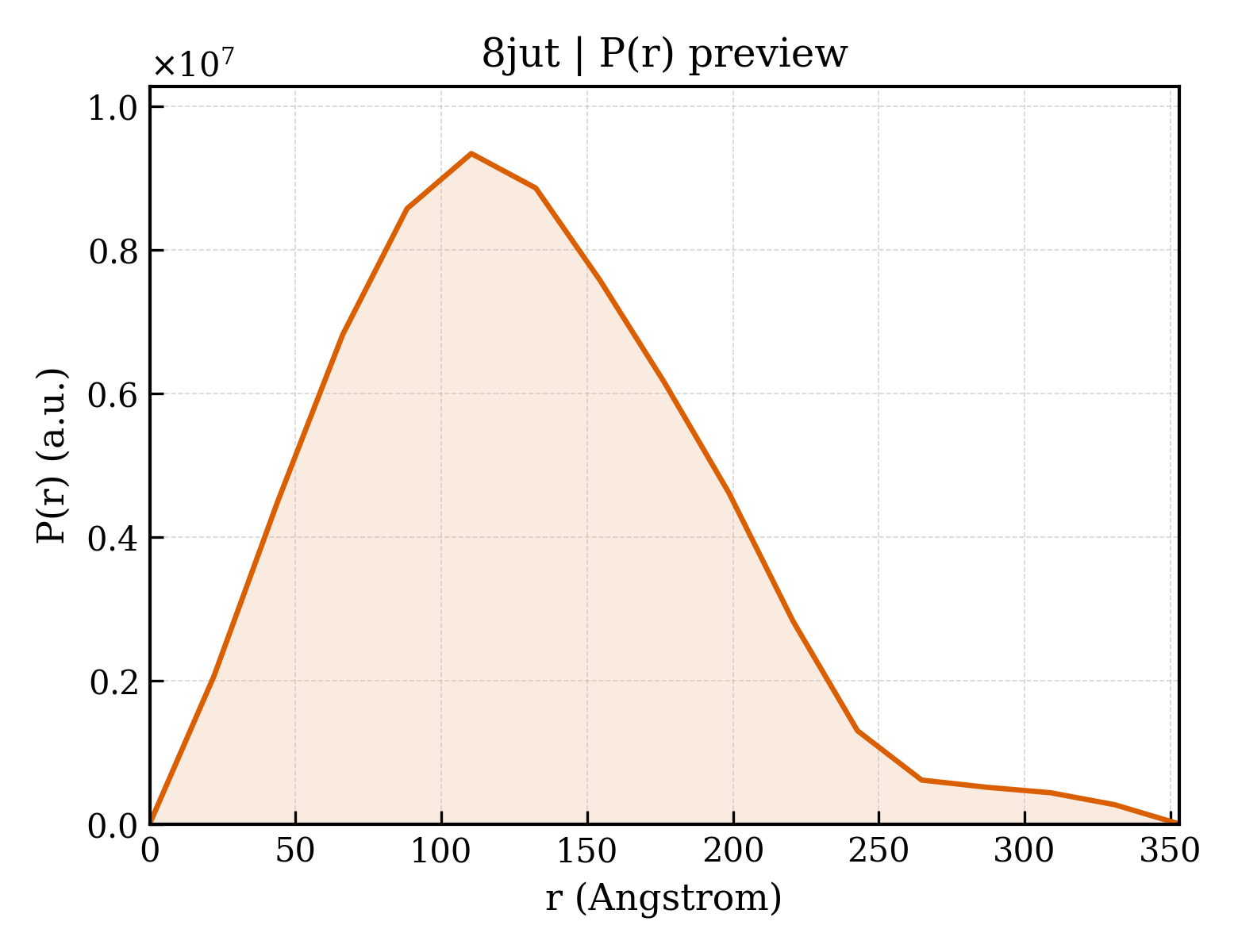

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8jut
沉积日期 deposition_date	2023-06-27
结构标题 title	rat megalin RAP complex
关键词 keywords	endocytosis receptor, ENDOCYTOSIS; ENDOCYTOSIS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	94.13 Å
回转半径 Rg (电子) rg_electron	94.03 Å
零角强度 I(0) i0	17688400000.00
分子量 molecular_weight	1051100.0 kDa
排除体积 excluded_volume	1279400 Å³
包络体积 envelope_volume	2671900 Å³
水化壳体积 shell_volume	241460 Å³
包络直径 envelope_diameter	276.5 Å
壳层 Rg shell_rg	89.43 Å
包络 Rg envelope_rg	87.26 Å
形状 Rg shape_rg	94.04 Å
总 Rg total_rg	93.97 Å
总原子数 total_atoms	73258
残基数 n_residues	9040
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	353.0 Å
Rg (实空间) rg_real	100.40 Å
Rg 误差 (实空间) rg_real_error	3.10 Å
I(0) (实空间) i0_real	1.7860e+10
I(0) 误差 (实空间) i0_real_error	4.1320e+08
Rg (倒空间) rg_reciprocal	94.61 Å
I(0) (倒空间) i0_reciprocal	17710000000.0000
解质量估计 total_estimate	0.8824
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	110.3 Å
偏度 Skewness skewness	0.525
峰度 Kurtosis kurtosis	0.167
角度范围 angular_range	— – 0.0800 Å⁻¹
当前正则化参数 α current_alpha	1.0630
最高正则化参数 α highest_alpha	732000000.0000
实空间数据点数 n_real_points	17
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.817; Stabil: 0.800; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.665

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (20)

Entity 1 polymer

描述 description	LDL receptor related protein 2
分子量 formula_weight	519871.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	73258

MERGAAAAAWMLLLAIAACLEPVSSQECGSGNFRCDNGYCIPASWRCDGTRDCLDDTDEIGCPPRSCESGLFLCPAEGTCIPSSWVCDEDKDCSDGADEQQNCAGTTCSAQQMTCSNGQCIPSEYRCDHVSDCPDGSDERNCHYPTCDQLTCANGACYNTSQRCDQKVDCRDSSDEANCTTLCSQKEFECGSGECILRAYVCDHDNDCEDNSDERNCNYDTCGGHQFTCSNGQCINQNWVCDGDDDCQDSGDEDGCESNQSHHRCYPREWACPGSGRCISIDKVCDGVPDCPEGDDENNVTSGRTCGMGVCSVLNCEYQCHQTPFGGECFCPPGHIINSNDSRTCIDFDDCQIWGICDQKCENRQGRHQCLCEEGYILERGQHCKSSDSFSAASVIFSNGRDLLVGDLHGRNFRILAESKNRGMVMGVDFHYQKHRVFWTDPMQEKVFSTDINGLNTQEILNVSVDTPENLAVDWINNKLYLVETKVNRIDVVNLEGNQRVTLITENLGHPRGIALDPTVGYLFFSDWGSLSGQPKVERAFMDGSNRKDLVTTKVGWPAGITLDLVSKRVYWVDSRYDYIETVTYDGIQRKTVARGGSLVPHPFGISLFEEHVFFTDWTKMAVMKASKFTETNPQVYHQSSLRPHGVTVYHALRQPNATNPCGSNNGGCAQVCVLSHRTDNGGLGYRCKCEFGFELDDDEHRCVAVKNFLLFSSKTAVRGIPFTLSTQEDVMVPVTGSPSFFVGIDFDAQHSTVFYSDLSKDIIYKQKIDGTGKEVITANRLESVECLTFDWISRNLYWTDGGLKSVTVLRLADKSRRQIISNLNNPRSIVVHPTAGYMFLSDWFRPAKIMRAWSDGSHLMPIVNTSLGWPNGLAIDWSASRLYWVDAFFDKIEHSTLDGLDRKRLGHVDQMTHPFGLTVFKDNVFITDWRLGAIIRVRKSDGGDMTVIRRGISSVMHVKAYDADLQTGSNYCSQTTHANGDCSHFCFPVPNFQRVCGCPYGMKLQRDQMTCEGDPAREPPTQQCGSLSFPCNNGKCVPSFFRCDGVDDCHDNSDEHQCGVFNNTCSPSAFACVRGGQCIPGQWHCDRQNDCLDGSDEQNCPTHATSSTCPSTSFTCDNHVCIPKDWVCDTDNDCSDGSDEKNCQASGTCQPTQFRCPDHRCISPLYVCDGDKDCADGSDEAGCVLNCTSAQFKCADGSSCINSRYRCDGVYDCRDNSDEAGCPTRPPGMCHLDEFQCQGDGTCIPNTWECDGHPDCIHGSDEHTGCVPKTCSPTHFLCDNGNCIYKAWICDGDNDCRDMSDEKDCPTQPFHCPSTQWQCPGYSTCINLSALCDGVFDCPNGTDESPLCNQDSCSHFNGGCTHQCMQGPFGATCLCPLGYQLANDTKTCEDINECDIPGFCSQHCVNMRGSFRCACDPEYTLESDGRTCKVTGSENPLLVVASRDKIIVDNITAHTHNLYSLVQDVSFVVALDFDSVTGRVFWSDLLQGKTWSVFQNGTDKRVVHDSGLSVTEMIAVDWIGRNLYWTDYALETIEVSKIDGSHRTVLISKNVTKPRGLALDPRMGDNVMFWSDWGHHPRIERASMDGTMRTVIVQEKIYWPCGLSIDYPNRLIYFMDAYLDYIEFCDYDGHNRRQVIASDLVLHHPHALTLFEDFVYWTDRGTRQVMQANKWHGGNQSVVMYSVHQPLGITAIHPSRQPPSRNPCASASCSHLCLLSAQAPRHYSCACPSGWNLSDDSVNCVRGDQPFLMSVRDNIIFGISLDPEVKSNDAMVPISGIQHGYDVEFDDSEQFIYWVENPGEIHRVKTDGSNRTVFAPLSLLGSSLGLALDWVSRNIYYTTPASRSIEVLTLKGDTRYGKTLIANDGTPLGVGFPVGIAVDPARGKLYWSDHGTDSGVPAKIASANMDGTSLKILFTGNLQHLEVVTLDIQEQKLYWAVTSRGVIERGNVDGTERMILVHHLAHPWGLVVYGSFLYYSDEQYEVIERVDKSSGNNKVVLRDNVPYLRGLRVYHRRNAADSSNGCSNNPNACQQICLPVPGGMFSCACASGFKLSPDGRSCSPYNSFMVVSMLPAVRGFSLELSDHSEAMVPVAGQGRNVLHADVDVANGFIYWCDFSSSVRSSNGIRRIKPDGSNFTNVVTYGIGANGIRGVALDWAAGNLYFTNAFVYETLIEVLRINTTYRRVLLKVSVDMPRHIIVDPKHRYLFWADYGQKPKIERSFLDCTNRTVLVSEGIVTPRGLAMDHDTGYIYWVDDSLDLIARIHLDGGESQVVRYGSRYPTPYGITVFGESIIWVDRNLKKVFQASKQPGNTDPPVVIRDKINLLRDVTIFDEHAQPLSPAELNNNPCLQSNGGCSHFCFALPELPTPRCGCAFGTLGNDGKSCATSQEDFLIYSLNNSLRSLHFDPRDHSLPFQVISVAGTAIALDYDRRNNRIFFTQKLNSLRGQISYVSLYSGSSSPTVLLSNIGVTDGIAFDWINRRIYYSDFSNQTINSMAEDGSNRAVIARVSKPRAIVLDPCRGYMYWTDWGTNAKIERATLGGNFRVPIVNTSLVWPNGLALDLETDLLYWADASLQKIERSTLTGTNREVVVSTAFHSFGLTVYGQYIYWTDLYTRKIYRANKYDGSDLVAMTTRLPTQPSGISTVVKTQRQQCSNPCDQFNGGCSHICAPGPNGAECQCPHEGNWYLANDNKYCVVDTGTRCNQLQFTCLNGHCINQDWKCDNDNDCGDGSDELPTVCAFHTCRSTAFTCGNGRCVPYHYRCDYYNDCGDNSDEAGCLFRNCNSTTEFTCSNGRCIPLSYVCNGINNCHDNDTSDEKNCPPHTCPPDFTKCQTTNICVPRAFLCDGDNDCGDGSDENPIYCASHTCRSNEFQCLSPQRCIPSYWFCDGEADCADGSDEPDTCGHSVNTCRASQFQCDNGRCISGNWVCDGDNDCGDMSDEDQRHHCELQNCSSTQFTCVNSRPPNRRCIPQYWVCDGDADCSDALDELQNCTMRTCSAGEFSCANGRCVRQSFRCDRRNDCGDYSDERGCSYPPCHANQFTCQNGRCIPRFFVCDEDNDCGDGSDEQEHLCHTPEPTCPLHQFRCDNGHCIEMGRVCNHVDDCSDNSDEKGCGINECLDSSISRCDHNCTDTITSFYCSCLPGYKLMSDKRSCVDIDECKESPQLCSQKCENVVGSYICKCAPGYIREPDGKSCRQNSNIEPYLIFSNRYYIRNLTTDGSSYSLILQGLGNVVALDFDRVEKRLYWIDAEKQIIERMFLNKTNRETIINHRLRRAESLAVDWVSRKLYWLDAILDCLFVSDLEGRHRKMIAQHCVDANNTFCFEHPRGIVLHPQRGHVYWADWGVHAYIGRIGMDGTNKSVIISTKIEWPNAITIDYTNDLLYWADAHLGYIEFSDLEGHHRHTVYDGSLPHPFALTIFEDTVFWTDWNTRTVEKGNKYDGSGRVVLVNTTHKPFDIHVYHPYRQPIMSNPCGTNNGGCSHLCLIKAGGRGFTCACPDDFQTVQLRDRTLCMPMCSSTQFLCGNNEKCIPIWWKCDGQKDCSDGSDEPDLCPHRFCRLGQFQCRDGNCTSPQALCNARQDCADGSDEDRVLCEHHRCESNEWQCANKRCIPQSWQCDSVNDCLDNSDEDTSHCASRTCRPGQFKCNNGRCIPQSWKCDVDNDCGDYSDEPIDECTTAAYNCDNHTEFSCKTNYRCIPQWAVCNGFDDCRDNSDEQGCESVPCHPSGDFRCANHHCIPLRWKCDGTDDCGDNSDEENCVPRECSESEFRCADQQCIPSRWVCDQENDCGDNSDERDCEMKTCHPEHFQCTSGHCVPKALACDGRADCLDASDESACPTRFPNGTYCPAAMFECKNHVCIQSFWICDGENDCVDGSDEEIHLCFNIPCESPQRFRCDNSRCVYGHQLCNGVDDCGDGSDEKEEHCRKPTHKPCTDTEYKCSNGNCISQHYVCDNVNDCGDLSDETGCNLGDNRTCAENICEQNCTQLSSGGFICSCRPGFKPSTLDKNSCQDINECEEFGICPQSCRNSKGSYECFCVDGFKSMSTHYGERCAADGSPPLLLLPENVRIRKYNTSSEKFSEYLEEEEHIQTIDYDWDPEHIGLSVVYYTVLAQGSQFGAIKRAYIPNFESGSNNPIREVDLGLKYLMQPDGLAVDWVGRHIYWSDAKSQRIEVATLDGRYRKWLITTQLDQPAAIAVNPKLGLMFWTDQGKQPKIESAWMNGEHRSVLVSENLGWPNGLSIDYLNDDRVYWSDSKEDVIEAIKYDGTDRRLIINEAMKPFSLDIFEDKLYWVAKEKGEVWRQNKFGKENKEKVLVVNPWLTQVRIFHQLRYNQSVSNPCKQVCSHLCLLRPGGYSCACPQGSDFVTGSTVQCDAASELPVTMPPPCRCMHGGNCYFDENELPKCKCSSGYSGEYCEVGLSRGIPPGTTMAVLLTFVIVIIVGALVLVGLFHYRKTGSLLPTLPKLPSLSSLAKPSENGNGVTFRSGADVNMDIGVSPFGPETIIDRSMAMNEHFVMEVGKQPVIFENPMYAAKDNTSKVALAVQGPSTGAQVTVPENVENQNYGRPIDPSEIVPEPKPASPGADEIQGKKWNIFKRKPKQTTNFENPIYAEMDSEVKDAVAVAPPPSPSLPAKASKRNLTPGYTATEDTFKDTANLVKEDSDV

Entity 2 polymer

描述 description	Alpha-2-macroglobulin receptor-associated protein
分子量 formula_weight	42112.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MAPLRDRVSTLPRLQLLVLLLLPLLLVPQPIAGHGGKYSREKNEPEMAAKRESGEEFRMEKLNQLWEKAKRLHLSPVRLAELHSDLKIQERDELNWKKLKVEGLDGDGEKEAKLVHNLNVILARYGLDGRKDTQTVHSNALNEDTQDELGDPRLEKLWHKAKTSGKFSSEELDKLWREFLHYKEKIHEYNVLLDTLSRAEEGYENLLSPSDMTHIKSDTLASKHSELKDRLRSINQGLDRLRKVSHQGYGPATEFEEPRVIDLWDLAQSANFTEKELESFREELKHFEAKIEKHNHYQKQLEISHQKLKHVESIGDPEHISRNKEKYVLLEEKTKELGYKVKKHLQDLSSRVSRARHNEL

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	unclear peptide
分子量 formula_weight	528.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,N

XXXXXX

Entity 4 polymer

描述 description	unclear peptide
分子量 formula_weight	472.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,O

XNXXX

Entity 5 polymer

描述 description	unclear peptide
分子量 formula_weight	556.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,P

XXLXXX

Entity 6 polymer

描述 description	unclear peptide
分子量 formula_weight	291.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,Q

XCX

Entity 7 polymer

描述 description	unclear peptide
分子量 formula_weight	531.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,R

XEEXX

Entity 8 polymer

描述 description	unclear peptide
分子量 formula_weight	472.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,M,S,T

XXNXX

Entity 9 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	13

Entity 10 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 11 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 12 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	10

Entity 13 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 14 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 15 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 16 branched

描述 description	beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 17 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	22

Entity 18 non-polymer

描述 description	2-acetamido-2-deoxy-alpha-D-galactopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	24

Entity 19 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	88

Entity 20 non-polymer

描述 description	NICKEL (II) ION
分子量 formula_weight	58.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	67775

fit	/app/data/saxs_computation/ju/8jut/8jut.fit
pddf	/app/data/pr_computation/ju/8jut/8jut.pr.out
profile	/app/data/saxs_computation/ju/8jut/8jut.dat
