8kea

Cyanophage A-1(L) baseplate-initiators

Method: ELECTRON MICROSCOPY D_max: 236.4 Å Quality: GOOD

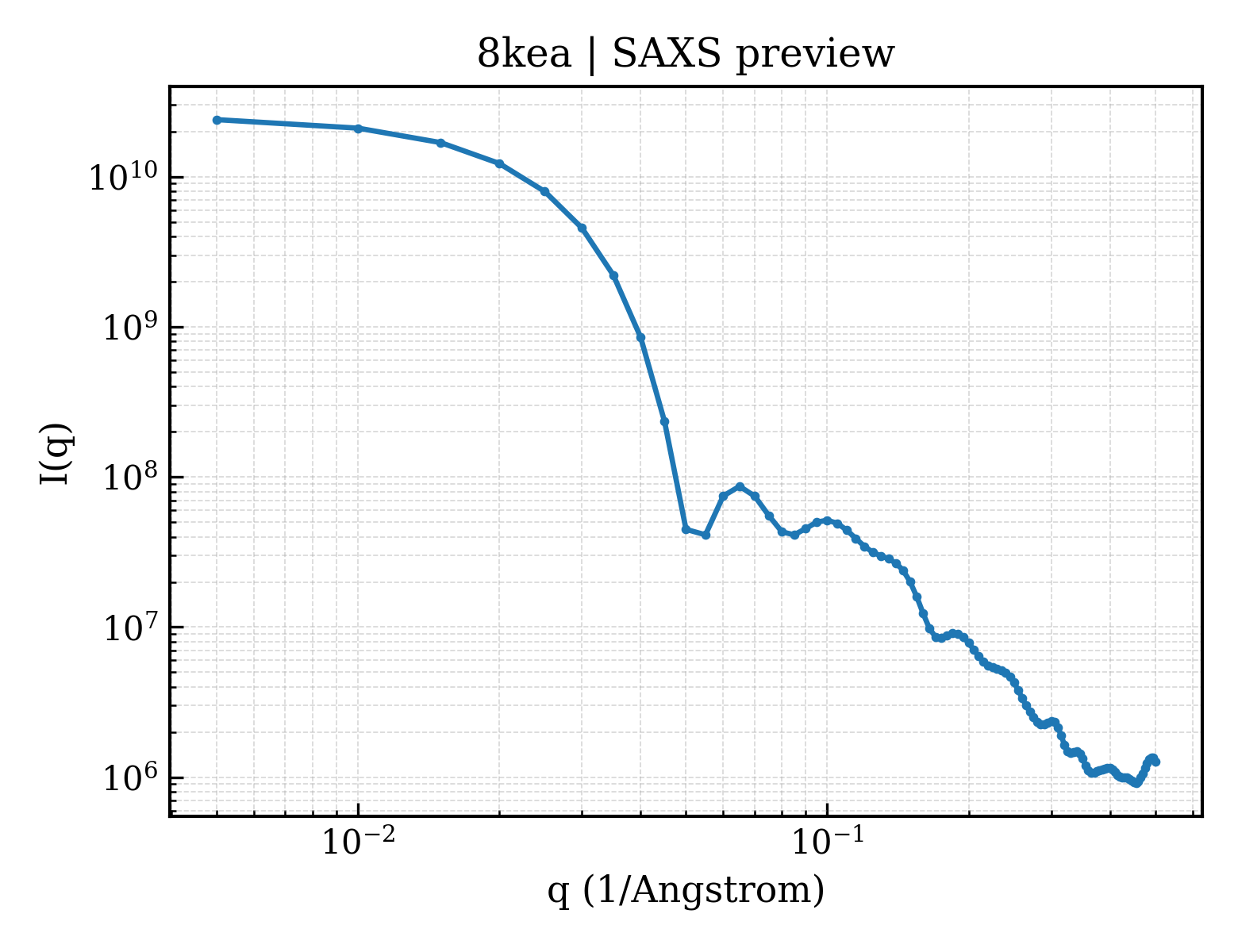

SAXS 散射曲线 SAXS Profile

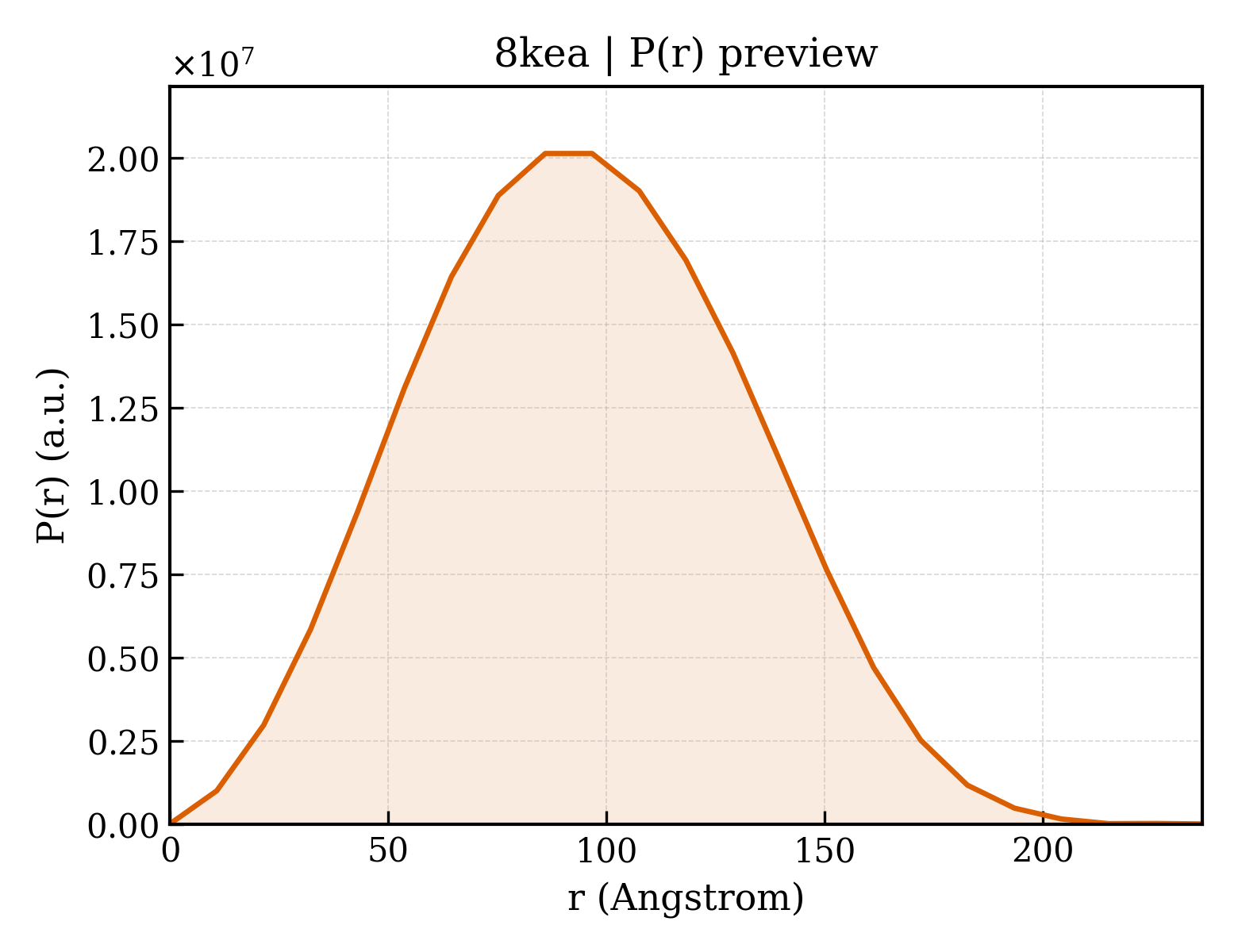

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8kea
沉积日期 deposition_date	2023-08-11
最后修订 last_revision	2024-04-10
结构标题 title	Cyanophage A-1(L) baseplate-initiators
关键词 keywords	baseplate, virus, viral protein; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.13 Å
回转半径 Rg (电子) rg_electron	71.84 Å
零角强度 I(0) i0	25049000000.00
分子量 molecular_weight	1377600.0 kDa
排除体积 excluded_volume	1735000 Å³
包络体积 envelope_volume	2543800 Å³
水化壳体积 shell_volume	271080 Å³
包络直径 envelope_diameter	244.0 Å
壳层 Rg shell_rg	86.09 Å
包络 Rg envelope_rg	70.43 Å
形状 Rg shape_rg	71.86 Å
总 Rg total_rg	71.92 Å
总原子数 total_atoms	97165
残基数 n_residues	12456
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	236.4 Å
Rg (实空间) rg_real	71.80 Å
Rg 误差 (实空间) rg_real_error	1.29 Å
I(0) (实空间) i0_real	2.5050e+10
I(0) 误差 (实空间) i0_real_error	5.4240e+08
Rg (倒空间) rg_reciprocal	73.21 Å
I(0) (倒空间) i0_reciprocal	25120000000.0000
解质量估计 total_estimate	0.8543
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	225.7 Å
偏度 Skewness skewness	0.123
峰度 Kurtosis kurtosis	-0.452
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0009
最高正则化参数 α highest_alpha	8781000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.805; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.911; Smooth: 0.776

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	hub
分子量 formula_weight	98390.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	97165

MQDPIIKILIGNDTFLLGQEIIDLDFQIGEGKKQNNINFTIFDKDGFFADKYISTSYAQGGIDLPIDFLENPDDAKDTNSASTATEVDSVGNGTVSRSGVFTPKIRAFLDTIASKETAPGTALNIEGYRSVSGSSTLFDESEMVAGGFPRSQGSKNIGRYQFTVIDYNHARSKYPNINNYSPQNQDLLAYFKLQHRNVLPYLLRDDLDNAIDKASYEWASFPGIGKPQGQFNQVQSGTTIASLKSYYETRLAYYRSLEAGSDFQASAPKDTTNNQYAGKEYKTIRTLSNSTTASFYGYNDGFDSSDLTANGERFNPEGITAAHESLPFGTLVKVTWAVNNKSVVVRINDRGAFVRLGRQIDLSYGAAKALSSPGNDAIAAGLLTVKLEVVELRTPIGENLKESAKNQIAENLEKIKKNQKELATPEISAKGTQITLEVSIDRSAIAVFSFLHTGTKHNAIISDTTTFTGQSVNWVLNRRVKNTRYTGVTLKGLAATITRQYGLDLDMSEEGEMIENISQVSQTDWQFLEKMTAIQGFGMRTVGKVLQIYKITVNAKKLNYTISVVDNVKSLIVTDQAQTDATGSSQKIEHYGGRMTTVVDADSGSLIKVDKDNKREAGSAARTFTTGVDVPQPQIQKQYSNPRPEGASVKEFQLQLELHTSQSDLENLTPDTALYIENTLPFIVGKSWFIESVRHSFSEGIFTSQVSAYIPVAPKAIATDSGEQNSVVFDNSQSASQGVGKLPVYEILSYRSGRTVKKITSLQQSYEHWRGTGGYTAYKQLSGFSSPVSYMKGRPNQLVYDFILQQNGNQSCPVPSPASGRVVATGGSNGMVKIDTGGGEVRLLHMSNIRVKPGQNVIRGTILGTQASVGGTSTGTHLHIEANQFILESYVQSLVTGNW

Entity 2 polymer

描述 description	central spike
分子量 formula_weight	29607.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F

MIVDEFSSVYECLLYCYKMVKRSEQLNGRRVFPILSVVTNNNDPEGRRRVKIADPLFGNLIESNWIRPIRVSQNQDNPLPQINQMVIVWFVDGDSEKGYYLPIINDANPSREKDDPVNDSAVRIEGNNTIRIDKNDSETVGGNQTVAIAGEQNINVDGNLIENIGGDIDQNVTGKIEVRSESTILIDADGTIIIKNDSGAFISLGGNGEVLIQDSQGRKIRLGGAFNSTWDLNGLPMAFINATSVTIAGKQIATVGAVDTRGDTIVNKGW

Entity 3 polymer

描述 description	tmp
分子量 formula_weight	73969.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I

MANRQHVISVDLRLLTGNFDSSLNYIQGRLNGVFGVVSDNATNSFFGNGGFLSSYLWNQAFNAIQMAGIAAFRAIGNEVKRAISYQDNLISMATSYKGLLNLTTKEAFGLARESNIIFQQRNVGLPTFGNFGTQLRAQYGDDFLSAFYDQNNMKGSLERTADMIGRTTVLLGSISGVTNYQRTSFLSNFLSDDFKKLQRLEVFRNSPQLQRAFNSQVDSIGGEQGFNALTRKDRLLLLENIAAIAVDDDIIKAYKDSLGGVLSRLGQELFGDIGIFSFTRDLIFGLPNTSILNSITFFMKEVFAPDGVFGLIKPALQGIVDTVLIGTKFILDRTSFIFMGLNALARVLQPIAPLIYATSSALTVLAAVGLANTIKSAVQGYLISSGAAMLGGRMGMAAMFGMGGDLVGLKTLGTLGLGKLIAPLGFLTMGLDKLADVGWLAISGGFAKAALGIKTFGMSLWAIVANPAFLTIAGIVGAIALAGYTLWKYWEPIGDFLQGFWIGFKAGLPILDQIESVLQSIGQALSPITEGFKNMASAMQPVLDGFTKFFNLQQEKGGENYVKQGVNFGDAASGVTRTILSNPLINPFSGFFGLFGNPAQNKADGDPQSVMSAINDERRKMPSGASLVIANSSENVFTRSQTQQLASAGRGSTVINNTFNISGADPQAIAKQIADIINSQWQGTLTDYA

Entity 4 polymer

描述 description	baseplate gp16
分子量 formula_weight	17151.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,K,L,M,N,O

MTTQEFLSKNKTIESELLDLLIKPNTDDSILTRNKQAIADRDLFDIEWEPGQSLNKLATEYLGDSFAWQIIADANGIDPTKEIDIGAGLKVPDQKALENSIKKFIVNSPTGKQLISDAKQSILNLIGVGDSNTEFSKTLKDCIGKVVNFSFDNTQ

Entity 5 polymer

描述 description	tube initiator
分子量 formula_weight	31966.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,Q,R,S,T,U

MSKFLKNRAVVNGLPVIKNPGKYQHCYLIEYEDSTNVKQTPTENKNKQQQGFPVYLFMMNPENITYNLPINYQEIAIPFTAKNQLNYSNGGNIVMTMSNLILDTMDEKRSLQPLIDRLIALREPTVKKGLKSHPKILAFKWGSNTFAPCVLTNISFDVTRWIDGYPTKARVNMSLKEIQKPSSDSKALEEAKKKVKVETVQNGNLKKTLSEKQLIDGVKRVTEYLKKNISFQPRTIQNILSDPKSVIKIDKDTGQVSLFNGNGEFAALVGTYNGDIFSPSRQ

Entity 6 polymer

描述 description	sheath initiator
分子量 formula_weight	12997.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,W,X,Y,Z,a

MYVYPPRIINGTLYKSTDLAEYTRGKILQTLSIVRGELVADPFFGVPLRLFSNINDYQSDVSKIQIILEEEITEAQFIVTGDLKNNGIVSLTVYWAYLGTENIENFEIDTSNIF

Entity 7 polymer

描述 description	wedge protein gp31
分子量 formula_weight	42385.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b,d,e,g,h,j,k,m,n,p,q,s

MTTDLNAPQLVVDDYEQLIIDSLVHTNVVSNGEFTDLDASGFMRPFAGTMAYAGSELLYKANLASIAAAKSFFKNVLGVPEDTGTKATTTLQFGLSASLSTDFIVPINFQVSDLSGTLRFYTIGNLVIPAGATFGTIEAIAEDIGEKYNVSANFIDQYSTPLTYLQYVTNIRPATNGRSGETIDNLIERCAQIIRIRNPVSALDFEQLAELTMGEGSRCKAIGLLGINKIVTDPQPGVVHLFLLDVNGNPADPVTISTVGATLQPRIMLGTRLLISPMEVLNIELELIALSDSSKTFQQLADDILEALKVFFNPANLTPGEPVLIEEVKFAIRSVGGLSISYLQMNDNAINIPMPNQWTIPRFSYIGFELTDSEGTVYRDNVVTVTNPEE

Entity 8 polymer

描述 description	wedge protein gp32
分子量 formula_weight	22423.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c,f,i,l,o,r

MSKDAFTAWNVDRRPIYSRMPKEQVGTSYHDYIATDWLTAYWDKIFIECYDKLEDLPRQFDPLQCDEEYLDFLAPLCGWTAPYWSGDYPPESKRVLLANSYSLIWRDKGSLTVLSFVLNALFINHRIFVPGSFILGQSQVSEDTLGAAGWEFEILLPRDYAENGYEFRLTLKIASLFSPLWCKYRVRYDNL

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.44 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	41062

fit	/app/data/saxs_computation/ke/8kea/8kea.fit
pddf	/app/data/pr_computation/ke/8kea/8kea.pr.out
profile	/app/data/saxs_computation/ke/8kea/8kea.dat
