8oor

CryoEM Structure INO80core Hexasome complex Rvb core refinement state2

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RuvB-like protein 1

Thermochaetoides thermophila

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	RuvB-like protein 2 × 3 （G0RYC2） Chromatin-remodeling ATPase Ino80 × 1 Ino eighty subunit 2 × 1 （G0RY01） Chromatin-remodeling complex subunit IES6 × 1 （G0S590） Actin-related protein 5 × 1 （G0S589） ADENOSINE-5'-DIPHOSPHATE × 6 ADENOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G0RYI5_CHATD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–462； UniProt 1–462 Author chain B； PDBConstruct 1–462； UniProt 1–462 Author chain C； PDBConstruct 1–462； UniProt 1–462

RuvB-like protein 2

Thermochaetoides thermophila

UniProt G0RYC2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	RuvB-like protein 1 × 3 （G0RYI5） Chromatin-remodeling ATPase Ino80 × 1 Ino eighty subunit 2 × 1 （G0RY01） Chromatin-remodeling complex subunit IES6 × 1 （G0S590） Actin-related protein 5 × 1 （G0S589） ADENOSINE-5'-DIPHOSPHATE × 6 ADENOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G0RYC2_CHATD
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–488； UniProt 1–488 Author chain E； PDBConstruct 1–488； UniProt 1–488 Author chain F； PDBConstruct 1–488； UniProt 1–488

Ino eighty subunit 2

Thermochaetoides thermophila

UniProt G0RY01

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	RuvB-like protein 1 × 3 （G0RYI5） RuvB-like protein 2 × 3 （G0RYC2） Chromatin-remodeling ATPase Ino80 × 1 Chromatin-remodeling complex subunit IES6 × 1 （G0S590） Actin-related protein 5 × 1 （G0S589） ADENOSINE-5'-DIPHOSPHATE × 6 ADENOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G0RY01_CHATD
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–492； UniProt 1–492

Chromatin-remodeling complex subunit IES6

Thermochaetoides thermophila

UniProt G0S590

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	RuvB-like protein 1 × 3 （G0RYI5） RuvB-like protein 2 × 3 （G0RYC2） Chromatin-remodeling ATPase Ino80 × 1 Ino eighty subunit 2 × 1 （G0RY01） Actin-related protein 5 × 1 （G0S589） ADENOSINE-5'-DIPHOSPHATE × 6 ADENOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G0S590_CHATD
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–219； UniProt 1–219

Actin-related protein 5

Thermochaetoides thermophila

UniProt G0S589

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	RuvB-like protein 1 × 3 （G0RYI5） RuvB-like protein 2 × 3 （G0RYC2） Chromatin-remodeling ATPase Ino80 × 1 Ino eighty subunit 2 × 1 （G0RY01） Chromatin-remodeling complex subunit IES6 × 1 （G0S590） ADENOSINE-5'-DIPHOSPHATE × 6 ADENOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G0S589_CHATD
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain J； PDBConstruct 1–769； UniProt 98–866

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8oor
Deposition date deposition_date	2023-04-05
Structure title title	CryoEM Structure INO80core Hexasome complex Rvb core refinement state2
Keywords keywords	ATP-dependent chromatin remodeler, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8oor__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8oor__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

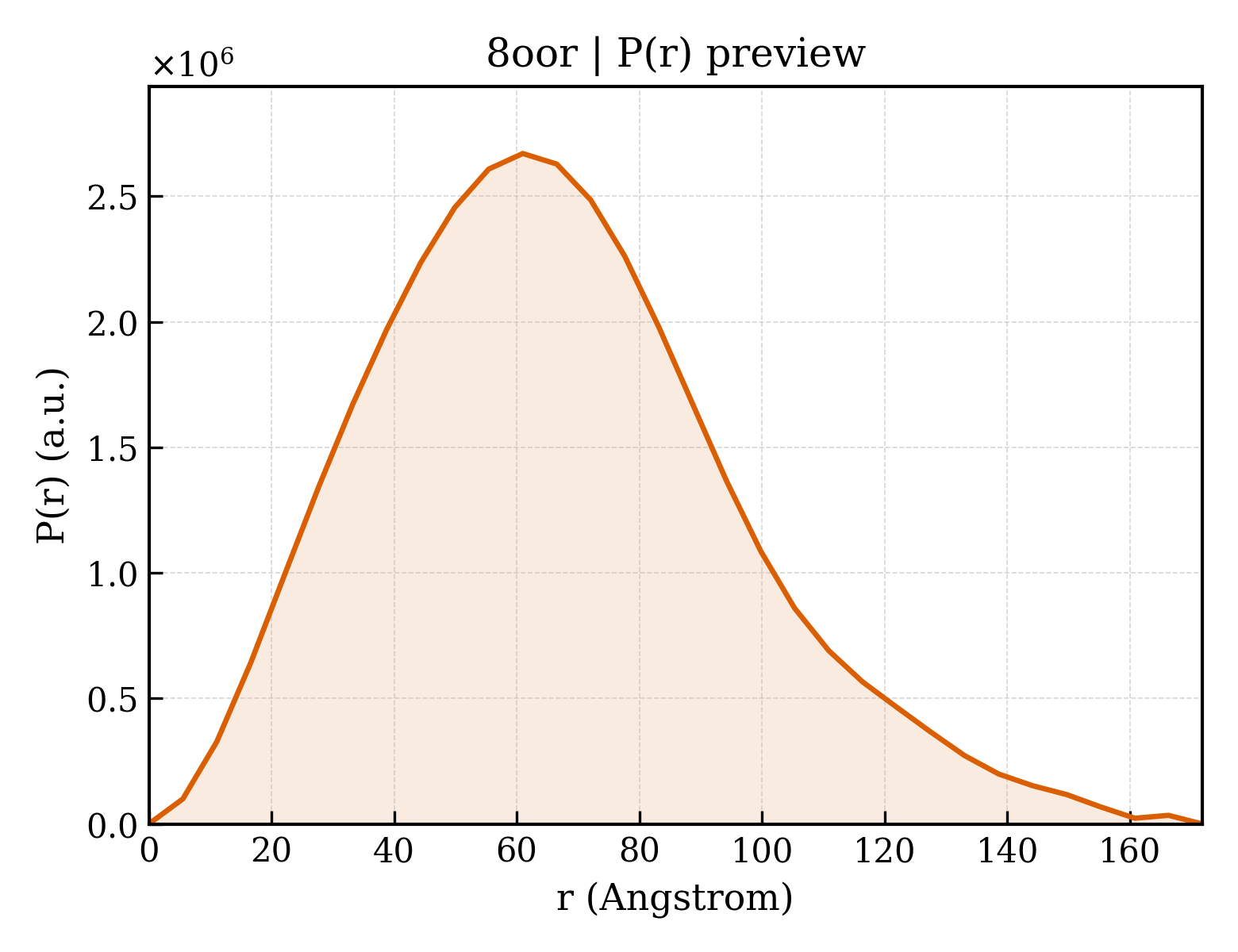

8oor__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.04 Å
Rg (electron density)	50.73 Å
Total Rg	50.73 Å
Atom count	28371
Residues	3626
Excluded volume	505070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8oor__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	RuvB-like protein 1
Molecular weight formula_weight	50451.8 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	28371

MVQISEVRGNTRDHRTAAHTHIKGLGLNSSGIAEKQAAGFVGQCAAREACGVVVDLIKAHKMAGRGVLLAGGPGTGKTALALAISQELGTKIPFCPITGSEIYSTEVKKTEVLMENFRRAIGLRVRETKDVYEGEVTEMTPEEAENPLGGYGKTISTLLIGLKSARGQKKLRLDPSIYEAIQKERVQVGDVIYIETNTGACKRVGRSDAYATEFDLEAEEYVPIPKGEVHKKKEIVQDVTLHDLDVANARPQGGQDIISMMGQLMKPKMTEITDKLRMEINKVVQKYINQGVAELIPGVLFIDEAHMLDIECFTYLNKALESPIAPIVVLASNRGIATIRGADDLKAAHGIPPDFLQRLLIIPTHPYEPDEIRRIVRIRAQTEGVQLTDAAVDRVAEHGVRISLRYCLQLLAPASILARVNGRTQVDVQDIAEAEELFLDARRSANILTSTGESGGLHGFIS

Source Source

Source organism organism	Thermochaetoides thermophila
NCBI taxonomy ID ncbi_taxonomy_id	209285
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	RuvB-like protein 2
Molecular weight formula_weight	53212.7 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

MAAPLVTSVTETKELRGLNLIAAHSHIRGLGVDADTLEPRPSSQGLVGQEKARKAAAVVLEMIKQGKIAGRAVLIAGPPSTGKTAIAMGMAQSLGQDVPFTTLAASEIFSLEMSKTEALTQAFRKSIGVRIKEESEIMEGEVVEIQIDRSVTGGAKQGKLTIKTTDMEAIYDMGSKMIDAMTKERVMAGDIISIDKSSGKITKLGRSYARSRDYDAMGVDTKFLQCPEGELQKRKEVVHTVSLHEIDVINSRTQGFLALFSGDTGEIRSEIRDQINTKVAEWKEEGKAEIVPGVLFIDEVHMLDIECFSYINRALESDLAPIVIMASNRGVSRIRGTDYKSPHGLPLDFLDRVVIINTHPYTPDELRQILSIRAQEEEVDLTPDALALLTKIGQEAGLRYASNLITTSQLIAAKRRAKQVGVEDVQRSFKLFYDPARSVRFVQESEKRLIGNDGVVDFSYQGAAEAAAPTLPAAAPVDPVGGEKMDMS

Source Source

Source organism organism	Thermochaetoides thermophila
NCBI taxonomy ID ncbi_taxonomy_id	209285
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Chromatin-remodeling ATPase Ino80
Molecular weight formula_weight	130887.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

LELKFQSKGYNQIYDQIWRDLARKDVSKVFRLATDSYATKASNLKKTAILASKEAKRWQLRTNKGTKDLQARAKRVMRDMMGFWKRNEREERDLRKAAERLELENARKEEADREAARQRRKLNFLISQTELYSHFISKKIKTHEVERSTDHPDVATDEKDKIPEPTLNINVPEPTGPIAPKVTDFNSLDFDNEDESALQAAAMANAQNAIAEAQKKAREFNKDETKLDEDGEMNFQHPELTEFEVAQPKLLNCQLKEYQLKGLNWLVNLYEQGINGILADEMGLGKTVQSISVMAYLAERYDIWGPFLVVAPASTLHNWQQEVSKFVPDFKVLPYWGTAADRKVLRKFWDRKHTTYKKDSPFHVMITSYQLVVSDVAYFQKMKWQYMILDEAQAIKSSQSSRWKCLLGFHCRNRLLLTGTPIQNNMQELWALLHFIMPSLFDSHDEFSEWFSKDIESHAQSNTKLNEDQLKRLHMILKPFMLRRVKKHVQKELGDKIEIDVFCELSYRQRAMYQSLRNQISIMDLIEKATVGDNEDSATLMNLVMQFRKVCNHPDLFERADTSSPFFCGHFAETGSFLREGTNVALGYSTRSLVEYRLPRLIWCDGGRLDKPGPGNLVAGFRSKYLNHMMNIWTPENIRSSLEGIENFTWLRFVDTSLQEAYRASHTDVFARAVDLASKQNRLGHMQIVYDEPEDKKWTPVHALFQICERENPKAVAEITTEGVLRDLMNIARVKYRELGLCRLEKAARPRASAPPIEVVCDSRSAVIERENIMFHPAMRKALFGPTPSEIKEASFGPRPVTLYPPRALLPAPDHDKQRFTNITVPSMARFVTDSGKLAKLDELLRELKEGGHRVLLYFQMTRMIDLMEEYLTYRNYKYCRLDGSTKLEDRRDTVADFQTRPEIFIFLLSTRAGGLGINLTTADTVIFYDSDWNPTIDSQAMDRAHRLGQTKQVTVYRLITRGTIEERIRKRALQKEEVQRVVITGTGSVDFSGRRPPENRNRDIAMWLADDEQAEMIERREKELIESGEYDKIMQQRRKGGKRKRGAANGDTVPSLEDMYHEGEGHFDDNKGSGAATPVDADSLGRGGKRKKAGGSKKAKTTKQRLAIADGEIDIDYKDDDDKGTDYKDDDDK

Source Source

Source organism organism	Thermochaetoides thermophila
NCBI taxonomy ID ncbi_taxonomy_id	209285
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Ino eighty subunit 2
Molecular weight formula_weight	53346.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MSTRPRRHAAQRASQAITDLADRDRESDHSHGPISSRMSSFNSSSRSRLPGKGIASVSRSEAGGASDPEHIHLTVKLPSSKLRQATSSSGIKKAGSVGSSSSSSGGGKAAVKRARGGKRSRVLESSEEEEEENEVEVLGDEDEEEEEEEDEIEVREGEGYDEDEEDVEDEDEEMQDLGEEDADGEDDEMDVDAEGEEDADGDVNMDAGVVGARATTVRAVPPAIKVTKPPKESPSNGKAATASKANDNAVPVKRPAPDSDDESLSSLESEPEEEVNVAGGEDAEGEDDDAEGEVDAEGEEEEEEEEIEVADEDAEGEDVEQDEDEDEEEEDDDDEMISRAQTPDMSRLTARQRARLGEASGEYLKLSDEVQSKKHFTAEELSMRRAEMARRRRNLSEKRNEEIKMETVNKLLKKQAPRTTRRAAQAAAAAEEAEEAAKQPKRPDPMMIRWVNNKMGSVVAVPEELLGTHAGVVFGAGPGKGLPAGKMVEEVS

Source Source

Source organism organism	Thermochaetoides thermophila
NCBI taxonomy ID ncbi_taxonomy_id	209285
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	Chromatin-remodeling complex subunit IES6
Molecular weight formula_weight	23127.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MSNPDAQSAQAAHQALVEQLDLHSIHKTFRNPNWRPNQRRNKTIKAILGESQRKEASSTSAVATPRADDNGGGSGADTPANNDNNDGLSTSGTSTPANGNGSGAGTPASNGQPNLAQASRSLQKLVLEKSLASAQAPDKKAANGFASSAPTATYTNIESAPSLAPMKHYCDVTGLPAPYLDPKTRLRYHNKEIFAMIRNLPQGMGEQFLEARGAHTVLK

Source Source

Source organism organism	Thermochaetoides thermophila
NCBI taxonomy ID ncbi_taxonomy_id	209285
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	Actin-related protein 5
Molecular weight formula_weight	87773.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MAPSAVAEPPPIPQRDEPWKRLPPPTVYPVKEARFEKYIPPQLDGRERALAQPPGQVAIVIDNGSHSVRAGWNFEDKPRLAIPPIMSKYRDRKMGKTFSFAGSDCYADTTARSHIRNAFEAGTGIVSNWDVMEHVLDYVFVKLGMNECDGAIDMPIVMTEAVANLPYSRKSMSEIIFECYGAPSLVYGIDSLFSFRHNQGQTGLVVSSSYSATHVIPVYNRKALLSQAIRLNWGGWHMAEYMLKLLKLKYYTGFPGKLNSSQTEHMVRDFCYVSLDYDRELAGYLDWTGLEDRERIVQYPYTEEVVVQKTEEELARIAERKKESGRRLQEQAAKMRLERLMKKEQELEYYKDIQRRMQGESKKEIKRLLDEAELKDEAALERVIRDLERSIKRARQKDLGEPEEEEVPDFSLLDVPDDQLDEAGLRQKRQQRLLKSNWEARQRAKAEKEAEKARLAEEARLDEERRKNDLEGWLEEKRQLRLAKLNQLKERERLKADLGNRKSLASQIRMKNIANLASDNPTGSGSRKRRRGGAGADQDDDFGADDADWGVYRSVAIGANKGDDSDDEEGEEDLEAAIRSLENDLLRYDKTFSYDMTLDAQRDWSKSLLHAFRYGPRPFDPSSQAETHRVHLNVERIRVPEVLFQPAAIAGVDQAGLVEIAGDILCQRLPSLPGIQDAPDAFLRDVFLTGGNTLFQNFDERLRQGLMALLPVGAPLRVRRAQDAILDAWRGAAGWACTEEAKAAWITREEYLEKGGEYIKEHDLGNAFA

Source Source

Source organism organism	Thermochaetoides thermophila
NCBI taxonomy ID ncbi_taxonomy_id	209285
Host organism host_organism	Trichoplusia ni

Entity 7 Entity 7 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 8 Entity 8 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.87 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	98967
