8opl

Virus-like Particle based on PVY coat protein with T43C and D136C mutation with helical architecture encapsidating ssRNA

Method: ELECTRON MICROSCOPY D_max: 186.4 Å Quality: GOOD

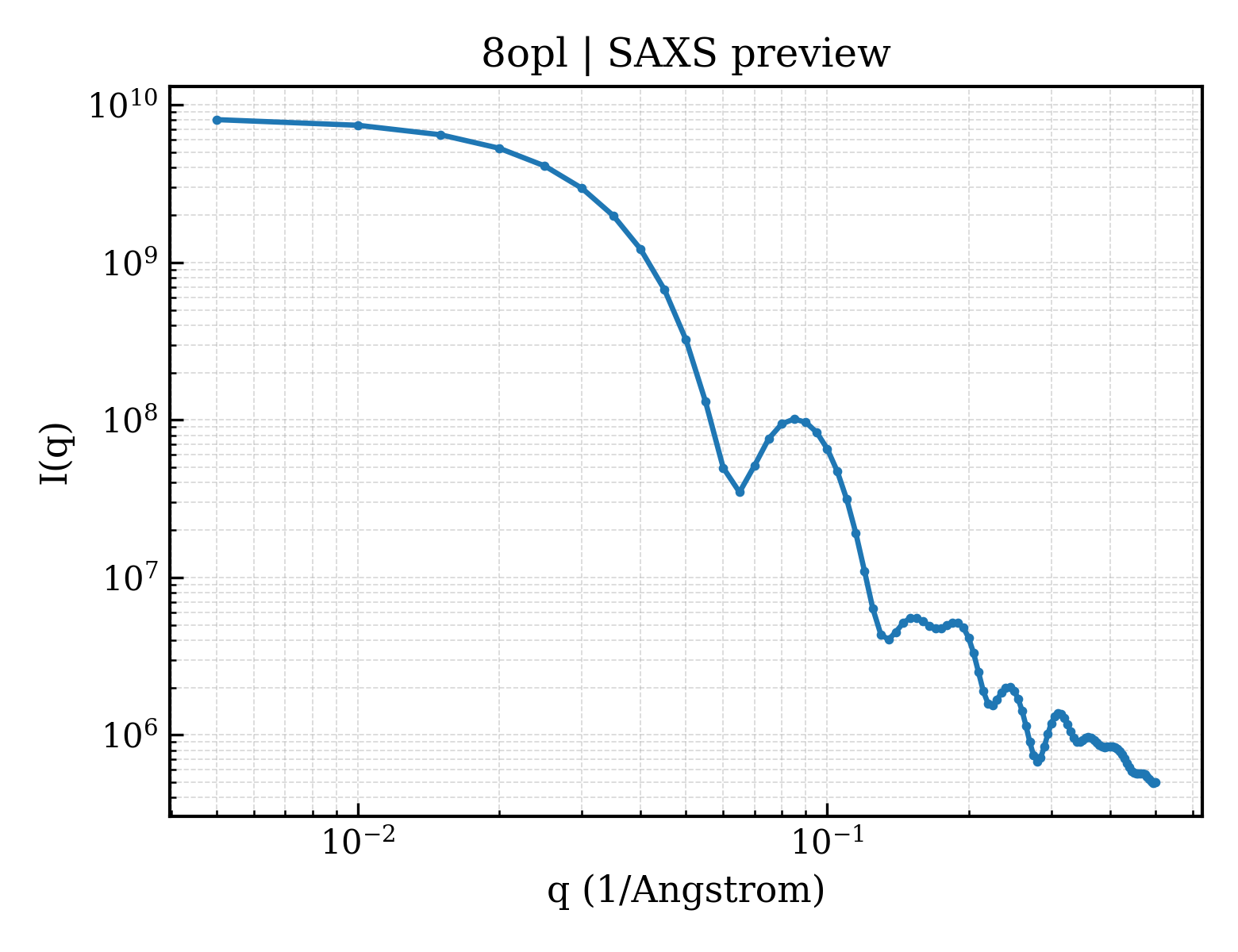

SAXS 散射曲线 SAXS Profile

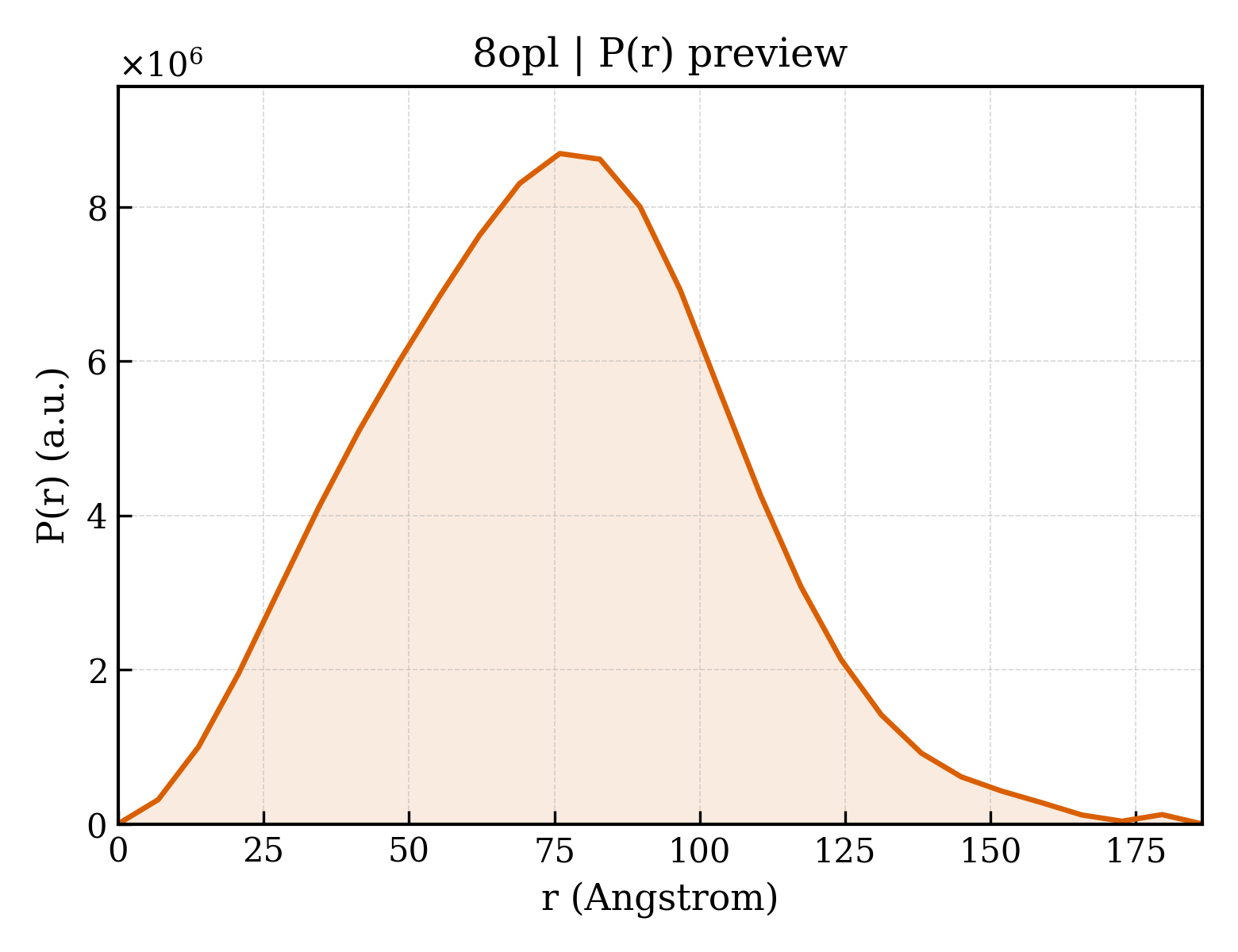

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8opl
沉积日期 deposition_date	2023-04-07
结构标题 title	Virus-like Particle based on PVY coat protein with T43C and D136C mutation with helical architecture encapsidating ssRNA
关键词 keywords	helical, VLP, ssRNA, Potyvirus, PVY, VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	57.56 Å
回转半径 Rg (电子) rg_electron	57.59 Å
零角强度 I(0) i0	8285750000.00
分子量 molecular_weight	726920.0 kDa
排除体积 excluded_volume	892000 Å³
包络体积 envelope_volume	1271200 Å³
水化壳体积 shell_volume	170310 Å³
包络直径 envelope_diameter	220.9 Å
壳层 Rg shell_rg	69.55 Å
包络 Rg envelope_rg	57.19 Å
形状 Rg shape_rg	57.57 Å
总 Rg total_rg	57.85 Å
总原子数 total_atoms	50679
残基数 n_residues	6183
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	186.4 Å
Rg (实空间) rg_real	57.26 Å
Rg 误差 (实空间) rg_real_error	1.21 Å
I(0) (实空间) i0_real	8.2850e+09
I(0) 误差 (实空间) i0_real_error	1.6430e+08
Rg (倒空间) rg_reciprocal	57.81 Å
I(0) (倒空间) i0_reciprocal	8293000000.0000
解质量估计 total_estimate	0.8547
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	75.9 Å
偏度 Skewness skewness	0.203
峰度 Kurtosis kurtosis	-0.147
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	4757000000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.774; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.821

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Genome polyprotein (Fragment)
分子量 formula_weight	29925.9 kDa
来源方法 src_method	man
拷贝数 entity_count	27

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Aa,Ab,Ac,Ad,Ae,Af,Ag,Ah,Ai,As,At,Au,Av,Aw,Ax,Ay,Az,Ba,Bk,Bl,Bm,Bn,Bo,Bp,Bq,Br,Bs
原子数 atom_count	50679

GNDTIDAGGSTKKDAKQEQGSIQPNLNKEKEKDVNVGTSGTHCVPRIKAITSKMRMPKSKGATVLNLEHLLEYAPQQIDISNTRATQSQFDTWYEAVQLAYDIGETEMPTVMNGLMVWCIENGTSPNINGVWVMMCGDEQVEYPLKPIVENAKPTLRQIMAHFSDVAEAYIEMRNKKEPYMPRYGLVRNLRDGSLARYAFDFYEVTSRTPVRAREAHIQMKAAALKSAQSRLFGLDGGISTQEENTERHTTEDVSPSMHTLLGVKNM

来源 Source

来源生物 organism	Potato virus Y strain NTN
NCBI 分类编号 ncbi_taxonomy_id	122280
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	;RNA (5'-R(PUPUPUPUP*U)-3') ;
分子量 formula_weight	1485.9 kDa
来源方法 src_method	man
拷贝数 entity_count	27

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	Aj,Ak,Al,Am,An,Ao,Ap,Aq,Ar,Bb,Bc,Bd,Be,Bf,Bg,Bh,Bi,Bj,Bt,Bu,Bv,Bw,Bx,By,Bz,Ca,Cb

UUUUU

来源 Source

来源生物 organism	Potato virus Y strain NTN
NCBI 分类编号 ncbi_taxonomy_id	122280
宿主生物 host_organism	Escherichia coli BL21(DE3)

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.41 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	141112

fit	/app/data/saxs_computation/op/8opl/8opl.fit
pddf	/app/data/pr_computation/op/8opl/8opl.pr.out
profile	/app/data/saxs_computation/op/8opl/8opl.dat
