SAXSdb — 8p1h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine 3-monooxygenase/tryptophan 5-monooxygenase activation protein zeta,Neuronal acetylcholine receptor subunit alpha-7

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	1,2-ETHANEDIOL × 4 AZIDE ION × 3 BENZOIC ACID × 1 DI(HYDROXYETHYL)ETHER × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	E7EX29_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–75； UniProt 1–72 Author chain A； PDBConstruct 79–159； UniProt 76–164 Author chain A； PDBConstruct 163–232； UniProt 168–237 Author chain B； PDBConstruct 4–75； UniProt 1–72 Author chain B； PDBConstruct 79–159； UniProt 76–164 Author chain B； PDBConstruct 163–232； UniProt 168–237

Tyrosine 3-monooxygenase/tryptophan 5-monooxygenase activation protein zeta,Neuronal acetylcholine receptor subunit alpha-7

Homo sapiens

UniProt P36544

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	1,2-ETHANEDIOL × 4 AZIDE ION × 3 BENZOIC ACID × 1 DI(HYDROXYETHYL)ETHER × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACHA7_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 237–248； UniProt 361–372 Author chain B； PDBConstruct 237–248； UniProt 361–372

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8p1h
Deposition date deposition_date	2023-05-12
Structure title title	Crystal structure of the chimera of human 14-3-3 zeta and phosphorylated cytoplasmic loop fragment of the alpha7 acetylcholine receptor
Keywords keywords	14-3-3, acetylcholine receptor, PROTEIN BINDING, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8p1h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8p1h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

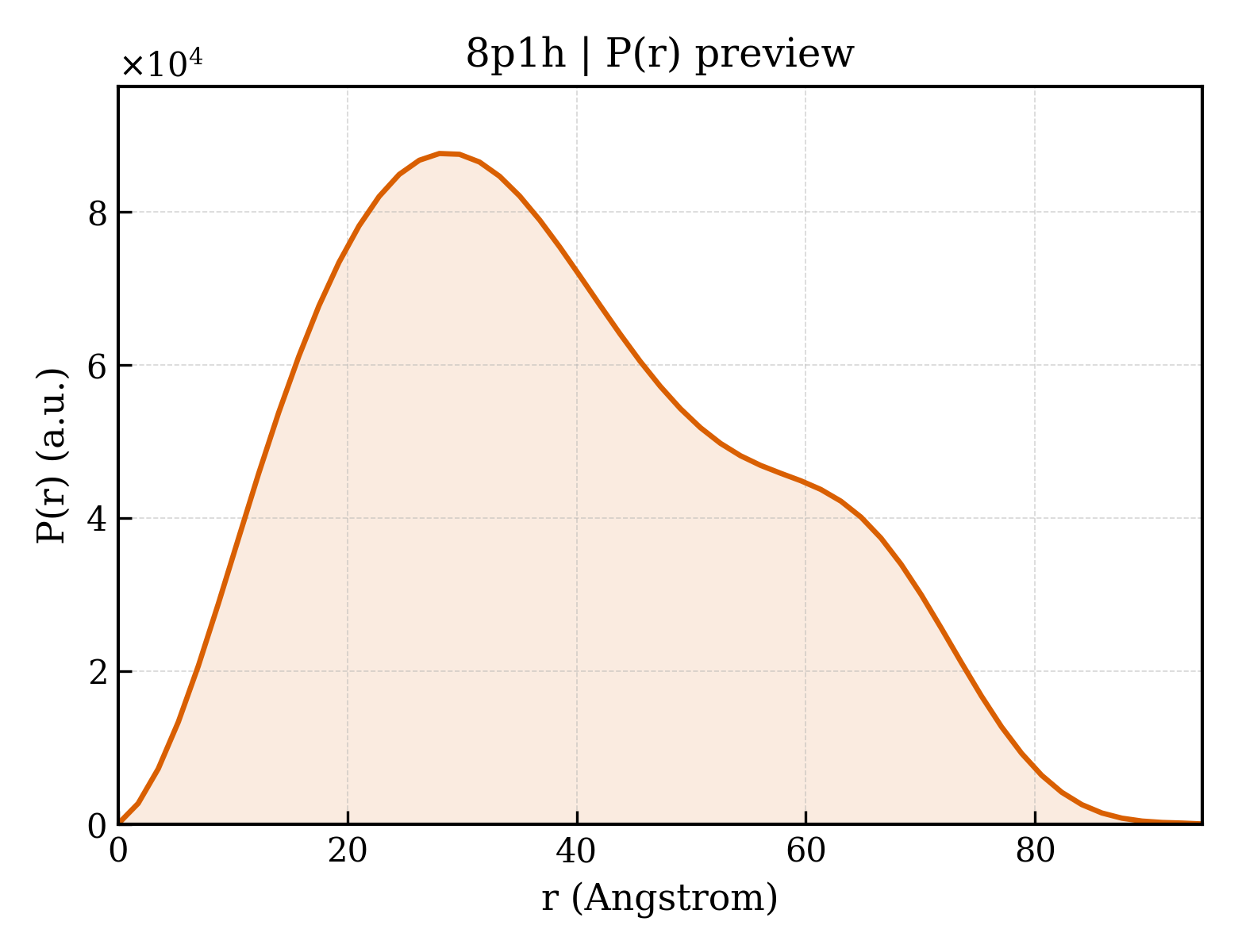

8p1h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.47 Å
Rg (electron density)	27.33 Å
Total Rg	28.18 Å
Atom count	3775
Residues	479
Excluded volume	66727 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8p1h__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Tyrosine 3-monooxygenase/tryptophan 5-monooxygenase activation protein zeta,Neuronal acetylcholine receptor subunit alpha-7
Molecular weight formula_weight	27816.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4214

GPHMDKNELVQKAKLAEQAERYDDMAACMKSVTEQGAELSNEERNLLSVAYKNVVGARRSAWRVVSSIEQKTEGAAAAQQMAREYREKIETELRDICNDVLSLLEKFLIPNASQAESKVFYLKMKGDYYRYLAEVAAGDDKKGIVDQSQQAYQEAFEISAAAMQPTHPIRLGLALNFSVFYYEILNSPEKACSLAKTAFDEAIAELDTLSEESYKDSTLIMQLLRDNLTLWTGGGGQRRCSLASVEMS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	nat
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	AZIDE ION
Molecular weight formula_weight	42.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	BENZOIC ACID
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	369

▶

Unit-cell length a length_a	71.628 Å
Unit-cell length b length_b	103.118 Å
Unit-cell length c length_c	112.804 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	21.060 Å
R factor r_factor	0.2110
R_work r_work	0.2089
R_free r_free	0.2532
