8pkn

CryoEM structure of catalytic domain of human HMG-CoA reductase with its inhibitor atorvastatin

Method: ELECTRON MICROSCOPY D_max: 91.0 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

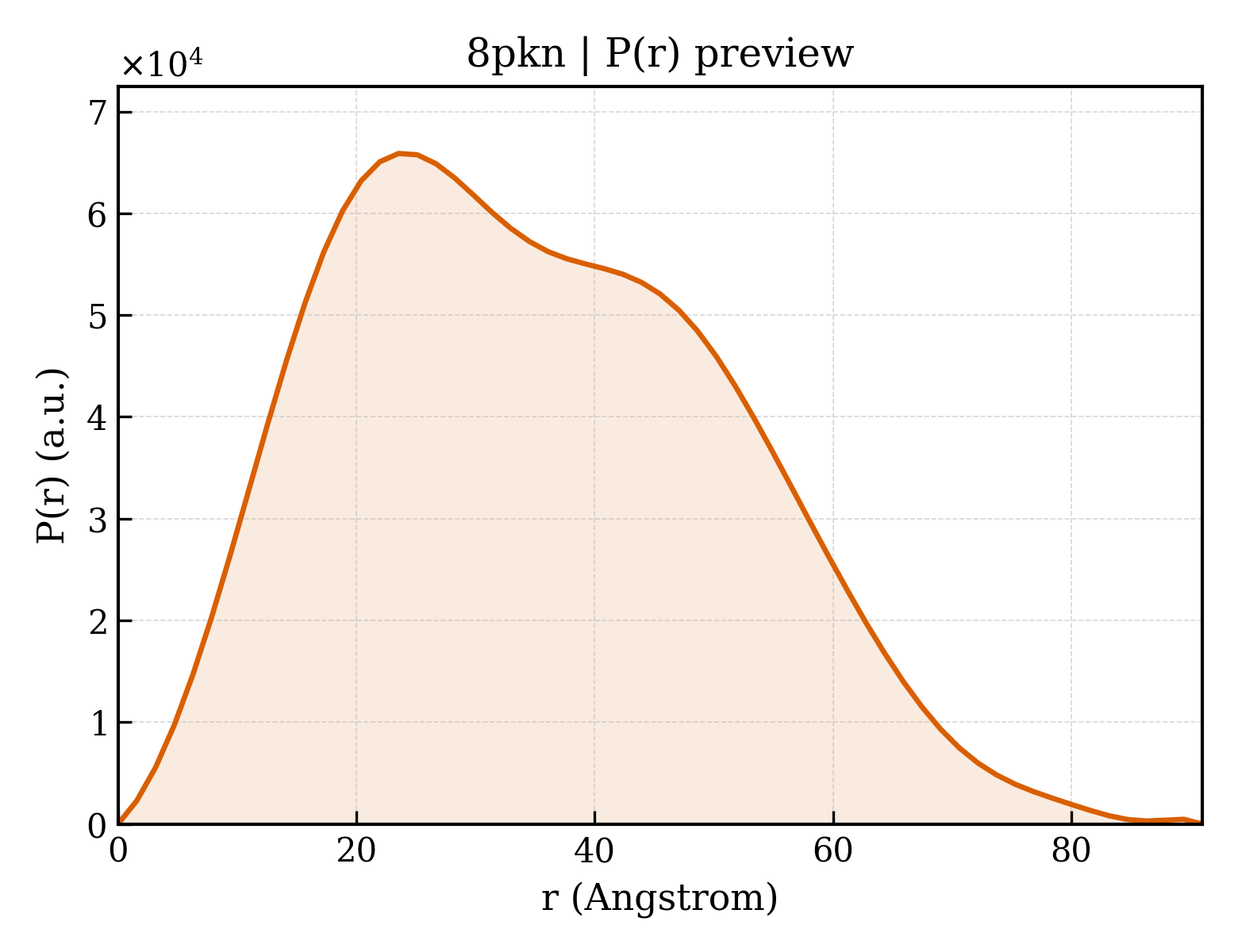

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8pkn
沉积日期 deposition_date	2023-06-27
结构标题 title	CryoEM structure of catalytic domain of human HMG-CoA reductase with its inhibitor atorvastatin
关键词 keywords	reductase, cholesterol biosynthesis, lipitor, atorvastatin, statins, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.15 Å
回转半径 Rg (电子) rg_electron	26.74 Å
零角强度 I(0) i0	36515200.00
分子量 molecular_weight	45754.0 kDa
排除体积 excluded_volume	56981 Å³
包络体积 envelope_volume	73220 Å³
水化壳体积 shell_volume	24355 Å³
包络直径 envelope_diameter	94.3 Å
壳层 Rg shell_rg	32.16 Å
包络 Rg envelope_rg	27.12 Å
形状 Rg shape_rg	26.78 Å
总 Rg total_rg	27.24 Å
总原子数 total_atoms	3192
残基数 n_residues	423
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	91.0 Å
Rg (实空间) rg_real	27.24 Å
Rg 误差 (实空间) rg_real_error	0.76 Å
I(0) (实空间) i0_real	3.6520e+07
I(0) 误差 (实空间) i0_real_error	5.4960e+05
Rg (倒空间) rg_reciprocal	27.21 Å
I(0) (倒空间) i0_reciprocal	36510000.0000
解质量估计 total_estimate	0.6758
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	23.5 Å
偏度 Skewness skewness	0.321
峰度 Kurtosis kurtosis	-0.560
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7216000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.844; Stabil: 1.000; Sysdev: 0.127; Positv: 1.000; Valcen: 0.884; Smooth: 0.983

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	3-hydroxy-3-methylglutaryl-coenzyme A reductase
分子量 formula_weight	45259.0 kDa
EC 编号 ec_number	1.1.1.34
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3192

PREPRPNEECLQILGNAEKGAKFLSDAEIIQLVNAKHIPAYKLETLMETHERGVSIRRQLLSKKLSEPSSLQYLPYRDYNYSLVMGACCENVIGYMPIPVGVAGPLCLDEKEFQVPMATTEGCLVASTNRGCRAIGLGGGASSRVLADGMTRGPVVRLPRACDSAEVKAWLETSEGFAVIKEAFDSTSRFARLQKLHTSIAGRNLYIRFQSRSGDAMGMNMISKGTEKALSKLHEYFPEMQILAVSGNYCTDKKPAAINWIEGRGKSVVCEAVIPAKVVREVLKTTTEAMIEVNINKNLVGSAMAGSIGGYNAHAANIVTAIYIACGQDAAQNVGSSNCITLMEASGPTNEDLYISCTMPSIEIGTVGGGTNLLPQQACLQMLGVQGACKDNPGENARQLARIVCGTVMAGELSLMAALAAGH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	7-[2-(4-FLUORO-PHENYL)-5-ISOPROPYL-3-PHENYL-4-PHENYLCARBAMOYL-PYRROL-1-YL]- 3,5-DIHYDROXY-HEPTANOIC ACID
分子量 formula_weight	558.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.260 Å
最低分辨率 resolution_low	147.740 Å
R 因子 r_factor	—
R_work r_work	0.3158
R_free r_free	—

分辨率 resolution	2.26 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	404712

fit	/app/data/saxs_computation/pk/8pkn/8pkn.fit
pddf	/app/data/pr_computation/pk/8pkn/8pkn.pr.out
profile	/app/data/saxs_computation/pk/8pkn/8pkn.dat
