8pnh

Chorismate mutase

Method: X-RAY DIFFRACTION Dmax: 77.3 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

SAXS profile for 8pnh

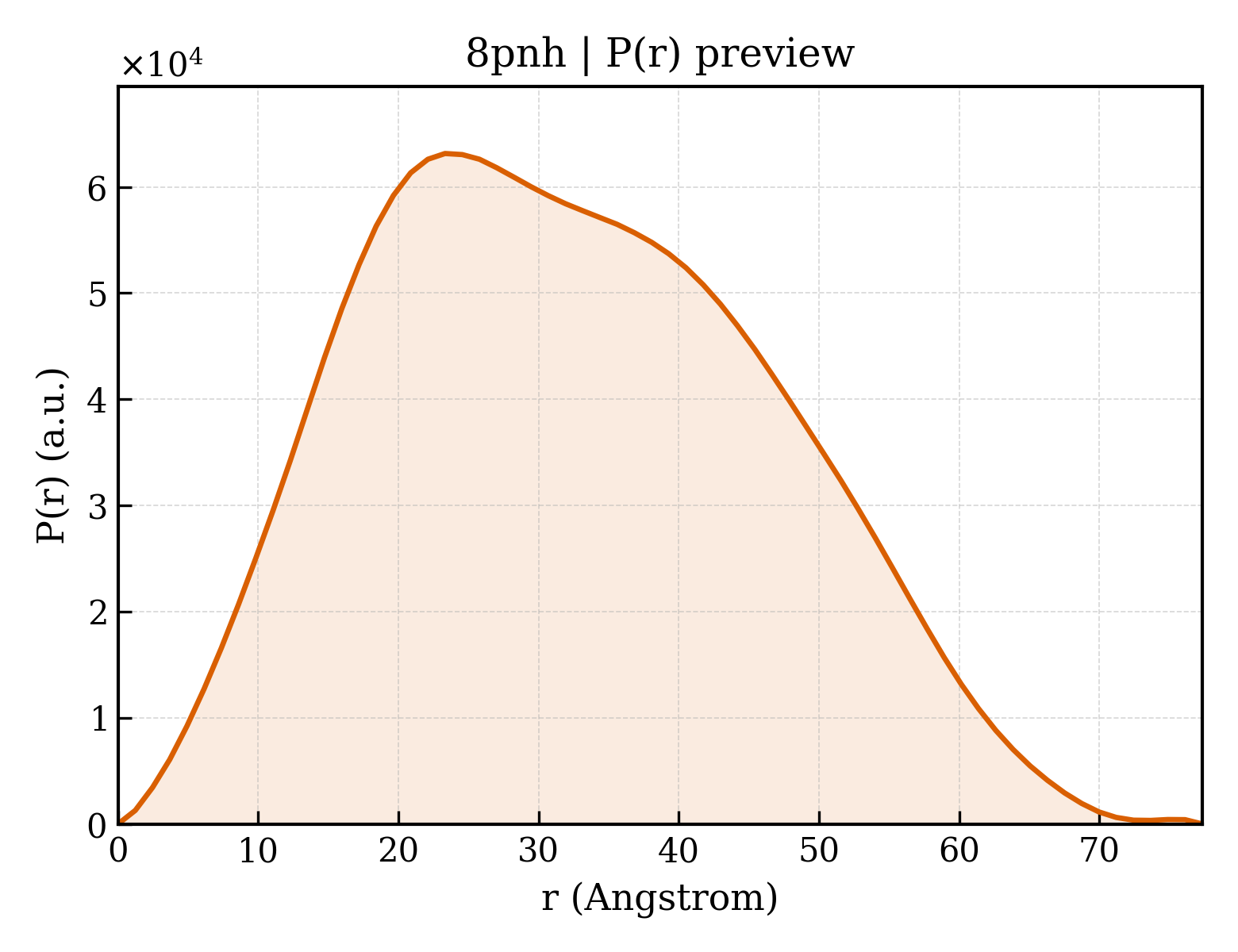

P(r) 距离分布 P(r) Distribution

P(r) distribution for 8pnh
下载 Download

1. 结构基本信息 1. Structure Basics

条目编号 entry_id8pnh
沉积日期 deposition_date2023-06-30
结构标题 titleChorismate mutase
关键词 keywords;chorismate mutase, cyclohexadienyl dehydratase, chorismate mutase/cyclohexadienyl dehydratase, cyclohexadienyl dehydratase/chorismate mutase, bifunctional chorismate mutase, bifunctional cyclohexadienyl dehydratase, bifunctional enzyme, shikimate pathway enzymes, metabolic enzymes, aromatic amino acid synthesis, protein crystal structure, UNKNOWN FUNCTION ;; UNKNOWN FUNCTION
实验方法 methodX-RAY DIFFRACTION

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier24.94
回转半径 Rg (电子) rg_electron24.09
零角强度 I(0) i031332200.00
分子量 molecular_weight43054.0 kDa
排除体积 excluded_volume53965 ų
包络体积 envelope_volume64896 ų
水化壳体积 shell_volume23037 ų
包络直径 envelope_diameter80.9
壳层 Rg shell_rg30.40
包络 Rg envelope_rg24.04
形状 Rg shape_rg24.06
总 Rg total_rg24.94
总原子数 total_atoms3026
残基数 n_residues385
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 −1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax77.3
Rg (实空间) rg_real24.91
Rg 误差 (实空间) rg_real_error0.52
I(0) (实空间) i0_real3.1330e+07
I(0) 误差 (实空间) i0_real_error4.4490e+05
Rg (倒空间) rg_reciprocal24.92
I(0) (倒空间) i0_reciprocal31330000.0000
解质量估计 total_estimate0.9102
解质量评级 solution_quality EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary23.3
偏度 Skewness skewness0.227
峰度 Kurtosis kurtosis-0.655
角度范围 angular_range— – 0.3200 −1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha9513000.0000
实空间数据点数 n_real_points64
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.953; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.996
