8pnl

;Outward-open conformation of a Major Facilitator Superfamily (MFS) transporter MHAS2168, a homologue of Rv1410 from M. tuberculosis, in complex with an alpaca nanobody ;

Method: X-RAY DIFFRACTION D_max: 140.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8pnl
沉积日期 deposition_date	2023-06-30
结构标题 title	;Outward-open conformation of a Major Facilitator Superfamily (MFS) transporter MHAS2168, a homologue of Rv1410 from M. tuberculosis, in complex with an alpaca nanobody ;
关键词 keywords	Major Facilitator Superfamily transporter, Nanobody, Outward-open conformation, Triacylglyceride extraction, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.75 Å
回转半径 Rg (电子) rg_electron	38.08 Å
零角强度 I(0) i0	205263000.00
分子量 molecular_weight	124970.0 kDa
排除体积 excluded_volume	160620 Å³
包络体积 envelope_volume	207260 Å³
水化壳体积 shell_volume	47801 Å³
包络直径 envelope_diameter	153.1 Å
壳层 Rg shell_rg	41.43 Å
包络 Rg envelope_rg	38.02 Å
形状 Rg shape_rg	38.08 Å
总 Rg total_rg	38.33 Å
总原子数 total_atoms	18026
残基数 n_residues	1190
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

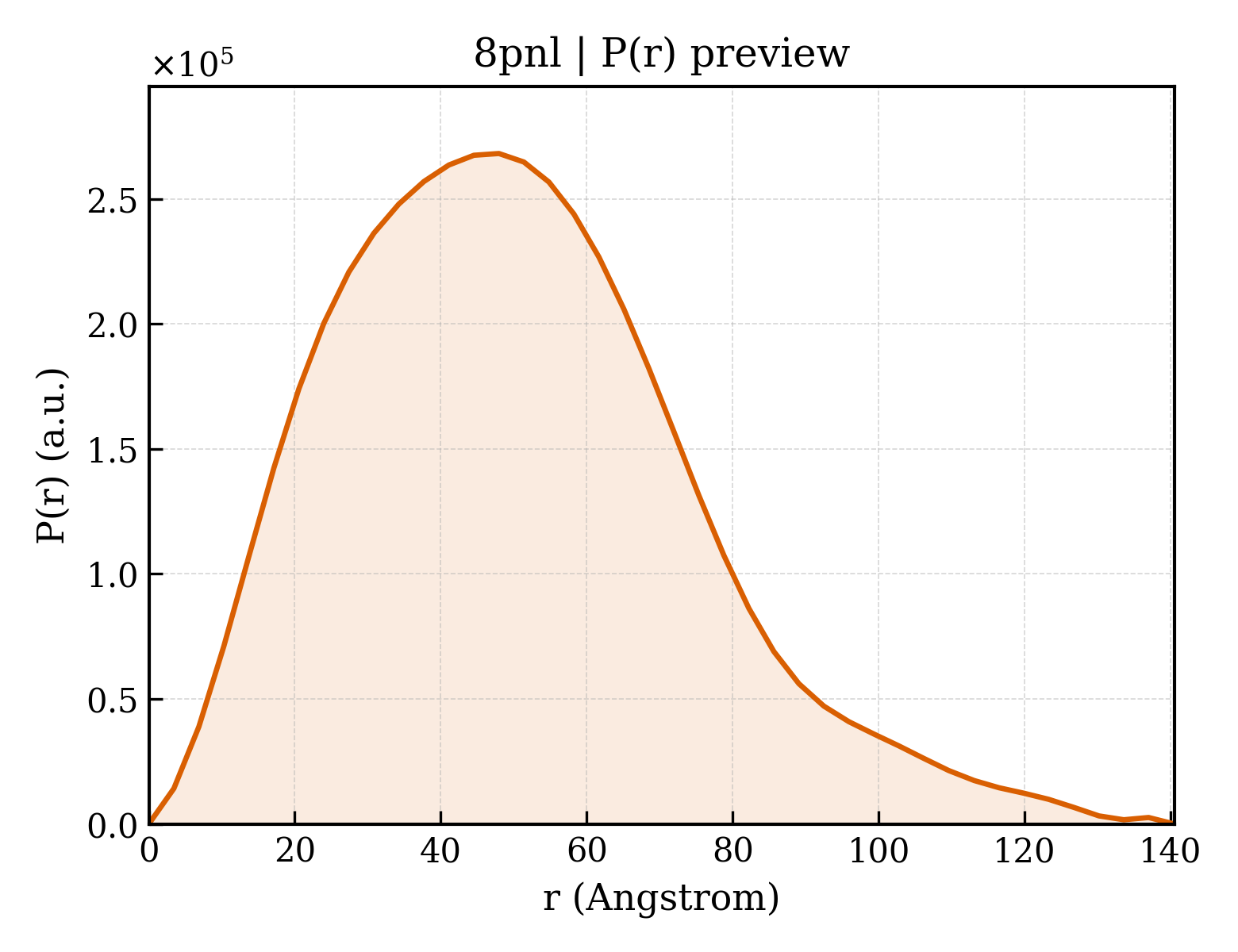

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	140.5 Å
Rg (实空间) rg_real	39.06 Å
Rg 误差 (实空间) rg_real_error	1.46 Å
I(0) (实空间) i0_real	2.0530e+08
I(0) 误差 (实空间) i0_real_error	3.4370e+06
Rg (倒空间) rg_reciprocal	38.87 Å
I(0) (倒空间) i0_reciprocal	205200000.0000
解质量估计 total_estimate	0.6355
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	48.0 Å
偏度 Skewness skewness	0.562
峰度 Kurtosis kurtosis	0.178
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	21650000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.725; Stabil: 1.000; Sysdev: 0.132; Positv: 1.000; Valcen: 0.904; Smooth: 0.782

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Putative triacylglyceride transporter
分子量 formula_weight	57082.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	18026

MSAFPQTPNRLIRPRRTSRGIAISAGGLAVLLGALDTYVVVSIVTDIMRDVGIAVNQIQRVTPIITGYLLGYIAAMPLLGRASDRFGRKLLIQISLAGFALGSVITALATNLDVLVAGRVIQGAASGALLPVTLALAADLWATHKRAAVLGGVGAAQELGAVLGPIYGIFVVWLFHHWQAVFWVNVPLALIAMVLIHISLPPRVRTEEPQRVDVTGGLLLALALGLATIGLYNAEPDGKQVLPEYGPPLIIGAVIAAVAFLVWERFARTRLLDPAGVRFRPFLIALLVSLVTGGALMVTLVNVELFGQGVLGLDQDEAVFLLARFLIALPVGALLGGWIATRVGDRAVTAVGLLIAAGGFYLIAQWPADVLESRHDLGFVSLPTLDTDLAIAGFGLGLVIAPLTSAALRVVPAAQHGIASAAVVVARMIGMLIGIAALSAWGLYRFNQYLKEQLAALPPAPADFPGGQMAGQMMRLRTATVQAYVLQYGEIFAITAGLCVFGAVLGLFIAGRREHAEESADAVDGVSNARDRAPSAALEVLFQ

来源 Source

来源生物 organism	Mycolicibacterium hassiacum DSM 44199
NCBI 分类编号 ncbi_taxonomy_id	1122247
宿主生物 host_organism	Mycolicibacterium smegmatis MC2 155

Entity 2 polymer

描述 description	Nb_H2
分子量 formula_weight	13033.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

GPSQGQLVESGGGLVQPGGSLRLSCADAGSIFNKFPMAWYRQAPGKERELVARISSGGSTNYADFVKGRFTISRDNAKSTLYLQMNSLKPEDTAMYYCARIINSASNIAYWGQGTRVTVSA

来源 Source

来源生物 organism	Vicugna pacos
NCBI 分类编号 ncbi_taxonomy_id	30538
宿主生物 host_organism	Escherichia coli MC1061

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	57.780 Å
晶胞边长 b length_b	160.700 Å
晶胞边长 c length_c	82.960 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	109.01 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	44.700 Å
R 因子 r_factor	0.2474
R_work r_work	0.2450
R_free r_free	0.2915
