8poy

;Crystal Structure of the C120G variant of the membrane-bound [NiFe]-Hydrogenase from Cupriavidus necator in the air-oxidized state at 1.93 A Resolution. ;

Method: X-RAY DIFFRACTION D_max: 80.2 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8poy
沉积日期 deposition_date	2023-07-05
最后修订 last_revision	2025-02-26
结构标题 title	;Crystal Structure of the C120G variant of the membrane-bound [NiFe]-Hydrogenase from Cupriavidus necator in the air-oxidized state at 1.93 A Resolution. ;
关键词 keywords	;[NIFE]-HYDROGENASE, HYDROGENASE, OXYGEN-TOLERANCE, HYDROGEN CATALYSIS, KNALLGASBACTERIA, PROTEOBACTERIA, METALLOENZYME, BIMETALLIC, NI-FE ACTIVE SITE, [4FE-3S], PROXIMAL CLUSTER, AEROBIC HYDROGEN BACTERIA, OXIDOREDUCTASE, ELECTRON TRANSFER, METALLOPROTEIN, CATALYTIC CENTER, MEMBRANE, MEMBRANE-BOUND, OXIDOREDUCTASE-OXIDOREDUCTASE COMPLEX, ELECTRON RELAY, CUBANE CLUSTER, CLUSTER TUNING, ELECTRON TRANSPORT, AS-ISOLATED STATE, AIR-OXIDIZED-STATE ;; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.54 Å
回转半径 Rg (电子) rg_electron	25.46 Å
零角强度 I(0) i0	158859000.00
分子量 molecular_weight	97381.0 kDa
排除体积 excluded_volume	120590 Å³
包络体积 envelope_volume	135280 Å³
水化壳体积 shell_volume	41087 Å³
包络直径 envelope_diameter	83.5 Å
壳层 Rg shell_rg	35.25 Å
包络 Rg envelope_rg	25.89 Å
形状 Rg shape_rg	25.48 Å
总 Rg total_rg	26.27 Å
总原子数 total_atoms	6799
残基数 n_residues	863
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

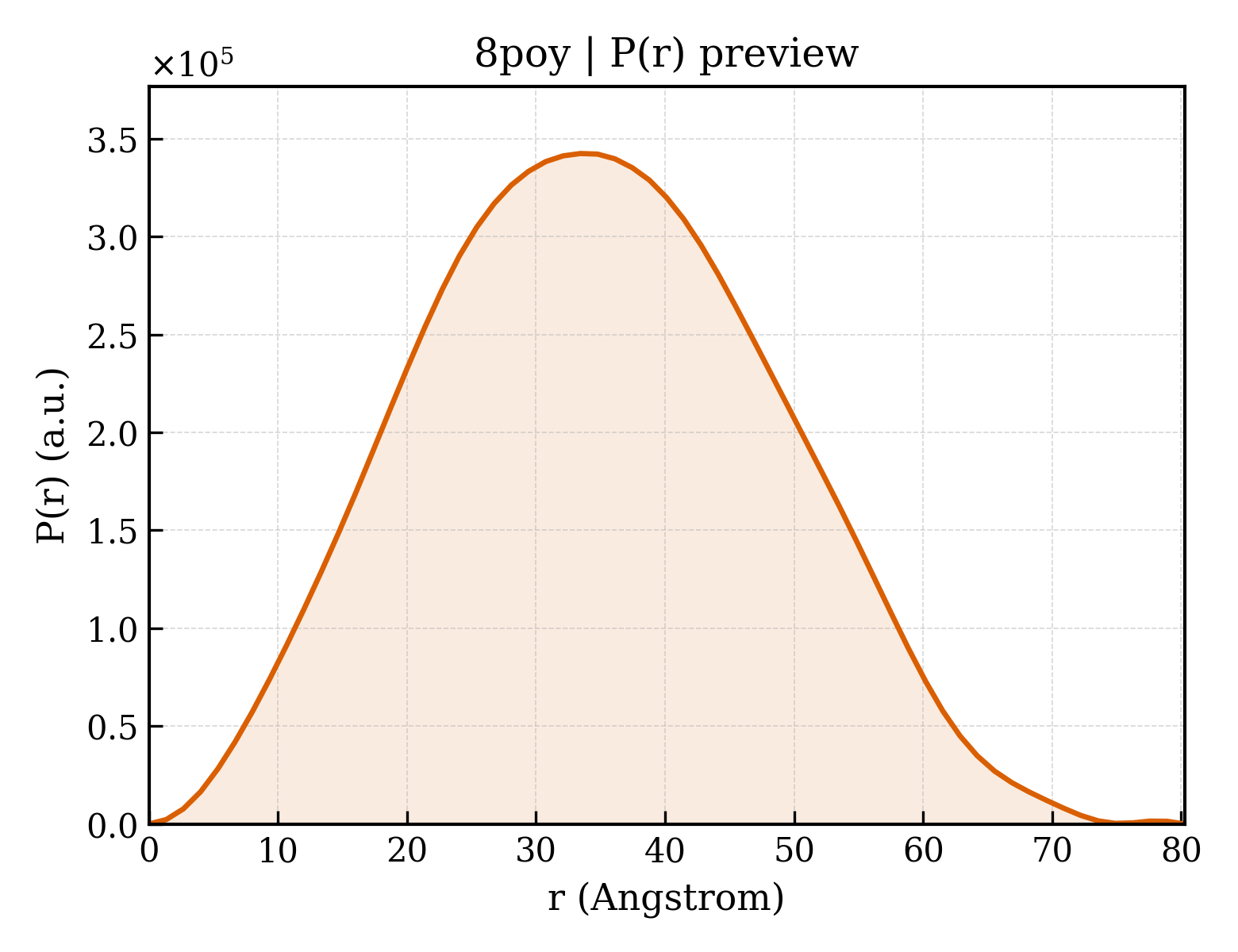

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	80.2 Å
Rg (实空间) rg_real	26.34 Å
Rg 误差 (实空间) rg_real_error	0.43 Å
I(0) (实空间) i0_real	1.5890e+08
I(0) 误差 (实空间) i0_real_error	2.3070e+06
Rg (倒空间) rg_reciprocal	26.41 Å
I(0) (倒空间) i0_reciprocal	158900000.0000
解质量估计 total_estimate	0.9030
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.4 Å
偏度 Skewness skewness	0.111
峰度 Kurtosis kurtosis	-0.515
角度范围 angular_range	— – 0.3000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	43040000.0000
实空间数据点数 n_real_points	61
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.926; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.986

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Uptake hydrogenase large subunit
分子量 formula_weight	67247.2 kDa
EC 编号 ec_number	1.12.99.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	7311

MSAYATQGFNLDDRGRRIVVDPVTRIEGHMRCEVNVDANNVIRNAVSTGTMWRGLEVILKGRDPRDAWAFVERICGVCTGCHALASVRAVENALDIRIPKNAHLIREIMAKTLQVHDHAVHFYHLHALDWVDVMSALKADPKRTSELQQLVSPAHPLSSAGYFRDIQNRLKRFVESGQLGPFMNGYWGSKAYVLPPEANLMAVTHYLEALDLQKEWVKIHTIFGGKNPHPNYLVGGVPCAINLDGIGAASAPVNMERLSFVKARIDEIIEFNKNVYVPDVLAIGTLYKQAGWLYGGGLAATNVLDYGEYPNVAYNKSTDQLPGGAILNGNWDEVFPVDPRDSQQVQEFVSHSWYKYADESVGLHPWDGVTEPNYVLGANTKGTRTRIEQIDESAKYSWIKSPRWRGHAMEVGPLSRYILAYAHARSGNKYAERPKEQLEYSAQMINSAIPKALGLPETQYTLKQLLPSTIGRTLARALESQYCGEMMHSDWHDLVANIRAGDTATANVDKWDPATWPLQAKGVGTVAAPRGALGHWIRIKDGRIENYQCVVPTTWNGSPRDYKGQIGAFEASLMNTPMVNPEQPVEILRTLHSFDPCLACSTH

来源 Source

来源生物 organism	Cupriavidus necator H16
NCBI 分类编号 ncbi_taxonomy_id	381666
宿主生物 host_organism	Cupriavidus necator H16

Entity 2 polymer

描述 description	Uptake hydrogenase small subunit
分子量 formula_weight	35980.9 kDa
EC 编号 ec_number	1.12.99.6
突变 mutation	C120G
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

METKPRTPVLWLHGLECTCCSESFIRSAHPLAKDVVLSMISLDYDDTLMAAAGHQAEAILEEIMTKYKGNYILAVEGNPPLNQDGMSCIIGGRPFIEQLKYVAKDAKAIISWGSCASWGGVQAAKPNPTQATPVHKVITDKPIIKVPGCPPIAEVMTGVITYMLTFDRIPELDRQGRPKMFYSQRIHDKCYRRPHFDAGQFVEEWDDESARKGFCLYKMGCKGPTTYNACSTTRWNEGTSFPIQSGHGCIGCSEDGFWDKGSFYDRLTGISQFGVEANADKIGGTASVVVGAAVTAHAAASAIKRASKKNETSGSEHRSAWSHPQFEK

来源 Source

来源生物 organism	Cupriavidus necator H16
NCBI 分类编号 ncbi_taxonomy_id	381666
宿主生物 host_organism	Cupriavidus necator H16

Entity 3 non-polymer

描述 description	NI-FE OXIDIZED ACTIVE CENTER
分子量 formula_weight	210.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	FE3-S4 CLUSTER
分子量 formula_weight	295.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	FE4-S3 CLUSTER
分子量 formula_weight	319.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 10 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	444

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	73.169 Å
晶胞边长 b length_b	95.633 Å
晶胞边长 c length_c	119.927 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.930 Å
最低分辨率 resolution_low	74.770 Å
R 因子 r_factor	0.1551
R_work r_work	0.1535
R_free r_free	0.1843
