8pqc

c-KIT kinase domain in complex with avapritinib derivative 9

Method: X-RAY DIFFRACTION D_max: 113.0 Å Quality: REASONABLE

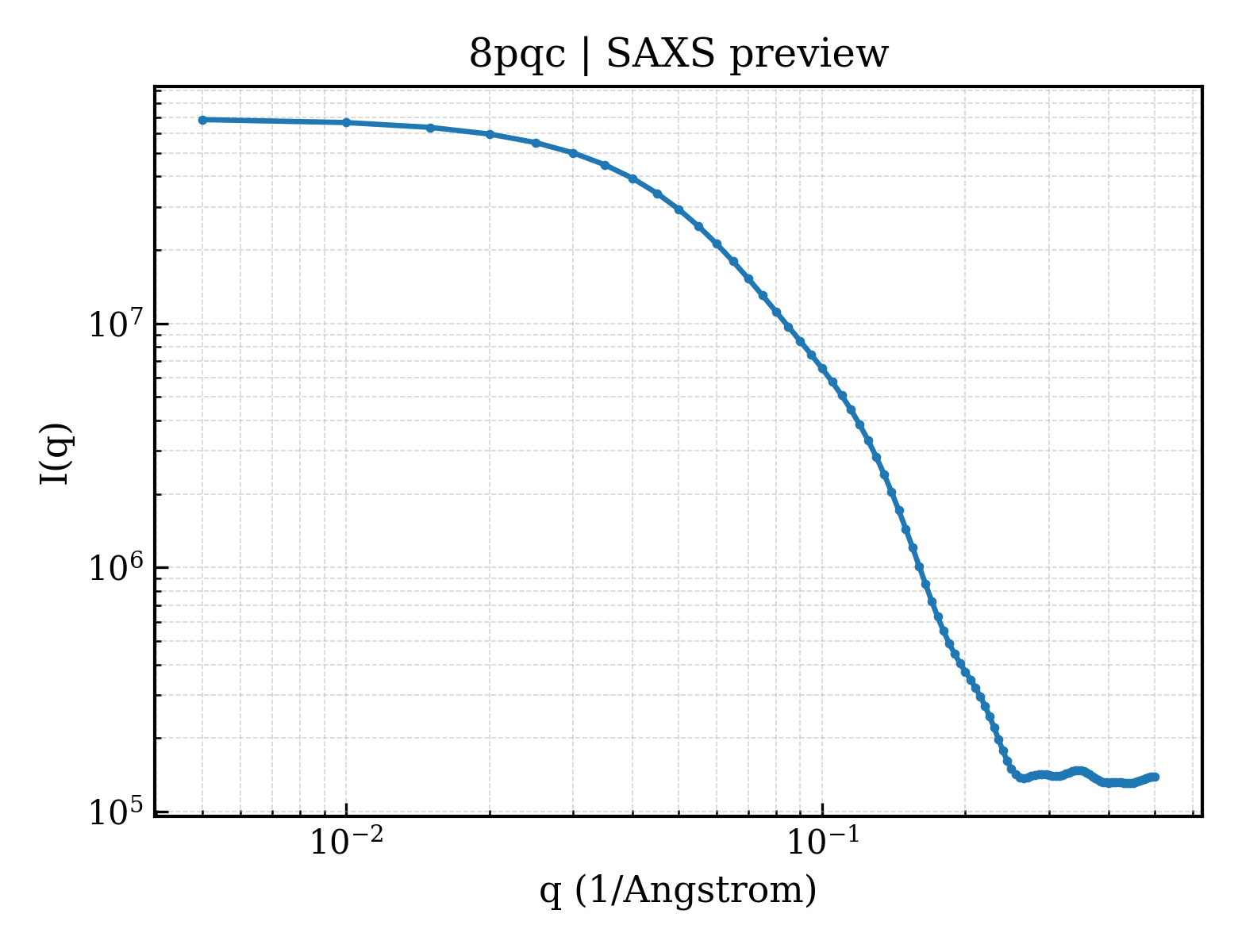

SAXS 散射曲线 SAXS Profile

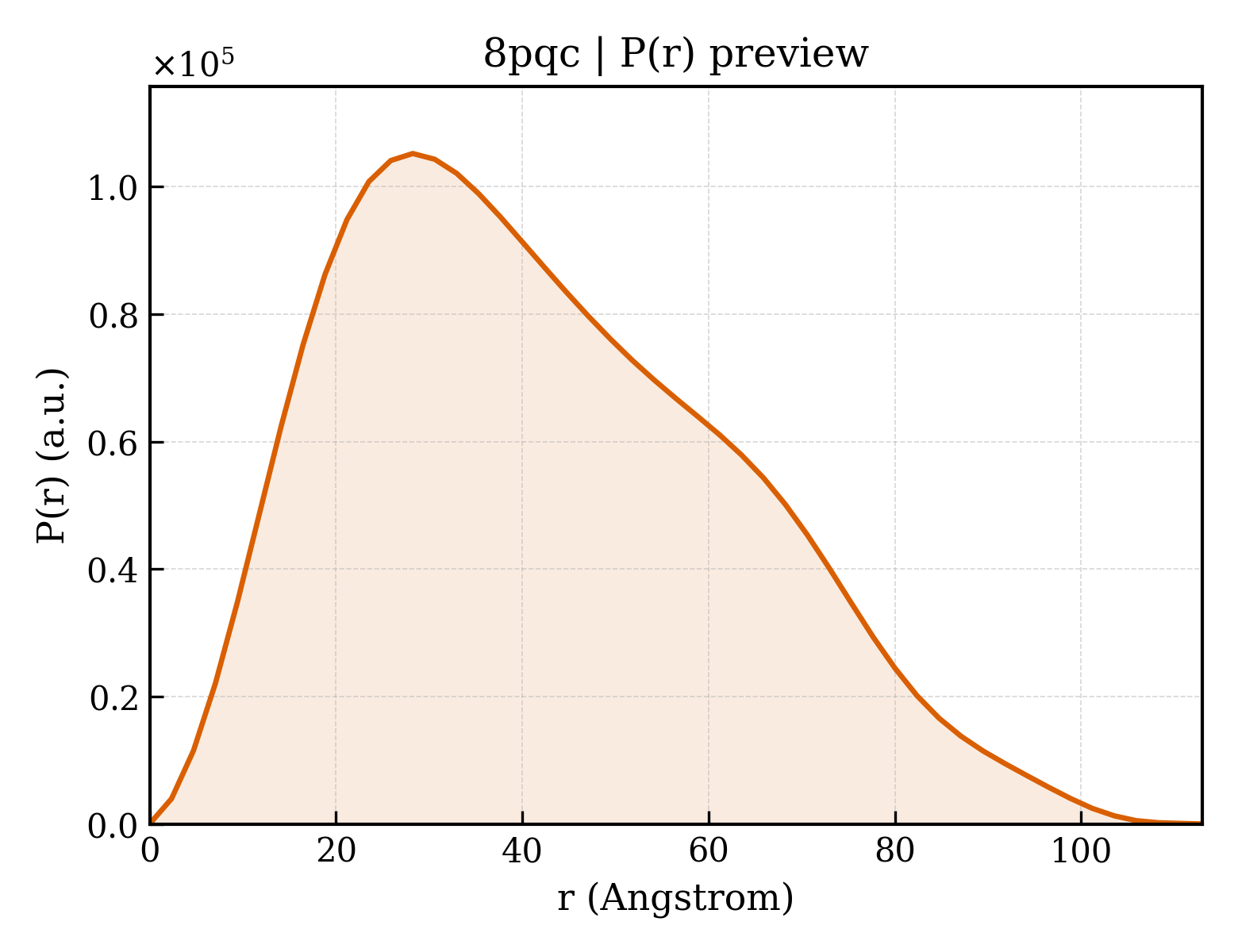

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8pqc
沉积日期 deposition_date	2023-07-11
结构标题 title	c-KIT kinase domain in complex with avapritinib derivative 9
关键词 keywords	;c-KIT, protein kinase, avapritinib, inhibitor, tyrosine kinase, transmembrane receptor, stem cell factor, stem cell factor receptor, GIST, gastrointestinal stromal tumors, P10721, TRANSFERASE ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.78 Å
回转半径 Rg (电子) rg_electron	32.33 Å
零角强度 I(0) i0	68971500.00
分子量 molecular_weight	66793.0 kDa
排除体积 excluded_volume	83912 Å³
包络体积 envelope_volume	113030 Å³
水化壳体积 shell_volume	29984 Å³
包络直径 envelope_diameter	113.5 Å
壳层 Rg shell_rg	37.87 Å
包络 Rg envelope_rg	32.17 Å
形状 Rg shape_rg	32.31 Å
总 Rg total_rg	32.90 Å
总原子数 total_atoms	4707
残基数 n_residues	592
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	113.0 Å
Rg (实空间) rg_real	33.07 Å
Rg 误差 (实空间) rg_real_error	0.96 Å
I(0) (实空间) i0_real	6.8970e+07
I(0) 误差 (实空间) i0_real_error	1.0460e+06
Rg (倒空间) rg_reciprocal	32.95 Å
I(0) (倒空间) i0_reciprocal	68960000.0000
解质量估计 total_estimate	0.6095
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	28.2 Å
偏度 Skewness skewness	0.452
峰度 Kurtosis kurtosis	-0.488
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17260000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.755; Stabil: 1.000; Sysdev: 0.049; Positv: 1.000; Valcen: 0.680; Smooth: 0.825

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Mast/stem cell growth factor receptor Kit
分子量 formula_weight	37194.4 kDa
EC 编号 ec_number	2.7.10.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	5176

GSMPMYEVQWKVVEESNGNNYSYIDPTQLPYDHKWEFPRNRLSFGKTLGAGAFGKVVEATAQGLIKSDAAMTVAVKMLKPSAHSTEREALMSELKVLSYLGNHENIVNLLGACTHGGPTLVITEYCCYGDLLNFLRRKRDEFVPYKVAPEDLYKDFLTLEHLLSFSYQVAKGMAFLASKNCIHRDLAARNILLTHGNITKICDFGLARDIKNDSNYVDKGNARLPVKWMAPESIFNSVYTFESDVWSYGIFLWELFSLGSSPYPGMPVDSKFYKMIKEGFRMSSPEYAPAEMYDIMKTCWDADPDKRPTFKQIVQDIEKQISESTNH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	;(1~{S})-~{N}-ethyl-1-(4-fluorophenyl)-1-[2-[4-[6-(1-methylpyrazol-4-yl)pyrrolo[2,1-f][1,2,4]triazin-4-yl]piperazin-1-yl]pyrimidin-5-yl]ethanamine ;
分子量 formula_weight	526.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	371

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	59.220 Å
晶胞边长 b length_b	59.220 Å
晶胞边长 c length_c	192.600 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	1.770 Å
最低分辨率 resolution_low	43.530 Å
R 因子 r_factor	0.1826
R_work r_work	0.1814
R_free r_free	0.2063

fit	/app/data/saxs_computation/pq/8pqc/8pqc.fit
pddf	/app/data/pr_computation/pq/8pqc/8pqc.pr.out
profile	/app/data/saxs_computation/pq/8pqc/8pqc.dat
