8q3b

The closed state of the ASFV apo-RNA polymerase

Method: ELECTRON MICROSCOPY D_max: 176.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

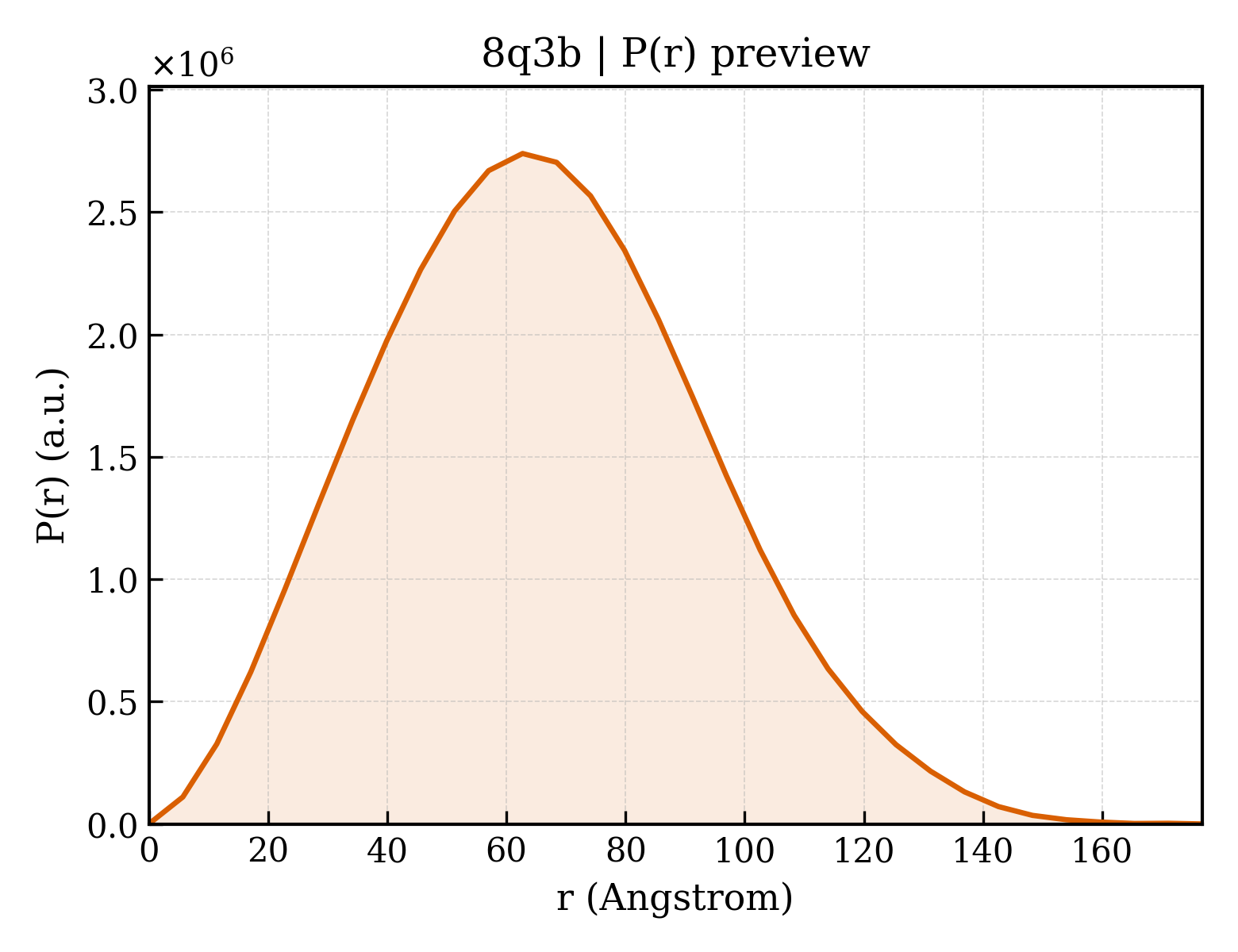

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8q3b
沉积日期 deposition_date	2023-08-03
结构标题 title	The closed state of the ASFV apo-RNA polymerase
关键词 keywords	RNA polymerase, ASFV, transcription, eukaryotic virus; TRANSCRIPTION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	50.72 Å
回转半径 Rg (电子) rg_electron	50.56 Å
零角强度 I(0) i0	2424420000.00
分子量 molecular_weight	418380.0 kDa
排除体积 excluded_volume	526540 Å³
包络体积 envelope_volume	740870 Å³
水化壳体积 shell_volume	117260 Å³
包络直径 envelope_diameter	184.5 Å
壳层 Rg shell_rg	58.21 Å
包络 Rg envelope_rg	50.03 Å
形状 Rg shape_rg	50.56 Å
总 Rg total_rg	50.79 Å
总原子数 total_atoms	29389
残基数 n_residues	3724
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	176.8 Å
Rg (实空间) rg_real	50.58 Å
Rg 误差 (实空间) rg_real_error	1.32 Å
I(0) (实空间) i0_real	2.4240e+09
I(0) 误差 (实空间) i0_real_error	4.9590e+07
Rg (倒空间) rg_reciprocal	50.82 Å
I(0) (倒空间) i0_reciprocal	2425000000.0000
解质量估计 total_estimate	0.8609
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	62.7 Å
偏度 Skewness skewness	0.259
峰度 Kurtosis kurtosis	-0.272
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	284400000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.737; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.978

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase RPB1 homolog
分子量 formula_weight	163936.1 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	29389

MEAGYAEIAAVQFNIAGDNDHKRQGVMEVTISNLFEGTLPAEGGIYDARMGTTDHHYKCITCSHQRKQCMGHPGILQMHAPVLQPLFIAEIRRWLRVICLNCGAPIVDLKRYEHLIRPKRLIEAASSQTEGKQCYVCKAVHPKIVKDSEDYFTFWVDQQGKIDKLYPQIIREIFSRVTYDTVVKLGRSKNSHPEKLVLKAIQIPPISIRPGIRLGIGSGPQSFHDINNVIQYLVRKNLLIPKDLQIVRGQKIPLNIDRNLQTIQQLYYNFLLDSVSTTATQGGTGKRGIVMGARPAPSIMRRLPRKEGRIRKSLLGSQVWSISRSTICGNSDLHLDEVGYPISFARTLQVAETVQHYNINRLMPYFLNGKRQYPGCSRVYKQITQSVHDIEGLKQDFRLEVGDILYRDVVTGDVAFFNRQPSLERSSIGVHRIVVLENPKISTFQMNVSACAWYNADFDGDQMNLWVPWSVMSRVEAELLCSVRNWFISTKSSGPVNGQVQDSTVGSFLLTRTNTPMGKNVMNKLHAMGLFQTTQTDPPCFANYSPTDLLDGKSVVSMLLKQTPINYQRAPTWYSEVYAPYMHYNKQDISTQIRNGELIEGVLDKKAVGAGSSGGIYHLISRRYGPQQALKMIFATQQLALNYVRNAGFTVSTADMLLTPEAHQEVQEIINKLLLESEEINNRLLHGDIMPPIGLTTHDFYEKLQLNALKFPDRILKPIMNSINPETNGLFQMVATGAKGSNPNMIHIMAGIGQIEINTQRIQPQFSFGRTLVYYPRFALEAQAYGFICNSYIAGLTSPEFIFGEMNGRFDLINKALSTSSTGYANRKAIFGLQSCIVDYYRRVSIDTRLVQQLYGEDGLDARQLETVRFETIMLSDQELEDKFKYTGIQSPLFEEEFSRLKKDRDKYRQIFLNVENFNFSQLLTDVRQVPVNVASIVKNILLSSTSGVLPFDEKSILQKYAMVKTFCKNLPYVFINNIQERLQTPIPVYLKRAAALMRMLIRIELATVKTLNITCEQMSAILDLIRLQYTQSLINYGEAVGILAAQSVSEPLTQYMLDSHHRSVAGGTNKSGIVRPQEIFSAKPVEAEQSSEMLLRLKNPEVETNKTYAQEIANSIELITFERLILQWHLLYETYSSTKKNVMYPDFASDVEWMTDFLENHPLLQPPEDIANWCIRLELNKTTMILKSISLESIINSLRAKHPNTYIMHSVENTASGIPIIIRIYLRESAFRRSTNTRMATDEKIAVNVVDKLLNSTIRGIPGIKNANVVKLMRHRVDAQGKLVRLDNIYAIKTNGTNIFGAMLDDNIDPYTIVSSSIGDTMELYGIEAARQKIISEIRTVMGDKGPNHRHLLMYADLMTRTGQVTSLEKAGLNAREPSNVLLRMALSSPVQVLTDAAVDSAVNPIYGIAAPTLMGSVPRIGTMYSDIIMDEKYITENYKSVDSMIDML

来源 Source

来源生物 organism	African swine fever virus BA71V
NCBI 分类编号 ncbi_taxonomy_id	10498
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	DNA-directed RNA polymerase RPB2 homolog
分子量 formula_weight	140119.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

GMEPLRPQITYGPIETVDNEELTEADMLSFISAAVNSTGLIGYNIKSFDDLMDNGIPQIVKQMFNVDITYKDQRDHTEIDKLRESVQIQFNFTDVNIERPQHRNYSQGNKINLLPNKARLCGLSYSGPVNLAAEVILTAHYSNGRQEVKRASIPPFQVSTFPIMRGSNRCHTHHLSKTAKKEIGEDPNEPGGYFIARGGEWVVDLLENIRFNTLHIHYHTMQQGNNEIIRGEFISQPGGAFENSSQIIIRYMTTGAITIEINSTKFSKLRIPWYLIFRMFGMTGDDSIIEQVVFDLESNSPVNTFMIEILEKSIHVLDPIFQPVQHEPNREKIIQFLSEKVSKFVSNPSAYKSDENAVQYLNERQLTILDKILLPHMGQTADTRVRKLRFLGLLIHKILLVIMNVFPPTDRDSYRTKRVHGSGVSLAKAFKAIFNTSVIAPIINGFKELLKQTAFEELTQRNIIEAFSAALSKNTASDLNRSMEQSIISGNKTIMVRQRPIVNRVSTQSLERKNLLNTISALRTVNTHNTTNASKQTERADMMRRVHASYPGYICVAQSADTGEKVGMSKQLAITANVCTAGEVLSLKQRLLSDPAIQQLADVSNKDIVRKGLARVFINGEWIGCCTNAFELAQRYRMFRREGKIVHPHTTIYWDSMVDEVEFWLDVGRLTRPLLIVDNNIEKYNQACYKAAEARKKGDKDWEKHKIPFIQNTRFTSQMAKDILAGTLTLEDLVAQGICEFITPEEAENCLVAFSIIELRKHKHDVTRRFTHVDVPQAILGLAALVSPYANCTQPARVTYETNQGRQTGGWYCFSWPYRVDMNRFFQFYNEMPLVKTIAHNYVIPNGLNTIVAYMIYGGYNQEDSVIVSQSFIDRGGFAGTFYREEKVELESDIESFGKPDPLITKNLKPGANYEKLVDGFVPVGTVVKKGDIIIGKVAKIRGEKDELNKYIDRSVMYGFDEPAVVDAVMRPHGPNDEIFGLMRLRYERNLNIGDKMSSRSGNKGIAALALPTSDMPFTEDGLQPDLIVNPHSHPSRMTNGQMIETTVGLANALQGVVTDGTAFLPINVQLLSERLAQEGLRFNGCQKMFNGQTGEYFDAAIFIGPTYHQRLQKFVLDDRYAVASYGPTDALTGQPLDGKRSHGGLRLGEMEHWVLTAQGAMQTIIEKSHDDSDGCISYICRNCGEPAIYNASHPIYKCMNCDVQADIGMVDSRRSSIVFQHEMRAANVNITSVLSPRVFQPA

来源 Source

来源生物 organism	African swine fever virus BA71V
NCBI 分类编号 ncbi_taxonomy_id	10498
宿主生物 host_organism	Trichoplusia ni

Entity 3 polymer

描述 description	DNA-directed RNA polymerase RPB3-11 homolog
分子量 formula_weight	41352.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MEKIFQNVEIKPFLIDFSNPFIKNAAKRLFQLEEQLPLVPVNVVMDFKGISRAAVHGLSRVLQDEIPNYMLDIKPGGYKIEDSTDLFMTEQFIRNRINFIPIYAKNETLVFALRSLNNSCEVKTIYSRDLIQVAGPKLKYPIFNPTFEIGFLQPGKSLIIEDIYIKKGIGRKHAAFNLAVKTHFSHLDIEQYPTDKKEYMALSGYKQSSMTSDPRHHRLGLCFPAVPLPHINQAVRTYLKNACRIIIGRIQSIQKIYENFEEPQPELVLFSLDEEKTKAIITIKDETHTIGNLLKTCIYEMIPDISFVGYQCVPHKQEMVLTIIHKASQEDLITLLEKSIQNIIQTFQILEKNVDELIA

来源 Source

来源生物 organism	African swine fever virus BA71V
NCBI 分类编号 ncbi_taxonomy_id	10498
宿主生物 host_organism	Trichoplusia ni

Entity 4 polymer

描述 description	DNA-directed RNA polymerase RPB7 homolog
分子量 formula_weight	38789.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MIDQKIFETTLNIDDPTNFCTNVEAHLLKELENIYVGKCFKNSFILNITGVIQRSPCFIMRTNNSGRGYMHVRFSAVVSYLNAFDLIAAVKIIKNDSNIILGESLLTEPVTIVIPSSESQNNVAEVGQIVPVQLANSSVYYIPGRQQASATGSIFIPKHTFSVYHVQEELTQEQALNLTKLVNIIEMLLESRSKKDFKQICFFEKLYYTYSISSDEILDLKIWKGPKGKEMSRLKPCNVLSFLYDALKNKSSSLGFWARPPNLLKSSPLAYQQDQNSFNATELPIICSAEVMFVTLLKEIINYLQFMNDLCDTFNNEQLIKRHENIWMLIEQRKIGHDF

来源 Source

来源生物 organism	African swine fever virus BA71V
NCBI 分类编号 ncbi_taxonomy_id	10498
宿主生物 host_organism	Trichoplusia ni

Entity 5 polymer

描述 description	DNA-directed RNA polymerase RPB5 homolog
分子量 formula_weight	23693.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MAMQKLFTYIYEFIEYRKMVLLEEKVPYDKFVQMVLNTGFFRINAETLNHGIVSVFIFGANGKYVHHGGDMRTLLTNTLNEKKHYEELILIVDKPVLSKKNILDIIVEQRAANPTIVINIYPYHLFCINIPKVSAIPKHKLITQEEAQEFLGREYLQPQDLMQISASDPPVVWLGGRPGDFVQIERPSETAMHAVVIRFITKSKI

来源 Source

来源生物 organism	African swine fever virus BA71V
NCBI 分类编号 ncbi_taxonomy_id	10498
宿主生物 host_organism	Trichoplusia ni

Entity 6 polymer

描述 description	DNA-directed RNA polymerase RPB6 homolog
分子量 formula_weight	16704.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MADNDNEDIIMDDLVEEYVETEEENFVDSEEESEDKDEIVESPSICEGFVQASSQTLVIIPDNERITSNVLTTFEATRLVAVRAQQLAINGSTMLKKKYSSPIDIAKQELFNRKIPLLVMRCIKVTPEGQKIVEIWNPREMGIPLLD

来源 Source

来源生物 organism	African swine fever virus BA71V
NCBI 分类编号 ncbi_taxonomy_id	10498
宿主生物 host_organism	Trichoplusia ni

Entity 7 polymer

描述 description	Uncharacterized protein C122R
分子量 formula_weight	11831.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MKICKACSSCMVRTYVDGNIIFRCSCGESVQGDSQNLLVSSKVYHTGEMEDKYKIFIKNAPFDPTNCQIKKDCPNCHLDYLTQICIGSQKIIILVCRCGYMSNRG

来源 Source

来源生物 organism	African swine fever virus BA71V
NCBI 分类编号 ncbi_taxonomy_id	10498
宿主生物 host_organism	Trichoplusia ni

Entity 8 polymer

描述 description	DNA-directed RNA polymerase RPB10 homolog
分子量 formula_weight	9098.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MLIPVVCFTCGFPIGTYAAIFDKARTEYIKTKMDGTLPQNIPLDASLQIELKDLITALGIPMRVCCRTHLITTLDYRKYY

来源 Source

来源生物 organism	African swine fever virus BA71V
NCBI 分类编号 ncbi_taxonomy_id	10498
宿主生物 host_organism	Trichoplusia ni

Entity 9 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 10 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.69 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	467000

fit	/app/data/saxs_computation/q3/8q3b/8q3b.fit
pddf	/app/data/pr_computation/q3/8q3b/8q3b.pr.out
profile	/app/data/saxs_computation/q3/8q3b/8q3b.dat
