8q6p

X. laevis CMG dimer bound to dimeric DONSON - MCM ATPase

Method: ELECTRON MICROSCOPY D_max: 141.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

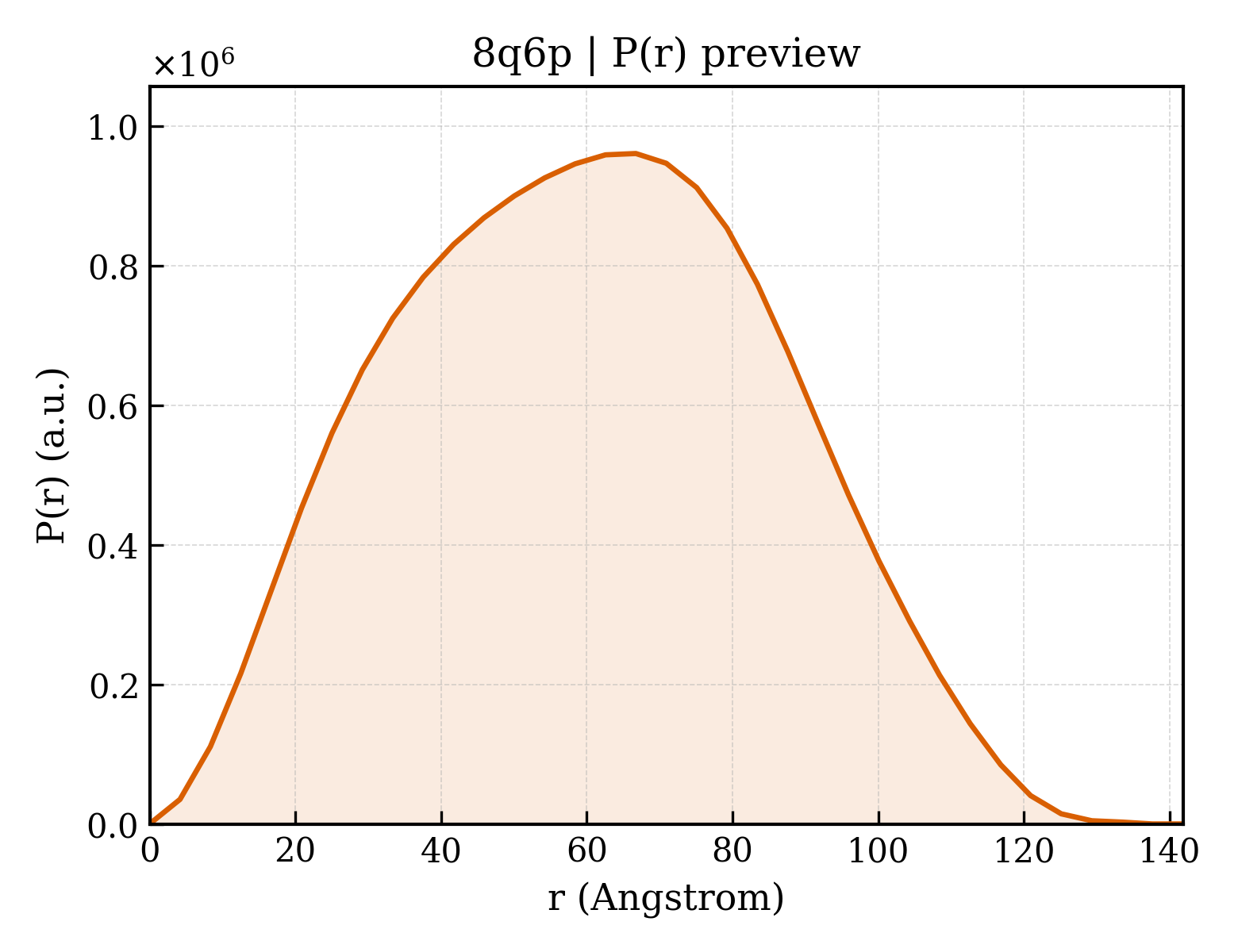

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8q6p
沉积日期 deposition_date	2023-08-14
结构标题 title	X. laevis CMG dimer bound to dimeric DONSON - MCM ATPase
关键词 keywords	DNA replication initiation, Xenopus egg extract, primordial dwarfism, replicative helicase, genome stability, REPLICATION; REPLICATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.44 Å
回转半径 Rg (电子) rg_electron	46.12 Å
零角强度 I(0) i0	872443000.00
分子量 molecular_weight	239890.0 kDa
排除体积 excluded_volume	298940 Å³
包络体积 envelope_volume	450880 Å³
水化壳体积 shell_volume	79519 Å³
包络直径 envelope_diameter	146.0 Å
壳层 Rg shell_rg	53.14 Å
包络 Rg envelope_rg	44.20 Å
形状 Rg shape_rg	46.16 Å
总 Rg total_rg	46.26 Å
总原子数 total_atoms	16794
残基数 n_residues	2104
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	141.8 Å
Rg (实空间) rg_real	46.20 Å
Rg 误差 (实空间) rg_real_error	0.96 Å
I(0) (实空间) i0_real	8.7240e+08
I(0) 误差 (实空间) i0_real_error	1.5520e+07
Rg (倒空间) rg_reciprocal	46.44 Å
I(0) (倒空间) i0_reciprocal	872700000.0000
解质量估计 total_estimate	0.8954
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	66.7 Å
偏度 Skewness skewness	0.065
峰度 Kurtosis kurtosis	-0.697
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	154800000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.740

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	DNA replication licensing factor mcm2
分子量 formula_weight	100397.6 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2
原子数 atom_count	16794

MADSSESFNIATSPRAGSRRDALTSSPGRDLPPFEDESEGMFGDGVVPEEEEDGEELIGDAMERDYRPISELDRYEVEGLDDEEDVEDLTASQREAAEQSMRMRDREMGRELGRMRRGLLYDSDEEEEDRPARKRRMAERAAEGAPEEDEEMIESIENLEDMKGHTVREWVSMAATRLEIYHRFKNFLRTHVDEHGHNVFKEKISDMCKENKESLPVNYEDLAAREHVLAYFLPEAPAEMLKIFDEAAKEVVLVMYPKYDRIAREIHVRISHLPLVEELRSLRQLHLNQLIRTSGVVTCCTGVLPQLSMVKYNCNKCNFILGPFFQSQNQEVRPGSCPECQSFGPFEINMEETVYQNYQRITIQESPGKVAAGRLPRSKDAILLADLVDSCKPGDEIELTGIYHNNYDGSLNTANGFPVFATVILANHITKKDDKVAVGELTDEDVKAIVALSKDERIGERIFASIAPSIYGHEDIKRGLALALFGGEAKNPGGKHKVRGDINVLLCGDPGTAKSQFLKYVEKVASRAVFTTGQGASAVGLTAYVQRHPVTKEWTLEAGALVLADRGVCLIDEFDKMNDQDRTSIHEAMEQQSISISKAGIVTSLQARCTVIAASNPIGGRYDPSLTFSENVDLTEPIVSRFDILCVVRDTVDPVQDEMLARFVVSSHIKHHPSSKDIANGDAAEFALPNTFGVEALPQEVLKKYIMYAKEKIRPKLNQMDQDKVAKMYSDLRKESMATGSIPITVRHIESMIRMAEAHARMHLRDYVVEDDVNMAIRVMLESFIDTQKFSVMRSMRKTFARYLAFRRDNNELLLFVLKQLIAEQVTYQRNRYGAQQDTIEVPEKDLVDKARQINIHNLSAFYDSDLFKMNKFTHDVKKKLIIQQF

Entity 2 polymer

描述 description	Maternal DNA replication licensing factor mcm3
分子量 formula_weight	90536.5 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MDYGGGFEDHELREAQREYLDFLDDDQDQGLYHGKVRDMIGSNEHRLIVNLNDVRRKNDKRANLMLNDAFAETIAFQRALKDLVASIDATYAKQFEEFSVGFEGSFGSKHVSPRTLTASLLGSLVCVEGIVTKCSLVRPKVMRSVHYCPATKKTLERKYSDLTSLEAFPSSSIYPTKDEENNPLETEYGLSTYKDHQTLSIQEMPEKAPAGQLPRSVDIIADDDLVDKCKPGDRVQIVGIYRCLPSKQGGFTSGTFRTILLANNIKLMSKEIAPTFSADDVAKIKKFCKAHSKDIFEHLSKSLAPSIHGHEYIKKAILCMLLGGNEKVLENGTRIRGDINVLLIGDPSVAKSQLLRYVLHTAPRAIPTTGRGSSGVGLTAAVTTDQETGERRLEAGAMVLADRGVVCIDEFDKMSDMDRTAIHEVMEQGRVTIAKAGIQARLNARCSVLAAANPVYGRYDQYRTPMENIGLQDSLLSRFDLLFIVLDKMDADNDQEIADHVLRMHRYRTPGEQDGYALPLGCSVEIFATDDPNASDVTDQELQIYEKHDNLLHGPRKNKSKIVSMQFIRKYIHVAKLIKPVLTSEAADYISQEYAKIRNHDQINNDSARTMPVTARALETMIRLSTAHAKVRMSKTIERQDAETALELVQFAYFKKVLAKEKKKTDKDLHDENLSQDTLSQESVRKSSRRAGKIADSQDDSMDPYSFSEQDSSLNENLSQSLRPQRKKAESQDGKRSLSQNRTKEFKAALLKAFKSSRSQSVAVSQLLELINKGNPEPFERSEVKEALDNMQNDNQVMVSEDVVFLI

Entity 3 polymer

描述 description	DNA replication licensing factor mcm4-B
分子量 formula_weight	97256.3 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MSSPTSTPSRRRNKRGRGSNPPTPHGEEVQSPPSQRRRTEDSTSIGELLPMPTSPSGDVQSPSGQELLFSSPAPSRHSAHQSELDLSSPLTYGTPSSRVEGTPRSGIRGTPARQRPDLGSARKVKQVDLHSDQPAAEELVTSEQSLGQKLVIWGTDVNVATCKEKFQRFVQRFIDPSAKEEDNVGLDLNEPIYMQRLEEINVVGDPFLNIDCDHLRNFDQDLYRQLVCYPQEVIPTFDMAANEIFFERYPDSILEHQIQVRPYNALKTRNMRSLNPEDIDQLITISGMVIRTSQIIPEMQEAFFKCQVCAFTTRVEIDRGRIAEPSVCKHCNTTHSMALIHNRSMFSDKQMIKLQESPEDMPAGQTPHTTILYGHNDLVDKVQPGDRVNVTGIYRAVPIRVNPRVRNVKSVYKTHIDVIHYRKTDSKRLHGIDEDTEQKLFTEERVAMLKELAAKPDIYERLAAALAPSIYEHEDIKKGILLQLFGGTRKDFSHTGRGKFRAEVNILLCGDPGTSKSQLLQYVFNLVPRGQYTSGKGSSAVGLTAYVMKDPETRQLVLQTGALVLSDNGICCIDEFDKMNESTRSVLHEVMEQQTLSIAKAGIICQLNARTSVLAAANPVESQWNPKKTTIENIQLPHTLLSRFDLIFLMLDPQDEAYDRRLAHHLVALYYQSEEQMKEEHLDMAVLKDYIAYARTYVNPRLSEEASQALIEAYVSMRKIGSGRGMVSAYPRQLESLIRLSEAHAKVRFSNKVETIDVEEAKRLHREALKQSATDPRTGIVDISILTTGMSATARKRKEELAQVLKKLIQSKGKTPALKYQQLFEDLRGQSDAAITKDMFDEALHALADDDYLTVTGKTVRLL

Entity 4 polymer

描述 description	DNA replication licensing factor mcm5-A
分子量 formula_weight	82556.4 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5

MSGFDDLGVYYSDSFGGEQQVGDDGQAKKSQLKKRFREFLRQYRIGTDRTGFTFKYRDELKRHYNLGEYWIEVEMEDLASFDEDLADYLYKQPTEHLQLLEEAAQEVADEVTRPRPAGEETIQEIQVMLRSDANPANIRSLKSEQMSHLVKIPGIIIAATAVRAKATKISIQCRSCRNTIGNIAVRPGLEGYAMPRKCNTEQAGRPNCPLDPYFIIPDKCKCVDFQTLKLQESPDAVPHGELPRHMQLYCDRYLCDKVVPGNRVTIMGIYSIRKSGKTSTKGRDRVGVGIRSSYIRVVGIQVDTEGTGRSAAGAITPQEEEEFRRLAAKPDIYETVAKSIAPSIYGSSDIKKAIACLLFGGSRKRLPDGLTRRGDVNLLMLGDPGTAKSQLLKFVERCSPIGVYTSGKGSSAAGLTASVMRDPVSRNFIMEGGAMVLADGGVVCIDEFDKMREDDRVAIHEAMEQQTISIAKAGITTTLNSRCSVLAAANSVYGRWDDTKGEENIDFMPTILSRFDMIFIVKDEHNEQRDMTLAKHVMNVHLSARTQSSSVEGEVDLNTLKKYIAYCRAKCGPRLSAEAAEKLKNRYILMRSGAREHERETEKRSSIPITVRQLEAIVRISESLGKMKLQPFATETDVEEALRLFQVSTLDAAMSGSLSGVEGFTTQEDQEMLSRIEKQMKKRFAIGSQVSEHSIIQDFLKQKYPEHAIHKVLSLMMRRGEIQHRLQRKVLYRIK

Entity 5 polymer

描述 description	Maternal DNA replication licensing factor mcm6
分子量 formula_weight	92753.0 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MELGGPAAAGDTDIAGQQLFKDELSDKCQKLFLEFLEECKGKDGSNLYVSAAEELIRPERNTLAVNFTDIEYYNQQLATTIQEEYYRVYPHLCRAVRSFARQMGNIPANKEFYIAFSDFPARQKIRELSSAKIGTLLRISGQVVRTHPVHPELVSGTFLCMDCQSIVKDVEQQFRYTQPTICKNPVCANRRRFTLDTNKSRFVDFQKVRIQETQAELPRGAIPRSVEIILRAEAVESAMAGDRCDFTGTLIVVPDVSALAAGDARMETGAKVTGGEGFNSEGVQGLKALGVRDLSYRLAFLACYVGATNPRFGGKDLREEDQTAESIKNQMTVQEWEKVFEMSQDKNLYHNLCTSLFPTIHGNDEIKRGVLLMLFGGVPKTTMEGTSLRGDINVCIVGDPSTSKSQFLKHVEEFSPRAVYTSGKASSAAGLTAAVVKDEESHEFVIEAGALMLADNGVCCIDEFDKMDLKDQVAIHEAMEQQTISITKAGVKATLNARTSILAAANPVGGRYERSKSLKHNVNLSAPIMSRFDLFFILVDECNEVTDYAIARRIVDLHARNEESIERVYSIEDIQRYLLFARQFQPKITKEAEEFIVEQYRRLRQRDGSGVAKSSWRITVRQLESLIRLSESMARMHCSDEVQPKHVKEAFRLLSKSIIRVDTPDVSFDQGEDEKNIEGENNGNLNNGEEAMETNQDEPINEKPSSNAGLKMSFAEYKQISNLLVLYMQKMEETEEECHLTTTDLVNWYLKEMEAEIETETELILKKRLIEKVIHRLIYYDHILIELNKSELKTMDDTKETGEDAAEDRILVVNPNYMLED

Entity 6 polymer

描述 description	DNA replication licensing factor mcm7-B
分子量 formula_weight	81841.5 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MPRDYQAEKEKCKTFLQEFYKDDEFGKKNFKYGVQLANIAHREQVALCIDLDDLAEEDPELVDAICENTRRYTNLFADAVQELLPQYKEREVVHKDALDVYIEHRLMMEQRGRDPNEMRDPHNQYPPELMRRFELYFKAPSSSKARVVRDVKADSIGKLVTVRGIVTRVTEVKPMMVVATYTCDQCGAETYQPIQSPTFMPLIMCPSRECQTNRSGGRLYLQTRGSKFIKFQELKIQEHSDQVPVGNIPRCMSVYVRGENTRLAQPGDHVGITGVFLPMLRTGFRQVVQGLLSETYLESHRLVKMNKTEDDELGTEELSEEELRQITEEDFYEKLAASIAPEIYGHEDVKKALLLLLVGGVDHSPRGMKIRGNINVCLMGDPGVAKSQLLSYIDRLAPRSQYTTGRGSSGVGLTAAVMKDPVTGEMTLEGGALVLADQGVCCIDEFDKMMDSDRTAIHEVMEQQTISIAKAGIMTTLNARCSILAAANPAYGRYNPKKTVEQNIQLPAALLSRFDLLWLIQDKPDRDNDLRLAQHITYVHQHSKQPPSQFQPMDMKLMRRYITMCKSKQPAIPESLADYLTAAYVEMRKEARTNKDMTFTSARTLLSILRLSTALARLRLEDVVEKEDVNEAMRLTEMSKDSLQGDKGHASRTQRPADVIFSTIREMVPEKGARSVKYSEAEQRCVSKGFTPAQFEAALEEYEELNVWLVNQARTKITFV

Entity 7 polymer

描述 description	Protein downstream neighbor of son homolog
分子量 formula_weight	63864.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MAELLPGYSPSFKKPSEILRLSRRRSRSEASKTGLSPFSPGDVIKRVPGLRPFSPGPNKGAGVKRRNPFASLENTVCSPVKRRAETVAEYGAASLEPRALSAVRPSCLGQDSPEPPQFNSVEDVIWGDPLAADADPLVKTESPEKPAPACEIPKGSVTFPADWSLKTRLLFTSSHSFSWADHLKAQEEAQGLVMQCRATAVNLPHSIQEPKLSTDLRCAFQQSLVHWIHPSLPWVQLFPRIGVDRKMAGKNTPWSQDESLQQVLMSEWALSFTSLYNLLKAKLCPYFYVCTYQFTVLFRAAGLAGSDVITAVMSPTTRGLREAMKNEGITFSQPLVEDDTGKKQKKPEAASQGDINPEKENGTAEADEASDESDEDESFSWLEEMGVEDKIKKPDSISIKLRKEKNEVKLDHKPESVVLVKGTNTFTLLNFLINCKSIVAAAGLQAGLPPTLLSPVAFRGATMHALKARSVNVKTRVNSGYKDQFSLEITGPIMPHSLHSLTMLLQSAQRGSFSAGLYTHEPTAVFNTPIHSQAVKEISADLQNCGLHPCTVEQLTQVNELGKLSLRHLEMTDYRYTWK

Entity 8 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.53 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	144989

fit	/app/data/saxs_computation/q6/8q6p/8q6p.fit
pddf	/app/data/pr_computation/q6/8q6p/8q6p.pr.out
profile	/app/data/saxs_computation/q6/8q6p/8q6p.dat
