8qai

;X-ray crystal structure of a de novo designed single-chain parallel coiled-coil alpha-helical barrel with 7 inner helices, sc-CC-7-LI ;

Method: X-RAY DIFFRACTION D_max: 87.9 Å Quality: GOOD

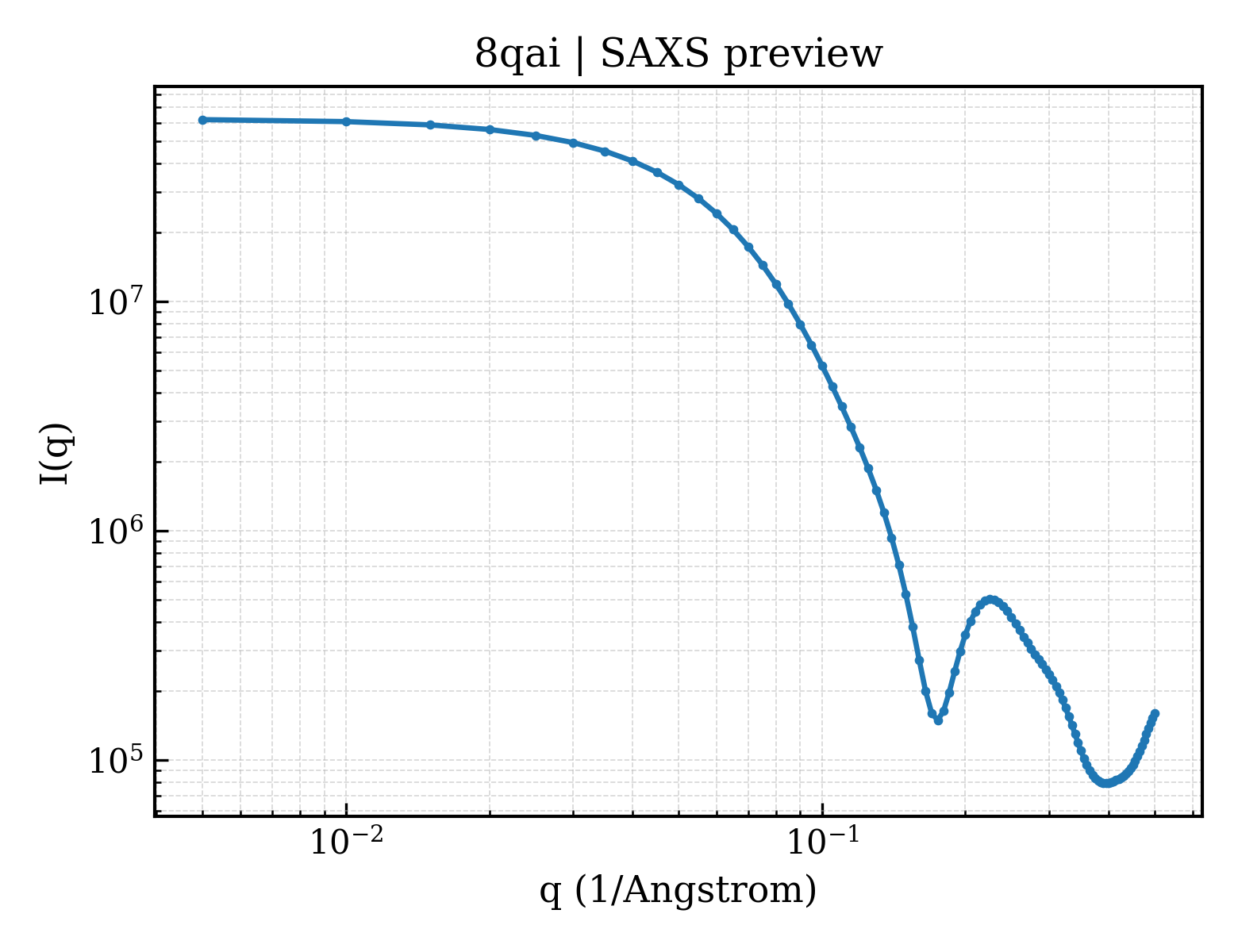

SAXS 散射曲线 SAXS Profile

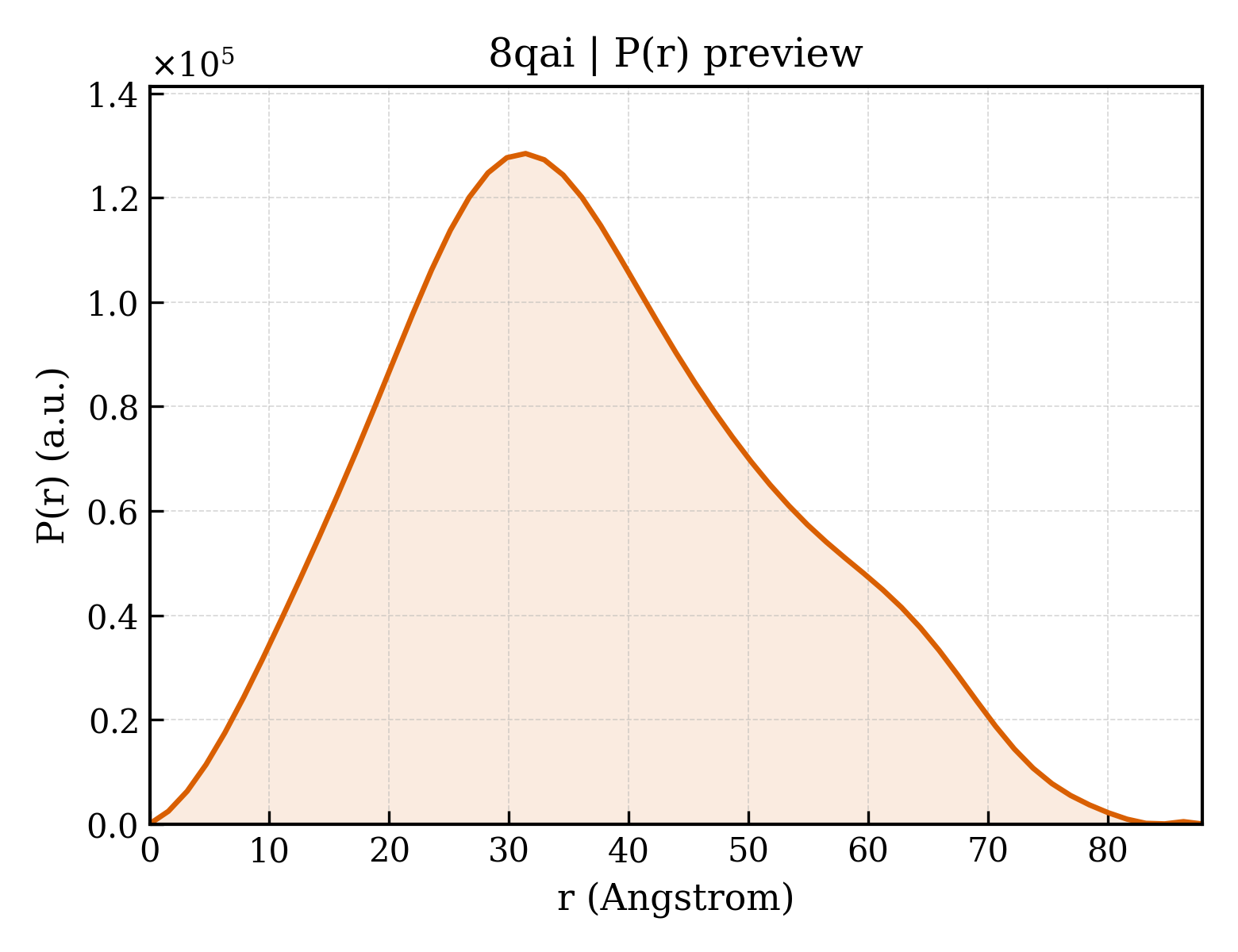

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8qai
沉积日期 deposition_date	2023-08-22
结构标题 title	;X-ray crystal structure of a de novo designed single-chain parallel coiled-coil alpha-helical barrel with 7 inner helices, sc-CC-7-LI ;
关键词 keywords	coiled coil, alpha-helical barrel, de novo protein design, DE NOVO PROTEIN; DE NOVO PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.12 Å
回转半径 Rg (电子) rg_electron	26.91 Å
零角强度 I(0) i0	62284500.00
分子量 molecular_weight	68310.0 kDa
排除体积 excluded_volume	88603 Å³
包络体积 envelope_volume	106290 Å³
水化壳体积 shell_volume	33097 Å³
包络直径 envelope_diameter	88.4 Å
壳层 Rg shell_rg	34.37 Å
包络 Rg envelope_rg	26.65 Å
形状 Rg shape_rg	26.92 Å
总 Rg total_rg	27.72 Å
总原子数 total_atoms	4834
残基数 n_residues	728
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	87.9 Å
Rg (实空间) rg_real	28.09 Å
Rg 误差 (实空间) rg_real_error	0.61 Å
I(0) (实空间) i0_real	6.2280e+07
I(0) 误差 (实空间) i0_real_error	7.7620e+05
Rg (倒空间) rg_reciprocal	28.11 Å
I(0) (倒空间) i0_reciprocal	62290000.0000
解质量估计 total_estimate	0.8897
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.4 Å
偏度 Skewness skewness	0.323
峰度 Kurtosis kurtosis	-0.472
角度范围 angular_range	— – 0.2800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15050000.0000
实空间数据点数 n_real_points	57
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.907

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	sc-CC-7-LI
分子量 formula_weight	39430.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4857

GSHMLIAEALELIAEALFAIALALLAIAKKDKELAKKAVELAEKVYKEAEELYKKAKKKGDLIAAALALIAQALAAIALALAAIALKDKELAKKAYKLAEEVYKKAEKLYEEAKKKGDLIAAALALIAQALALIALALAAIALGDKEKLKEVIEKAKEVYKKAEELYKEAEKKGDLIAAALALIAQALALIAIALAAIALGDEETLKEVKEKAKEVYEKAKKVAEEAEKKGDLIAAALALIAQALALIAIALAAIALGDEEELKKVIEEAKKVYEEAKKIYEEAKKKGDLIAAALALIAQALALIAIALAAIALGDEETLEEARKEAEEVKKEAEELAKEAEQKGNEIAAALAEIAIALAEIAIALVEIAKK

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	23

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	48.207 Å
晶胞边长 b length_b	54.025 Å
晶胞边长 c length_c	74.930 Å
晶胞夹角 α angle_alpha	99.40 °
晶胞夹角 β angle_beta	100.94 °
晶胞夹角 γ angle_gamma	105.33 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	30.630 Å
R 因子 r_factor	0.2015
R_work r_work	0.1990
R_free r_free	0.2368
